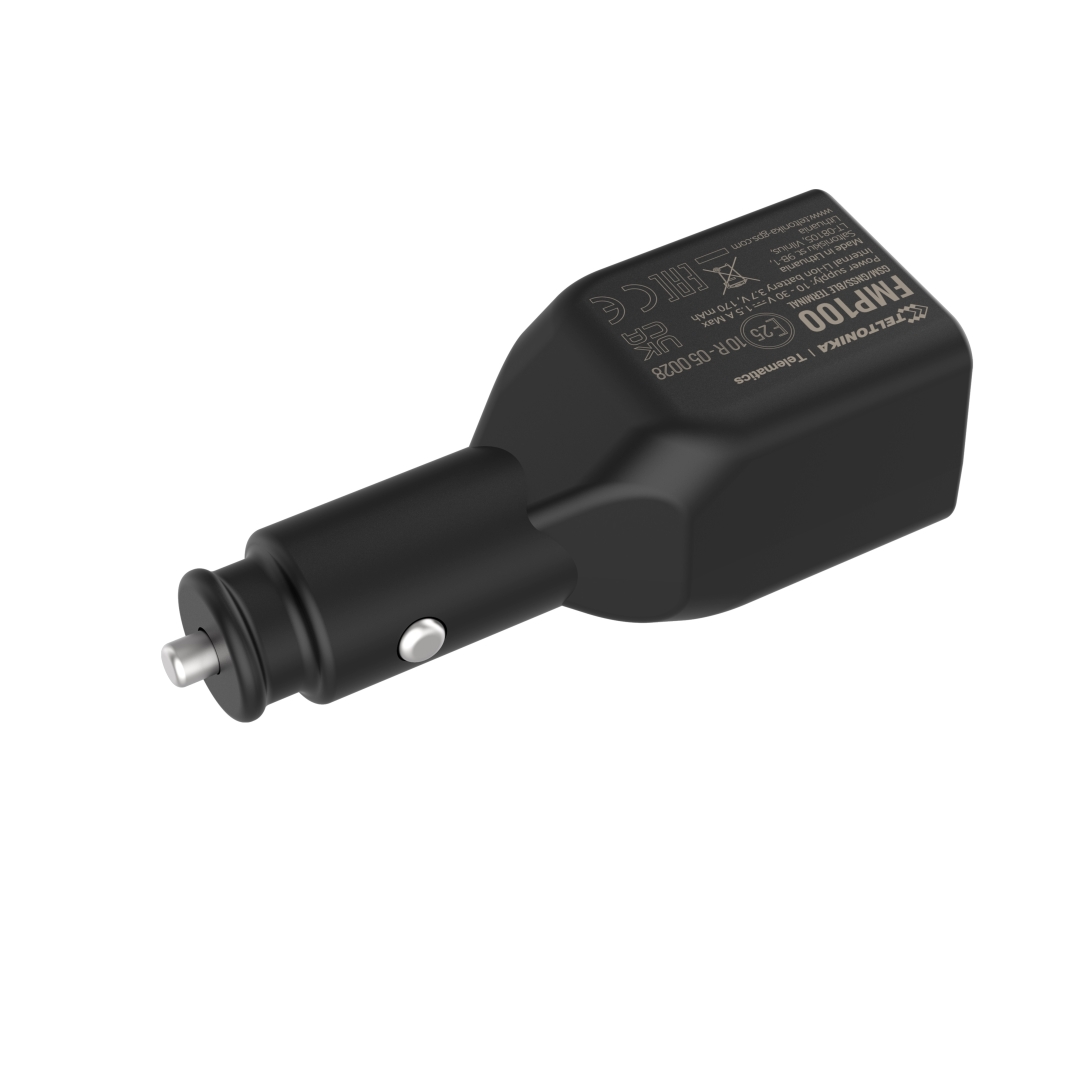

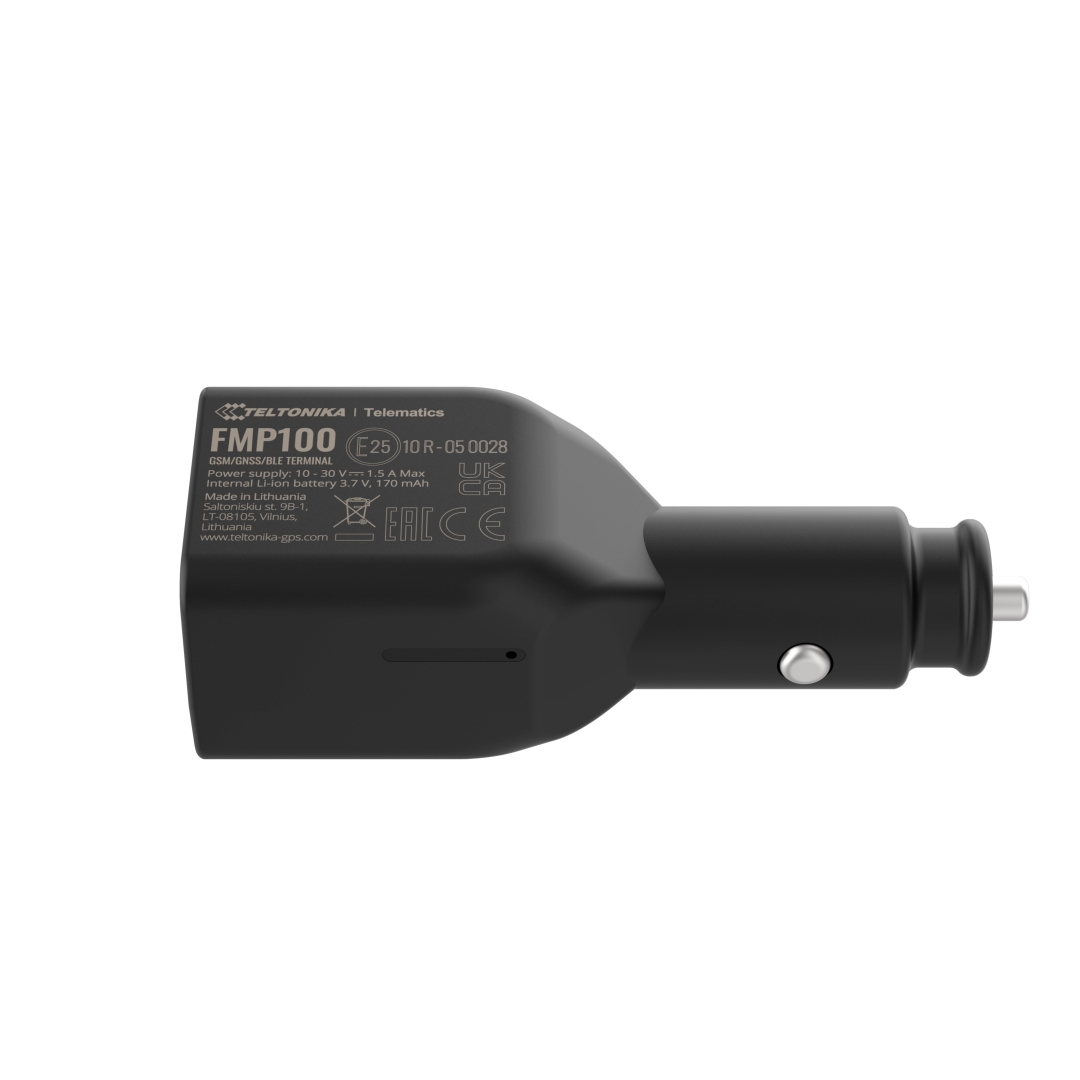

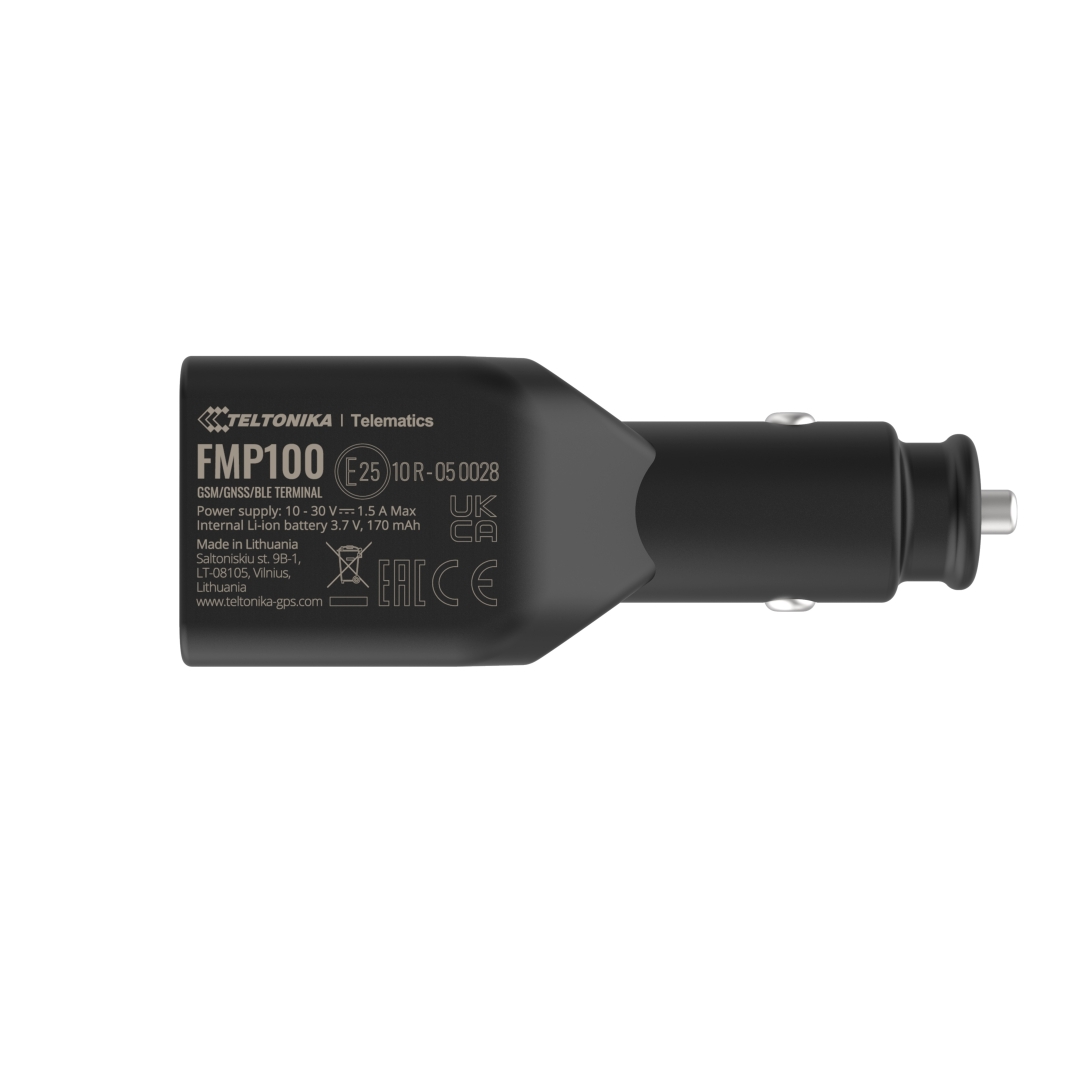

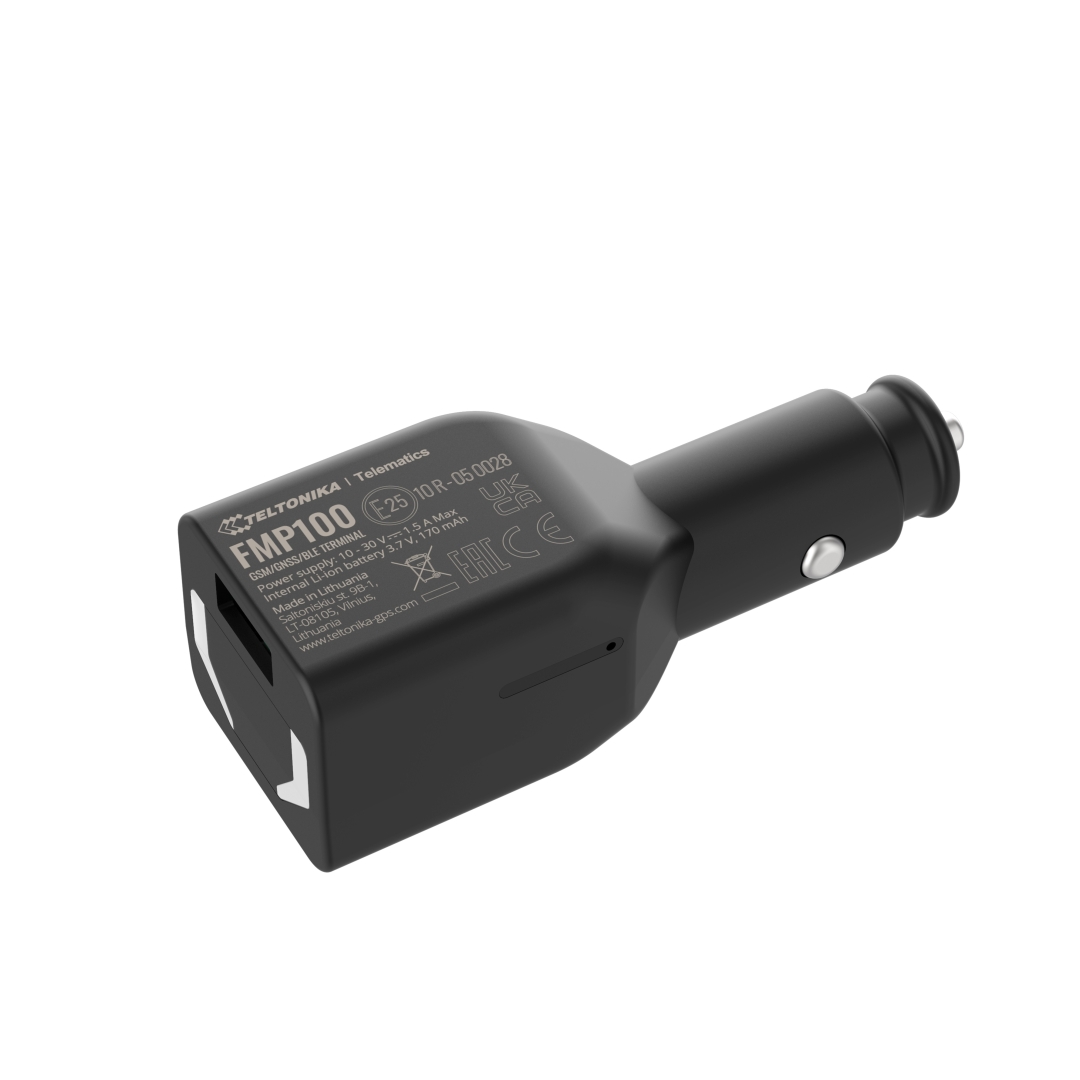

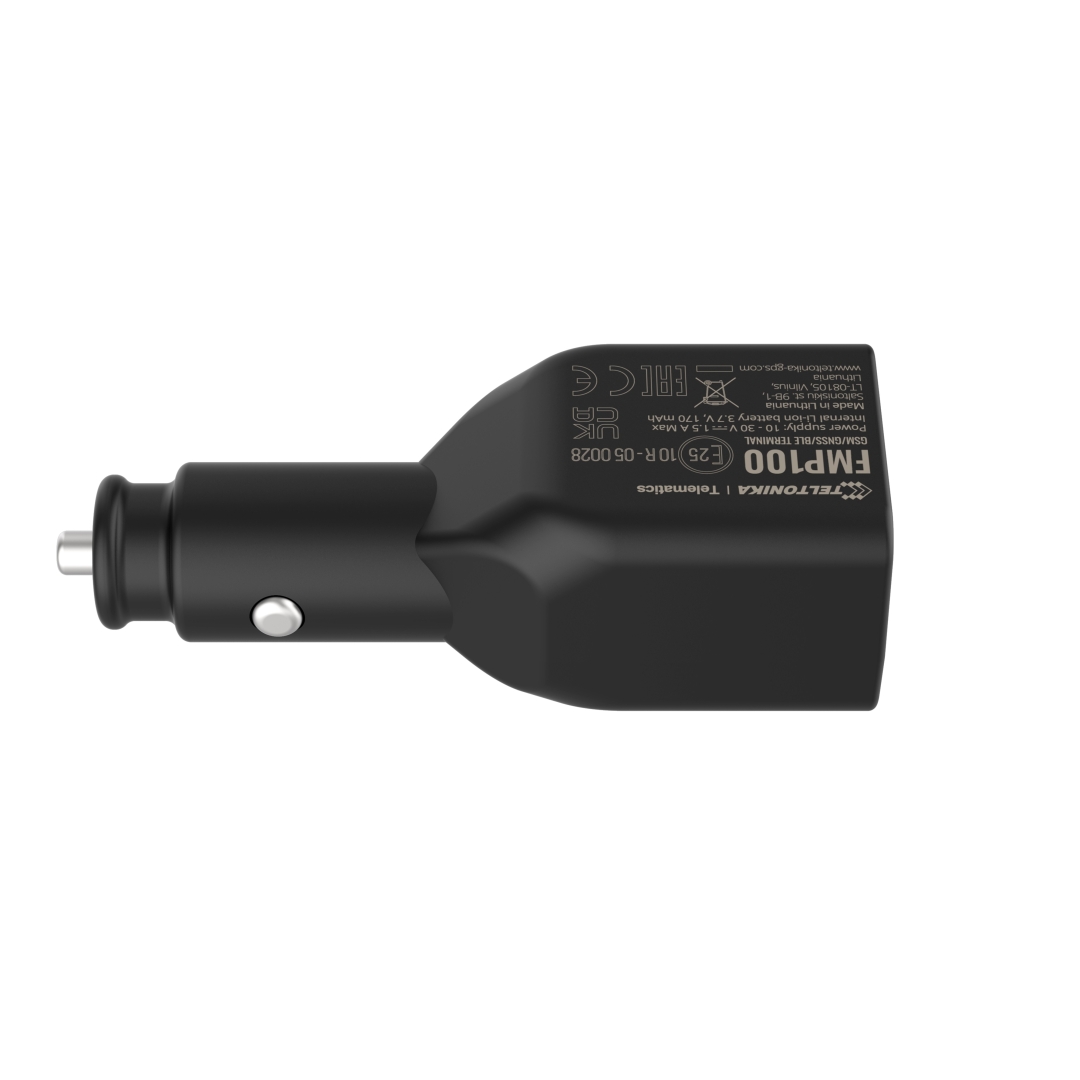

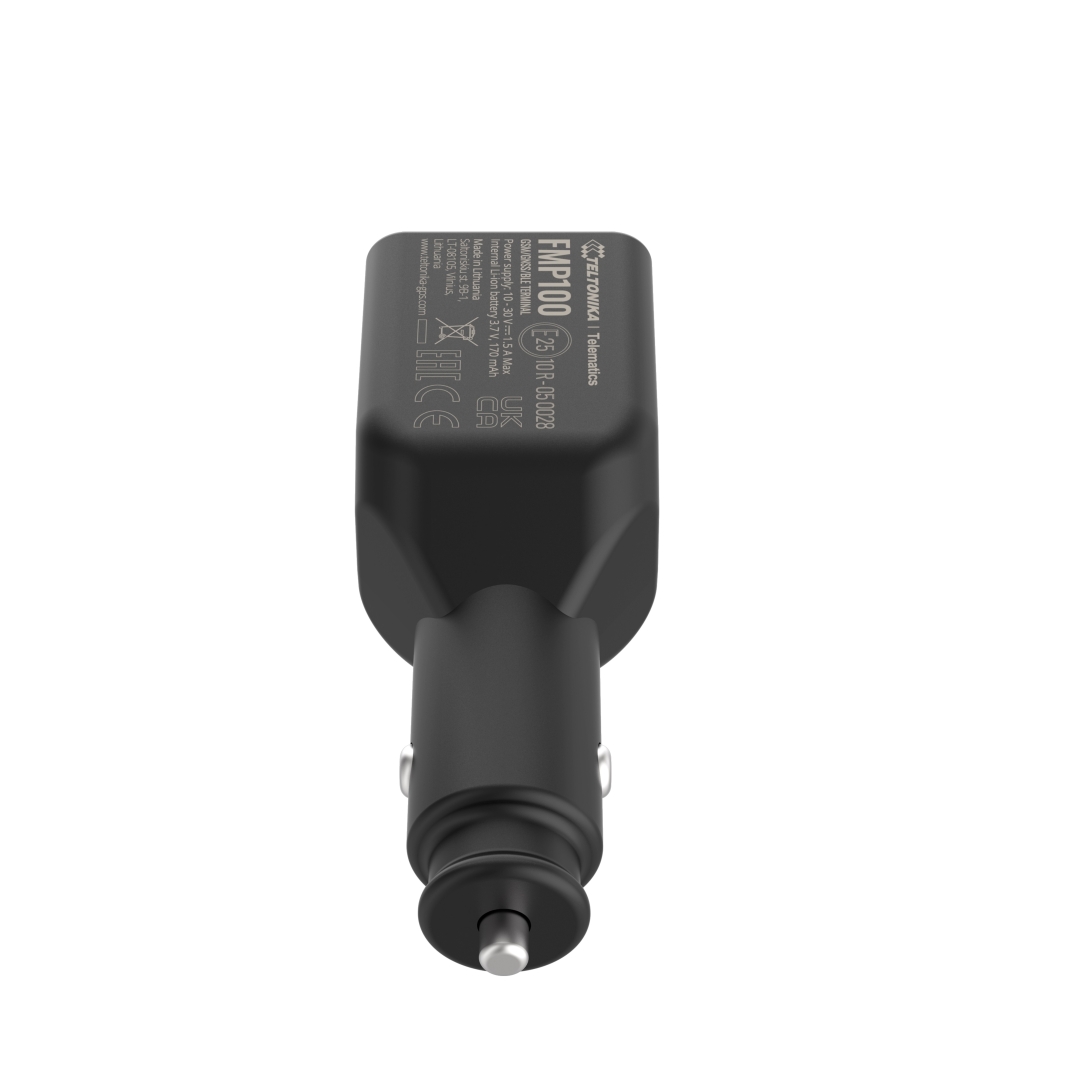

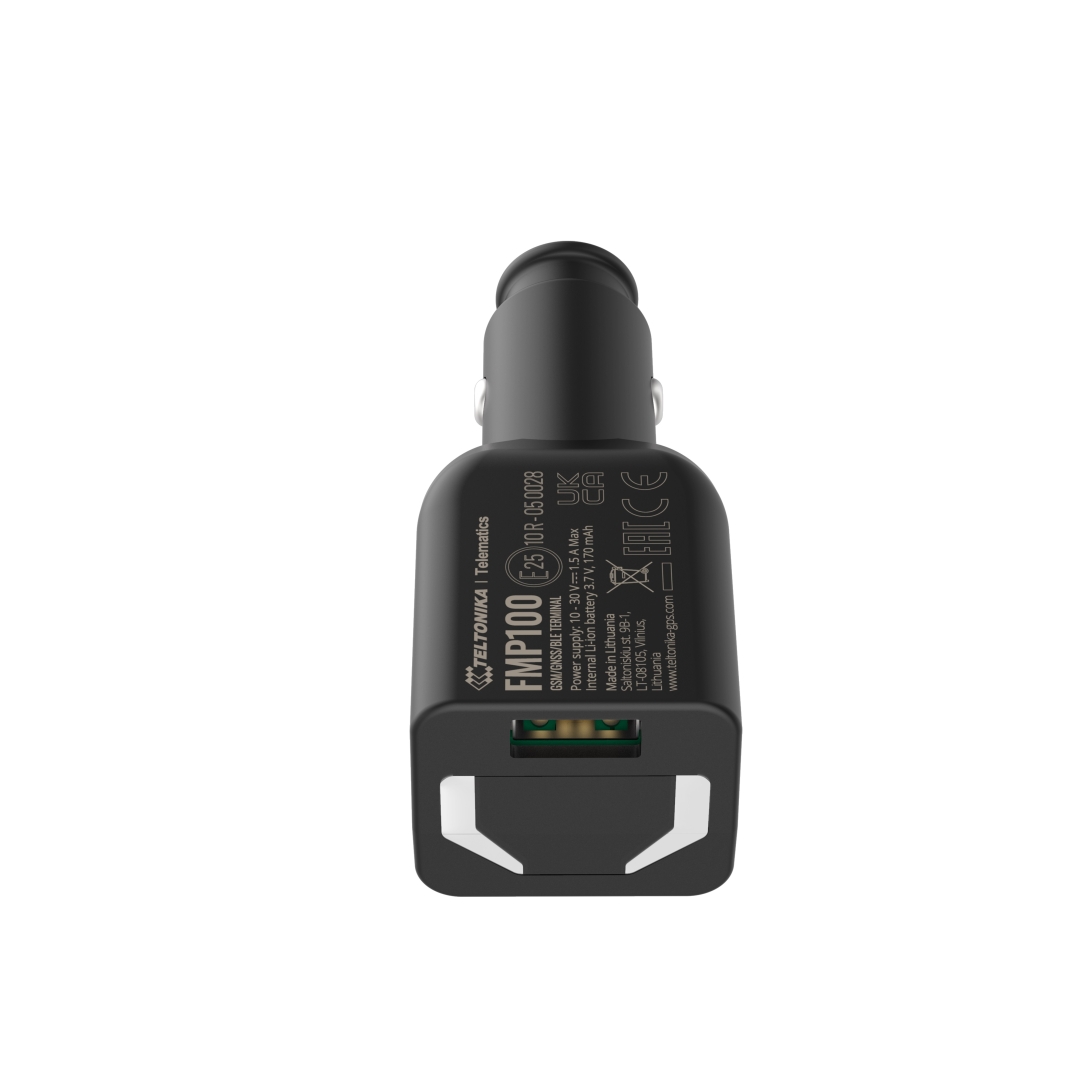

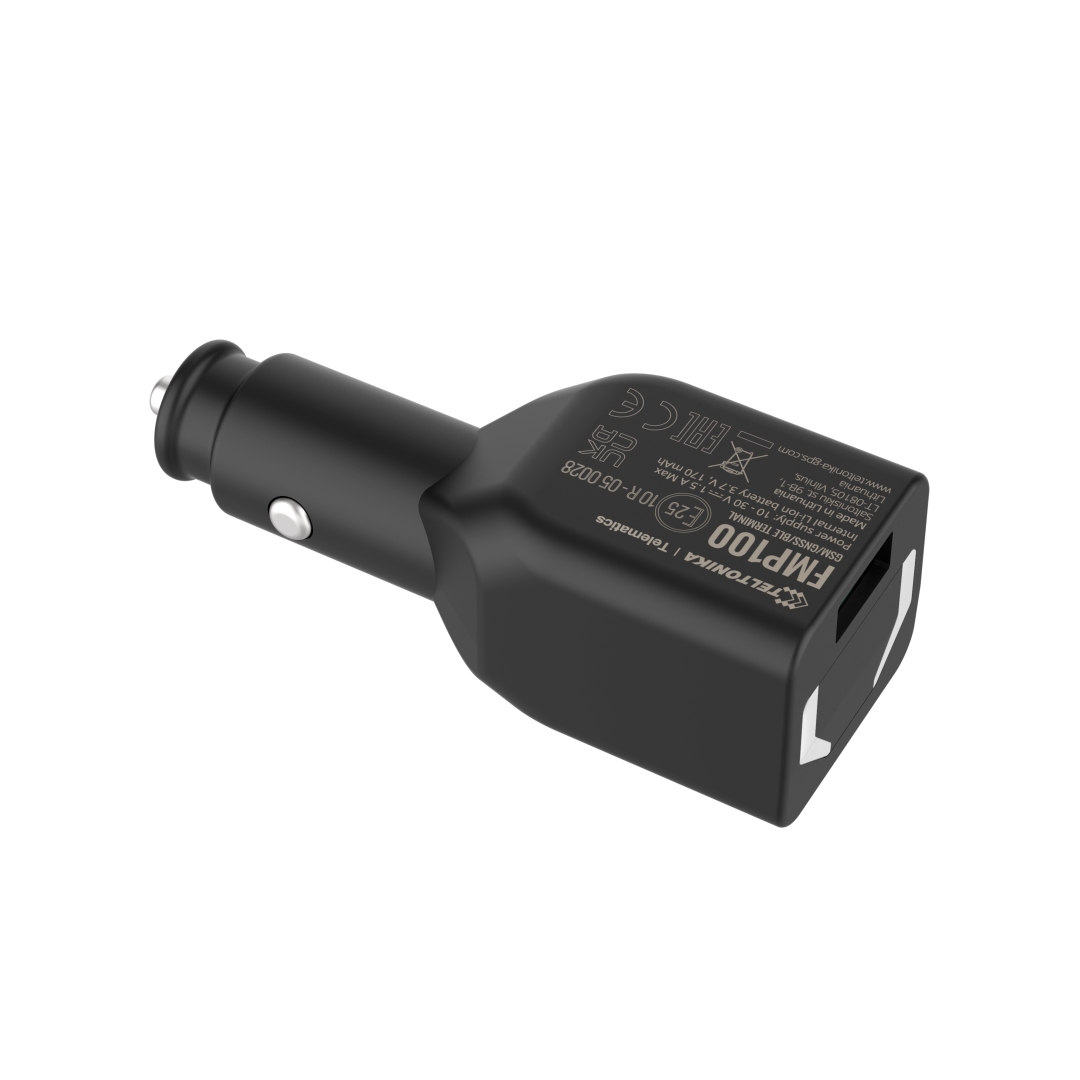

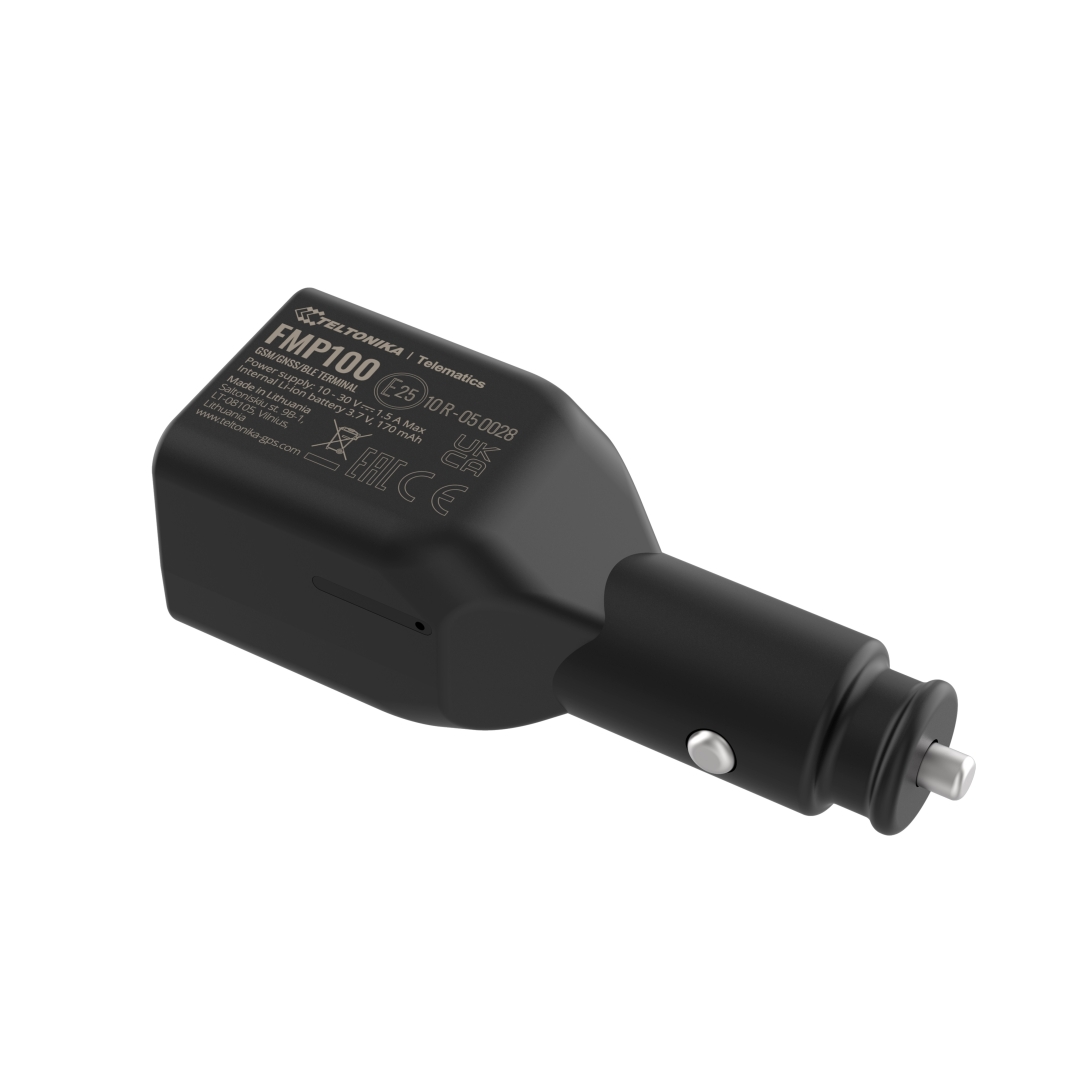

TELTONIKA Plug and Play tracker with GNSS, GSM and Bluetooth (FMP100)

OEM kodas: FMP100UEC301
Kodas: FMP100
ID: #3059

Plug and Play tracker with GNSS, GSM and Bluetooth connectivity and cigarette lighter power connector for easy installation

naujiena

48.28€ su PVM

Kaina be PVM: 39.90€

Kiekis:


Produkto savybės:

FMP100 is Plug and Play tracker with GNSS, GSM and Bluetooth connectivity and cigarette lighter power connector for easy installation. It is ideal for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other applications, where simple integration is a must. Bluetooth 4.0 LE allows this small device to have capabilities of an advanced tracker: various data reading from Bluetooth Low Energy sensors, hands-free headset usage, firmware and configuration update

Produkto specifikacijos:

MODULE
Name Teltonika TM2500
Technology GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 2.5m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12(up to 240 kbps)
Data support SMS (text/data)
POWER
Supply voltage range 10 - 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Hands-free headset, Inateck Barcode Scanner, Universal BLE sensors support
INTERFACE
Connection Cigarette lighter socket
GNSS antenna Internal High Gain
GSM antenna Internal GSM High Gain
USB 1 x USB 2.0 Micro-USB for configuration
1 x USB type A for external device charging (5V 1A)
LED indication RGB LED
SIM Nano-SIM
Memory 128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions 96,7 x 33,4 x 27,5 mm (L x W x H)
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Ignition detection Accelerometer, External Power Voltage
