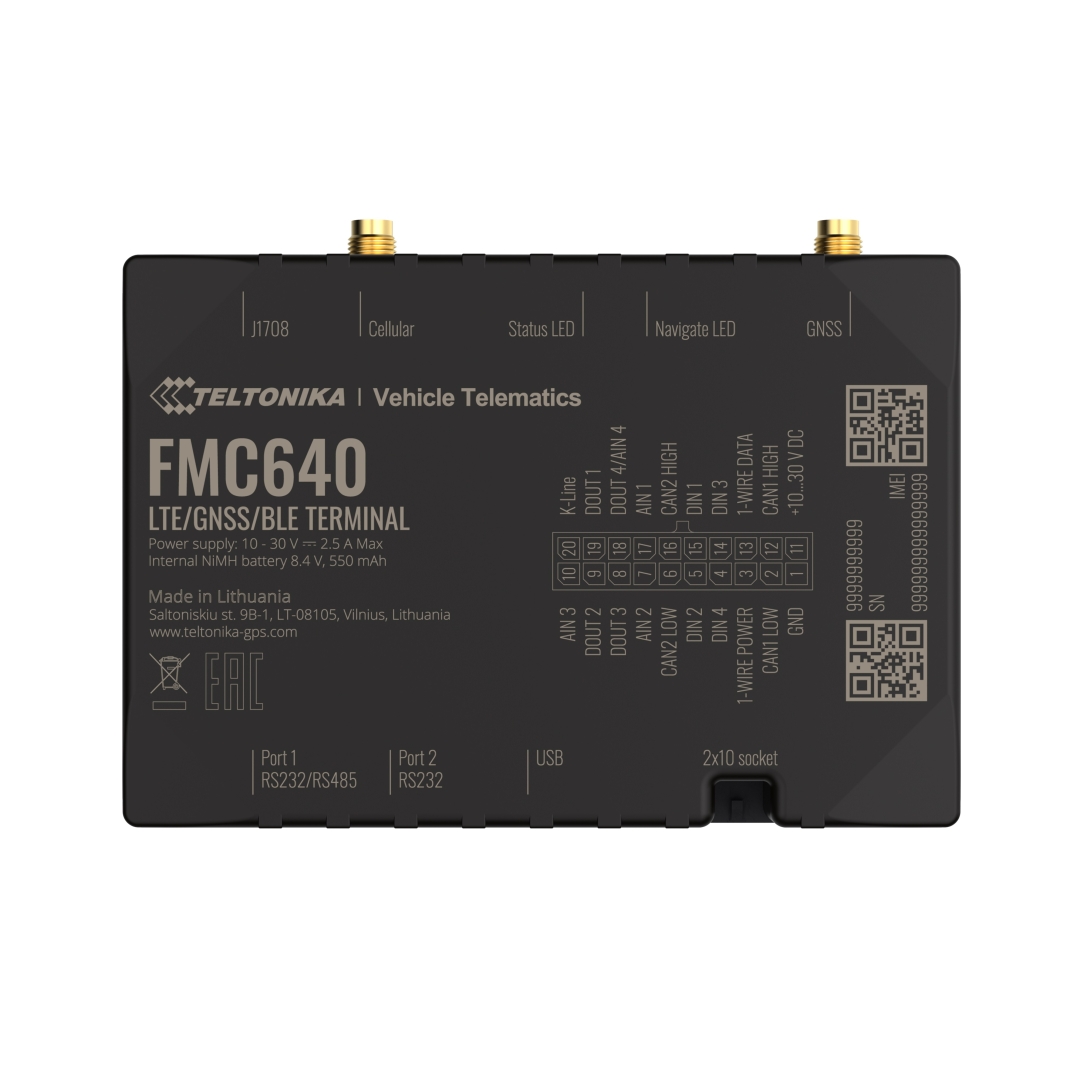

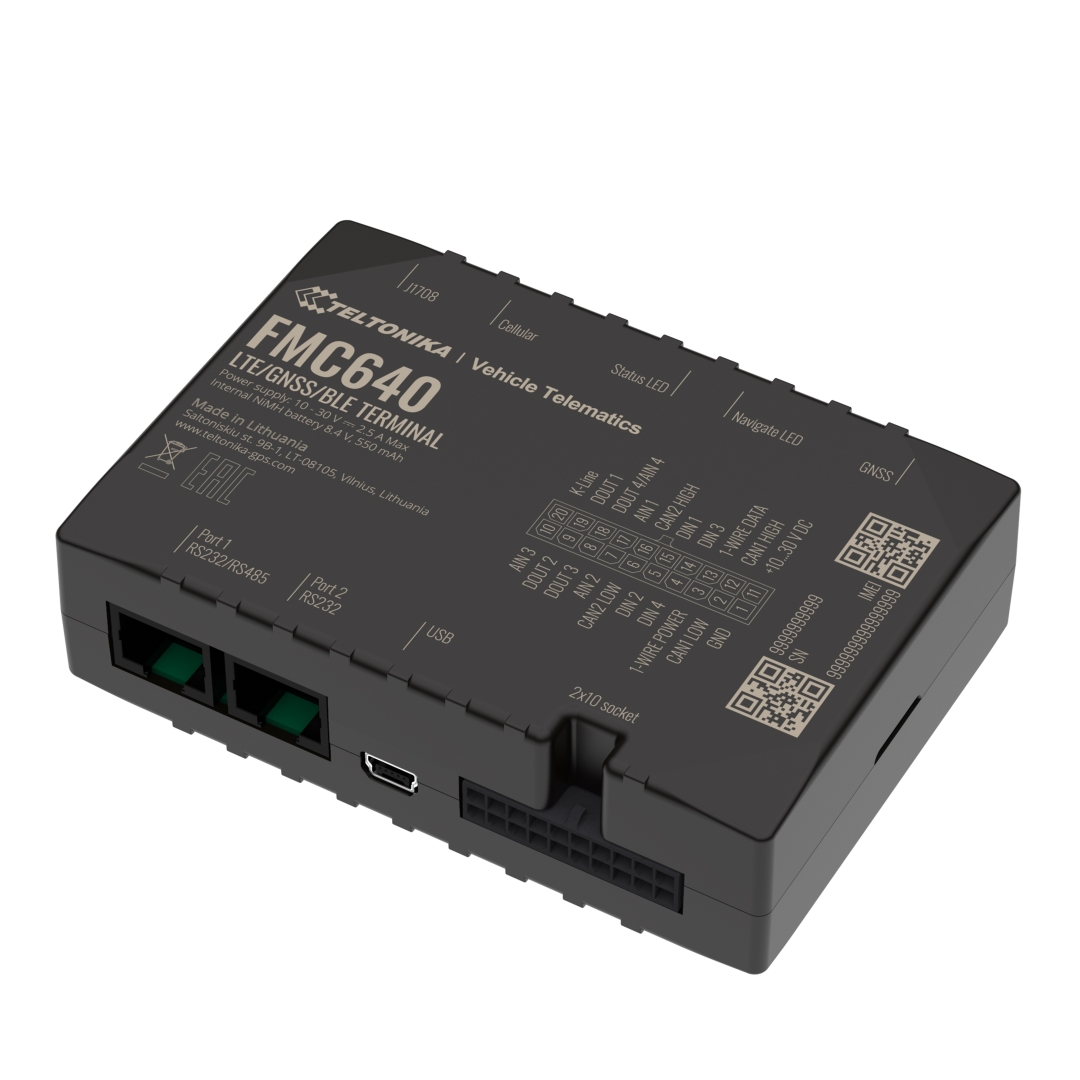

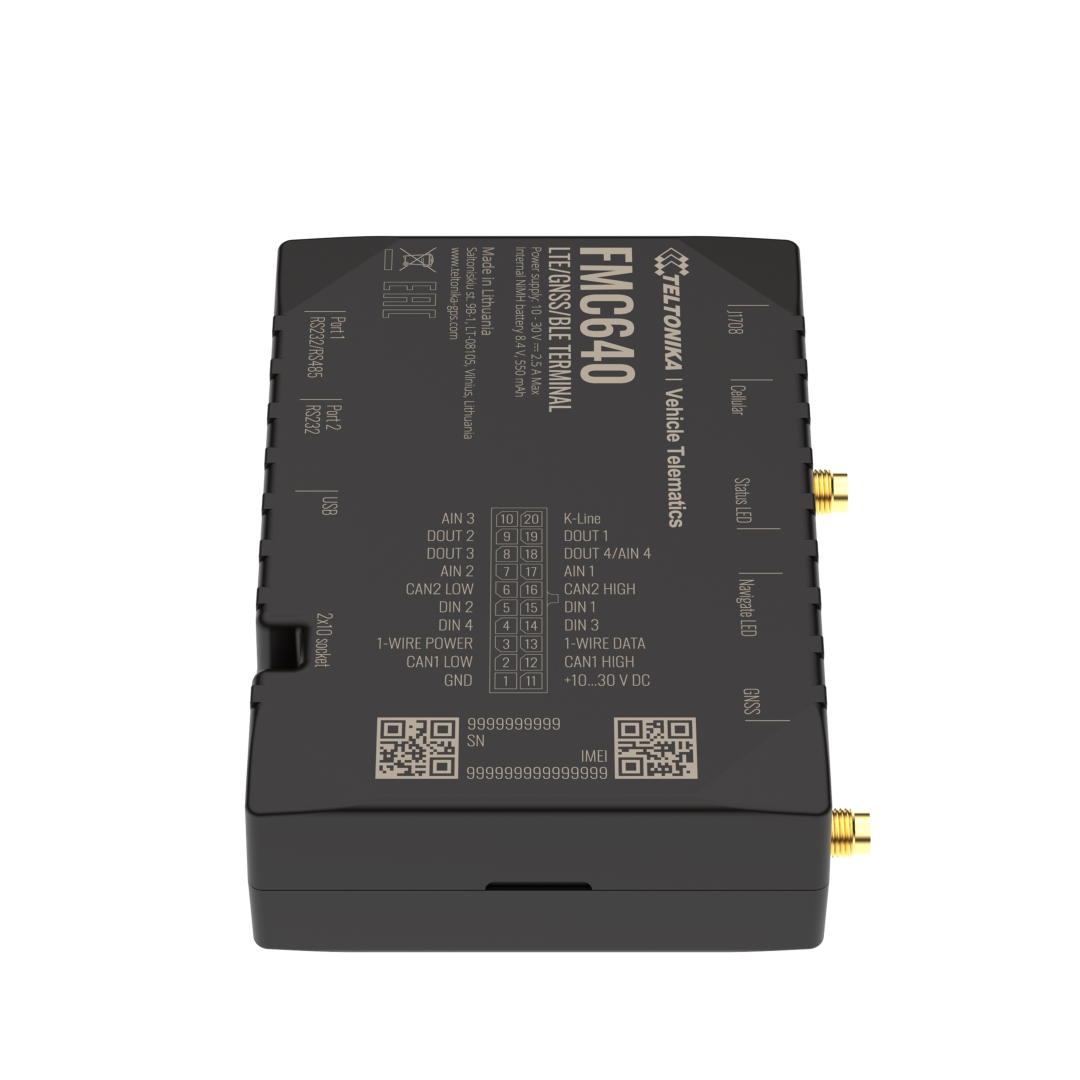

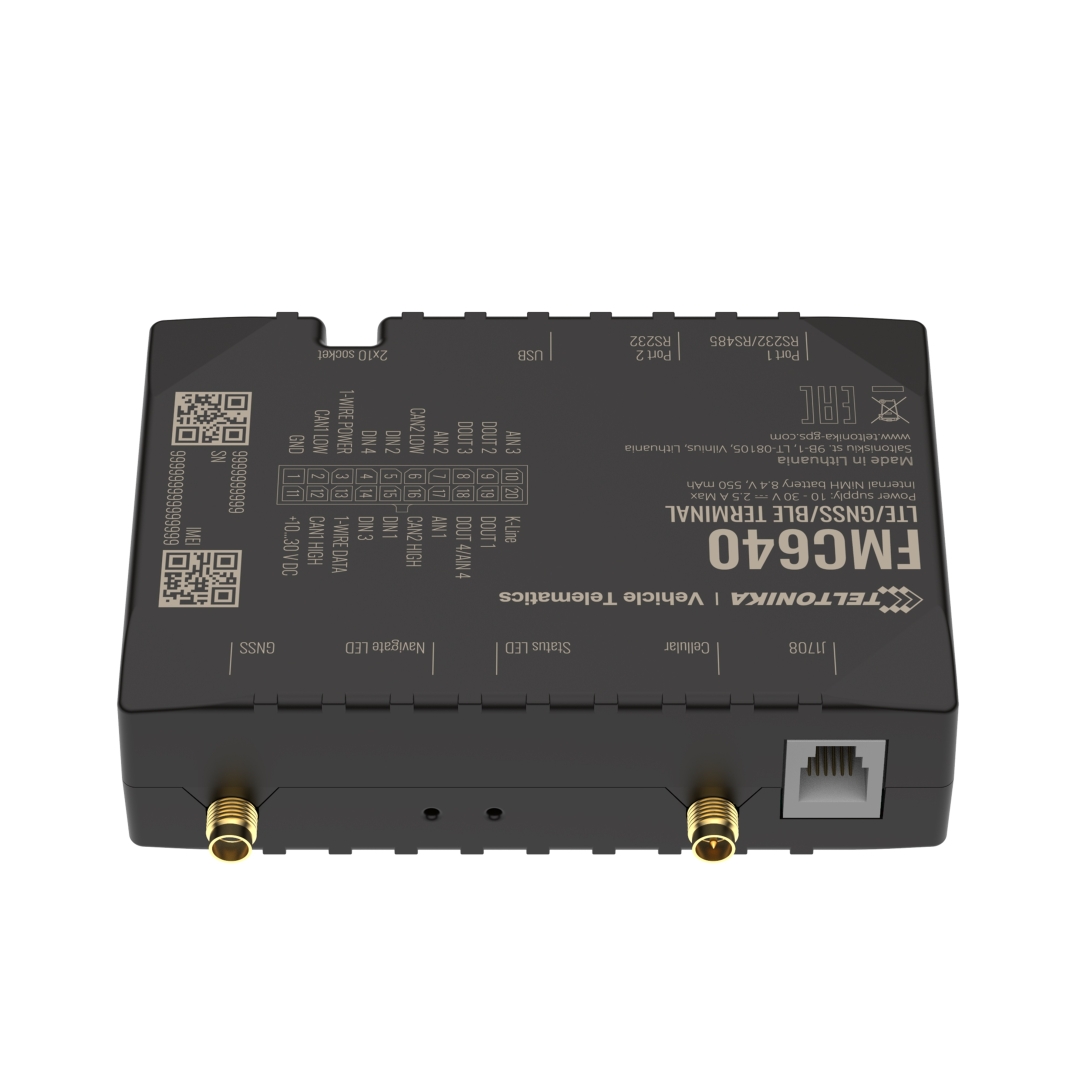

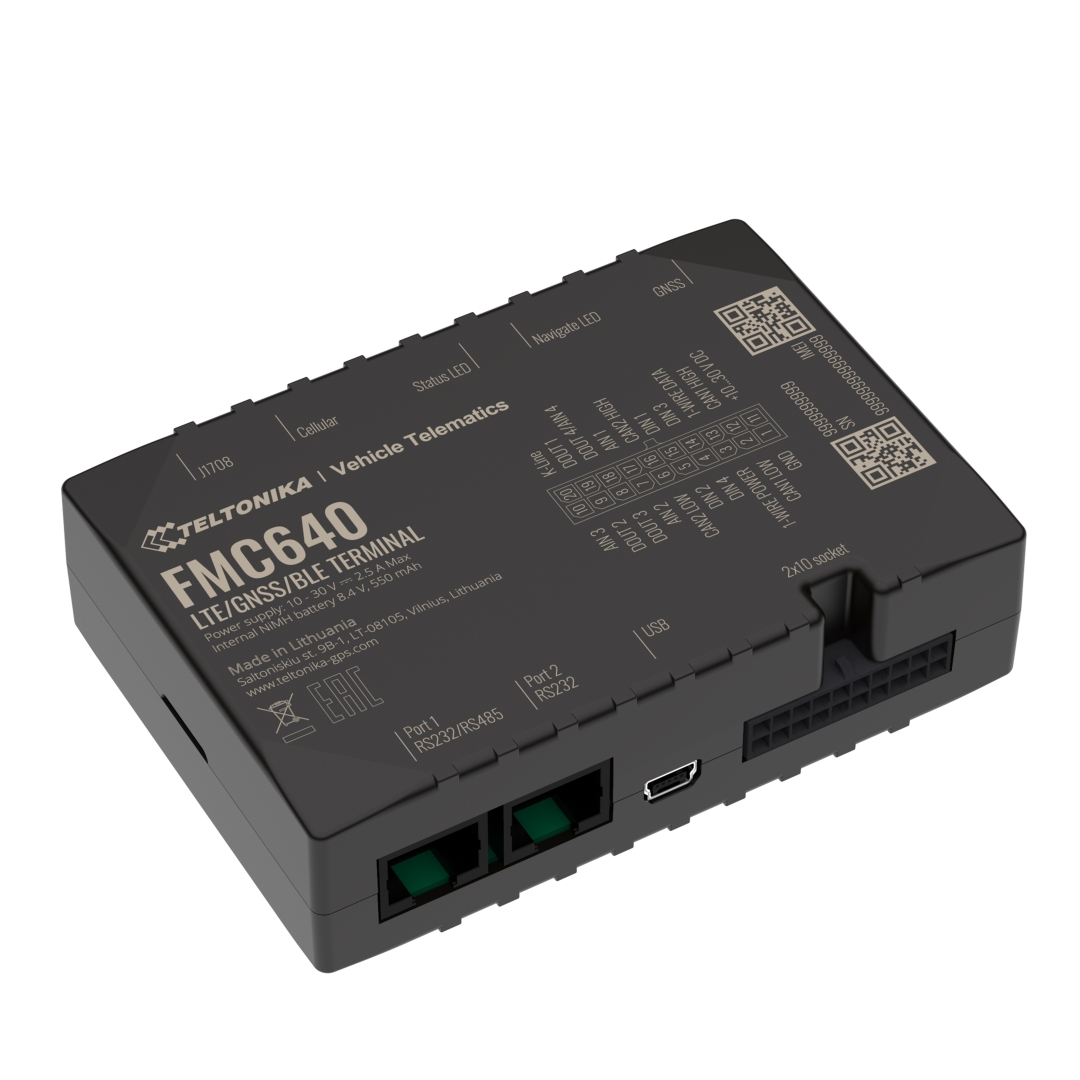

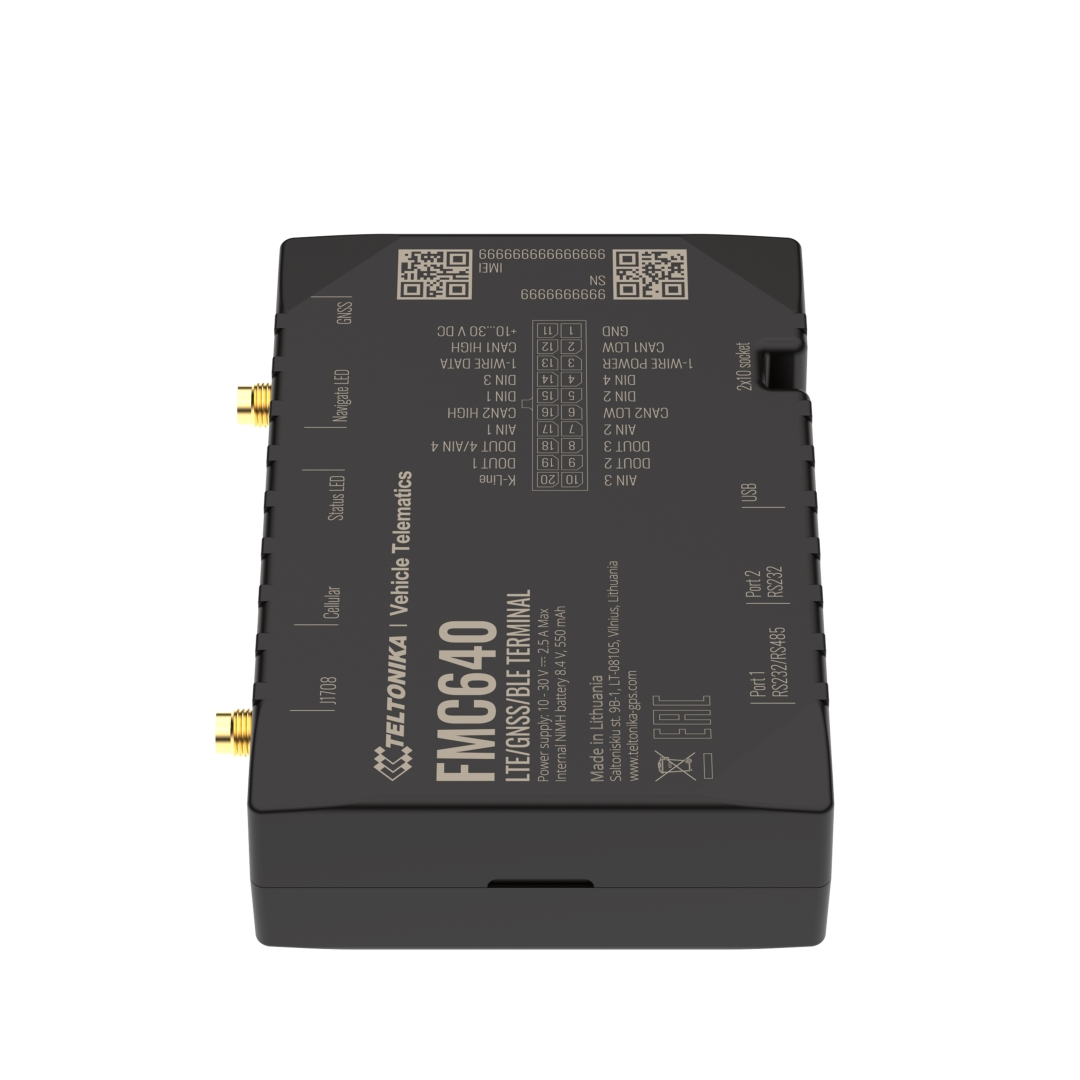

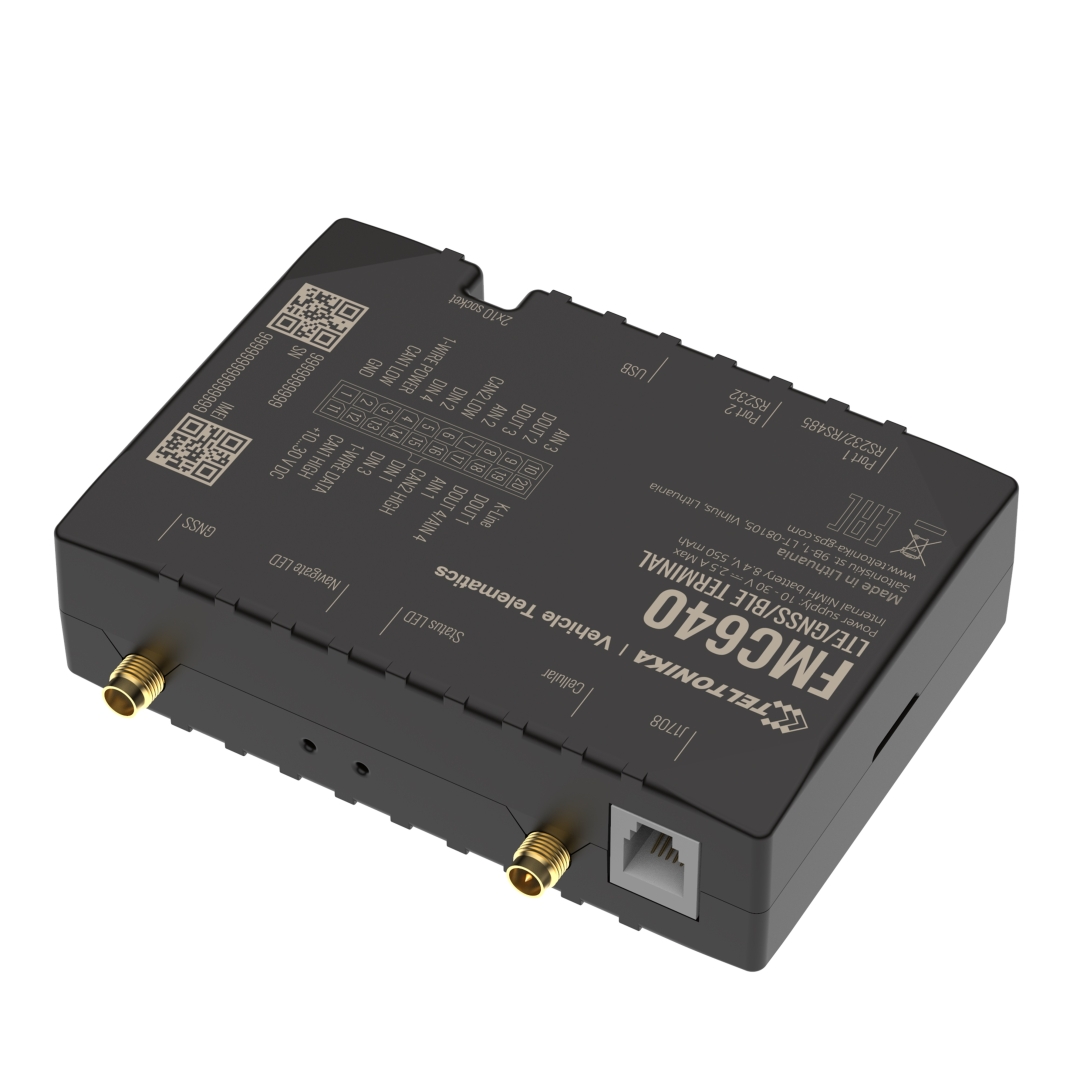

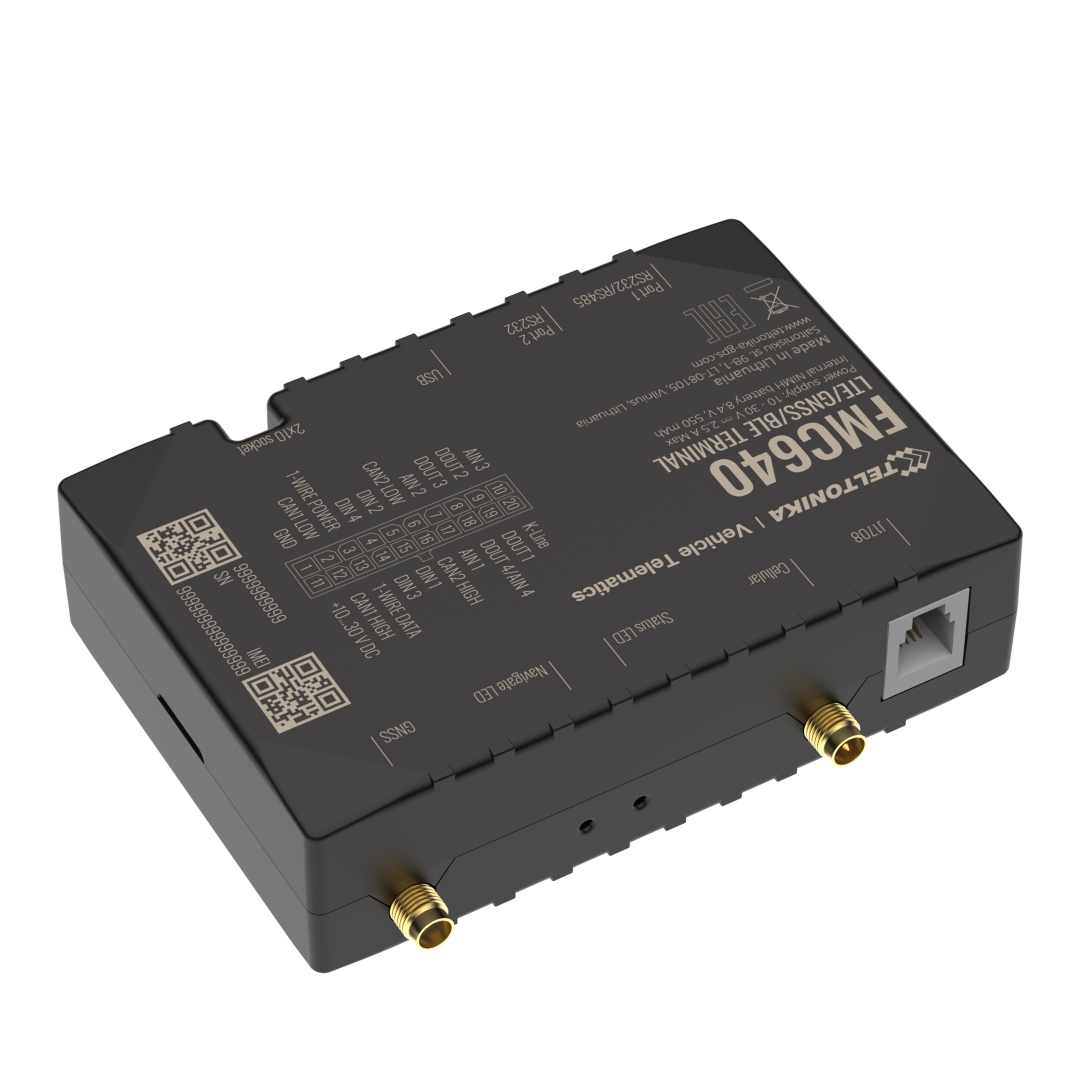

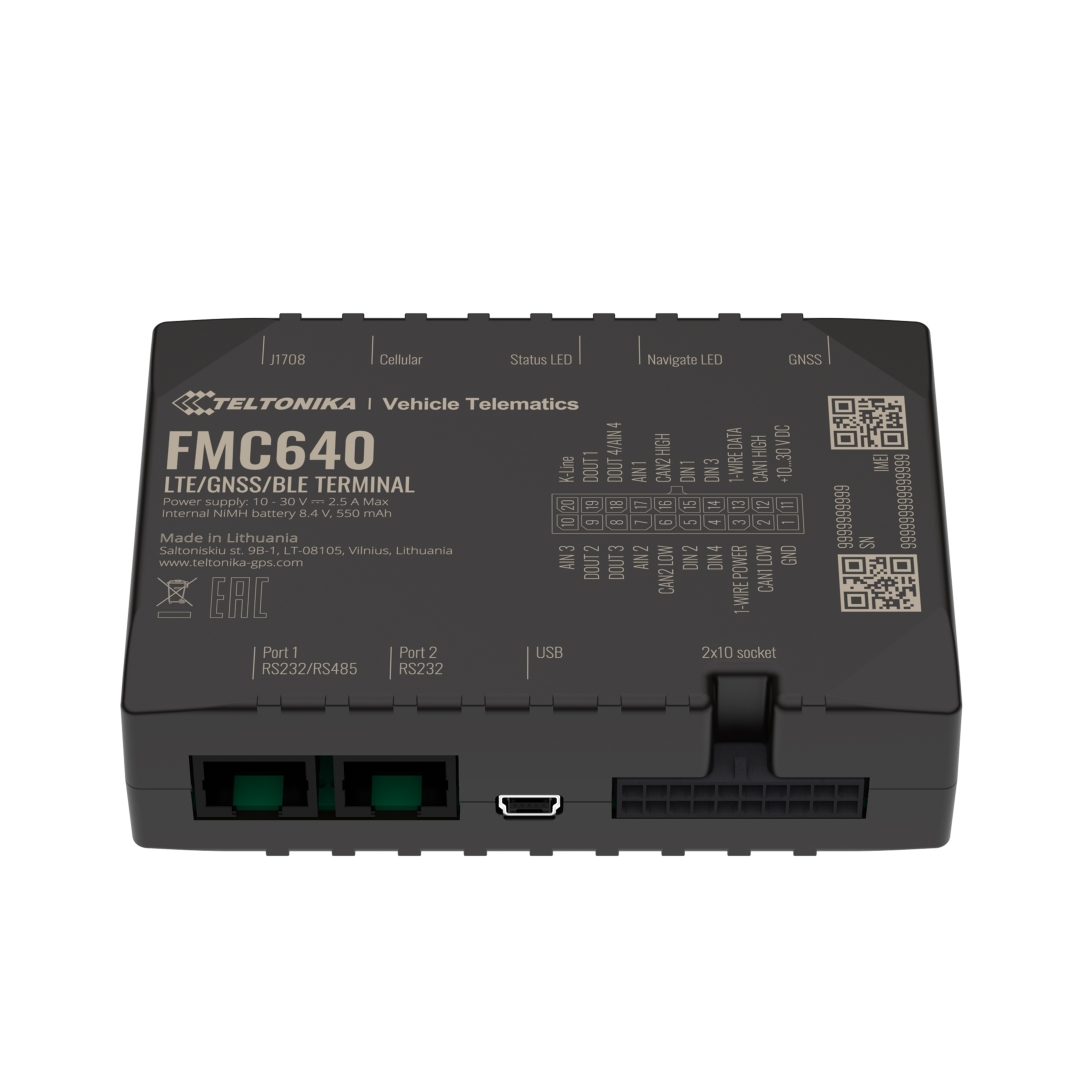

TELTONIKA 4G LTE Cat 1 sekimo įrenginys profesionaliam naudojimui (FMC640)
OEM kodas:
FMC640253201
Kodas:
FMC640
ID:
#3037
EAN kodas:
4779027312552
Pažangus GNSS/LTE/3G/GSM terminalas, sukurtas sudėtingoms užduotims, su didelės talpos atsargine baterija ir išorinėmis antenomis
138.23€ su PVMKaina be PVM: 114.24€ |
Produkto savybės:
Teltonika FMC640 yra PROFESSIONAL serijos įrenginys su 4G (LTE Cat 1) tinklo aprėptimi, įskaitant 3G (UMTS) ir 2G (GSM) suderinamumą atsarginio ryšio režimu. Įrenginys aprūpintas GNSS, LTE ir „Bluetooth“ moduliais. FMC640 maksimaliai padidins jūsų autoparko efektyvumą, naudodamas tokias funkcijas kaip FMS CAN duomenys (J1939), kuro CAN duomenys (J1708), tachografo tiesioginiai duomenys (K-Line), nuotolinis tachografo failų atsisiuntimas, įvairių trečiųjų šalių RS232 arba RS485 įrenginių palaikymas bei Dual-SIM.
Šis terminalas puikiai tinka tokioms sritims kaip tarptautinė logistika, šaldomų krovinių transportas, žemės ūkis, statyba ir kasyba, saugumo ir greitosios pagalbos paslaugos bei daugeliui kitų.
Produkto specifikacijos:
| MODULE | |
| Name | Quectel EG91-EX |
| Technology | LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
| Protocol compatible | NMEA, GGA, GGL, GSA, GSV, RMC, VTG |
| Receiver | Tracking: 33/99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | LTE Cat 1, UMTS, GSM |
| 2G bands | EG91-EX: GSM: B3/B8 |
| 3G bands | EC91-EX: WCDMA: B1/B8 |
| 4G bands dedicated for EMEA region | EC91-EX: LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data transfer | LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 550 mAh Ni-Mh, 8,4 V battery |
| BLUETOOTH | |
| Specification | 5.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Universal BLE sensors support |
| PHYSICAL SPECIFICATION | |
| Dimensions | 104,1 x 76,8 x 31,5 mm (L x W x H) |
| Weight | 197 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| INTERFACE | |
| Digital Inputs | 4 |
| Digital Outputs | 4 |
| Analog Inputs | 4 |
| 1-Wire interface | 1 |
| RS232 | 2 |
| RS485 | 1 |
| CAN j1939 | 2 |
| J1708 | 1 |
| K-line | 1 |
| GNSS antenna | External High Gain |
| Cellular antenna | External LTE CAT 1 High Gain |
| USB | 2.0 Mini-USB |
| LED indication | 2 status LED lights |
| SIM | 2x SIM Card (Dual-SIM) |
| Memory | 2MB internal flash memory and external Micro SD card up to 32 GB |
| FEATURES | |
| Movement detection | Accelerometer |
| Scenarios | Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification |
| Functionalities | Auto Geofencing, Manual Geofencing, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking |
| Supported peripherals | Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE sensors support |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS, Ultrasonic level sensor |
| Ignition detection | Digital Input, Accelerometer, External Power Voltage |
Package contains
- FMC640 tracker
- Input/output power supply cable (0.9 m)
- 4G/GSM antenna (3.0 m)
- GNSS antenna (3.0 m)
- Packaging box with Teltonika branding
