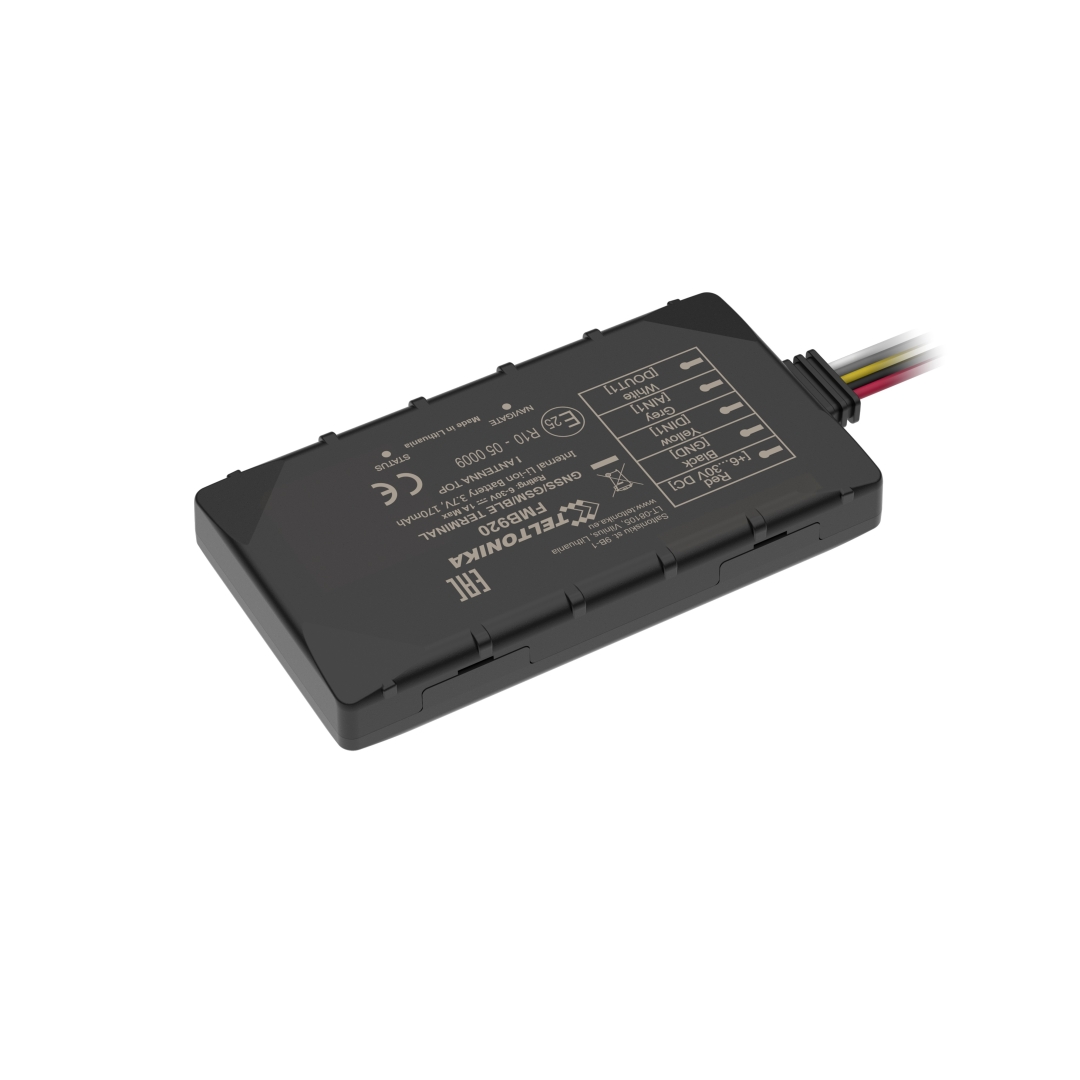

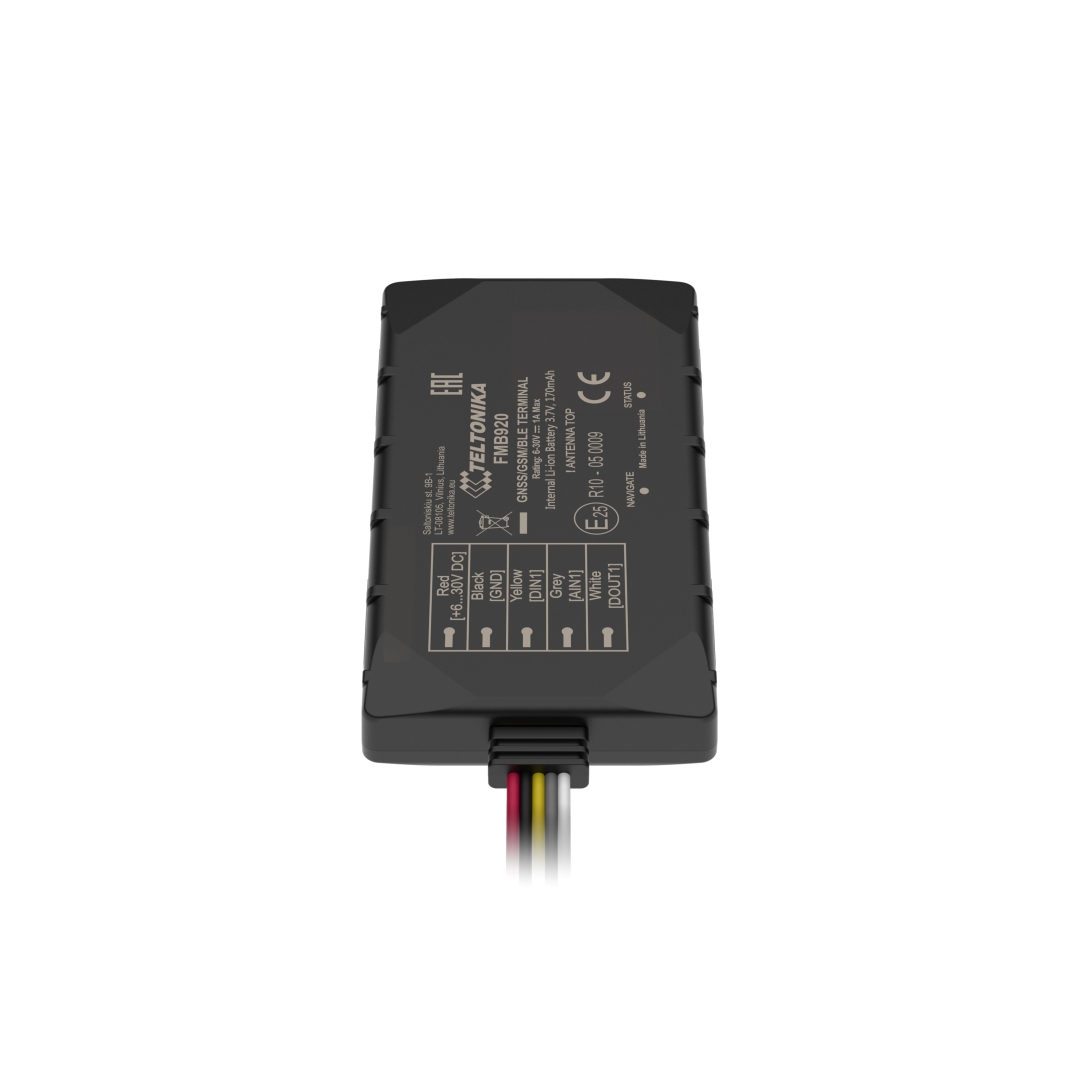

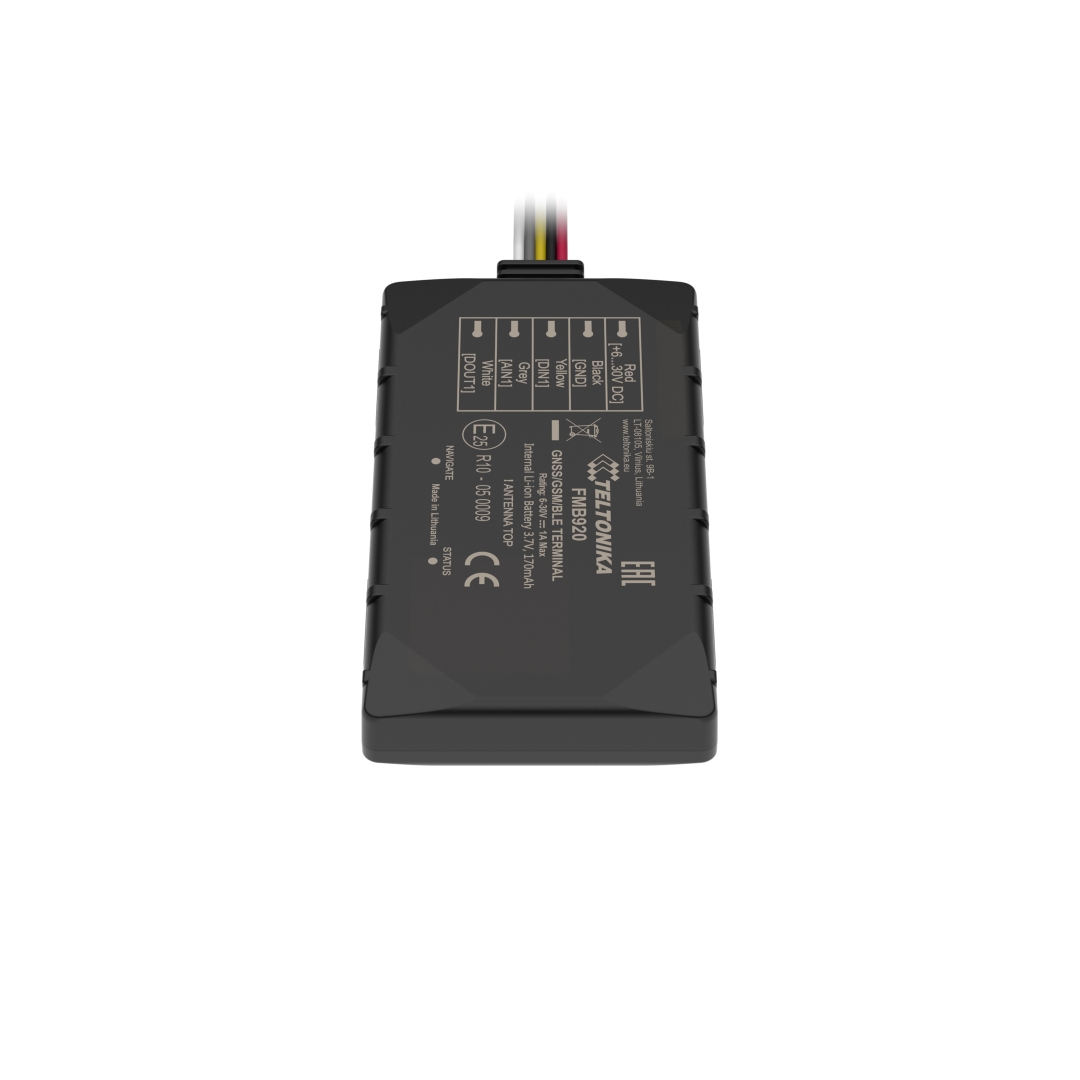

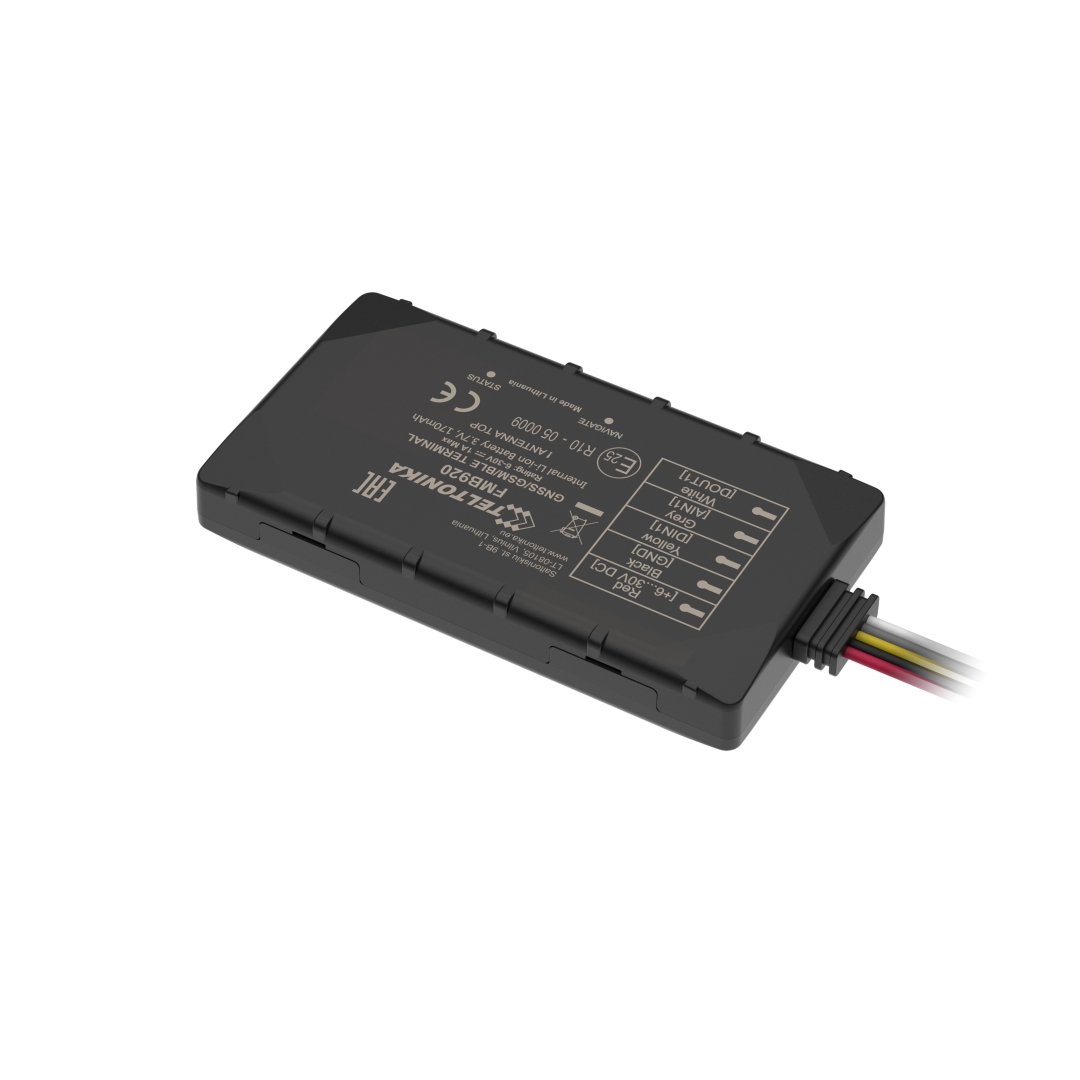

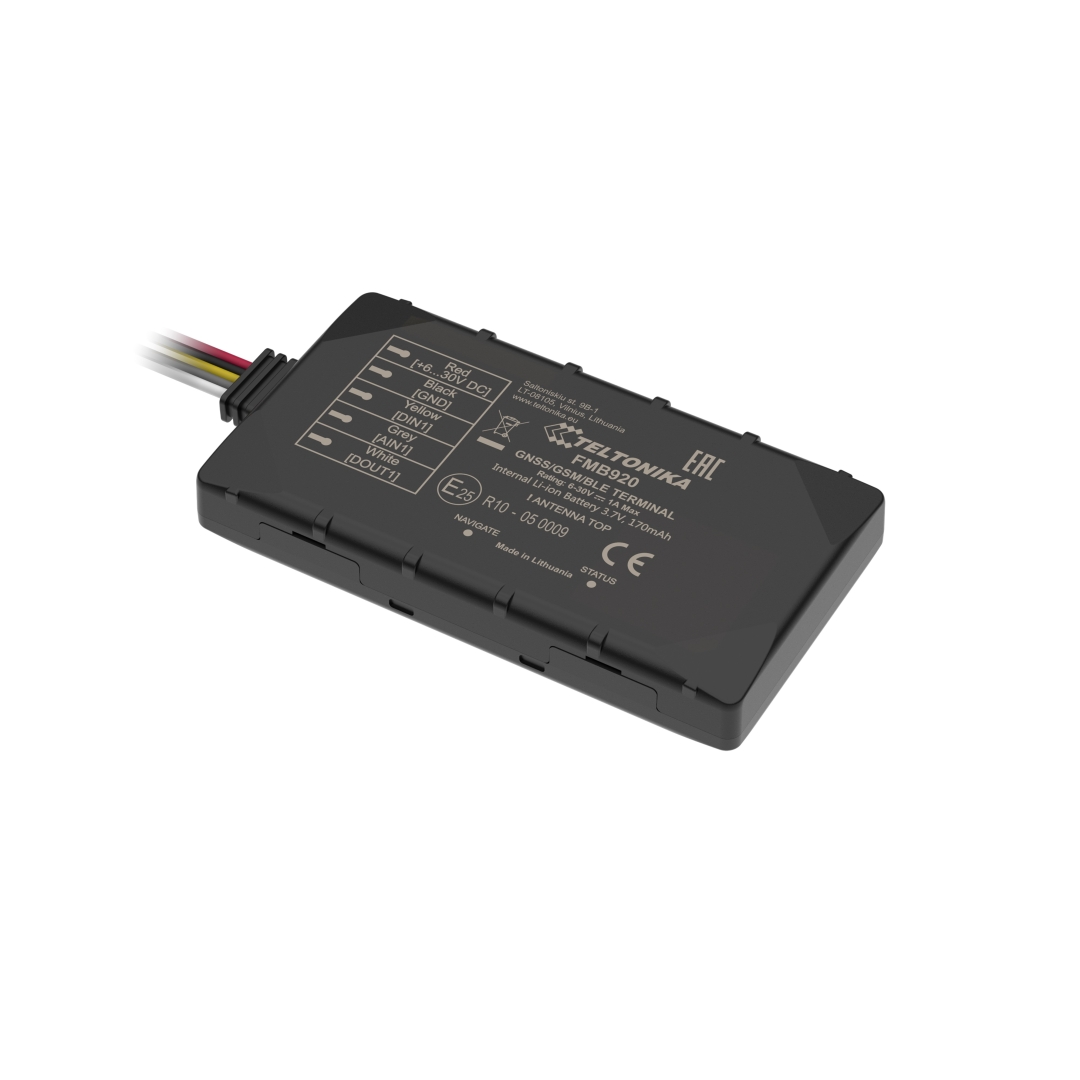

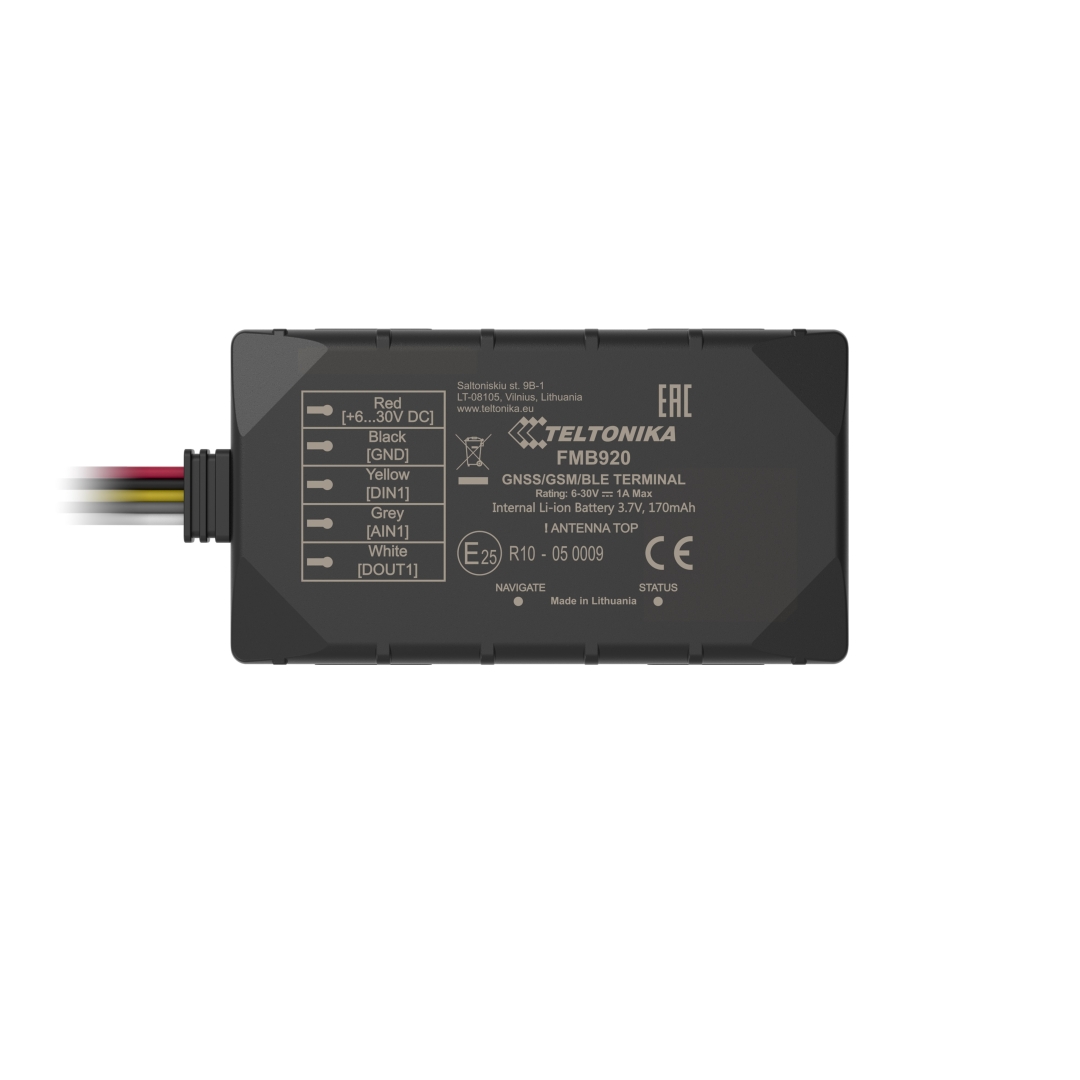

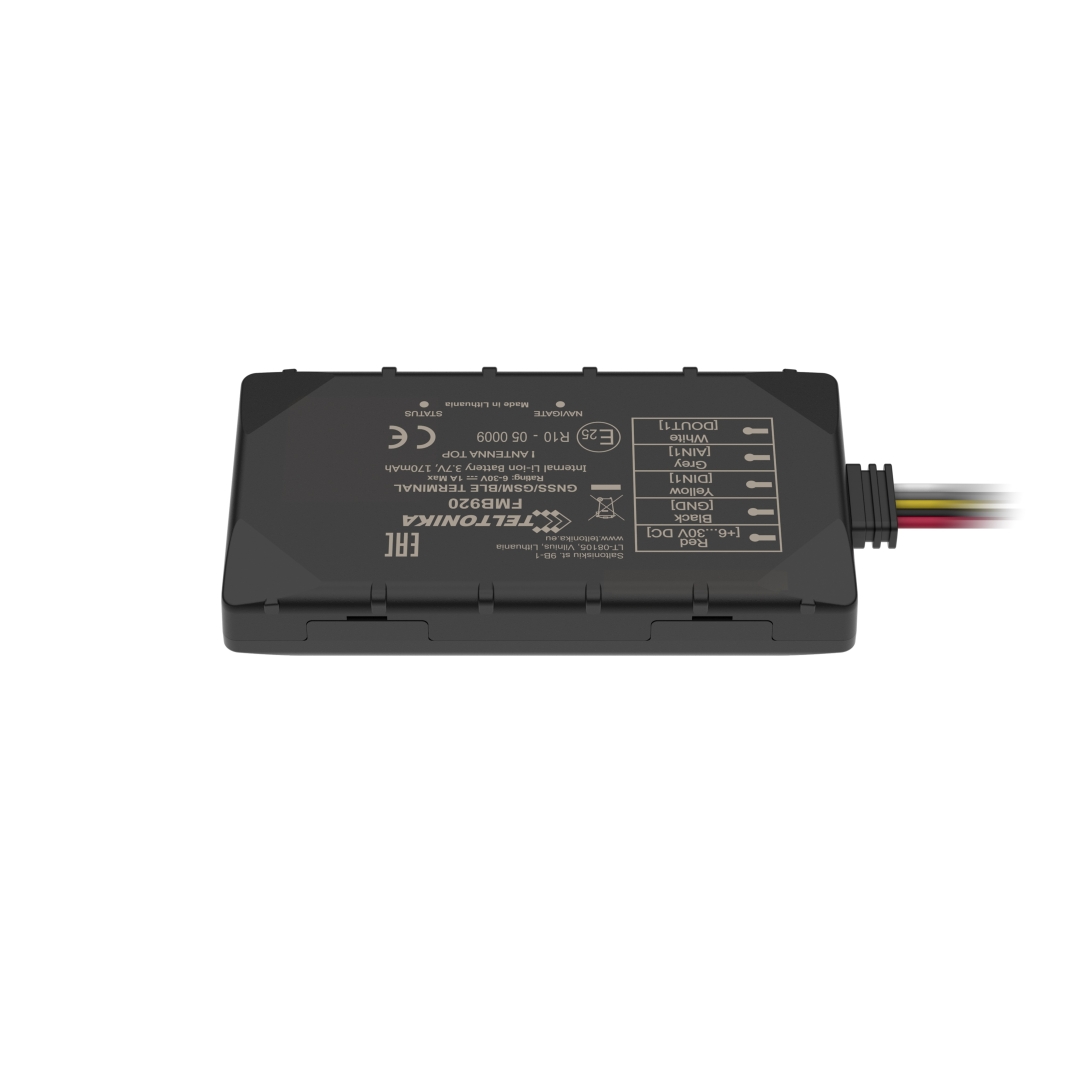

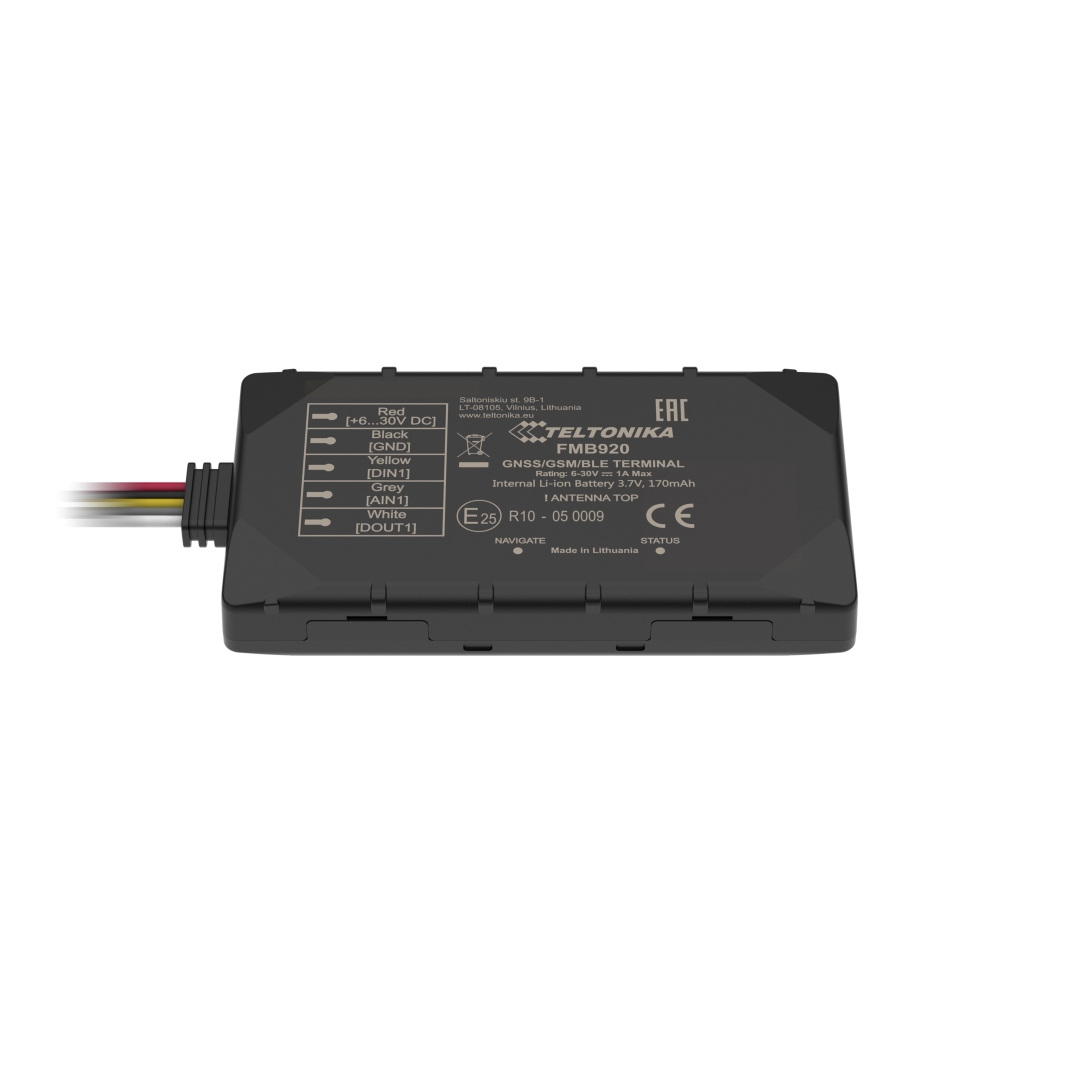

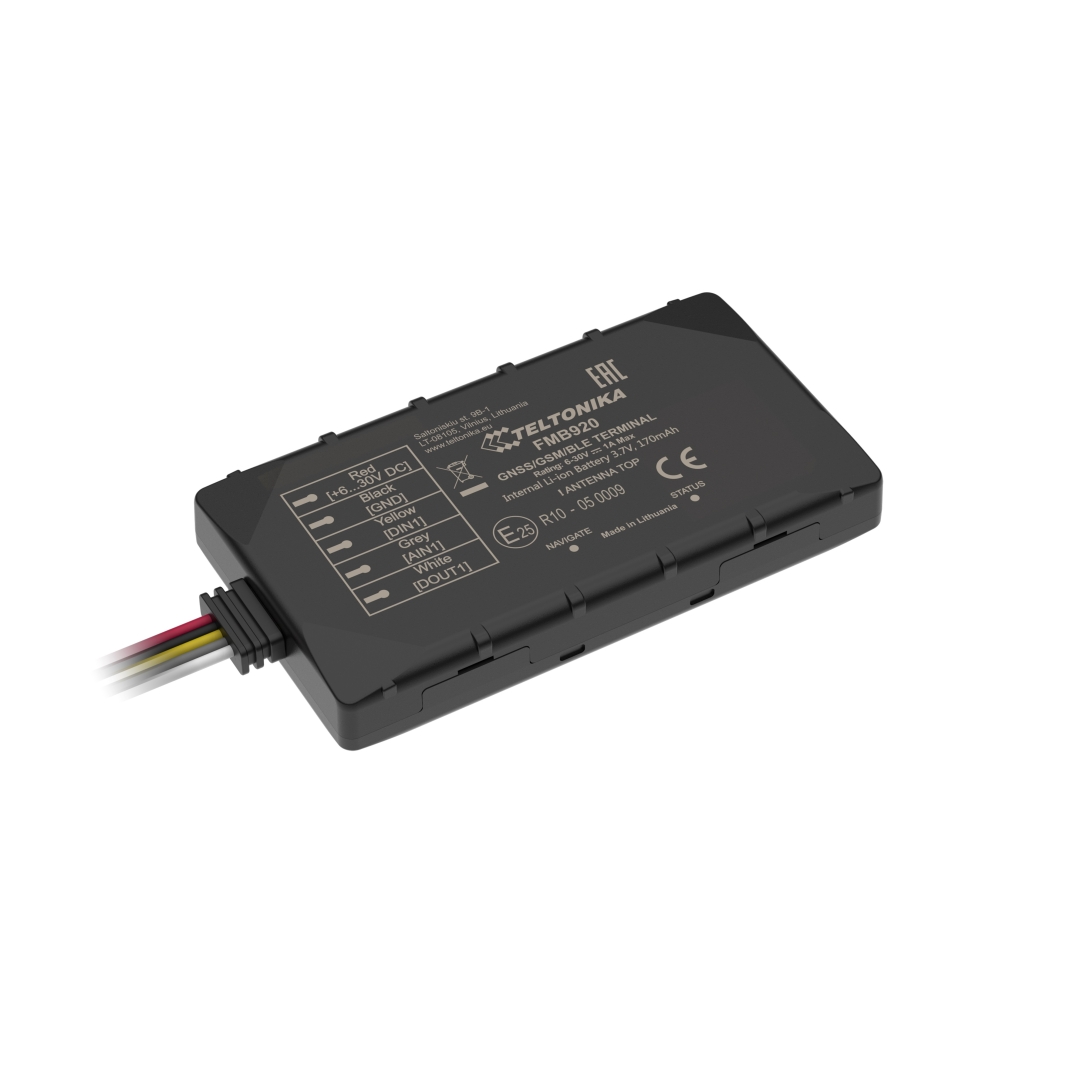

TELTONIKA Mažas ir išmanus sekimo įrenginys su Bluetooth ir vidiniu atsarginiu akumuliatoriumi (FMB920)

Produkto savybės:

Teltonika FMB920 is compact and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and integrated backup battery. FMB920 is designed for light vehicles tracking in applications like insurance telematics, rental cars, recovery of stolen cars, public safety services, delivery transport, taxi and much more. Inputs/outputs extend device usage scenarios. Digital input can be used for ignition, door or alarm button status monitoring. Vehicle remote immobilizing may be achieved using FMB920 digital output.

Produkto specifikacijos:

Module
Name: TM2500
Technology: GSM/GPRS/GNSS/BLUETOOTH

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: 33 channel
Tracking sensitivity: -165 dBM
Accuracy: < 3 m
Hot start: < 1 s
Warm start: < 25 s
Cold start: < 35 s

Cellular
Technology: GSM
2G bands: Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support: SMS (text/data)

Power
Input voltage range: 6 - 30 V DC with overvoltage protection
Back-up battery: 170 mAh Li-Ion battery (0.63 Wh)

Power consumption:
   At 12V < 2 mA (Ultra Deep Sleep)
   At 12V < 4 mA (Deep Sleep)
   At 12V < 5 mA (Online Sleep)
   At 12V < 6 mA (GPS Sleep)
   At 12V < 25 mA (nominal)

Bluetooth
Specification: 4.0 + LE
Supported peripherals: Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner

Interface
Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: Internal High Gain
GSM antenna: Internal High Gain
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro-SIM
Memory: 128MB internal flash memory

Physical specification
Dimensions: 79 x 43 x 12 mm (L x W x H)
Weight: 54 g

Operating environment
Operating temperature (without battery): -40 °C to +85 °C
Storage temperature (without battery): -40 °C to +85 °C
Operating humidity: 5% to 95% non-condensing
Ingress Protection Rating: IP54
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C

Battery storage temperature:
   -20 °C to +45 °C for 1 month
   -20 °C to +35 °C for 6 months

Features
Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS: Configuration, Events, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GPS, NITZ, NTP
Fuel monitoring: LLS (Analog), ODBII dongle
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)

Certification & Approvals
Regulatory: CE/RED, E-Mark, EAC, RoHS, MTBF, REACH
