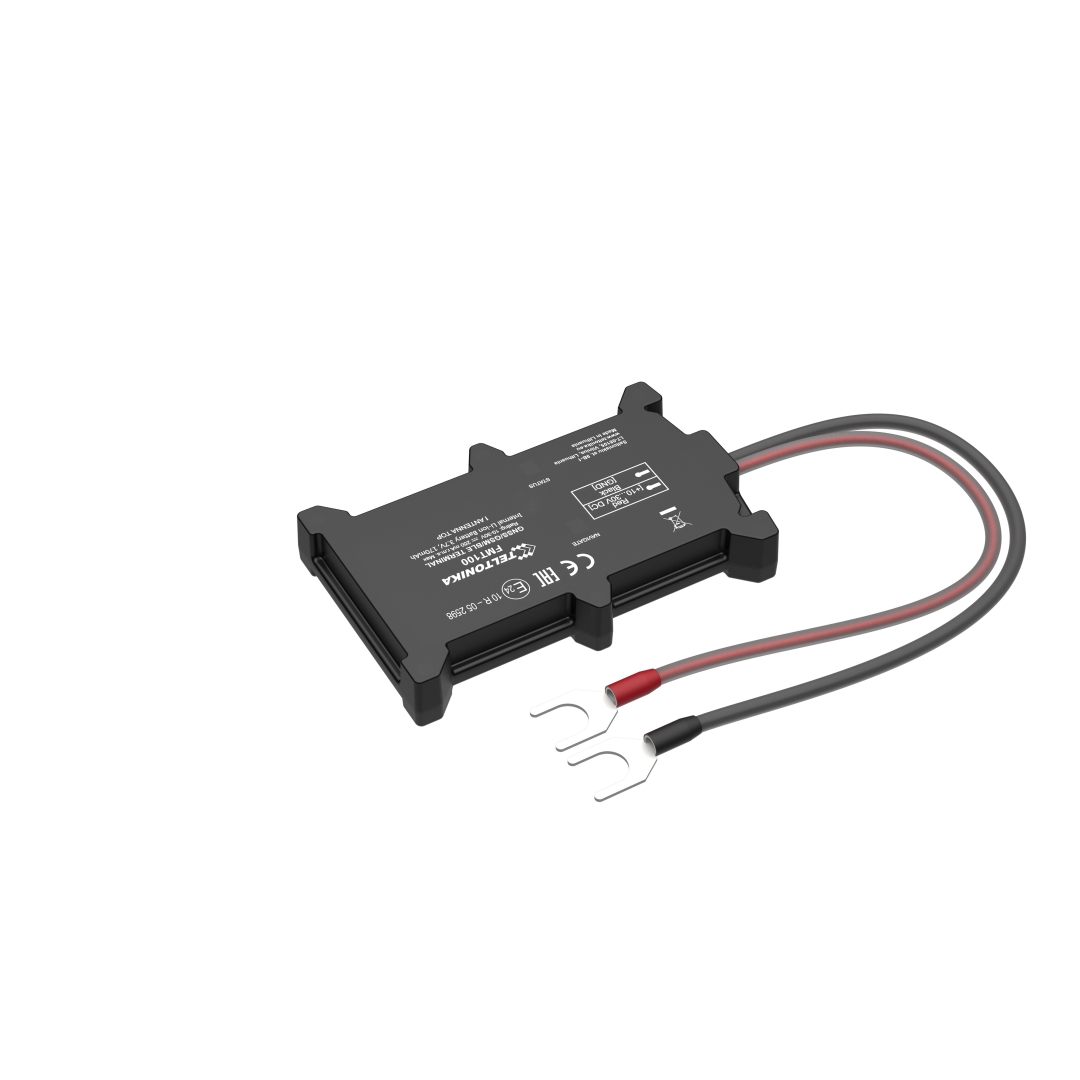

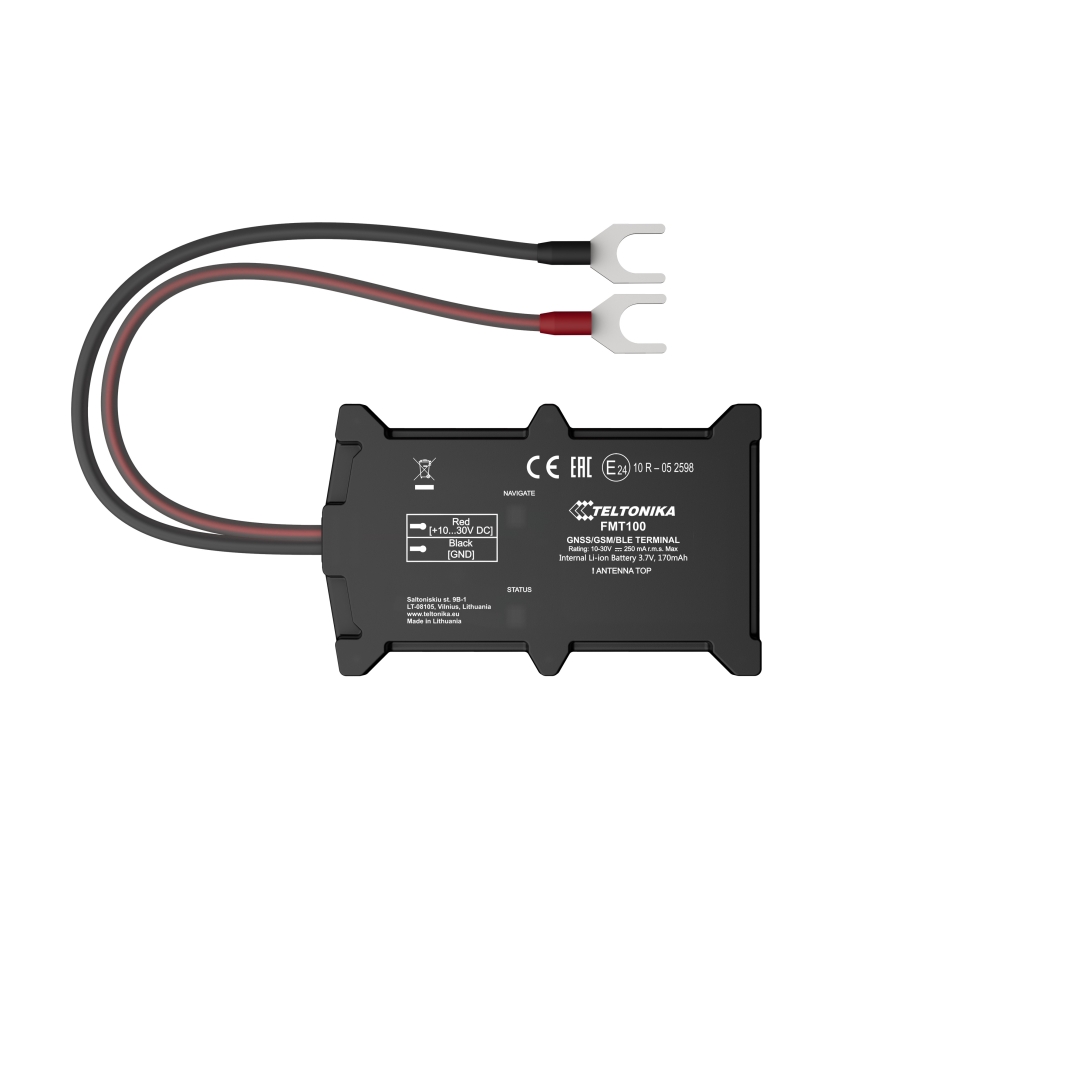

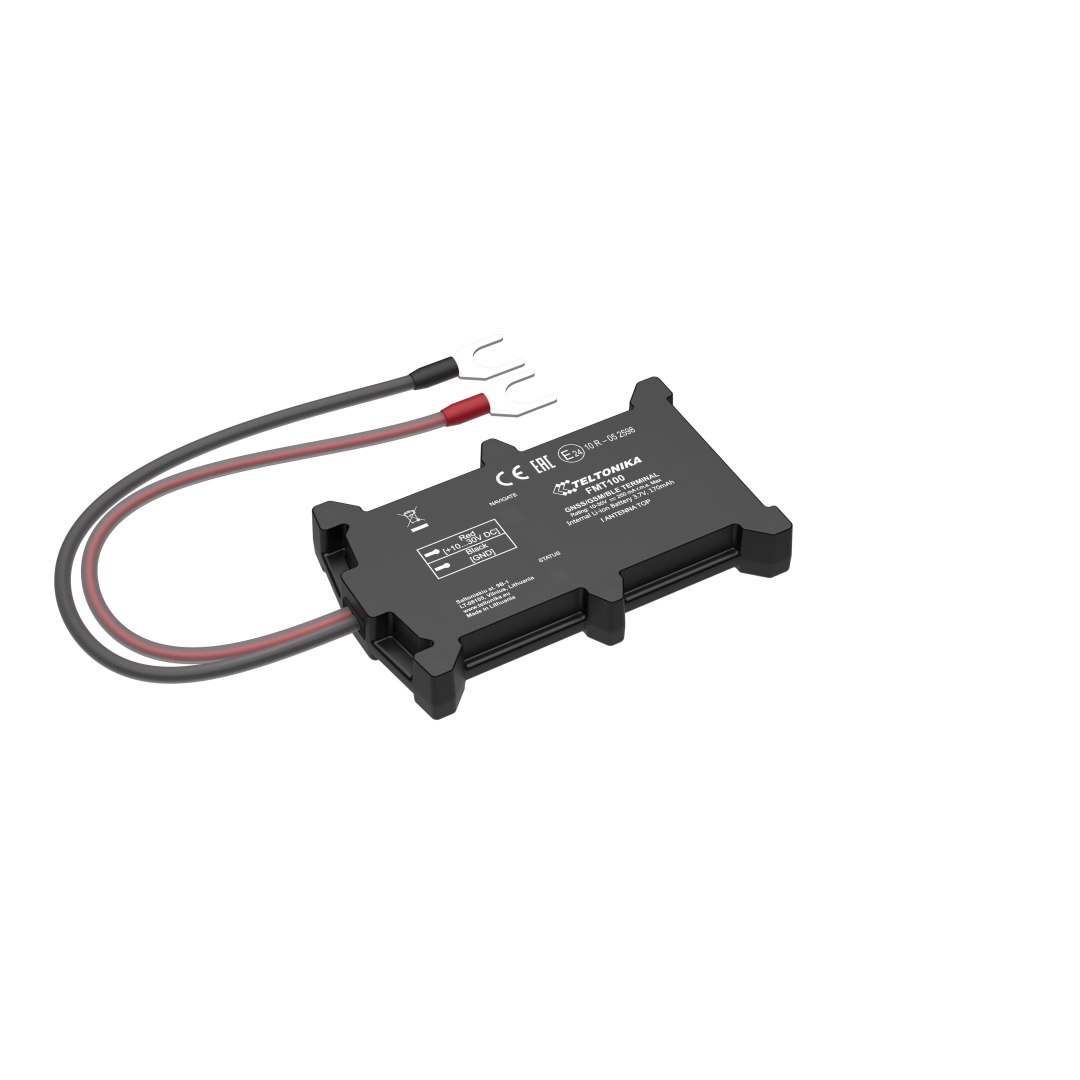

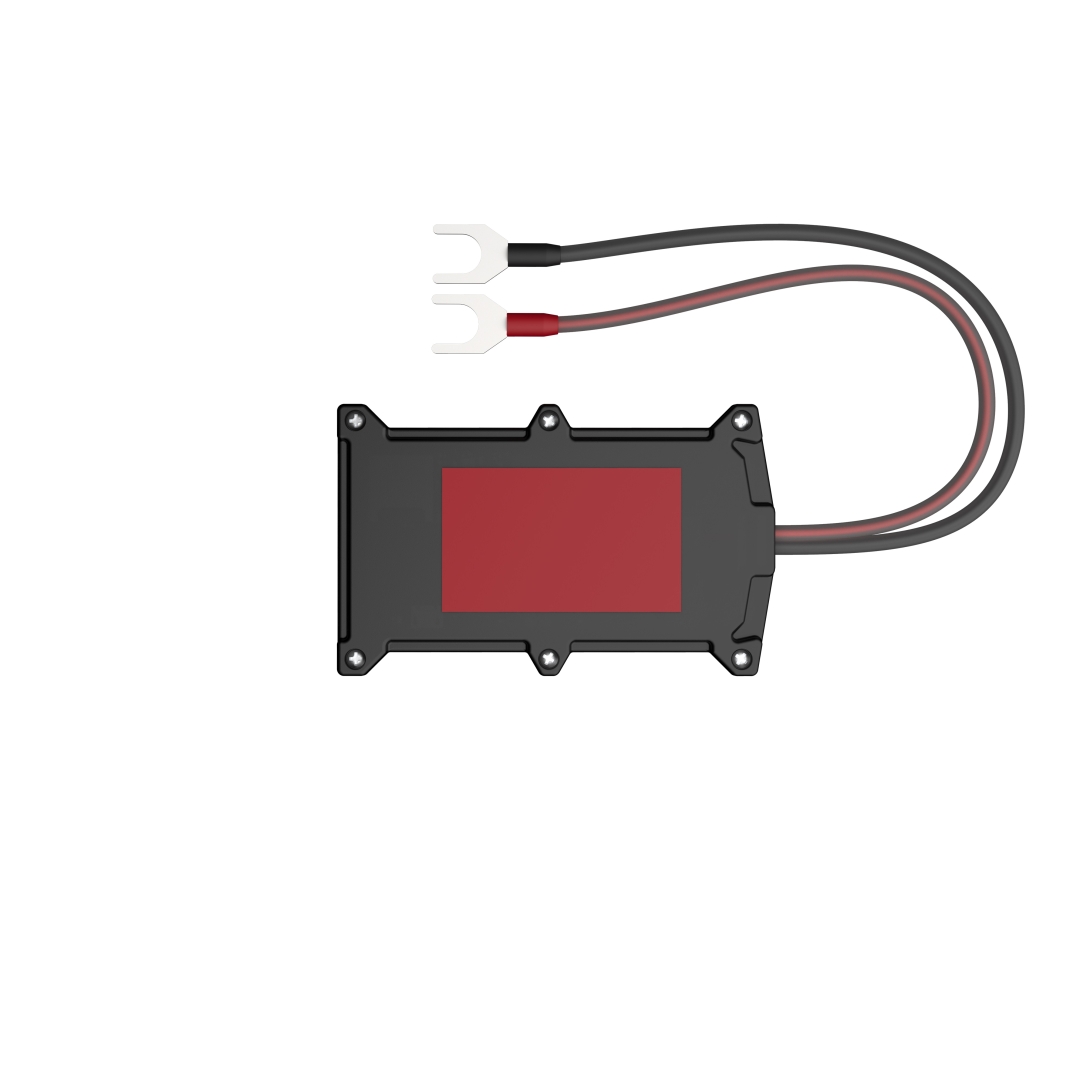

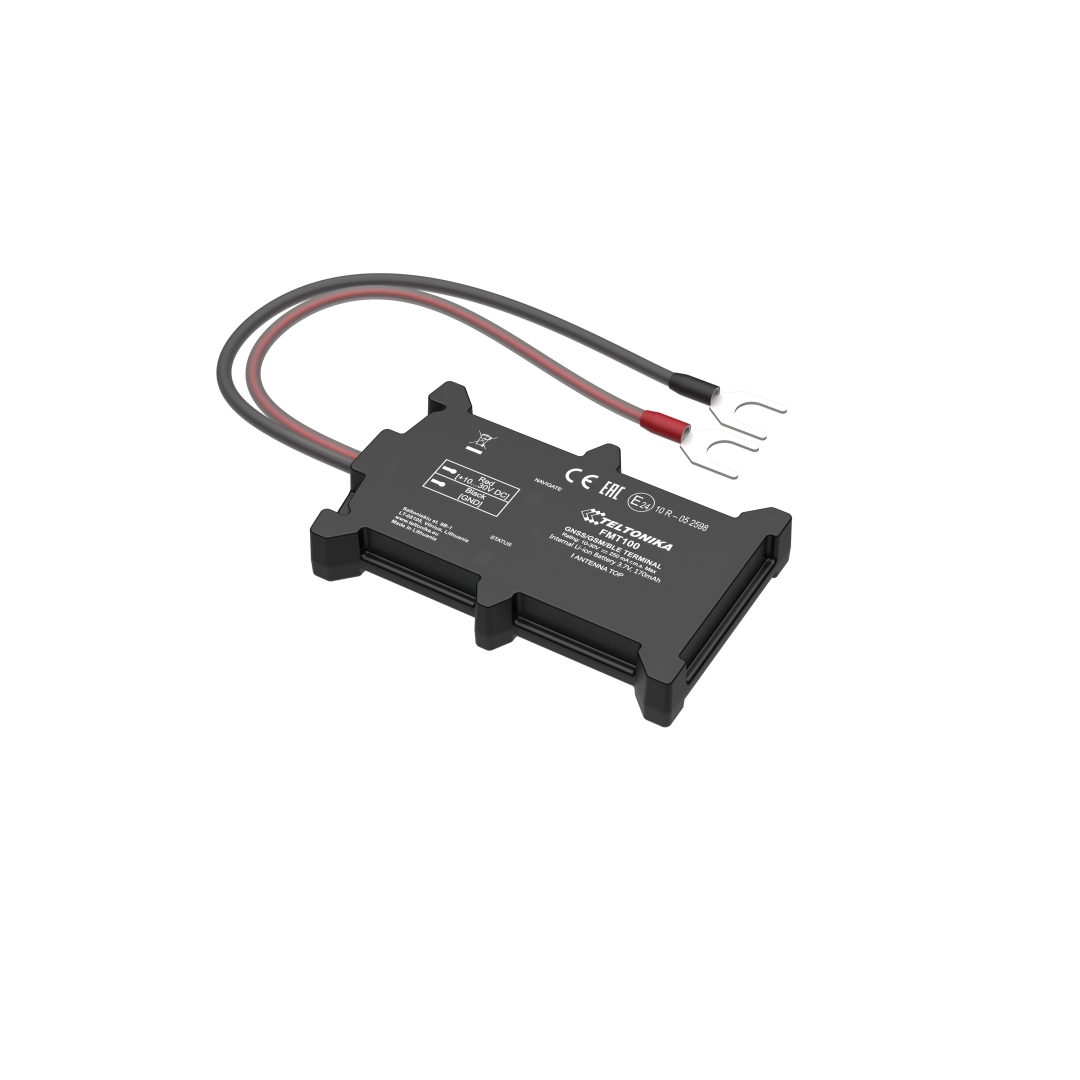

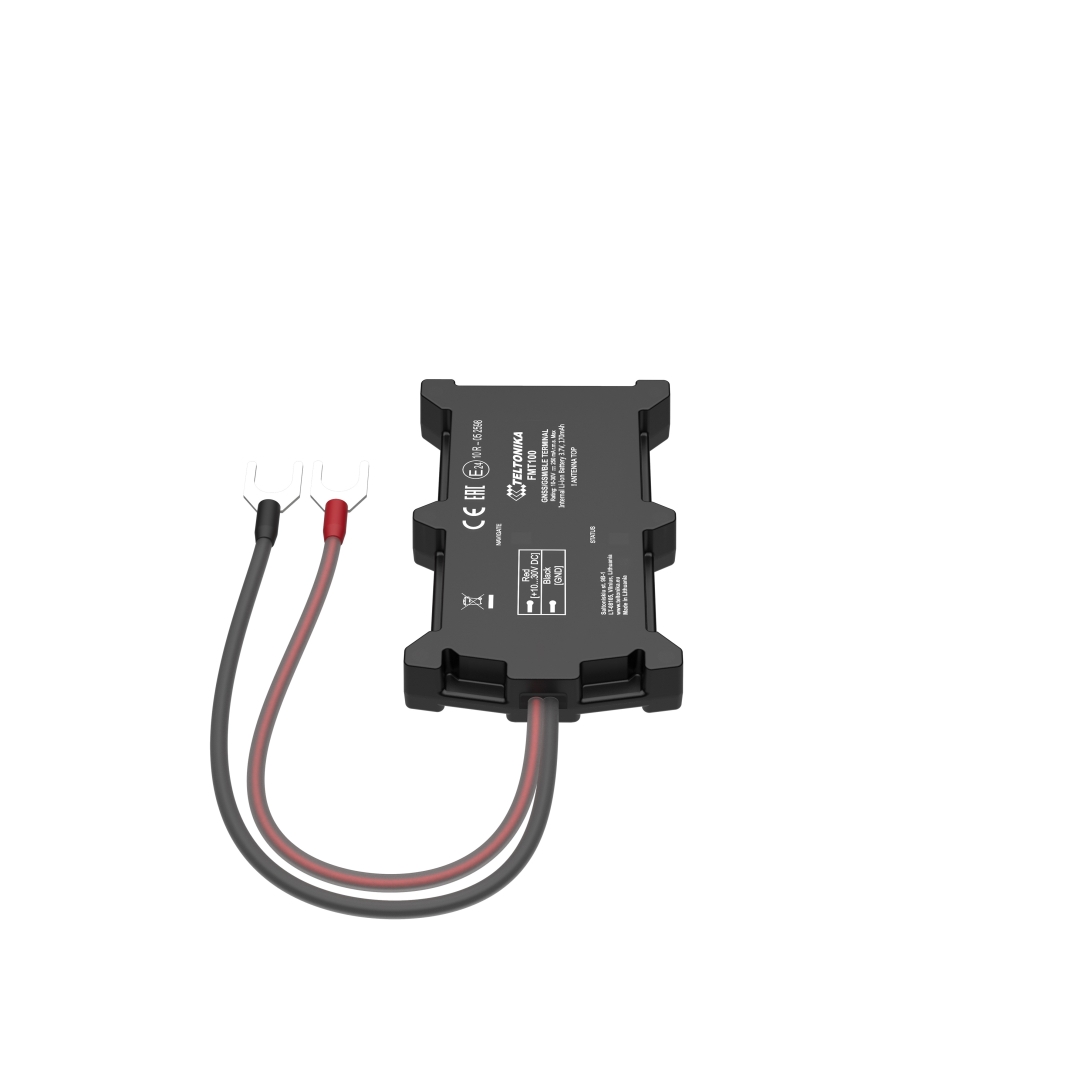

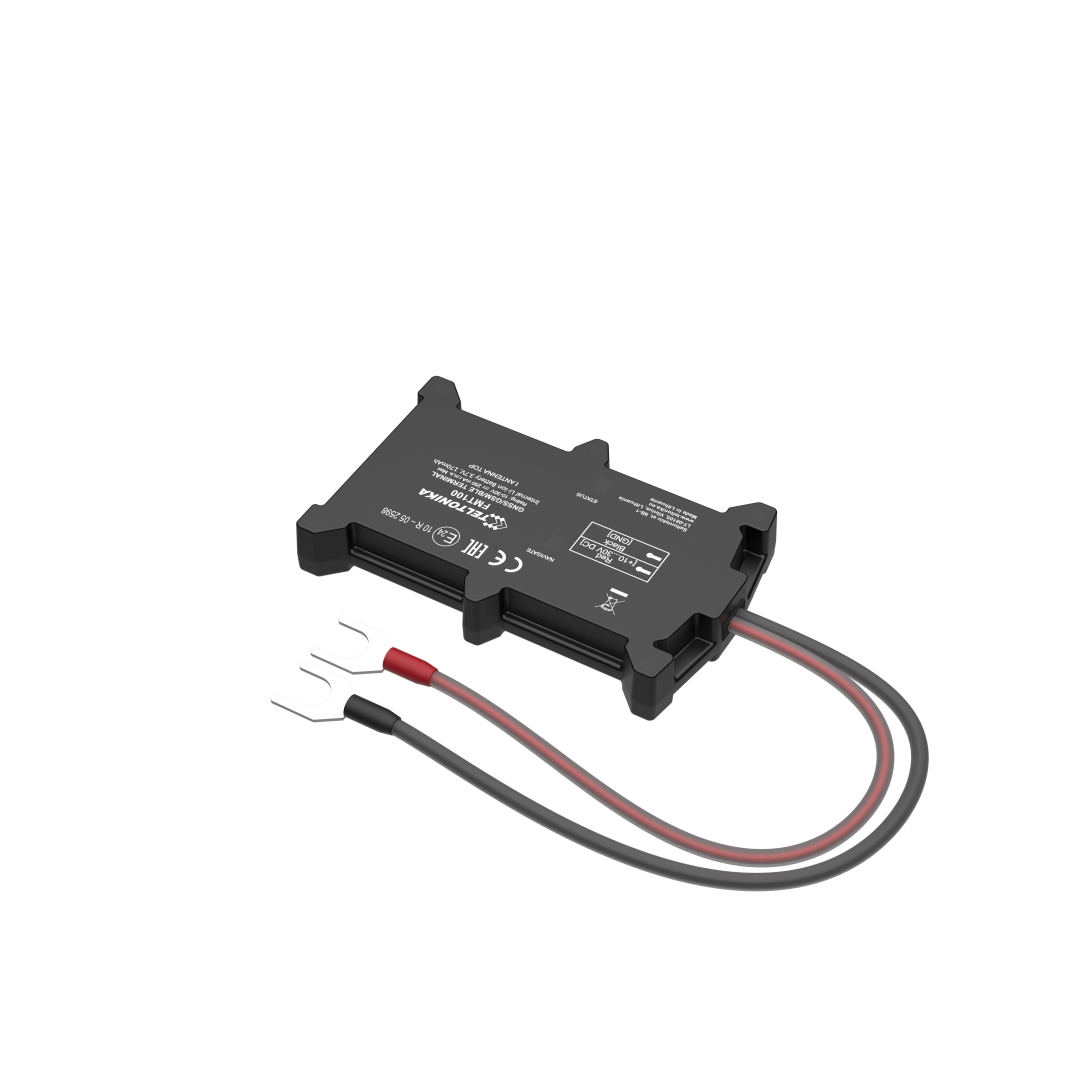

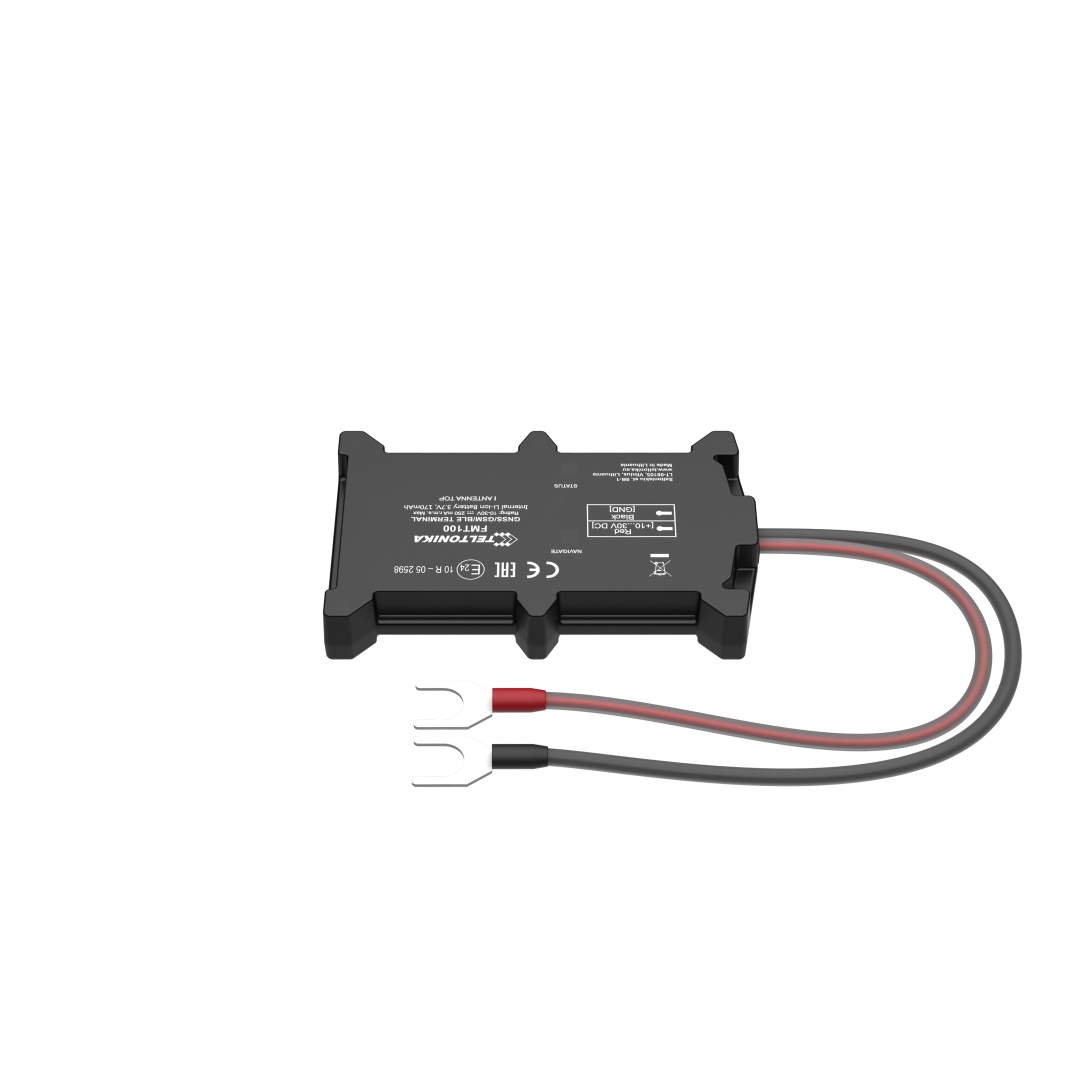

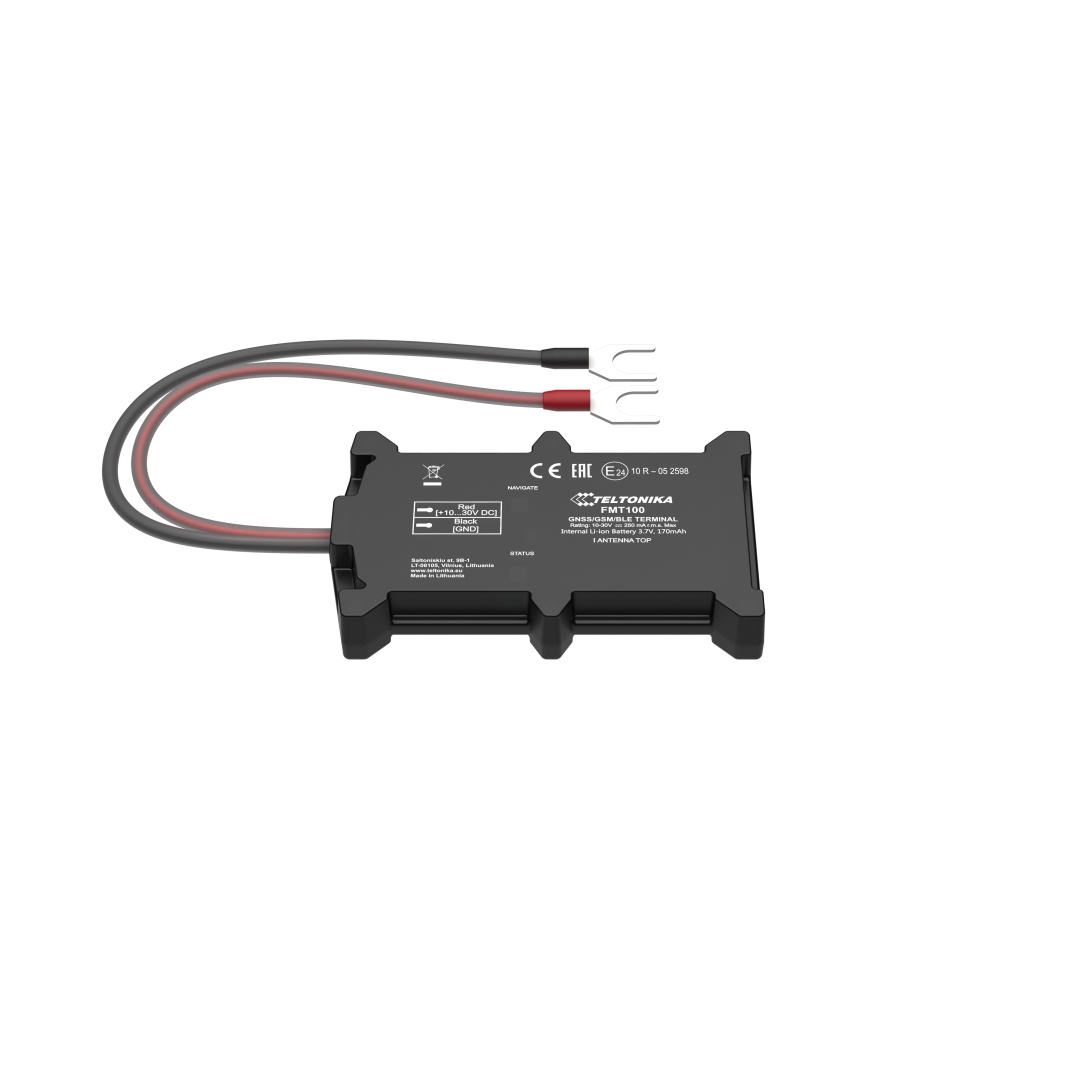

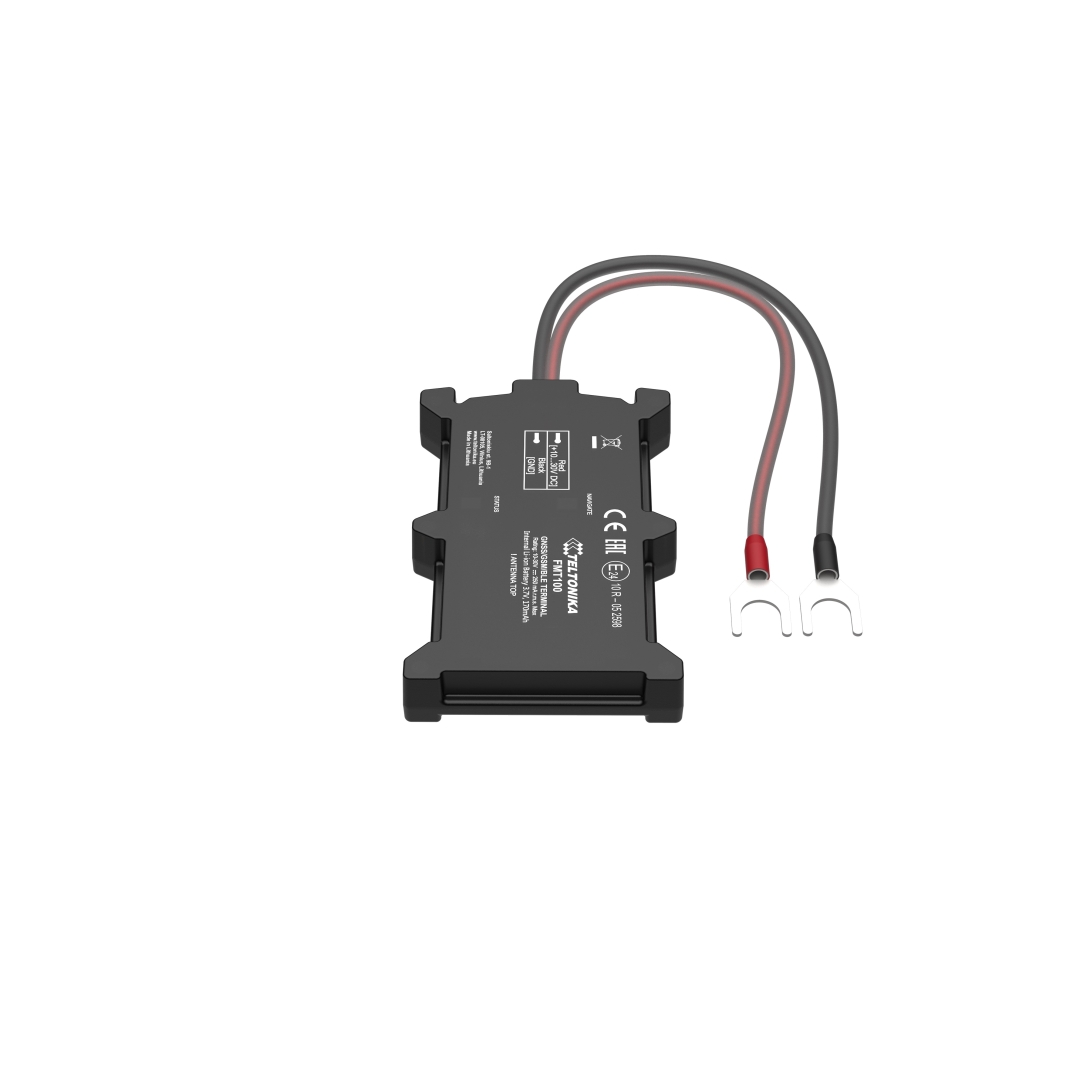

TELTONIKA 2G sekimo įrenginys, montuojamas prie automobilio akumuliatoriaus gnybtų su įmontuotu Akselerometru ir Giroskopu (FMT100)
OEM kodas:
FMT1001AFD01
Kodas:
FMT100
ID:
#2366
EAN kodas:
4779027312347
Jungiamas prie automobilio akumuliatoriaus gnybtų | Įrenginys veikia be išorinio maitinimo šaltinio | 170 mAh Li-Ion Baterija | Bluetooth 4.0 + LE ryšys išorinėms įrenginiams ir žemos energijos jutikliams | Avarijos aptikimo funkcionalumas, veikiantis pagal akselerometro duomenis | GSM 2G
47.43€ su PVMKaina be PVM: 39.20€ |
Produkto savybės:
Teltonika FMT100 yra mažas, išmanus ir vandeniui atsparus GNSS SPECIAL sekiklis su „Bluetooth“ ryšiu ir vidine atsargine baterija. Didžiausia savo klasėje vidinė aukšto stiprumo GNSS antena leidžia montuoti tiesiogiai ant automobilio akumuliatoriaus po variklio dangčiu. FMT100 įrenginys turi specialų spaustuko jungtį greitam maitinimo kabelio prijungimui prie automobilio akumuliatoriaus. Tvirtas, vandeniui atsparus korpusas ir įmontuoti akselerometro bei giroskopo jutikliai su ypač tikslia avarijos atsekimo funkcija daro šį įrenginį puikiai tinkamą draudimo rinkos sprendimams.
Produkto specifikacijos:
| MODULE | |
| Name | Teltonika TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 4.5 mA (Ultra Deep Sleep) At 12V < 6 mA (Deep Sleep) At 12V < 9 mA (Online Sleep) At 12V < 11 mA (GPS Sleep) At 12V < 26 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 92,5 x 57,6 x 14 mm (L x W x H) |
| Weight | 63 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP65 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Accelerometer and gyroscope |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBDII dongle |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE/RED, EAC, REACH, RoHS |
