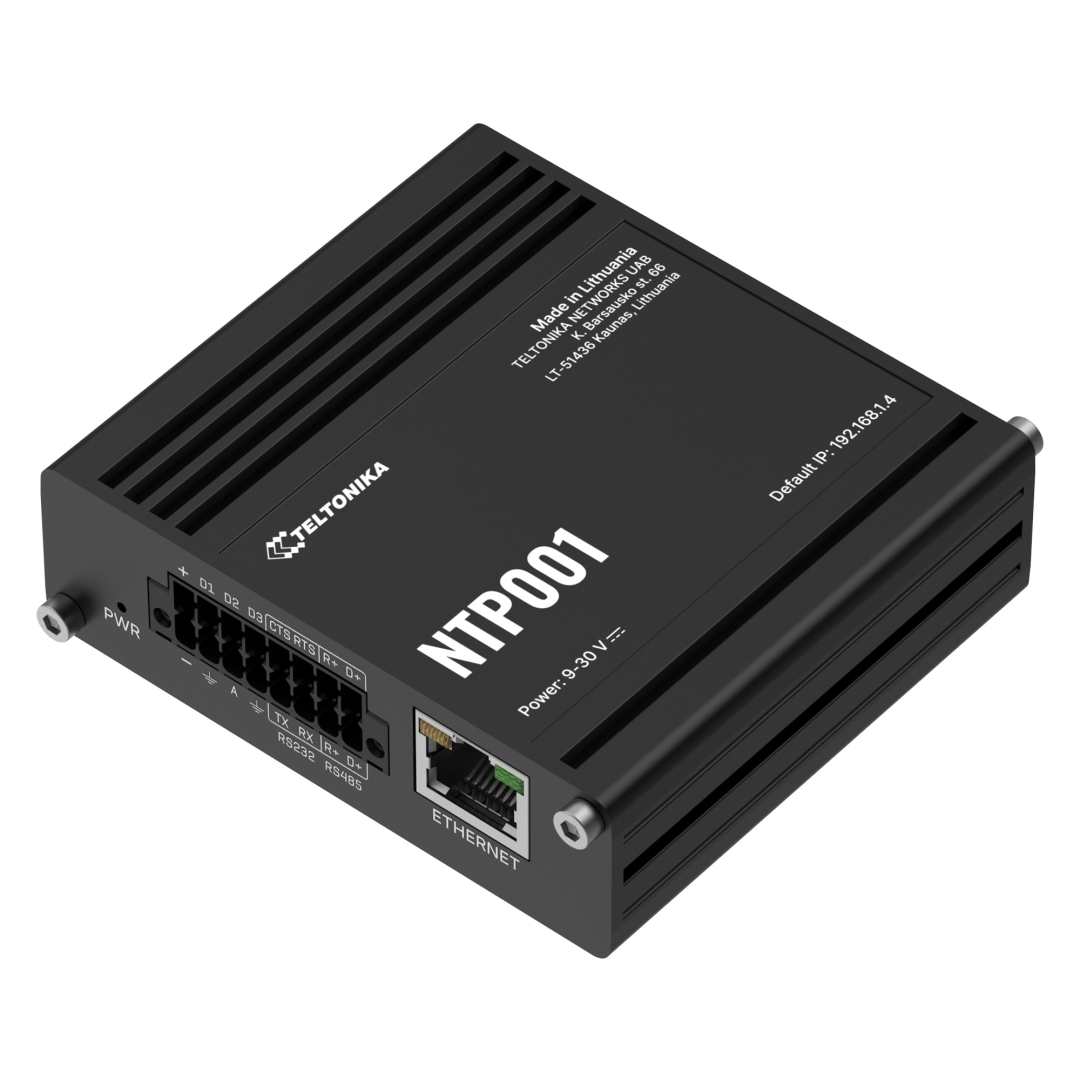

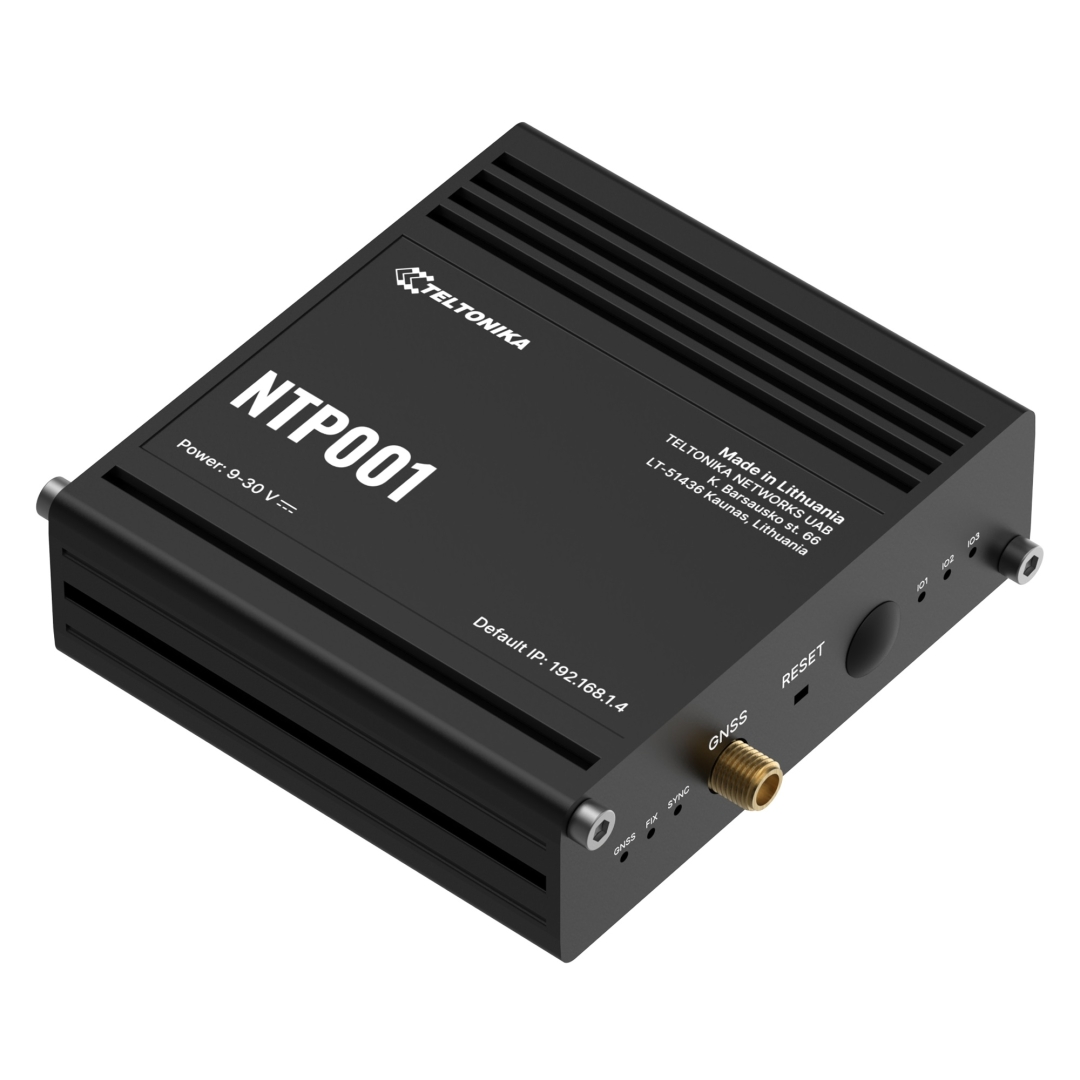

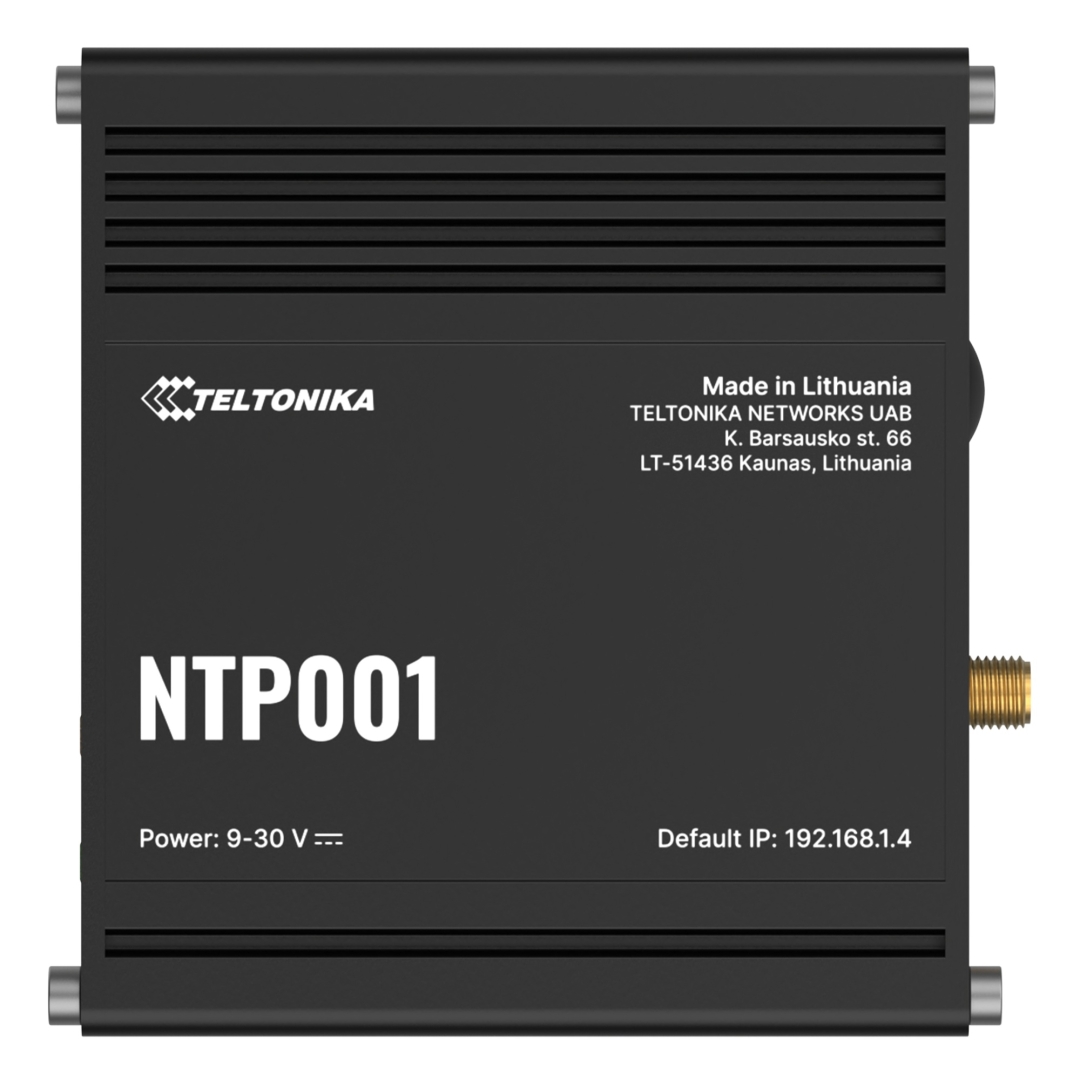

TELTONIKA Stratum-1 Teltonikos NTP SERVERIS (NTP001)
Kelių sąsajų palaikymas: RJ45, RS232, RS485 ir įvestys/išvestys (I/O)
Produkto savybės:
NTP001 – tai Teltonikos „stratum-1“ NTP serveris, skirtas sinchronizuoti tikslų laiką viešuosiuose ir privačiuosiuose tinkluose: tiek internetu, tiek neprisijungus prie jo. Pasitelkdamas GNSS galimybes, šis ekonomiškas NTP serveris palaiko tikslų, UTC atsekamą laiką. Lengvas diegimas, platus sąsajų pasirinkimas, įskaitant RS232 ir RS485, bei nepalaužiama saugumo sistema užtikrina NTP001 tinkamumą profesionaliems sprendimams.
TINKLO LAIKO SINCHRONIZAVIMAS
Tikslus ir ekonomiškas NTP serveris
ĮVAIRIOS SĄSAJOS
RJ45, RS232, RS485 jungtys ir I/O prievadai
SAUGUMAS
Autentifikavimas, prieigos kontrolė ir kita
LENGVAS PRIJUNGIMAS
Diegimas ir konfigūravimas su minimaliomis pastangomis
Produkto specifikacijos:
Ethernet
LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot
Network topology: Visual representation of your network, showing which devices are connected to which other devices
DDNS: Supported >25 service providers, others can be configured manually
Security
Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control: Flexible access control of SSH, Web interface, CLI and Telnet
802.1x: Port-based network access control client
NTP
Supported modes: Server - Receive time from GPS and act as a NTP server to broadcast time for other devices (Stratum 1). Broadcast time through UDP or over Serial (RS232, RS485)
Daytime Protocol: TCP/UDP
Date over Serial: RS232/RS485
NTP: NTPv4, NTP authentication (MD5/SHA1), Unicast/Multicast/Broadcast mode
Protocol: NTP Stratum 1 Time Server (NTPv4)
NTP Accuracy: Ethernet NTP ±1ms overall
NTP Performance: >300 NTP requests per second (wire speed)
Synchronization Accuracy: LAN synchronization typically 1–10ms
MODBUS
Supported modes: Server, Client
Supported connection types: RTU (RS232, RS485), TCP
Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT Gateway
Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker
API
Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
SSH: SSH (v1, v2)
SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC: Management API over HTTP/HTTPS
MODBUS: MODBUS TCP status/control
System Characteristics
CPU: Mediatek, 580 MHz, MIPS 24KEc
RAM: 128 MB, DDR2
FLASH storage: 16 MB, NOR Flash
Firmware / Configuration
WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
Keep settings: Update FW without losing current configuration
Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
Firmware Customisation
Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell (ash), Lua 5.1, C, C++
Development tools: SDK package with build environment provided
GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Location Tracking
GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
Acquisition Sensitivity: Acquisition Sensitivity -146 dBm, Reacquisition Sensitivity -157 dBm, Tracking Sensitivity -157 dBm
Accuracy: CEP-50 open sky 2.5 m
Time Source: GPS 1575.42 ±1.023 MHz, GLONASS 1597.5–1605.8 MHz, Galileo 1575.42 ±2.046 MHz, BDS 1561.098 ±2.046 MHz
Startup: Cold GPS acquisition in <120 seconds
Serial
RS232: Terminal block connector: TX, RX, RTS, CTS
RS485: Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Input / Output
Input: 3 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output: 3 x Digital Output, Open collector output, max output 30 V, 300 mA
Power
Connector: 2-pin in 16-pin industrial terminal block
Input voltage range: 9 - 30 VDC, Overvoltage protection, Reverse polarity protection, Surge protection +/- 1kV 50 uS Max
Power consumption: Idle: < 2 W, Max: < 3.5 W

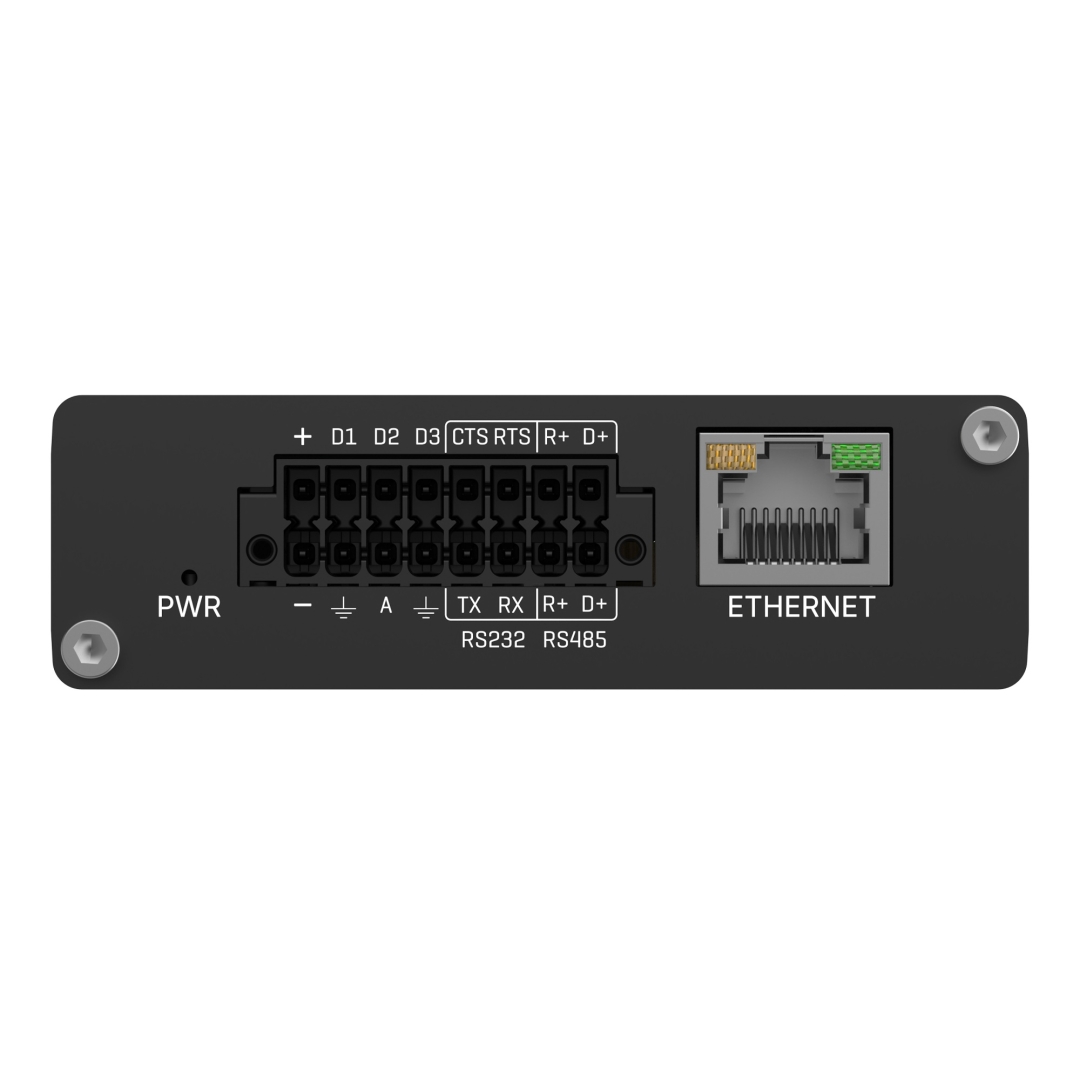

Physical Interfaces
Ethernet: 1 x RJ45 ports, 10/100 Mbps
I/O’s: 3 x Configurable I/O, 1 x Analog input in 16-pin terminal block

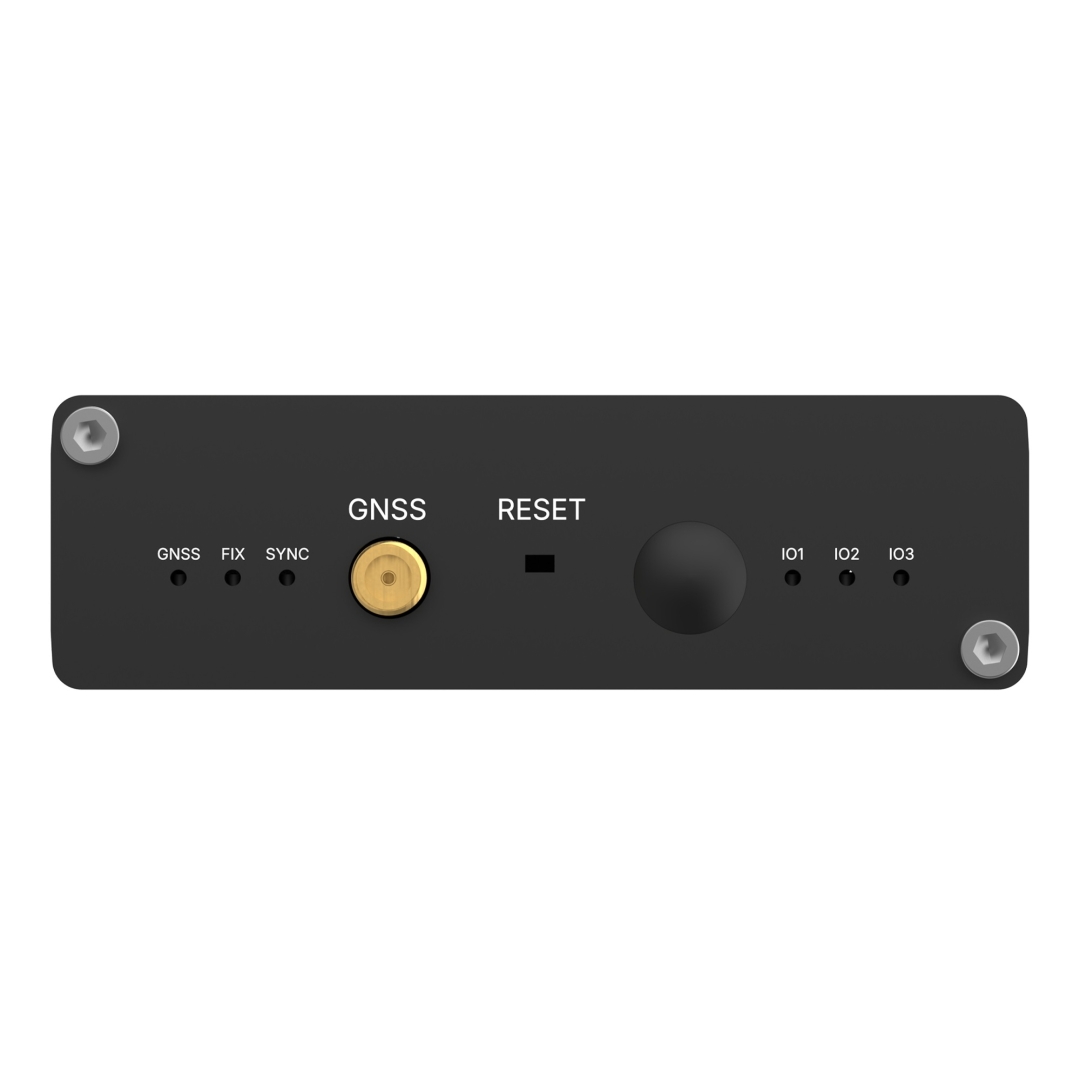

Status LEDs: 1 x Power, 2x GNSS status LEDs, 1x NTP Server status LED, 3 x IO status LEDs
Power: 1 x 16-pin terminal block
Antennas: 1 x SMA for GNSS
RS232: 4-pin in 16-pin terminal block (TX, RX, RTS, CTS)
RS485: 4-pin in 16-pin terminal block (D+, D-, R+, R-)
Reset: Reboot/User default reset/Factory reset button
Physical Specification
Casing material: Anodized aluminum housing and panels
Dimensions (W x H x D): 82.6 x 25 x 83 mm
Weight: 180 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30
Regulatory & Type Approvals
Regulatory: CE, UKCA, CB, UCRF, EAC, WEEE
