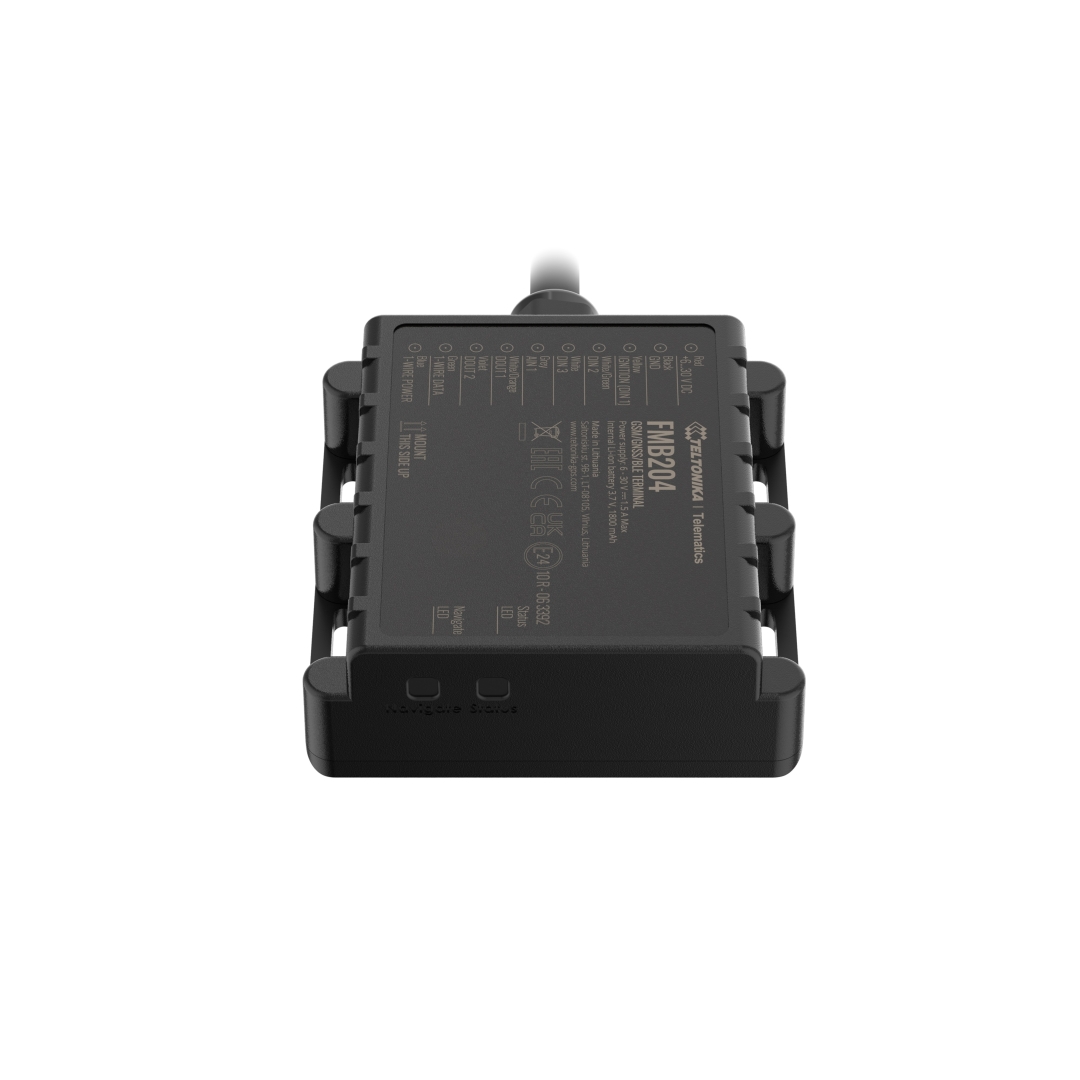

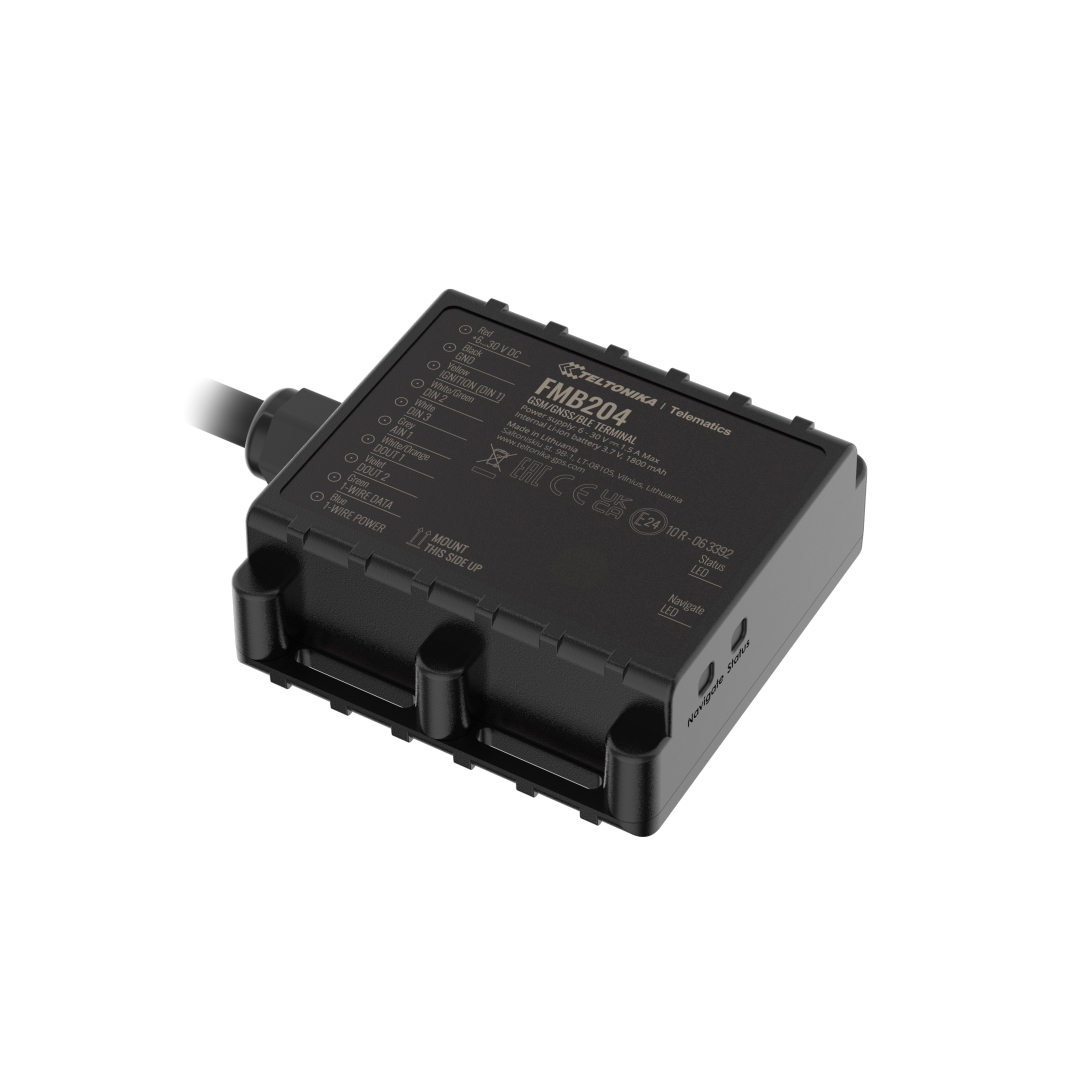

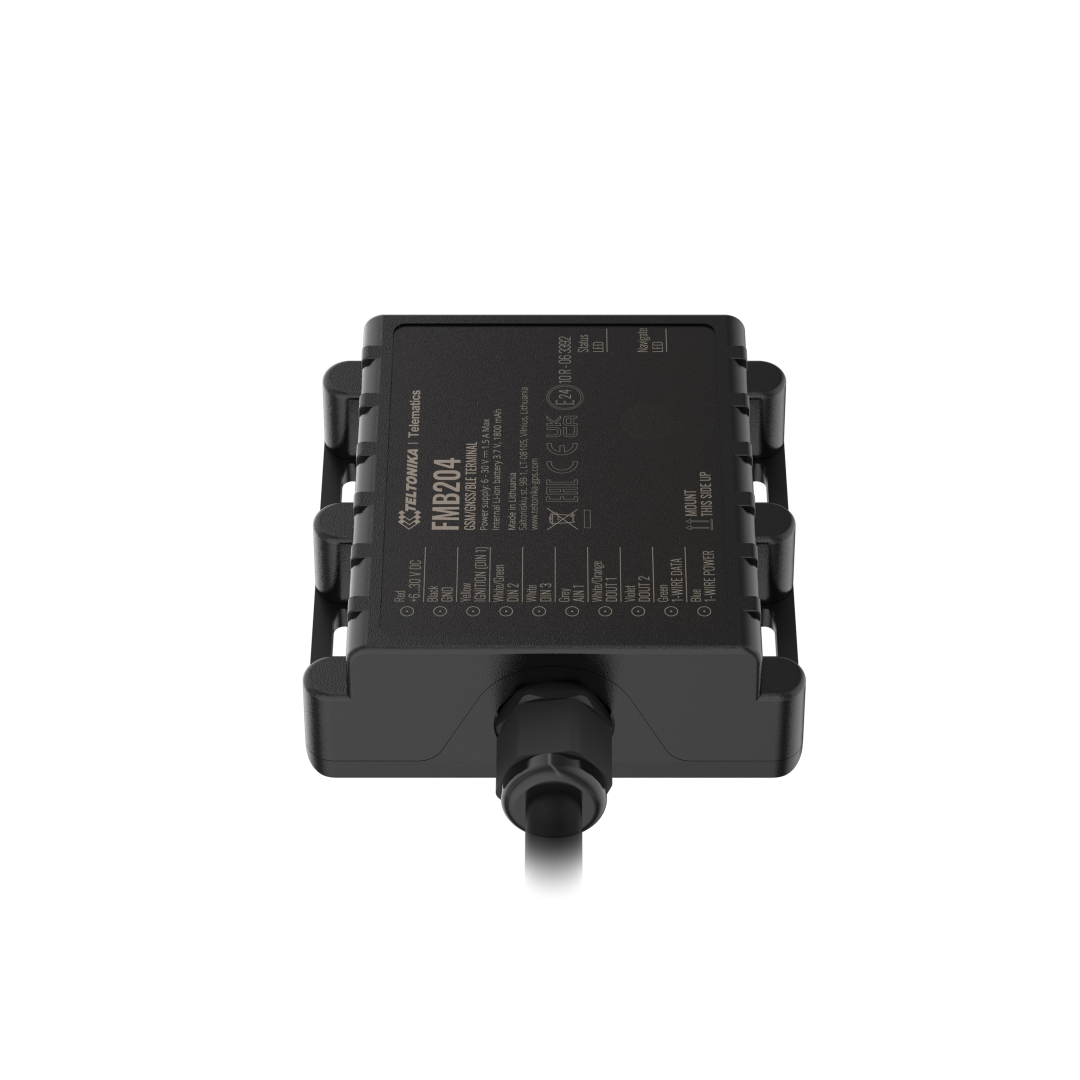

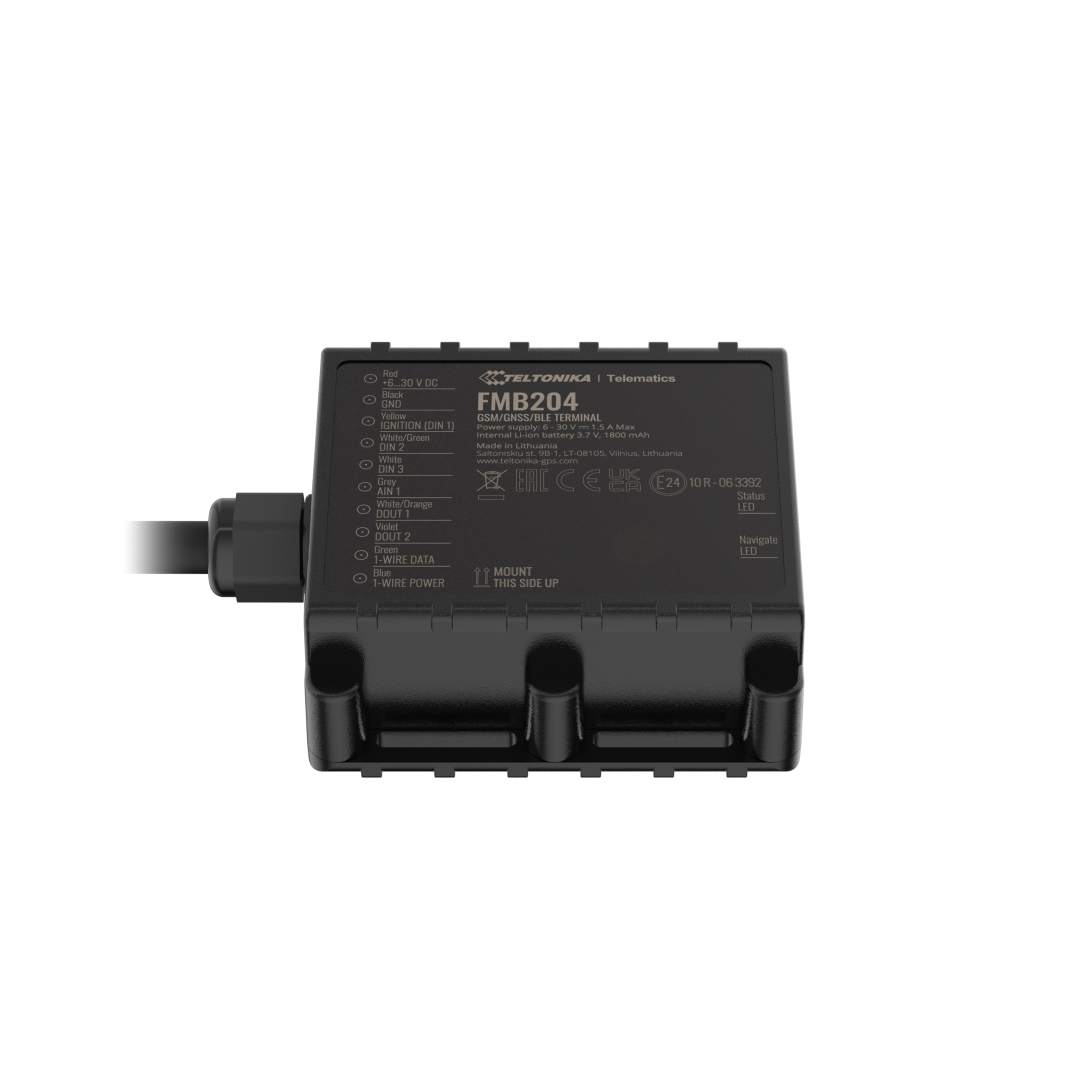

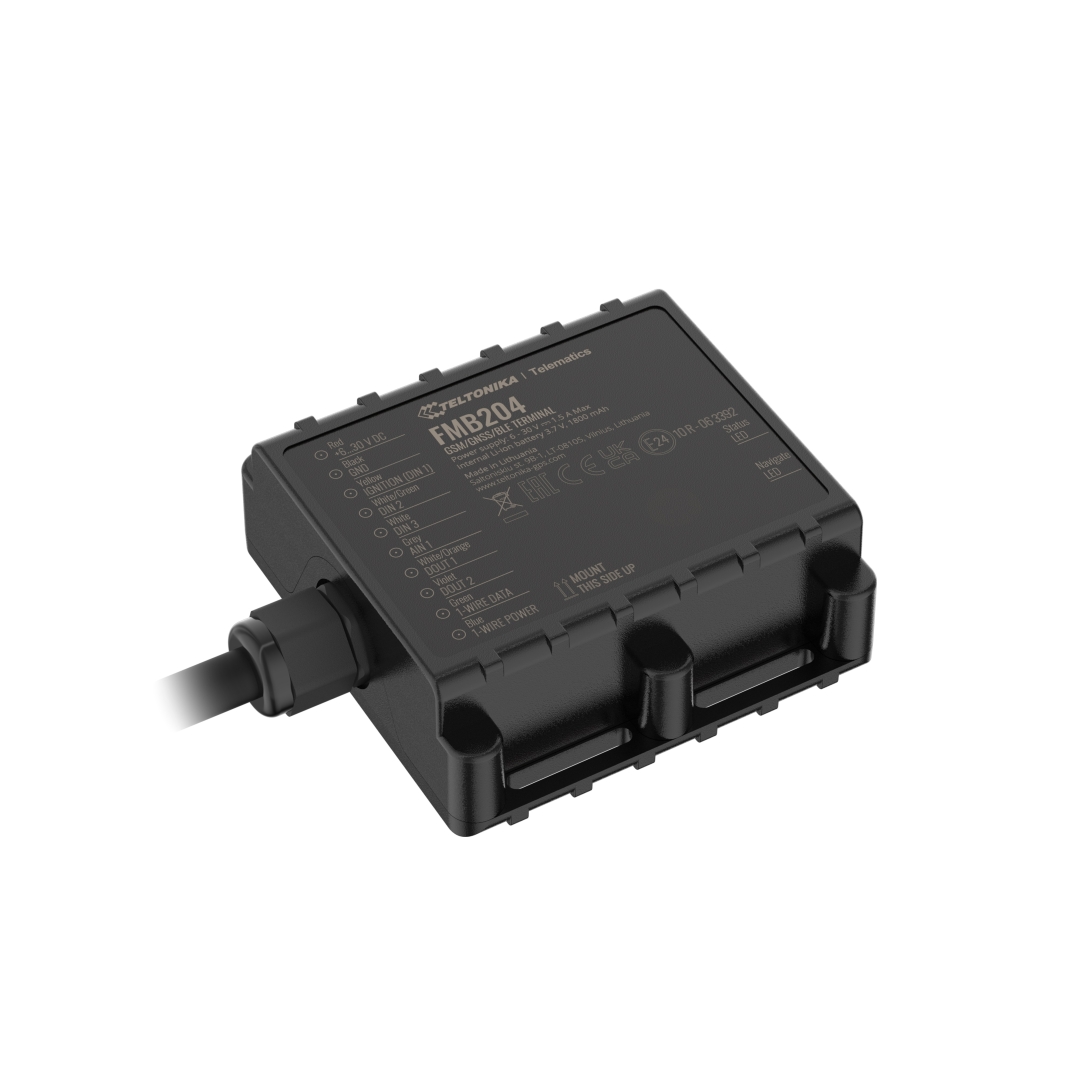

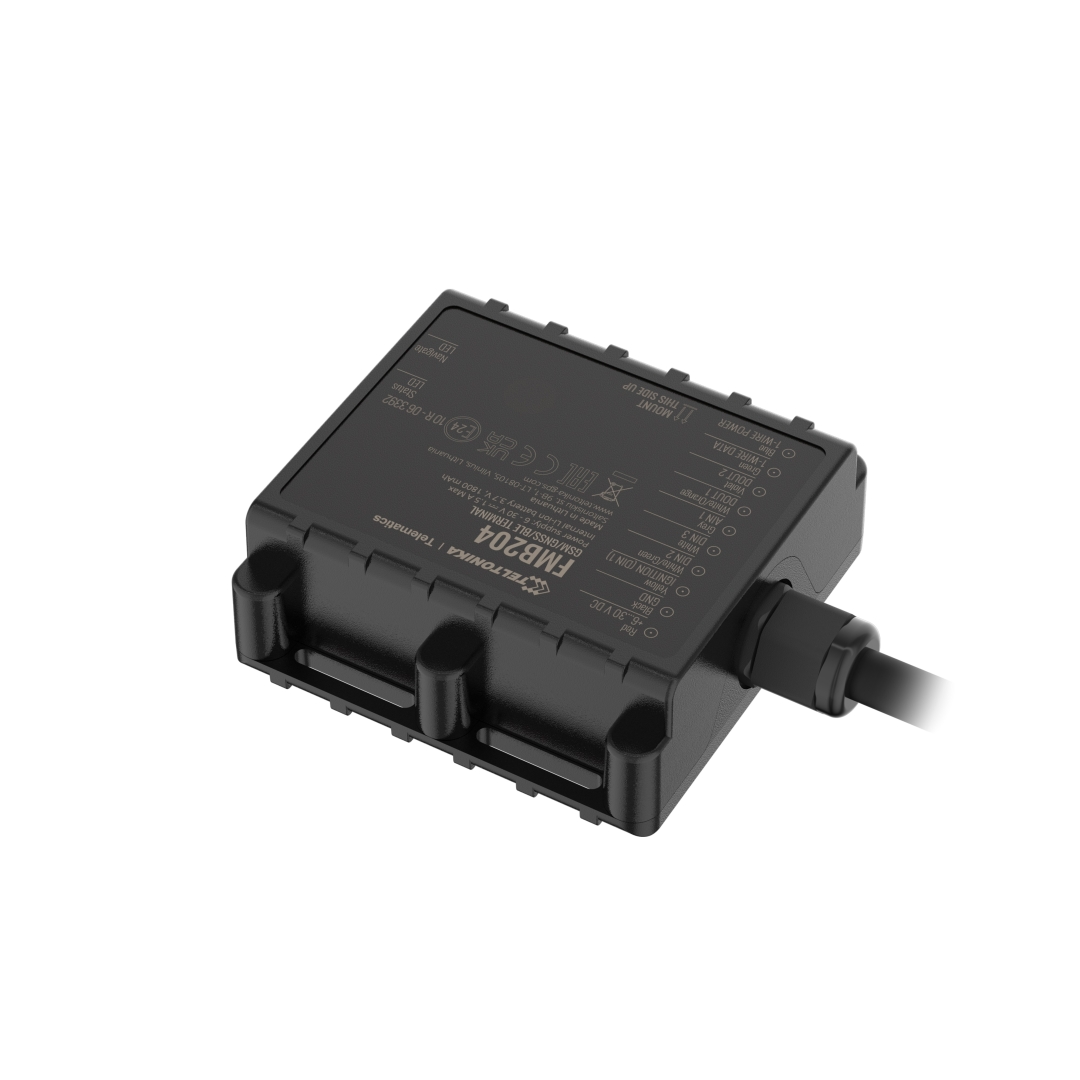

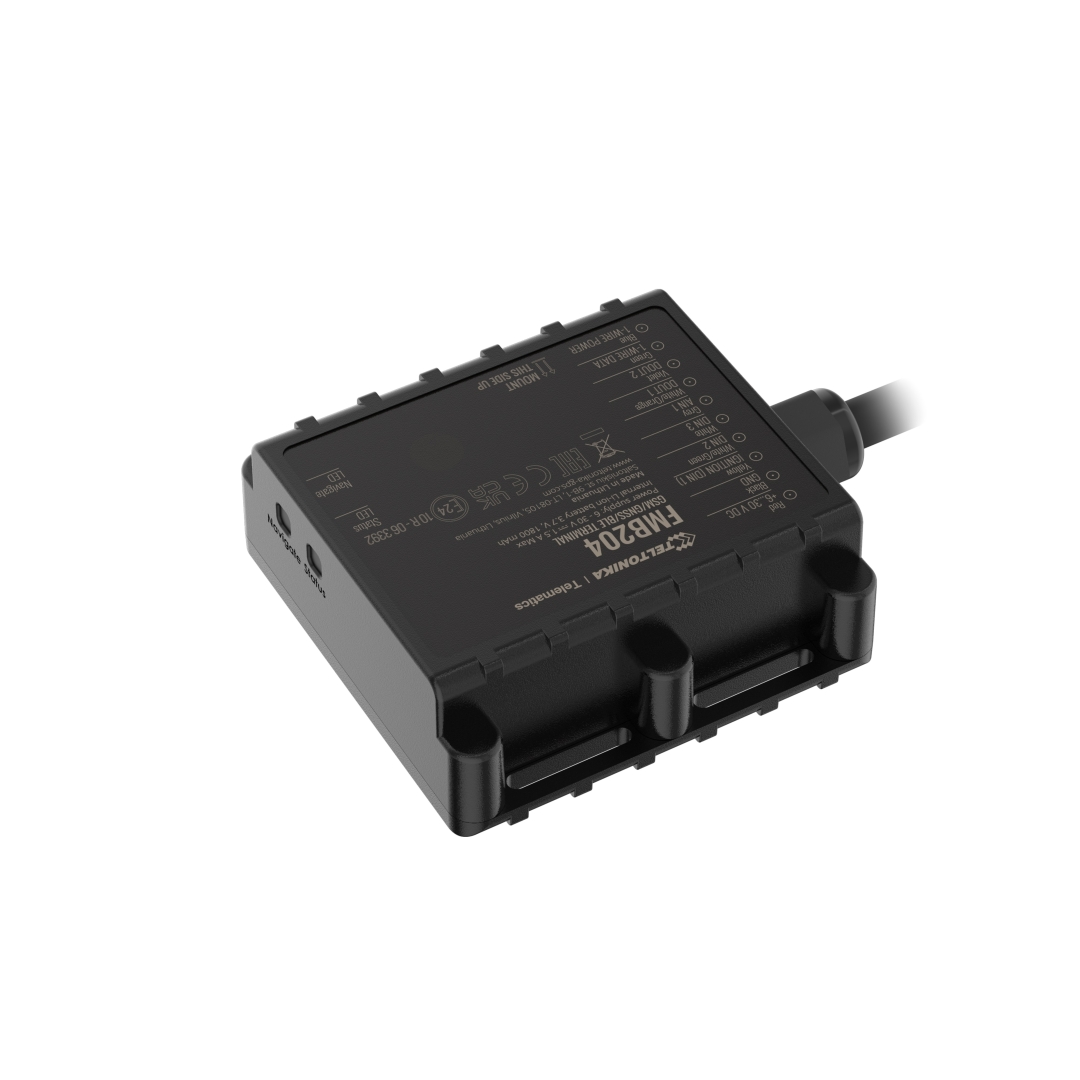

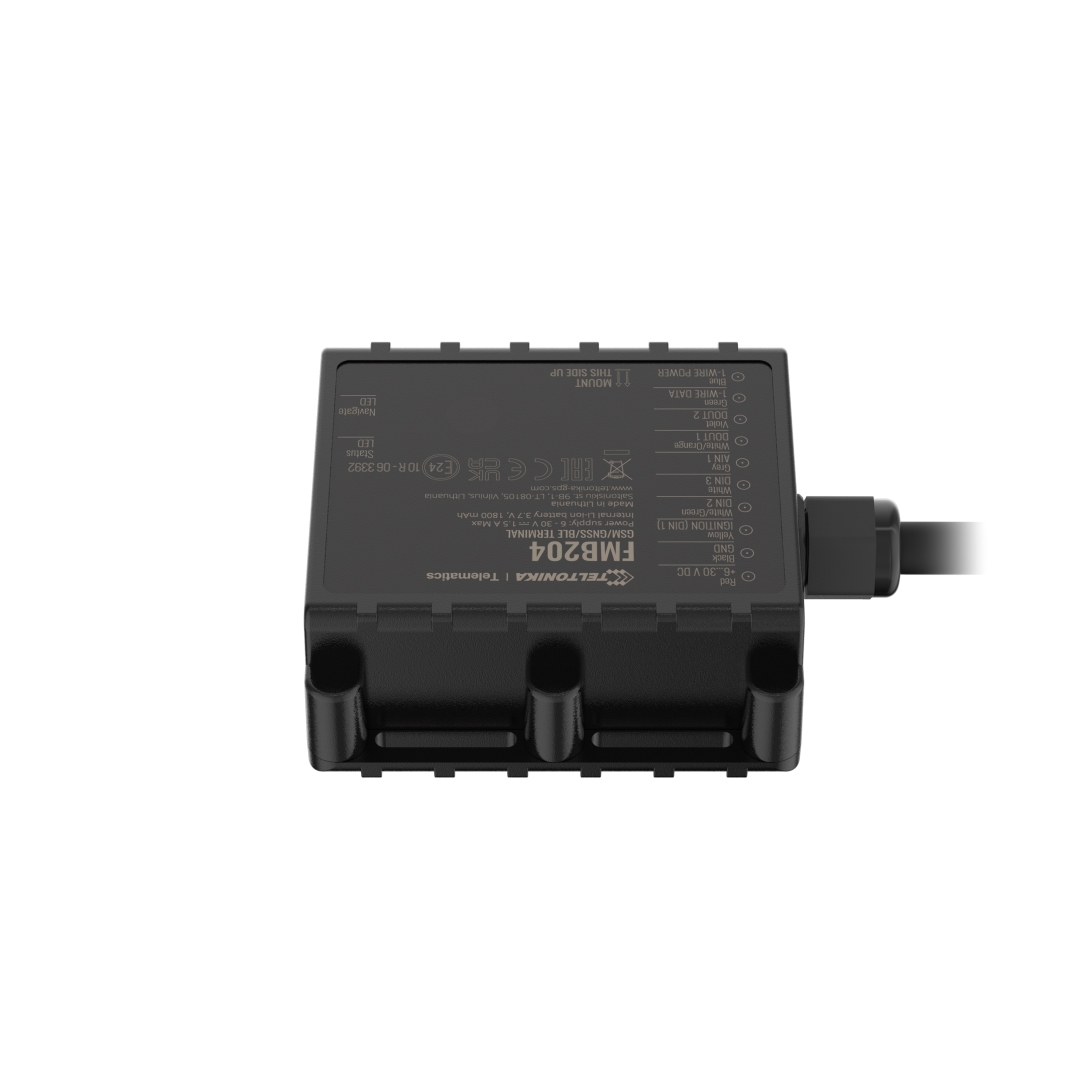

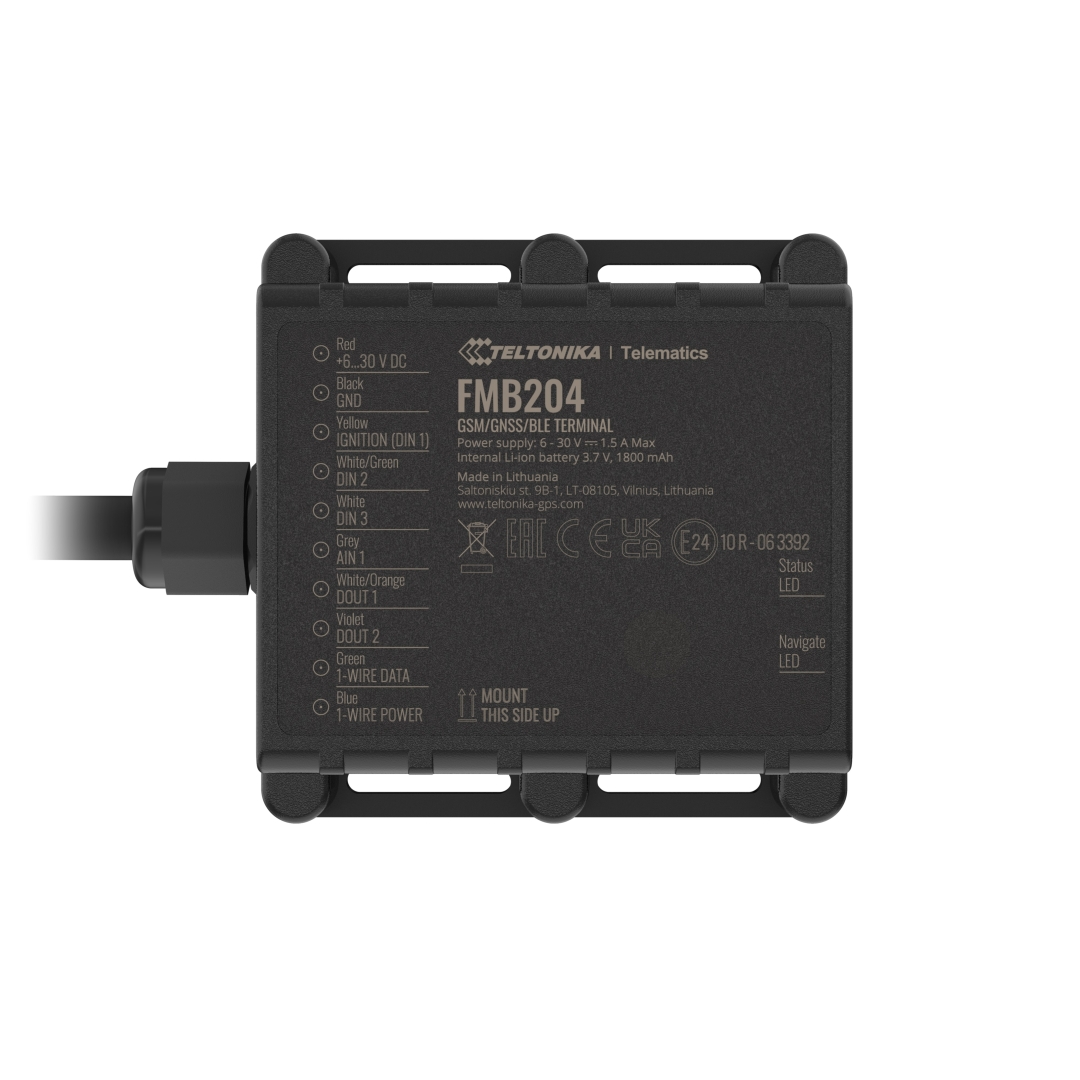

TELTONIKA 2G sekimo įrenginys su tvirtu IP67 korpusu ir 6-30 voltų įtampos diapazonu, galingomis GNSS/GSM antenomis, Bluetooth ir 1800 mAh Ni-MH baterija (FMB204)
OEM kodas:
FMB204BD9L01
Kodas:
FMB204
ID:
#3451
EAN kodas:
4779027312309
1-Wire® sąsaja temperatūros duomenims ir RFID/iButton žymėms stebėti | Skaitmeninis įvestis/išvestis nuotoliniam stebėjimui ir valdymui | Leidžia įrenginiui veikti be išorinio maitinimo šaltinio | Išorinio įtampos diapazonas 6–30 V | „Bluetooth“ ryšys išoriniams įrenginiams ir mažos energijos jutikliams | Apsaugos laipsnio nuo kietųjų dalelių ir vandens klasifikavimas
50.14€ su PVMKaina be PVM: 41.44€ |
Produkto savybės:
Teltonika FMB204 yra SPECIALUS atsparus vandeniui (IP67) sekiklis su „Bluetooth“ ryšiu, vidinėmis didelio stiprinimo GNSS ir GSM antenomis bei integruota didelės talpos atsarginė baterija. Įrenginys sukurtas dirbti ilgiau be maitinimo šaltinio. FMB204 su LiPo baterija gali dirbti iki 6 dienų energijos taupymo režimu. FMB204 puikiai tinka žemės ūkiui, pristatymams, šaldytam transportui, priekabų sekimui, saugumo ir skubios pagalbos paslaugoms ir dar daugiau. 6-30V maitinimo šaltinis daro FMB204 tinkamą motociklams ir vandens transportui.
Produkto specifikacijos:
| MODULE | |
| Name | Teltonika TM2500 |
| Technology | GSM/GPRS/GPS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 6 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 1800 mAh Li-Ion battery (6.66 Wh) |
| Power consumption | At 12V < 2,1 mA (Ultra Sleep) At 12V < 3,9 mA (Deep Sleep) At 12V < 4,2 mA (Online Sleep) At 12V < 15,7 mA (GPS Sleep) At 12V < 28,3 mA (nominal) |
| BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| INTERFACE | |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Analog Inputs | 1 |
| 1WIRE DATA | 1 |
| 1WIRE POWER | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Dual-sim (1x Micro-SIM card; 1x eSIM) |
| Memory | 128MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions | 72,5 x 73 x 27,3 mm (L x W x H) |
| Weight | 205 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +70 °C |
| Battery storage temperature | -10 °C to +45°C |
| FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| CERTIFICATION & APPROVALS | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |
