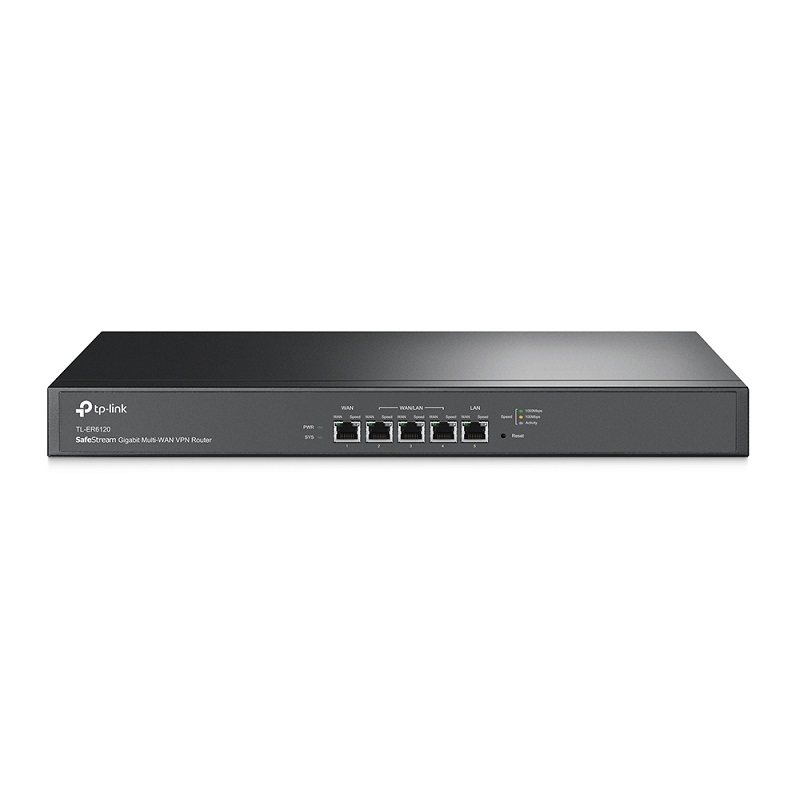

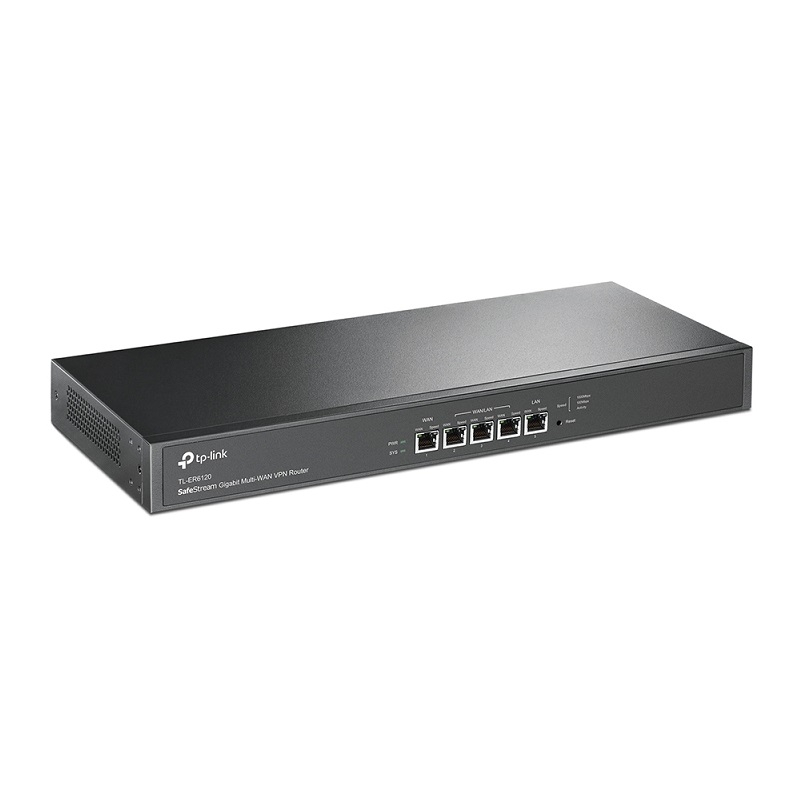

TP-LINK SafeStream Gigabit Dual-WAN VPN Router (TL-ER6120)

OEM kodas: TL-ER6120
Kodas: TL-ER6120
ID: #495

1x Gigabit WAN port, 3x Gigabit LAN/WAN ports, 1x Gigabit LAN/DMZ port, Up to 100 IPsec VPN Tunnels, 180Mbps IPsec VPN Throughput, Flash: 32MB, DRAM: DDRIII 512MB

148.82€ su PVM

Kaina be PVM: 122.99€

Kiekis:


Produkto savybės:

  • 2 Gigabit WAN ports, 2 Gigabit LAN ports, 1 Gigabit LAN/DMZ port and a console port
  • Supports multiple VPN protocols including IPsec/PPTP/L2TP, which helps users establish their VPN more flexibly
  • Supports up to 100 IPsec VPN tunnels with a hardware-based VPN engine
  • Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control
  • Deploys One-Click restriction of IM/P2P applications to manage staff online behavior
  • Professional 4kV lightning protection keeps your investments as safe as possible

Produkto specifikacijos:

HARDWARE FEATURES

Standards and Protocols:
   IEEE 802.3, IEEE802.3u, IEEE802.3ab
   TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Interfaces:
   1 Gigabit WAN port
   3 Gigabit WAN/LAN ports
   1 Gigabit LAN port

Network Media:
   10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
   EIA/TIA-568 100Ω STP (Max 100m)
   100BASE-TX: UTP category 5, 5e cable (Max 100m)
   EIA/TIA-568 100Ω STP (Max 100m)
   1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button: Reset Button
Power Supply: Internal Universal Power Supply, AC100-240V~ 50/60Hz Input
Flash: 32MB
DRAM: DDRIII 512MB
LED: PWR, SYS, Link/Act, Speed
Dimensions ( W x D x H ): 17.3x7.1x1.7 in.(440x180x44 mm)

PERFORMANCE

Concurrent Session: 150000
NAT Throughput: 950Mbps
IPsec VPN Throughput (AES256): 373Mbps

BASIC FUNCTIONS

WAN Connection Type:
   Static/Dynamic IP
   PPPoE/Russian PPPoE
   PPTP/Russian PPTP
   L2TP/Russian L2TP
   Bigpond Cable

DHCP:
   DHCP Server/Client
   DHCP Reservation

MAC Clone: Modify WAN/LAN/DMZ MAC Address
IPTV: Bridge, Custom
IPv6: IPv6 Support
VLAN: 802.1Q VLAN, Port VLAN

ADVANCED FUNCTIONS

Load Balance:
   Intelligent Load Balance
   Link Backup (Timing, Failover)
   Online Detection

NAT:
   One-to-One NAT
   Multi-nets NAT
   Virtual Server, Port Triggering, UPnP
   FTP/H.323/SIP/IPsec/PPTP ALG

Routing:
   Static Routing
   Policy Routing

Traffic Control:
   IP-based Bandwidth Control
   IP-based Session Limit

VPN

IPsec VPN:
   100 IPsec VPN Tunnels
   LAN-to-LAN, Client-to-LAN
   Main, Aggressive Negotiation Mode
   DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
   MD5, SHA1 Authentication Algorithm
   IPsec NAT Traversal (NAT-T)
   Dead Peer Detection (DPD)
   Perfect Forward Secrecy (PFS)

PPTP VPN:
   50 PPTP VPN Tunnels
   PPTP VPN Server/Client
   PPTP with MPPE Encryption

L2TP VPN:
   50 L2TP VPN Tunnels
   L2TP VPN Server/Client
   L2TP over IPsec

VPN Pass-through: IPsec (ESP), PPTP, L2TP

SECURITY

Attack Defense: TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

Filtering:
   MAC Filtering
   URL/Keywords Filtering

ARP Inspection:
   Sending GARP Packets
   ARP Scanning by WAN/LAN
   IP-MAC Binding

Access Control: Source/Destination IP Based Access Control

MANAGEMENT

Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance:
   Web Management Interface
   Remote Management
   Export & Import Configuration
   SNMP
   Diagnostics(Ping & Traceroute)
   NTP Synchronize
   Syslog Support

Web-based Management:
   Local User Authentication
   Radius Sever Authentication
   Onekey Online

OTHERS

Certification: CE, FCC, RoHS

Package Contents:
   TL-ER6120
   Power Cord
   Rack-mount Kit
   Installation Guide

System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment:
   Operating Temperature: 0℃~40℃ (32℉~104℉)
   Storage Temperature: -40℃~70℃ (-40℉~158℉)
   Operating Humidity: 10%~90% non-condensing
   Storage Humidity: 5%~90% non-condensing
