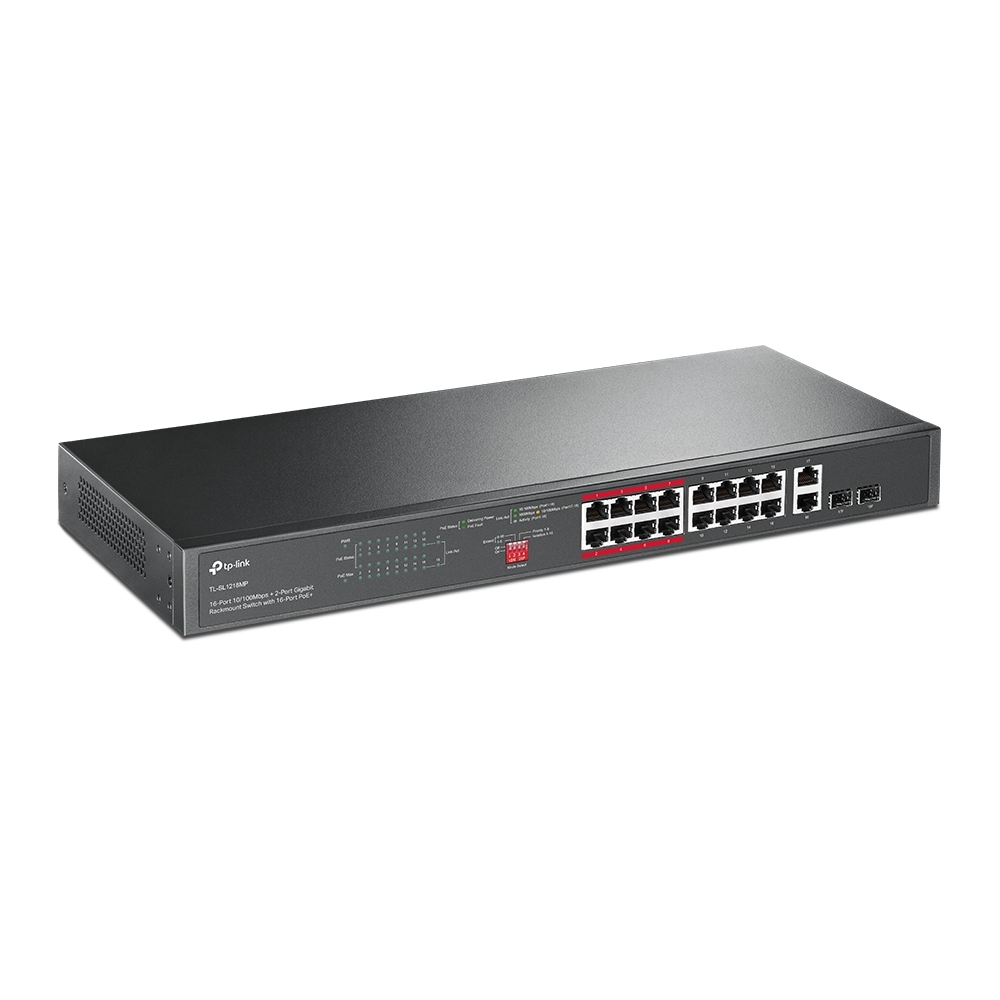

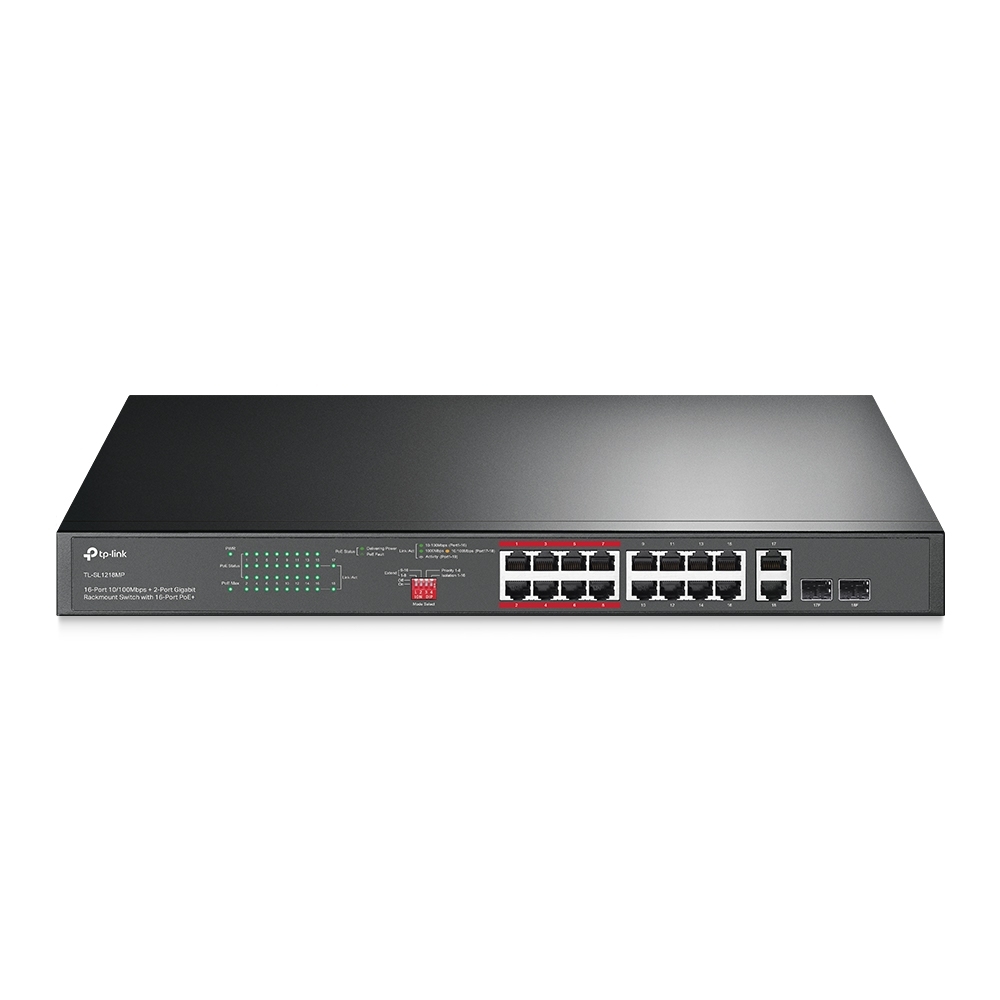

PoE komutatorius/šakotuvas TP-LINK TL-SL1218MP, 16-Port 10/100Mbps + 2-Port Gigabit

OEM kodas: TL-SL1218MP
Kodas: TL-SL1218MP
ID: #1661

Jungtys: 16 FE + 2 GE + 2 Combo SFP, PoE jungtys: 16 PoE+, PoE standartas (IEEE): 802.3af/802.3at, PoE galia: 192W; tipas: nevaldomas.

148.36€ su PVM

Kaina be PVM: 122.61€

  Turime sandėlyje
Kiekis:


Produkto savybės:

16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots;

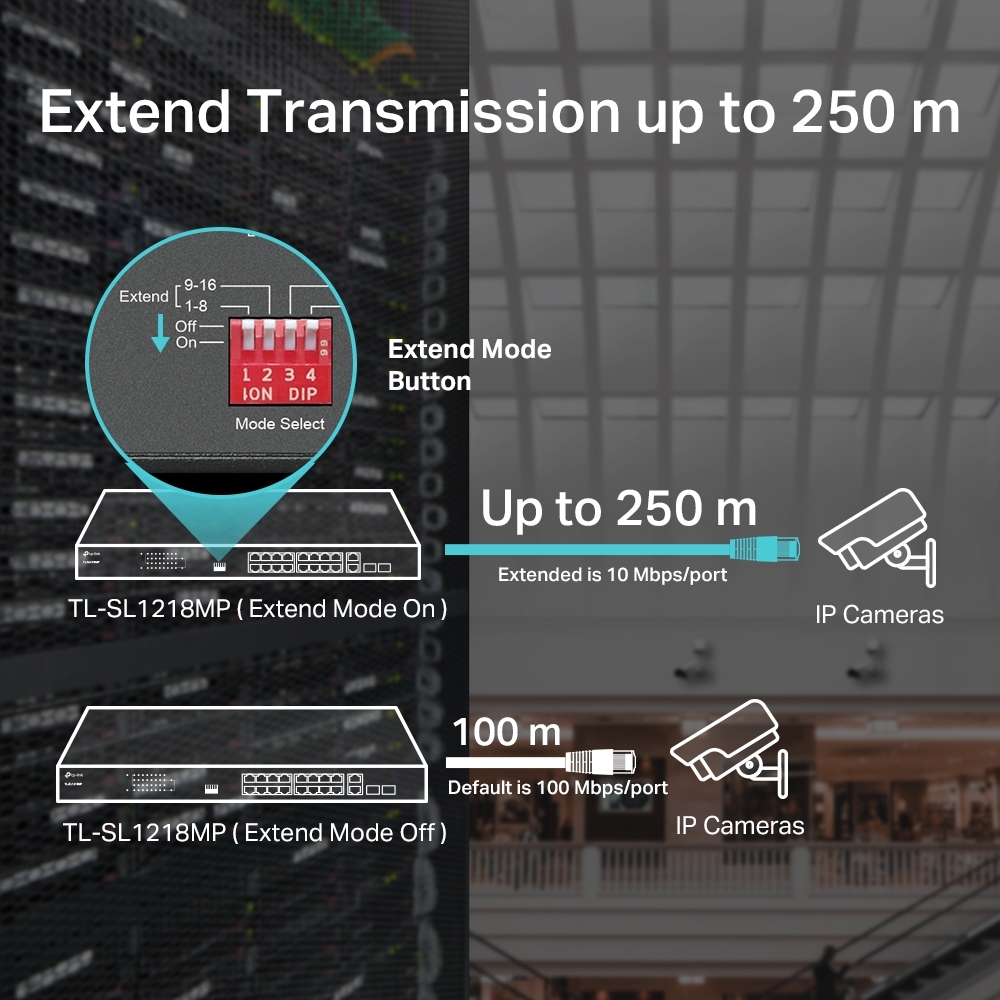

• Up to 250m data and power transmission under extend mode specially designed for surveillance system;

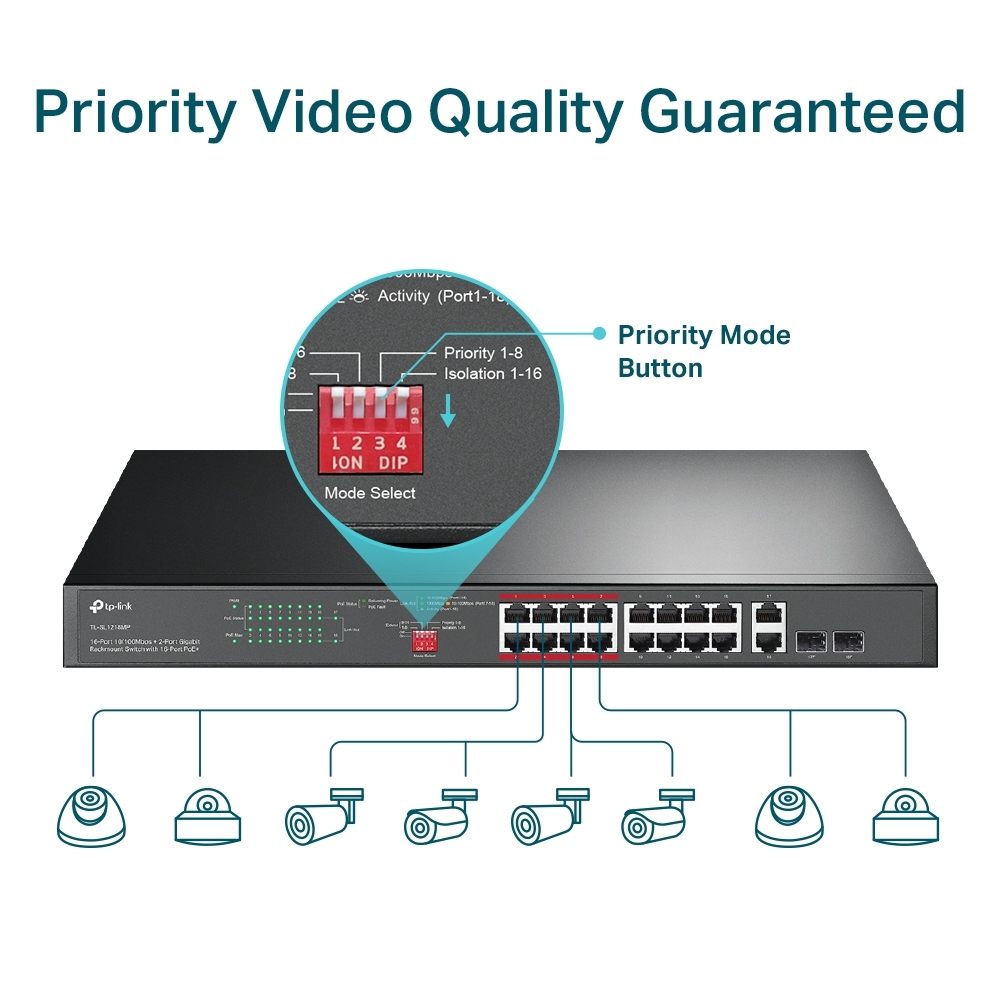

• Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor;

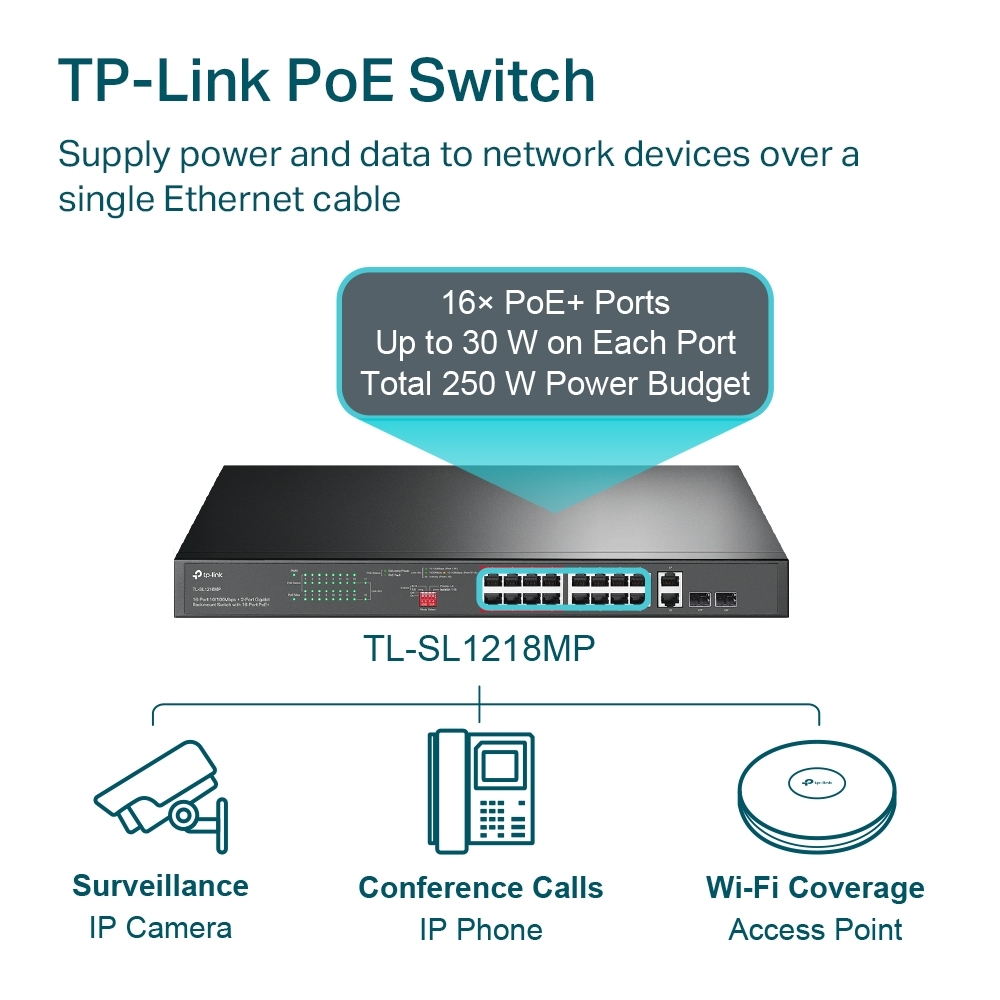

• High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports;

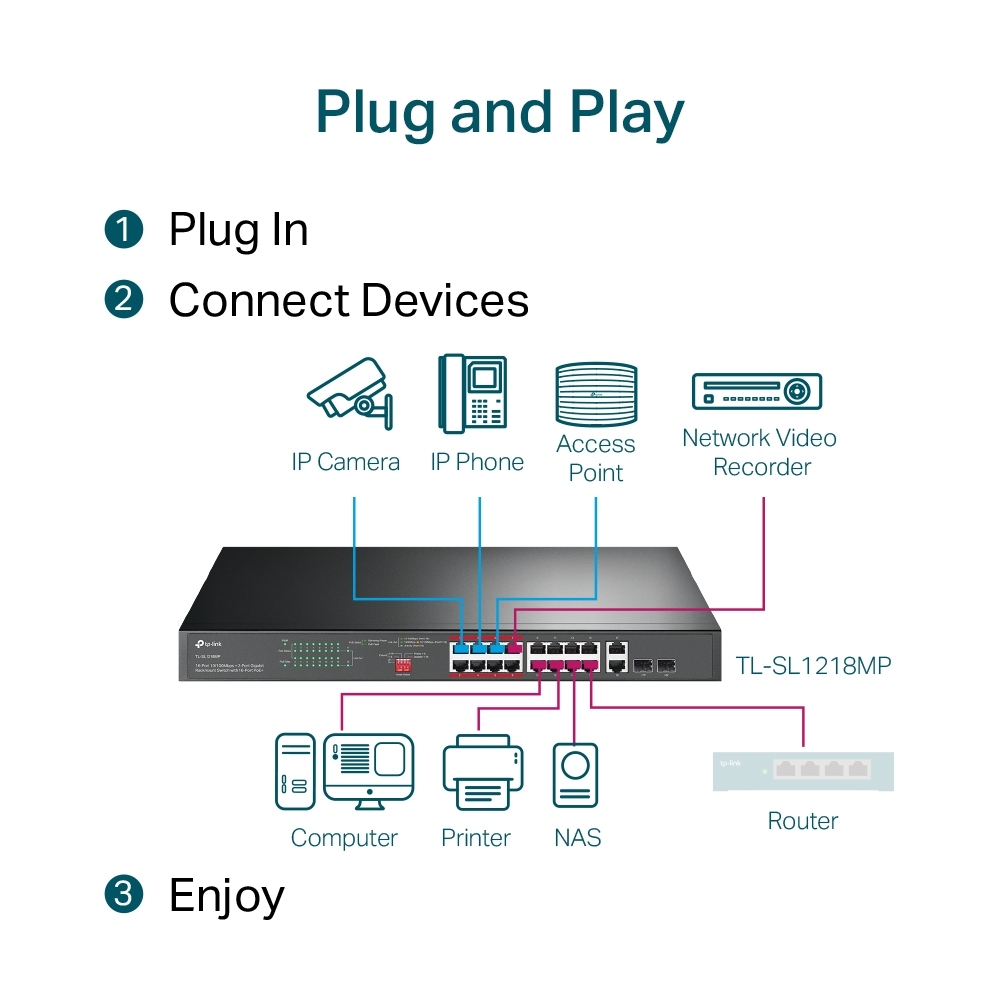

• Easy to use, with no configuration and installation needed.

Produkto specifikacijos:

Hardware Features:

• Interfaces:
* 16 PoE+ 10/100Mbps RJ45 Ports;
* 2 10/100/1000Mbps RJ45 Ports;
* 2 Combo Gigabit SFP Slots;

Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
* 1000BASE-X MMF, SMF;

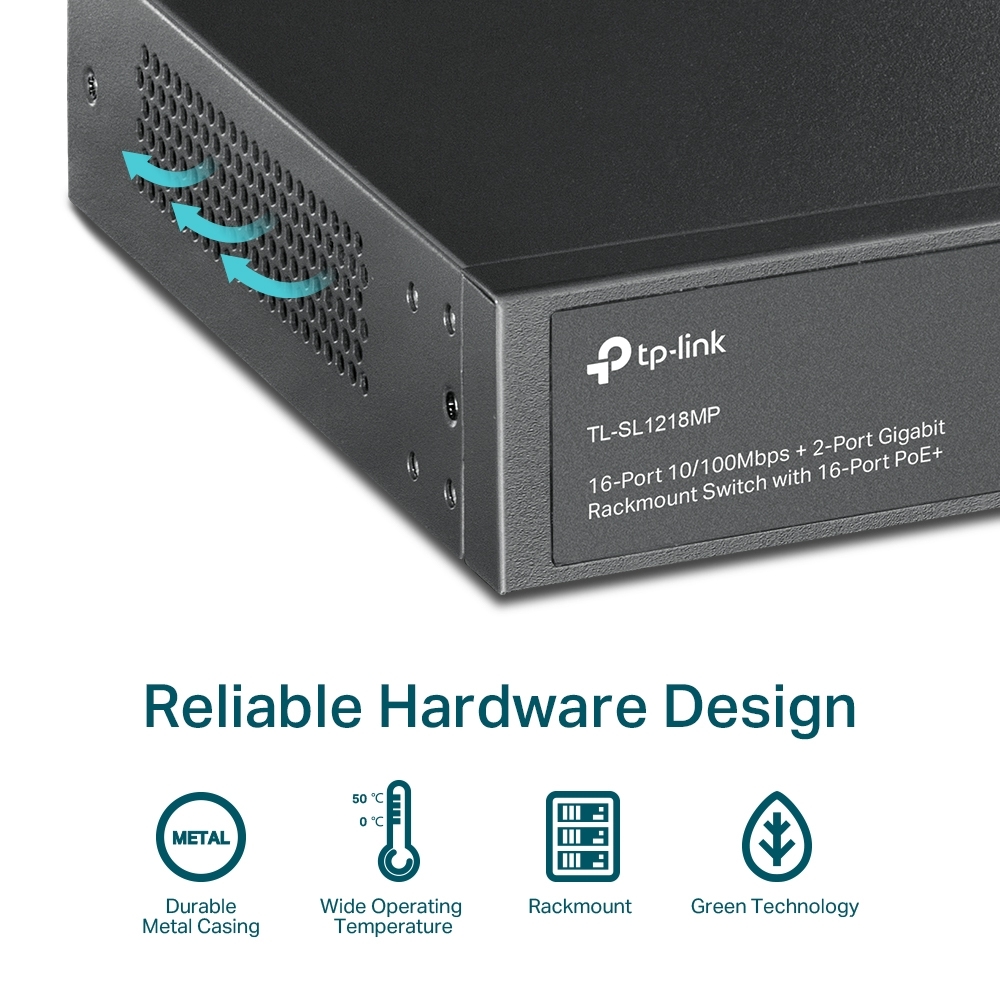

Fan Quantity: 2 Fans;
• Power Supply: 100-240V AC, 50/60 Hz;
• Backup Bandwidth: 7.2 Gbps;

PoE+ Ports(RJ45):
* Standard: 802.3at/802.3af compliant;
* PoE Ports: Port1- Port16;
* PoE Power Budget: 192W;

Mac Address Table: 8K;
• Dimensions ( W x D x H ): 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in.);

Max Power Consumption:
* 18.7 W (no PD connected);
* 217.2 W (with 192W PD connected);

Max Heat Dissipation:
* 63.9 BTU/h (no PD connected);
* 741.2 BTU/h (with 192W PD connected).

Software Features:

Advanced Features:
* Compatible with IEEE 802.3at/af compliant devices;
* Port Priority Mode;
* Extend Mode (Up to 250m PoE power supply and data transmission);
* Mac Address Auto-Learning And Auto-Aging;
* IEEE802.3x Flow Control;

Transmission Method: Store-And-Forward.

Others:

Certification: FCC, RoHS;

Package Contents:
* TL-SL1218MP;
* Power Cable;
* Installation Guide;

Environment:
* Operating Temperature: 0°C~40°C (32°F~104°F);
* Storage Temperature: -40°C~70°C (-40°F~158°F);
* Operating Humidity: 10% ~ 90% non-condensing;
* Storage Humidity: 5%~90% non-condensing.
