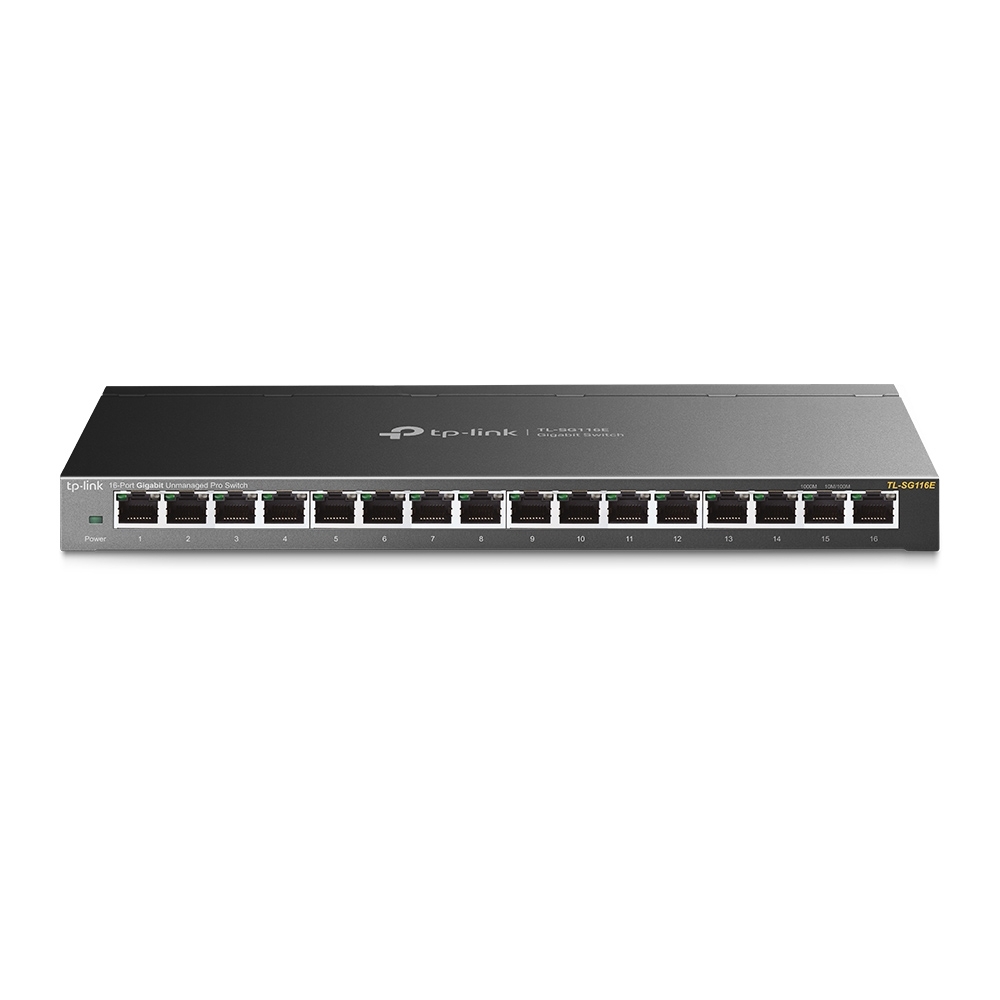

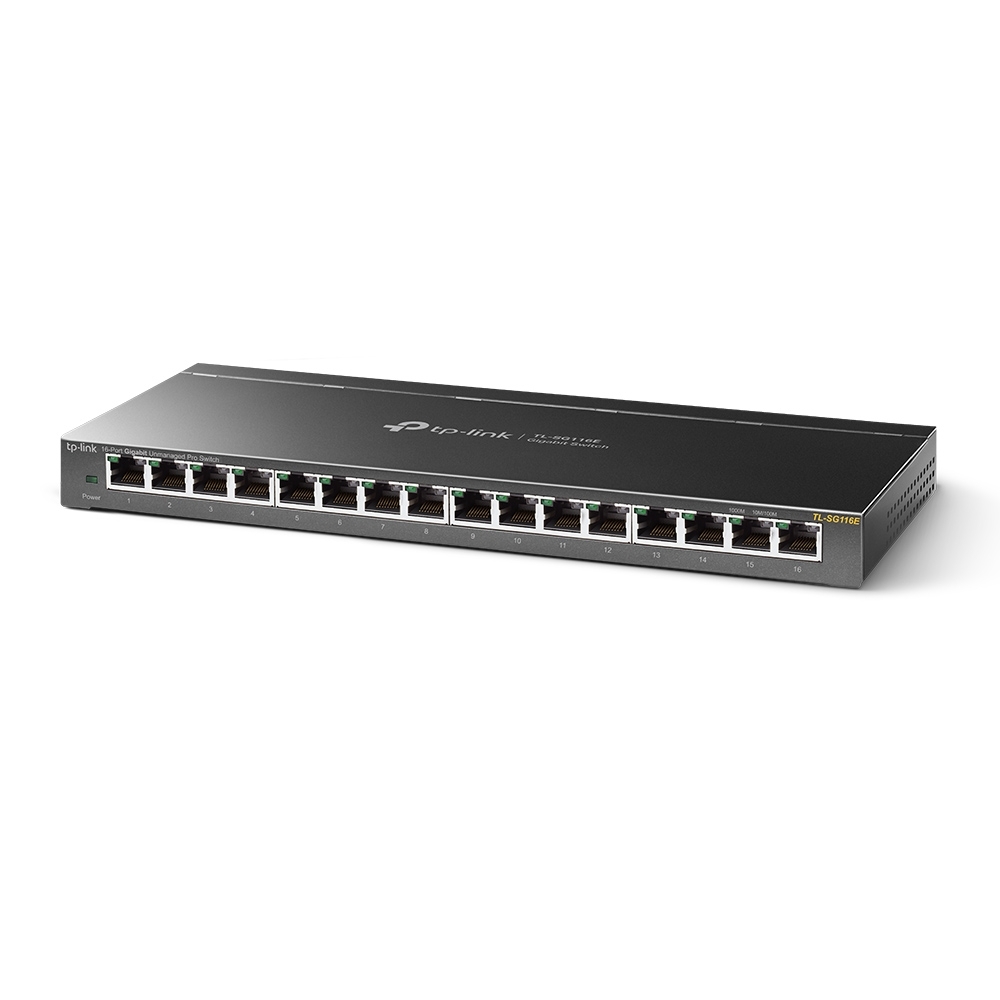

TP-LINK 16-prievadų Gigabit nevaldomas Pro komutatorius (TL-SG116E)

OEM kodas: TL-SG116E
Kodas: TL-SG116E
ID: #1630

16x 10/100/1000Mbps automatinių derybų RJ45 prievadai, palaikantys Auto-MDI / MDIX, „Green Ethernet“ technologiją, IEEE 802.3x srauto valdymą, 802.1p/DSCP QoS palaikymas ir IGMP „Snooping“ funkciją, Port Mirroring, Loop Prevention, Kabelių diagnostika, MTU VLAN , prievado VLAN ir 802.1Q pagrindu veikiantis VLAN

64.13€ su PVM

Kaina be PVM: 53.00€


Produkto savybės:

  • 16 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption

Produkto specifikacijos:


Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

   16 10/100/1000Mbps RJ45 Ports
   AUTO Negotiation/AUTO MDI/MDIX

Network Media:
   10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
   EIA/TIA-568 100Ω STP (maximum 100m)
   100BASE-TX: UTP category 5, 5e cable (maximum 100m)
   EIA/TIA-568 100Ω STP (maximum 100m)
   1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
   EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless
Power Supply: External Power Adapter(Output: 12VDC / 1A)
Dimensions ( W x D x H ): 286*111.7*25.4 mm (11.3 x 4.4 x 1.0 in.)
Max Power Consumption: 9.19W(220V/50Hz)
Max Heat Dissipation: 31.36BTU/h


Switching Capacity: 32Gbps
Packet Forwarding Rate: 23.81Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mb
Jumbo Frame: 10KB


Quality of Service:
   Support Port-based/802.1p/DSCP priority
   Support 4 priority queues
   Rate Limit
   Storm Control

L2 Features:
   IGMP Snooping V1/V2/V3
   Static Link Aggregation
   Port Mirroring
   Cable Diagnostics
   Loop Prevention

   Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
   MTU/Port/Tag VLAN

Transmission Method: Store-And-Forward


Certification: FCC, CE, RoHS

Package Contents:
   Power Cord
   Installation Guide
   Rubber Feet

System Requirements: Microsoft® Windows® for running Utility

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
