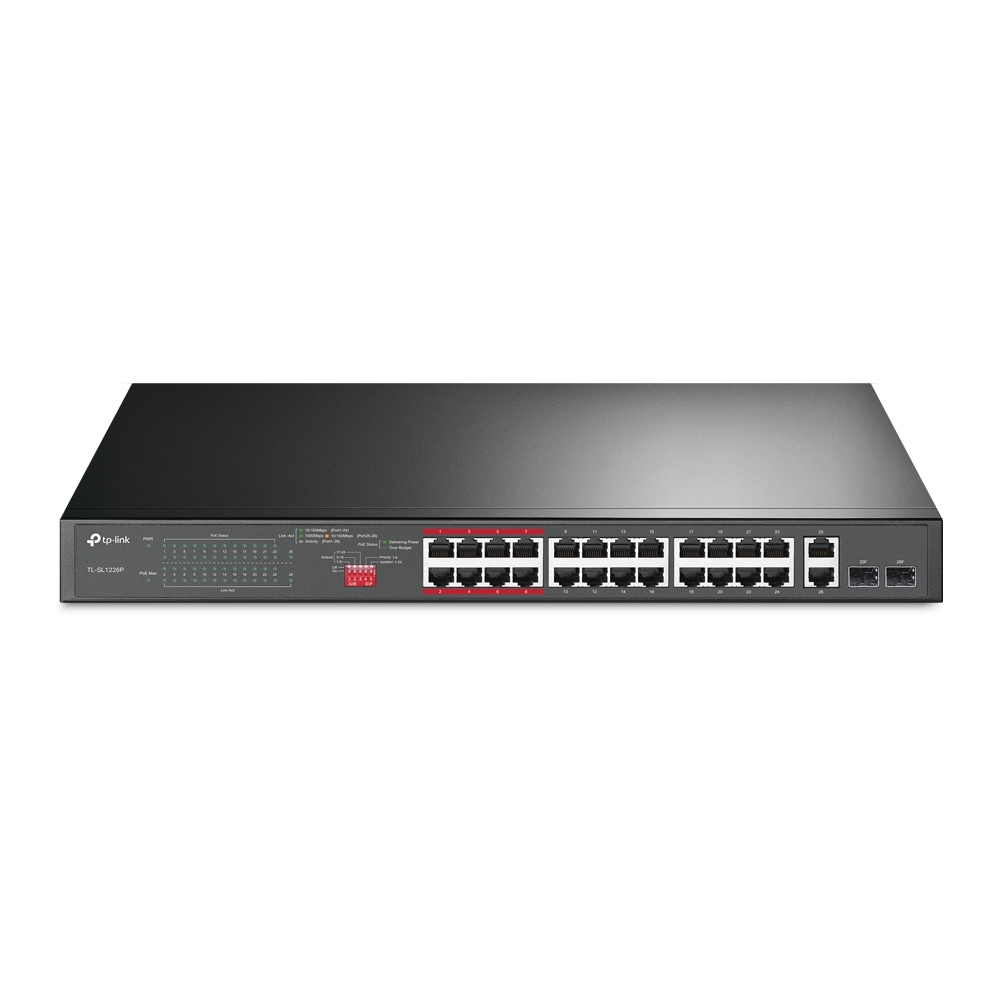

TP-LINK 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch (TL-SL1226P)
PoE+ Switch | 24x 100Mbps LAN Ports | 2x Gigabit LAN Ports | PoE+ 802.3at/af | Priority Mode | Isolation Mode | Power budget 250W | Plug and play
24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play, with no configuration and installation needed
Professional High Power 24-Port PoE+ Switch
Plug and Play, with PoE Transmission for Surveillance up to 250 m
250 W PoE Budget*
Transmission Distance up to 250 m**
One-Click Priority Mode
One-Click Traffic Separation
Ultra HD Video
Plug and Play

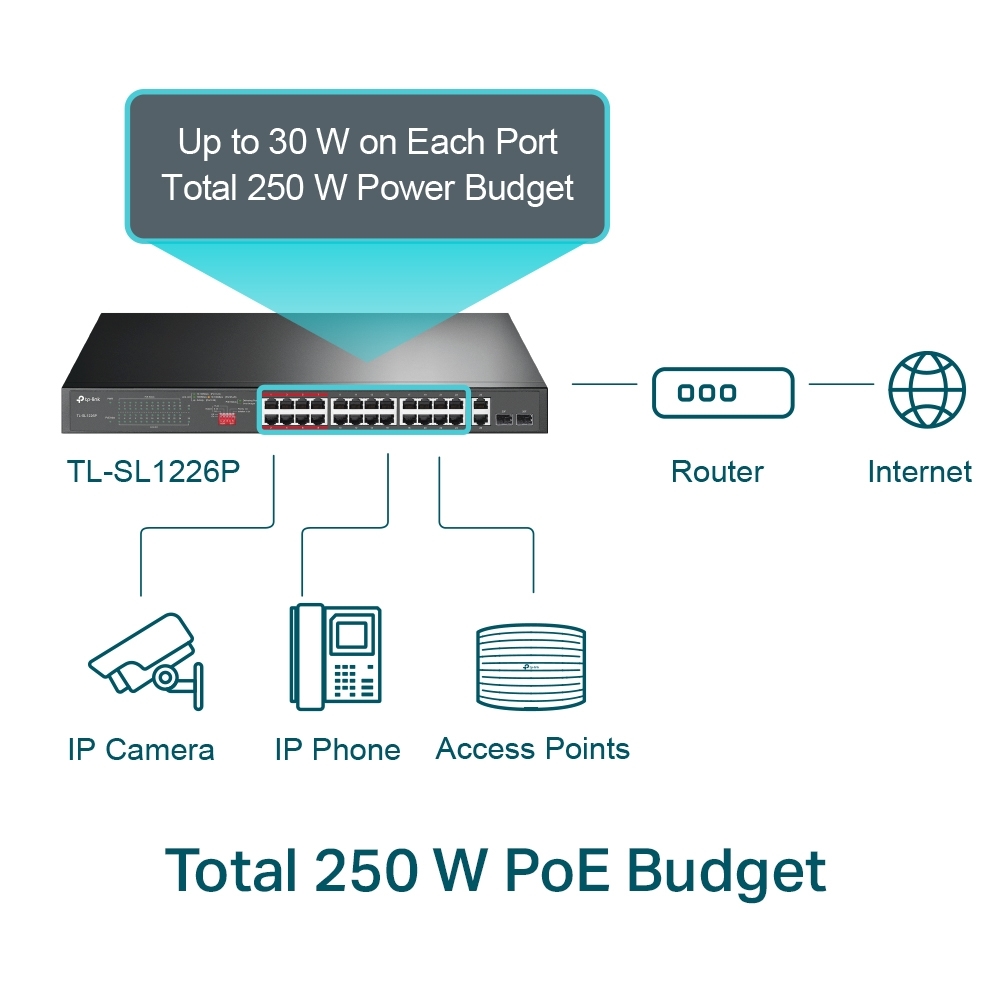

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

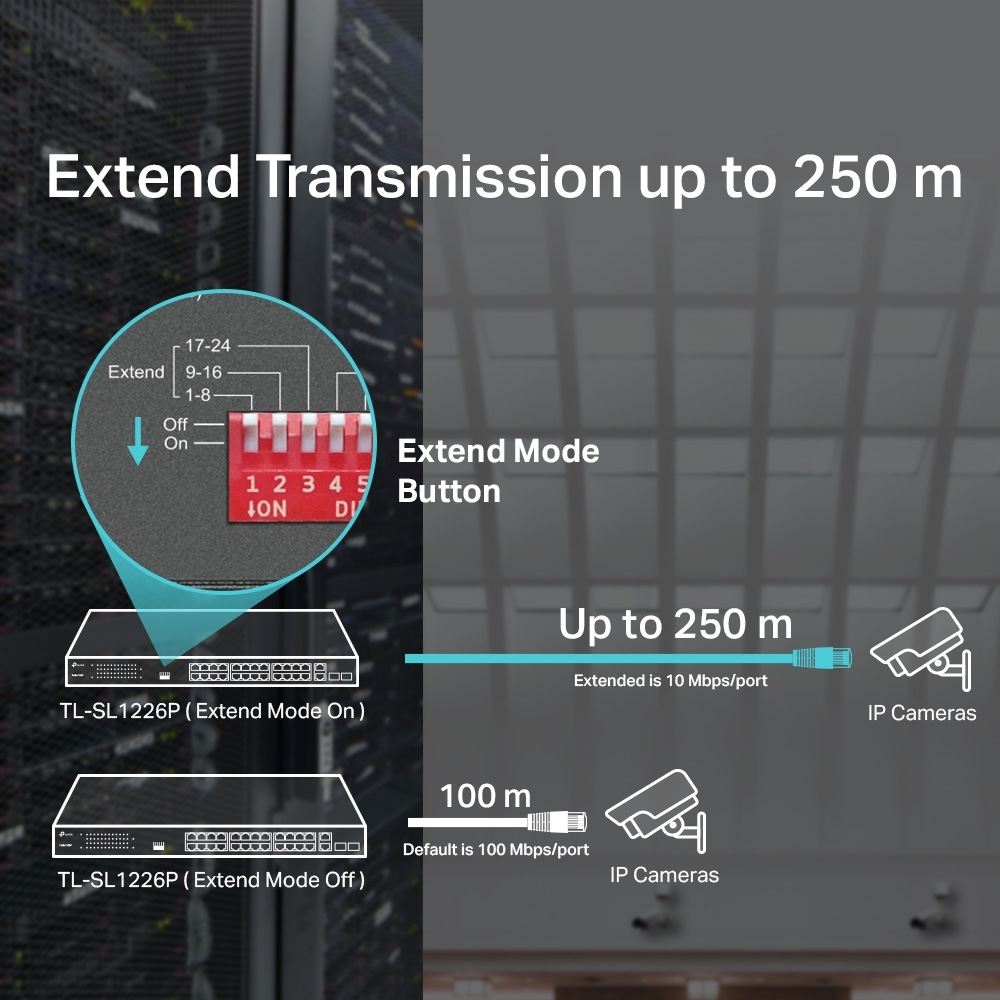

Dedicated Design for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.
*The speed of the ports in extend mode will downgrade to 10 Mbps. Actual transmission distance may vary due to cable quality.
Dedicated Design for IP Surveillance—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-24
With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

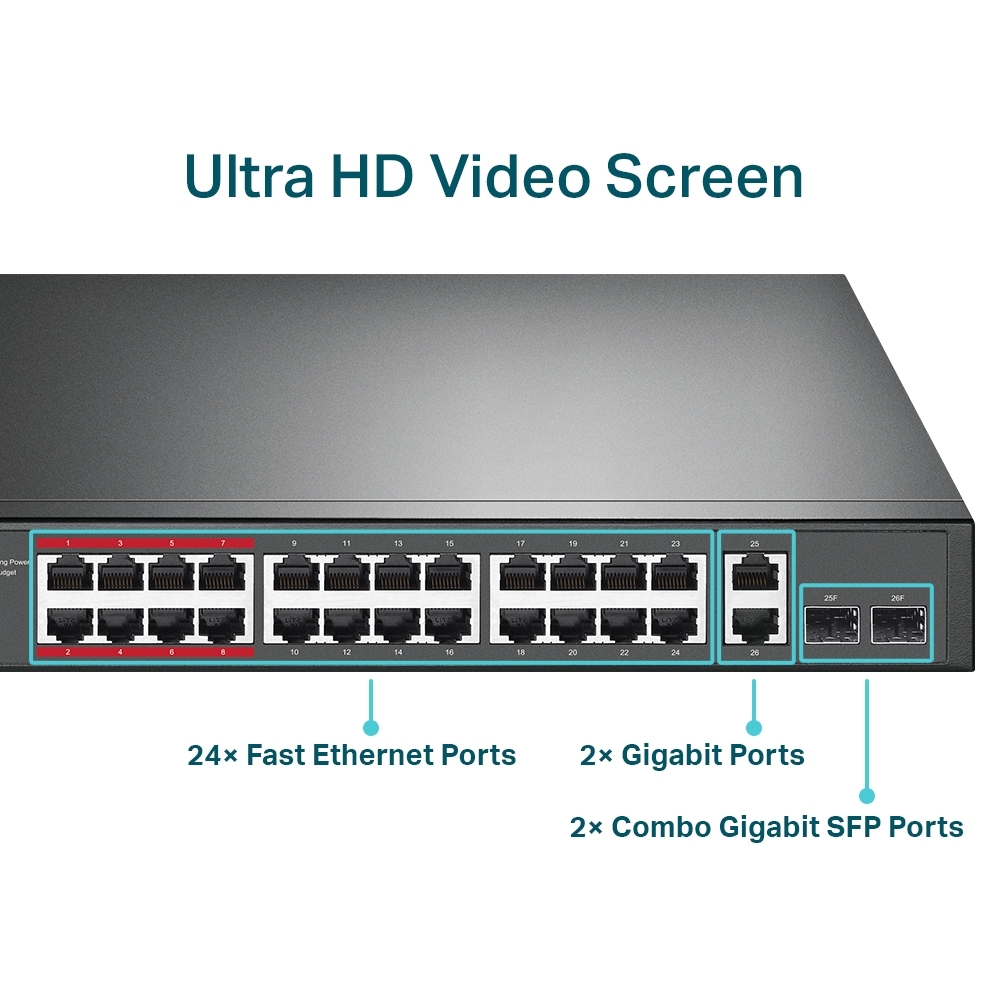

Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.

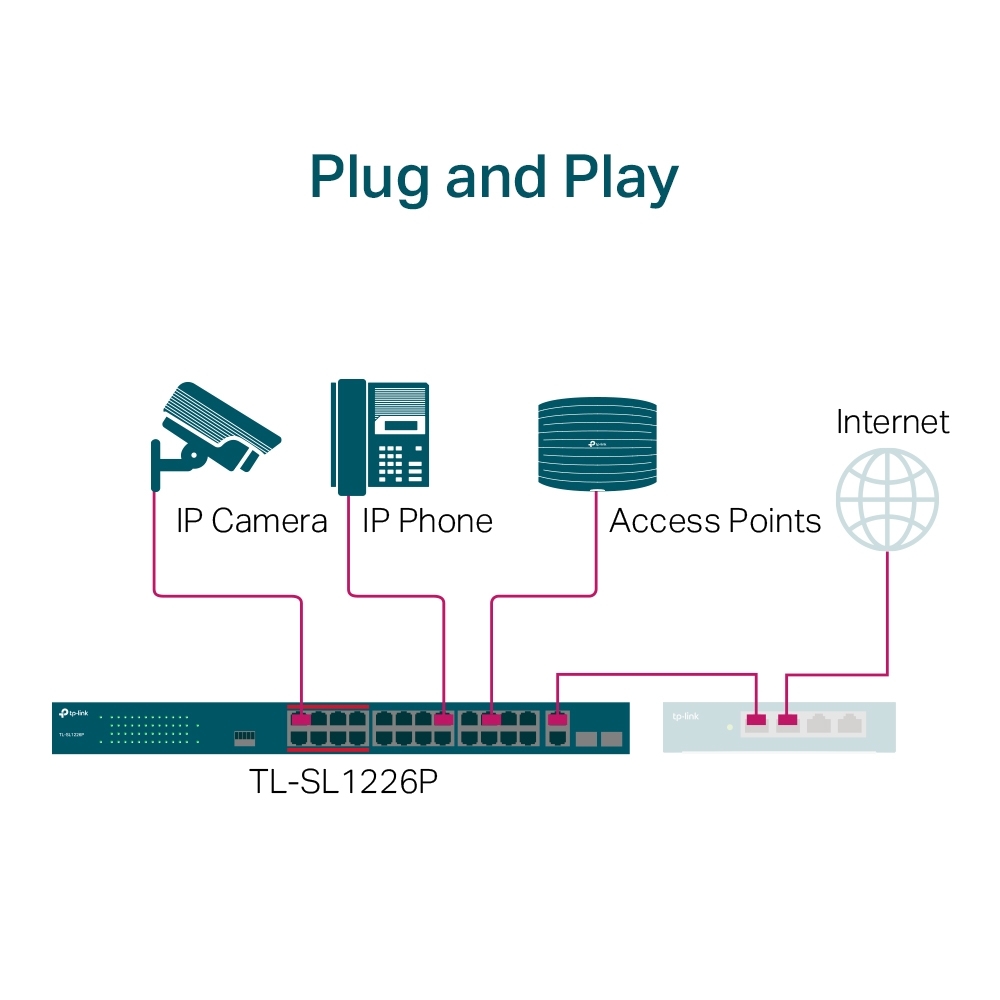

Plug and Play
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.
|Fan Quantity||2 Fans|
|Physical Security Lock||Yes|
|Power Supply||100-240 VAC, 50/60 Hz|
|Backup Bandwidth||8.8 Gbps|
|Mac Address Table||8 K|
|Dimensions ( W x D x H )||17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)|
|Max Power Consumption||18.32 W (220/50 Hz. no PD connected)
294 W (220/50 Hz. with 250 W PD connected)
|Max Heat Dissipation||62.47 BTU/h (no PD connected)
1002.54 BTU/h (with 250 W PD connected)
|Certification||CE, FCC, RoHS|
