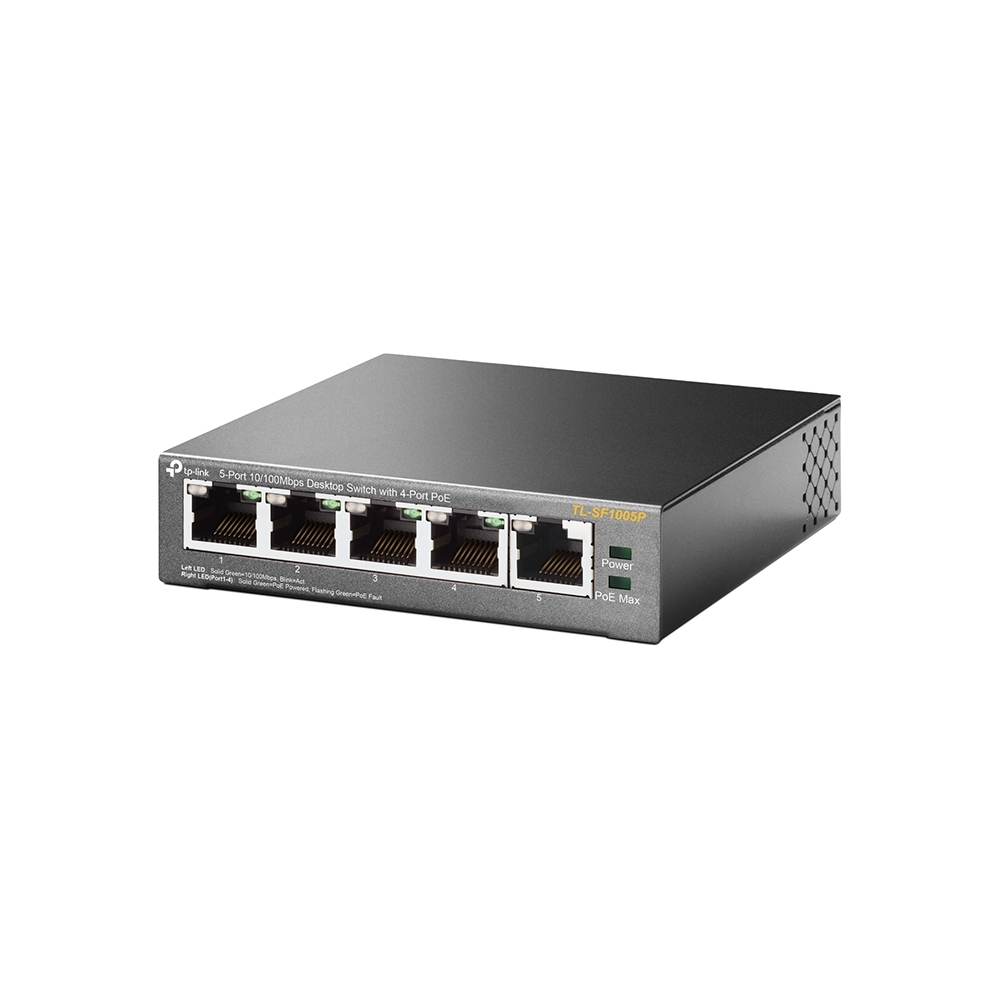

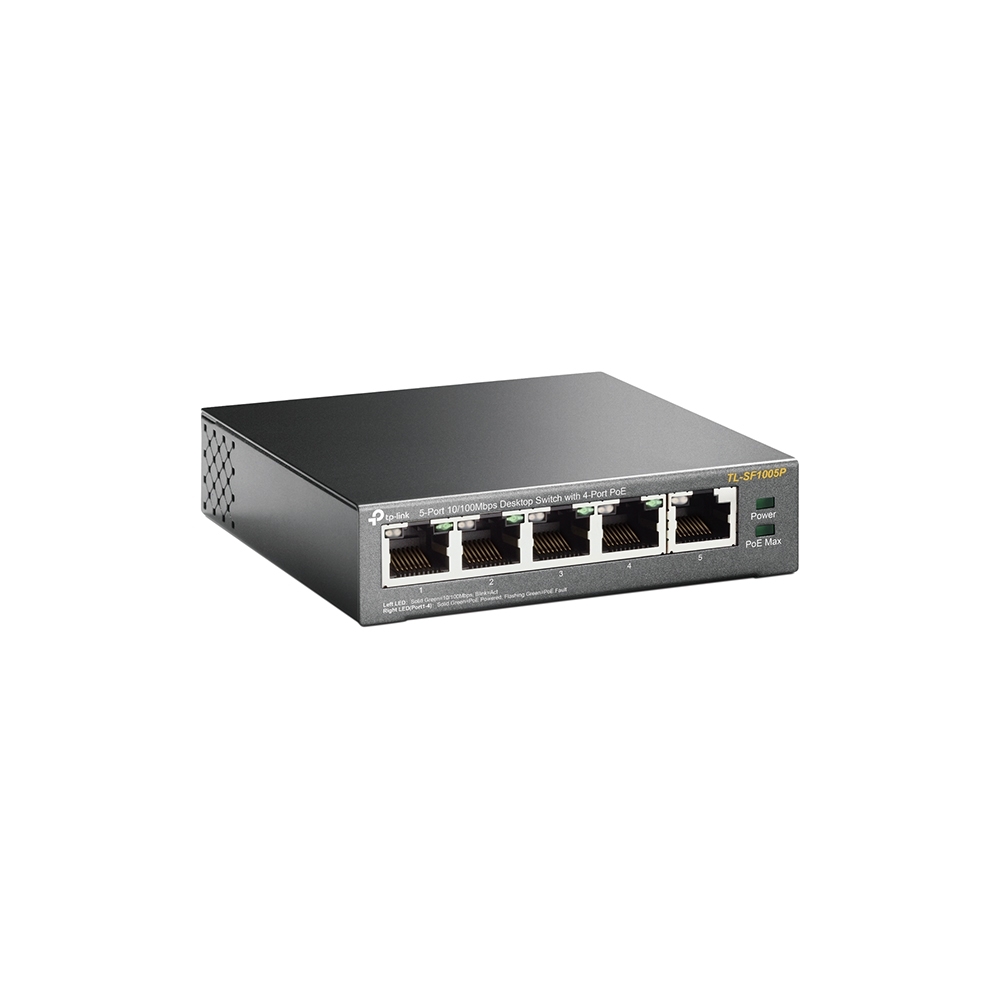

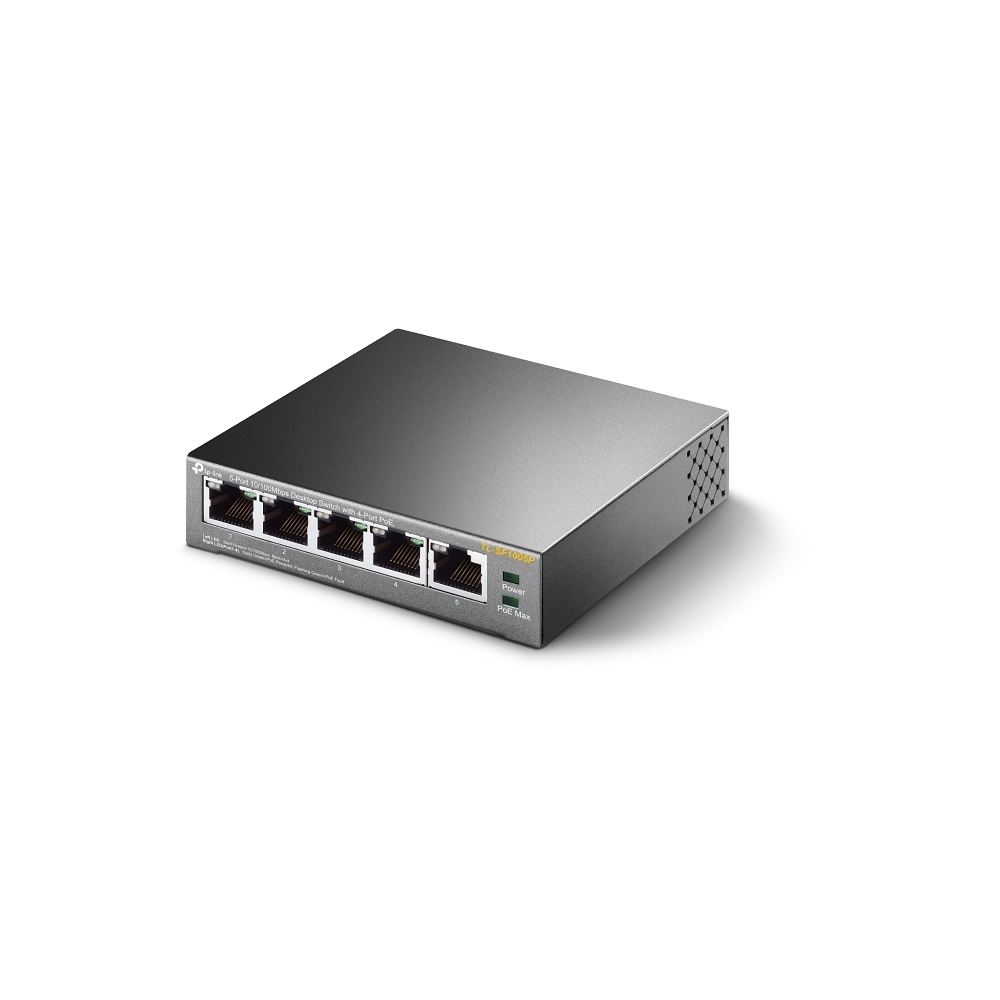

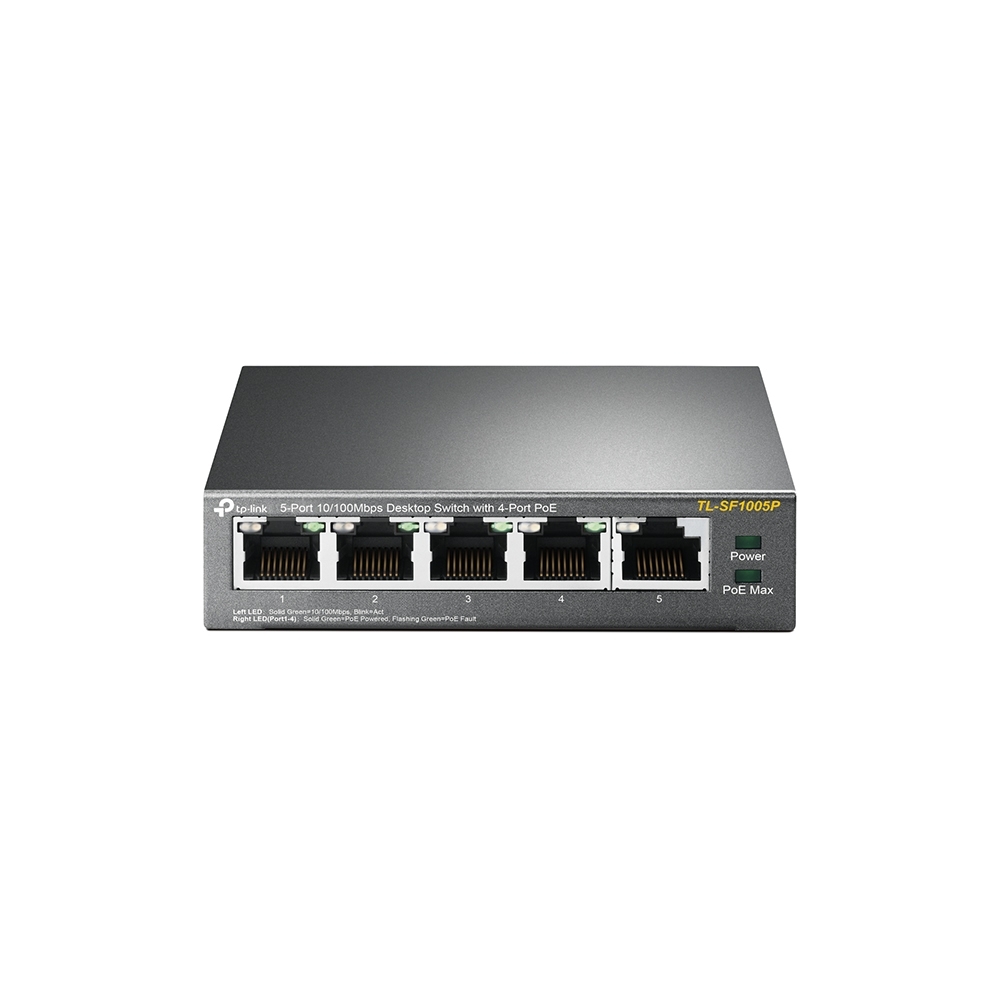

TP-LINK 5 prievadų 10/100Mbps su 4-Port PoE komutatorius/šakotuvas (TL-SF1005P)
Jungtys: 5 FE x 10/100Mbps; PoE Jungtys: 4 PoE; PoE standartas (IEEE): 802.3af; PoE galia: 58W; Tipas: nevaldomas.
Produkto savybės:
• 5 10/100Mbps RJ45 ports;
• With four PoE ports, transfers data and power on one single cable;
• Working with IEEE 802.3af compliant PDs, expands home and office network;
• Supports PoE Power up to 15.4W for each PoE port;
• Supports PoE Power up to 58W for all PoE ports;
• Requires no configuration and installation.
Produkto specifikacijos:
Hardware Features:
• Interface: 5 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX;
• Network Media:
*10BASE-T: UTP category 3, 4, 5 cable (maximum 100m);
*EIA/TIA-568 100Ω STP (maximum 100m);
*100BASE-TX: UTP category 5, 5e cable (maximum 100m);
*EIA/TIA-568 100Ω STP (maximum 100m);
• Fan Quantity: Fanless;
• External Power Supply: External Power Adapter(Output: 48VDC / 1.25A);
• PoE Ports (RJ45): standard - 802.3 af compliant - PoE Ports: Port1- Port4;
• Power Supply: 58W;
• Mac Address Table: 2K;
• Switching Capacity: 1Gbps;
• Dimensions ( W x D x H ): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm);
• Max Power Consumption: 63.51W (max. with 58w PD connected), 1.70W (max. no PD connected).
Software Features:
• Transmission Method: Store-And-Forward;
• Advanced Functions:
*Compatible With IEEE 802.3af Compliant Pds;
• Priority Function;
• Mac Address Auto-Learning And Auto-Aging;
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode.
Others:
• Certification: FCC, CE, RoHS;
• Package Contents: TL-SF1005P, Power Adapter, User Guide;
• Environment:
* Operating Temperature: 0℃~40℃ (32℉~104℉);
* Storage Temperature: -40℃~70℃ (-40℉~158℉);
* Operating Humidity: 10%~90%RH non-condensing;
*Storage Humidity: 5%~90%RH non-condensing.
