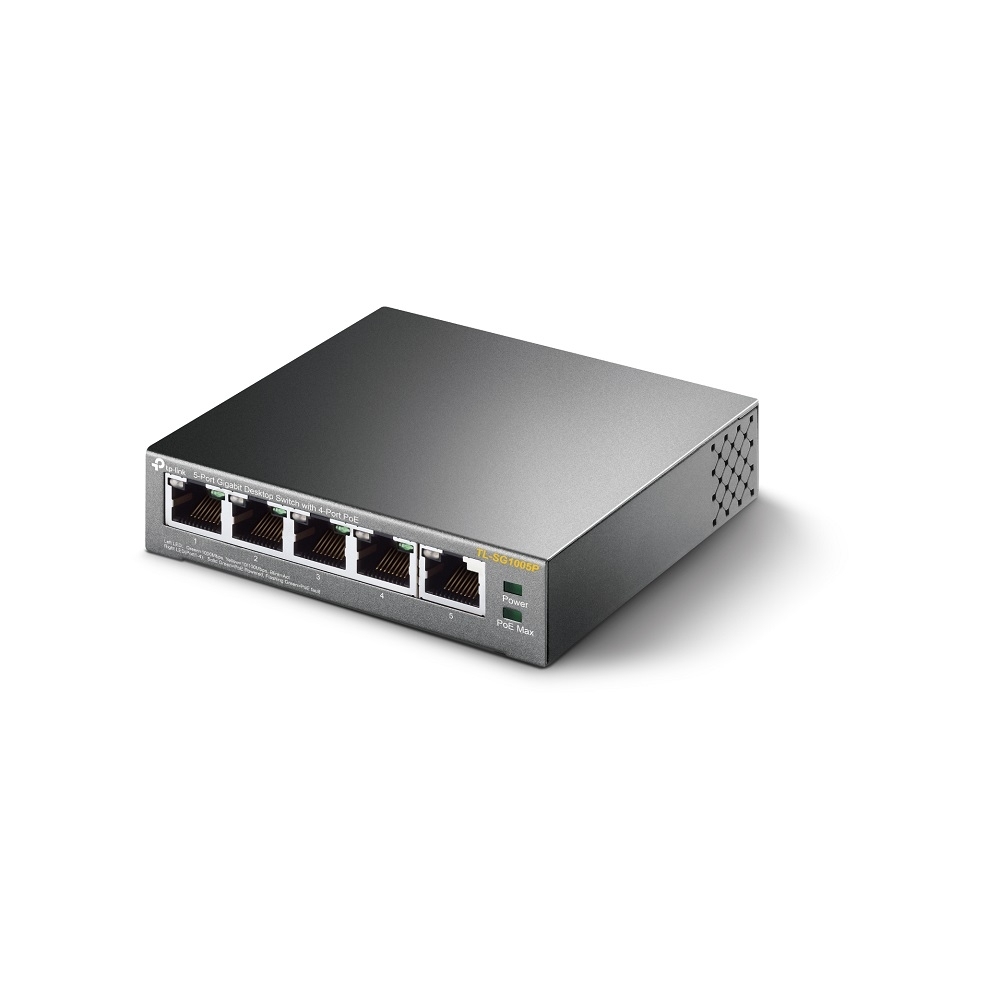

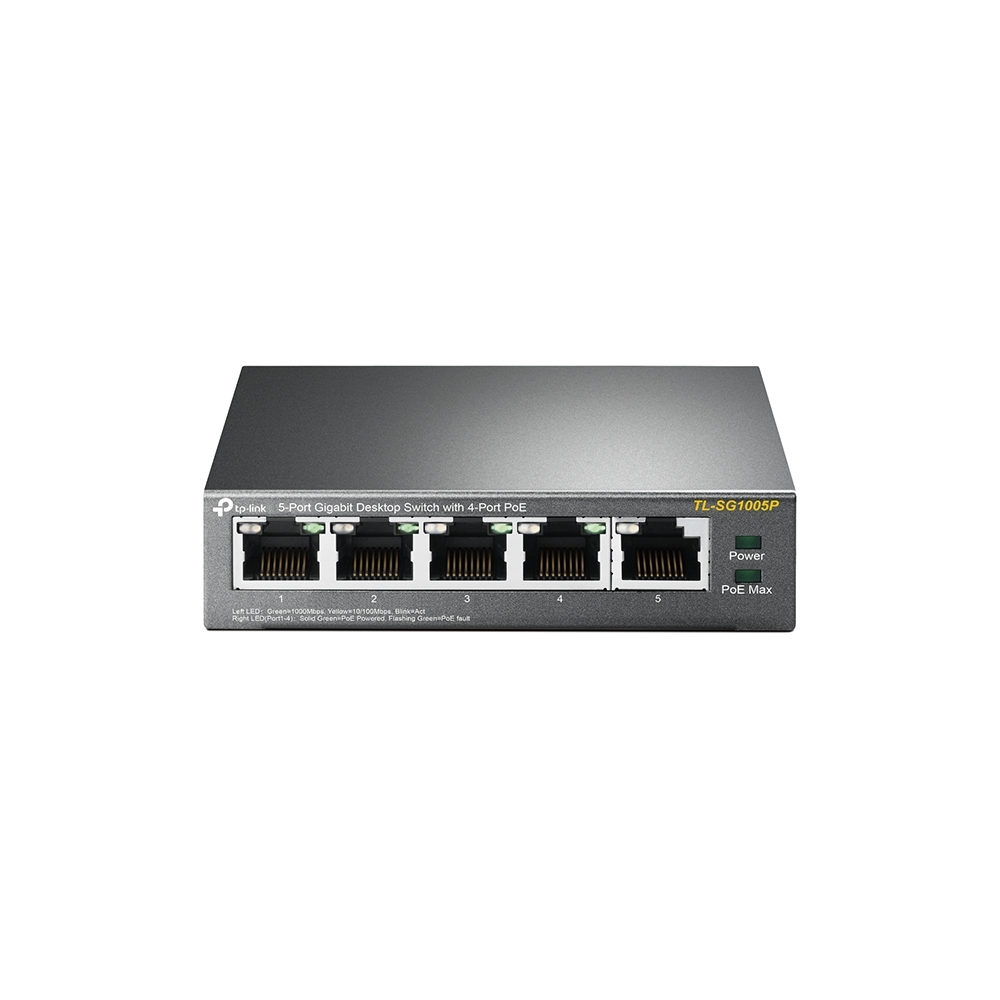

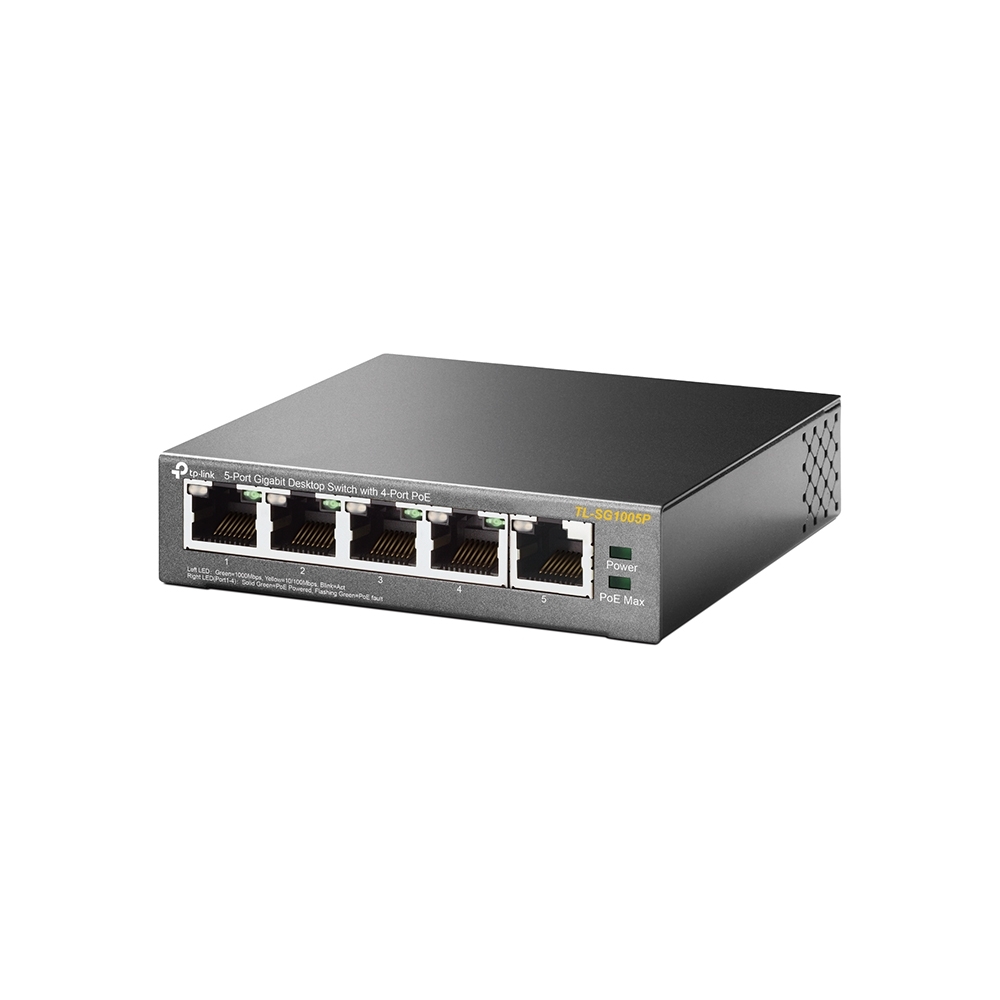

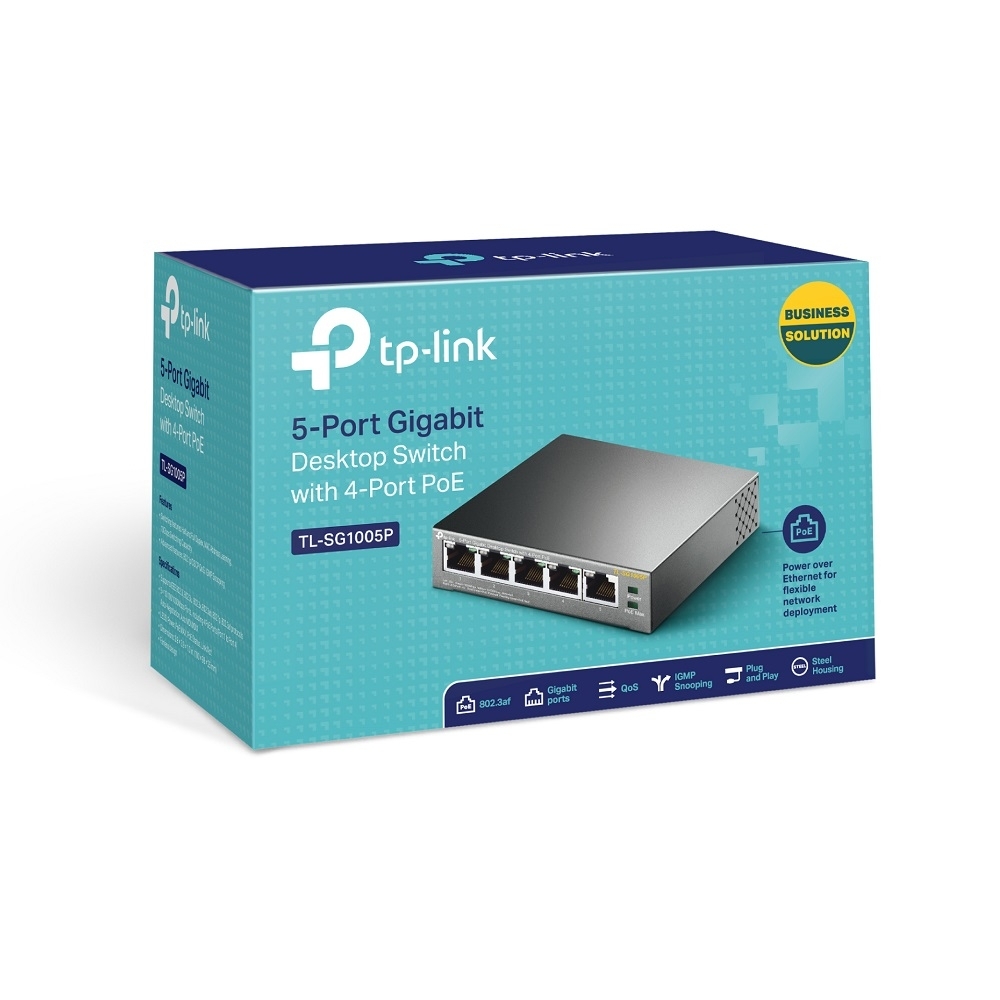

TP-LINK 5-Port Gigabit Desktop Switch with 4-Port PoE (TL-SG1005P)

x 5 10/100/1000 Mbps RJ45 ports, x 4 POE ports (IEEE 802.3af compliant), up to 15.4W for each PoE port, up to 56W for all PoE ports, priority function, unmanaged

naujiena
Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
37.46€ 45.33€ >0€
37.28€ 45.11€ >100€
37.10€ 44.89€ >300€
Kiekis:
Turime sandėlyje



Produkto savybės:

  • 5 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 15.4W for each PoE port
  • Supports PoE Power up to 56W for all PoE ports
  • Requires no configuration and installation

Produkto specifikacijos:

HARDWARE FEATURES

Interface: 5 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Consumption: 63.31W (max. with 56w PoE device connected), 4.26W (max. no PoE device connected)
External Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45):
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandwidth: 10Gbps
Mac Address Table: 2K
Dimensions ( W x D x H ): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

SOFTWARE FEATURES

Advanced Features:
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method: Store-And-Forward

OTHERS

Certification: FCC, CE, RoHS
Package Contents: TL-SG1005P, Power Adapter, Installation Guide
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing

Papildoma informacija apie produktą:

Datasheet
Installation Guide
Link to manufacturer product page
