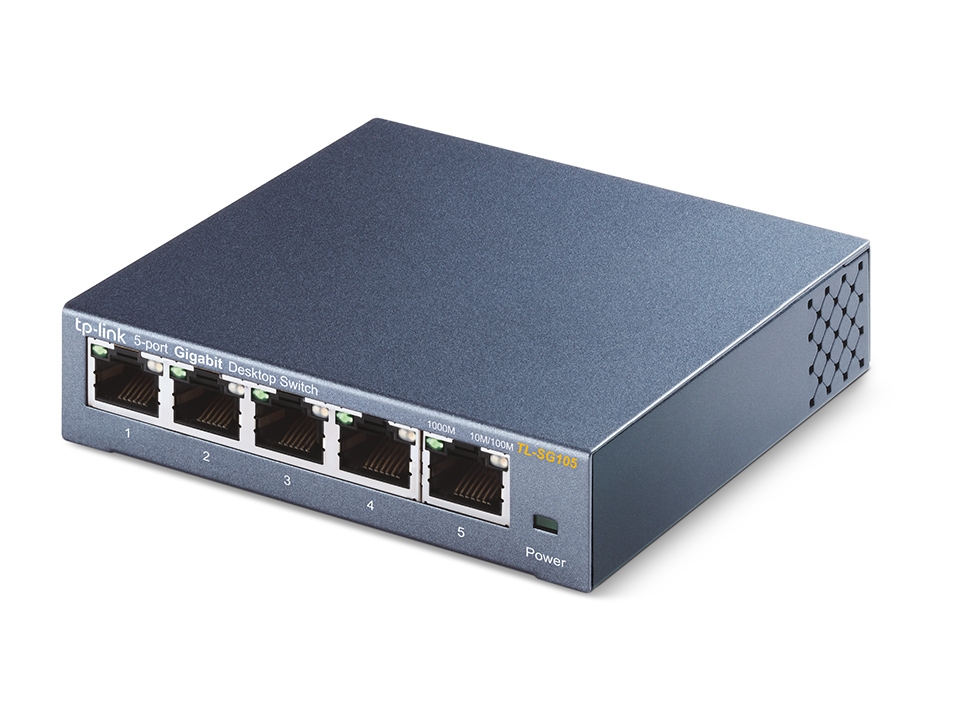

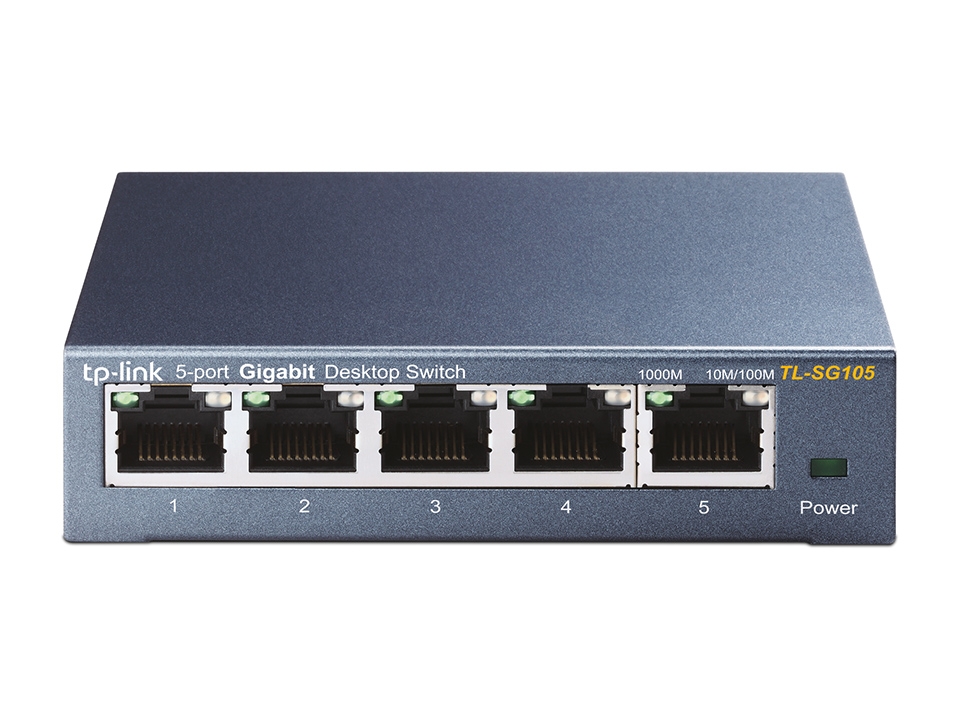

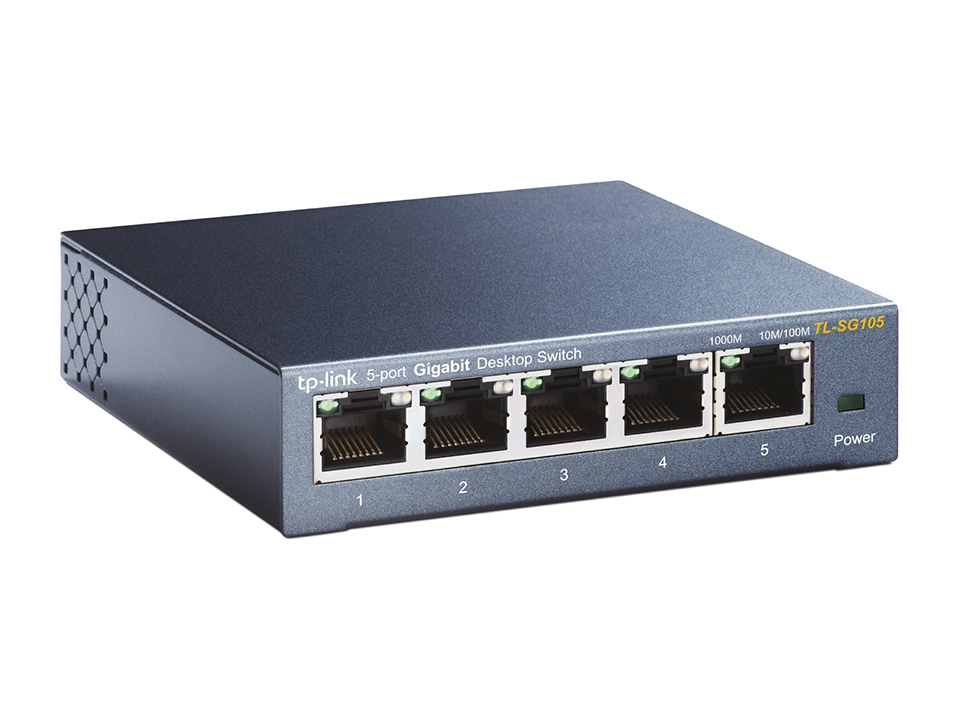

TP-LINK 5-Port 10/100/1000Mbps Desktop Switch (TL-SG105)

Kodas: TL-SG105
ID: #1228

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX, Green Ethernet technology, IEEE 802.3x flow control, Support 802.1p/DSCP QoS and IGMP Snooping function, plug and play

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
13.45€ 16.27€ >0€
13.38€ 16.19€ >100€
13.32€ 16.12€ >300€
Kiekis:
Turime sandėlyje



Produkto savybės:

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves the power up to 84%
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS* and IGMP Snooping function
Plug and play ,no configuration needed

* For V2 and later version

Produkto specifikacijos:

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity: Fanless

Power Consumption: Maximum: 3.2W (220V/50Hz)

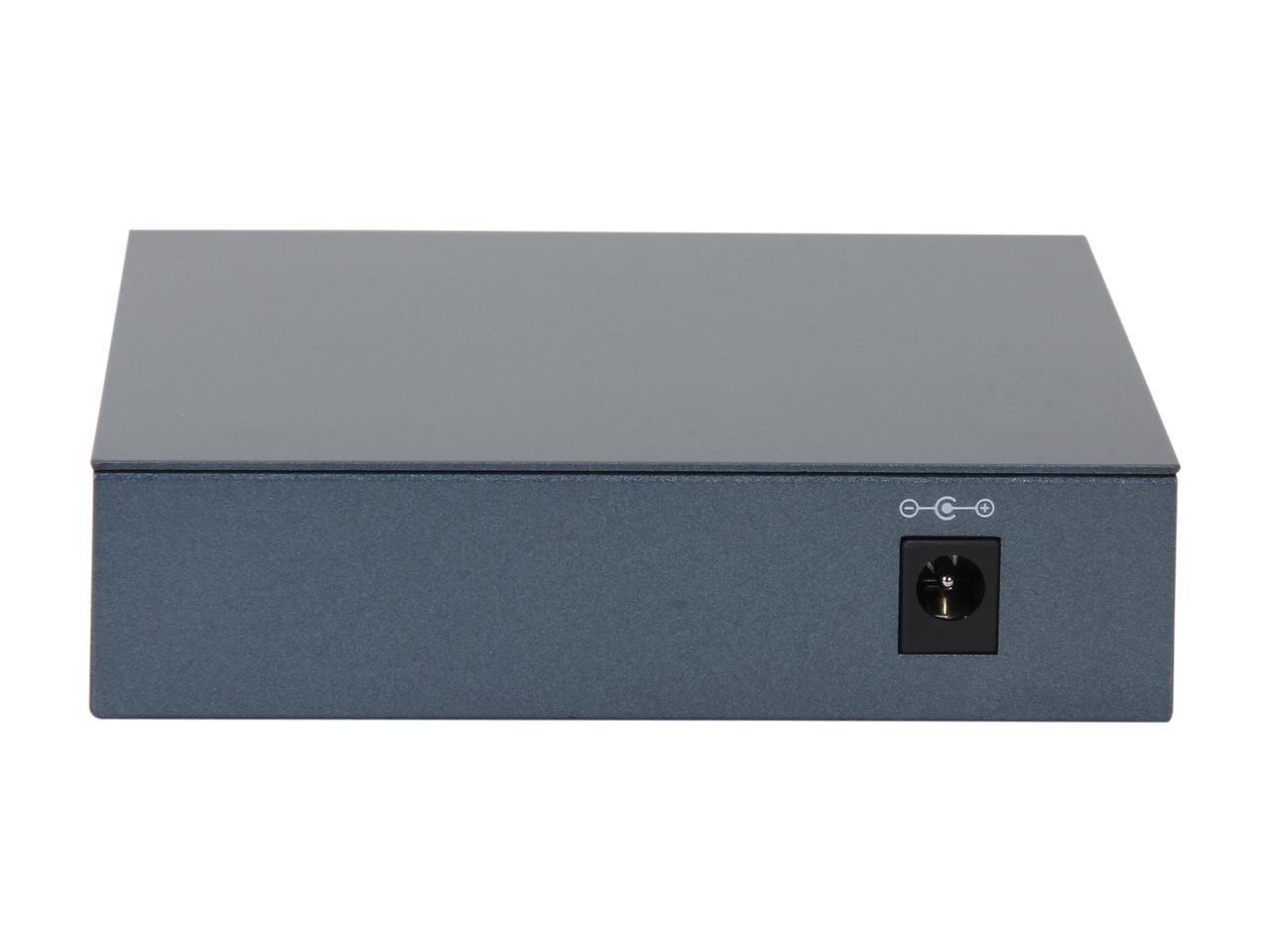

External Power Supply: External Power Adapter (Output: 9VDC / 0.6A)

LED Indicator:
System Power
Link, Speed and activity indicators per port built into each RJ-45 port

Dimensions ( W x D x H ): 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

PERFORMANCE

Packet Forwarding Rate: 7.4Mpps

MAC Address Table: 2K

Packet Buffer Memory: 1Mb

Jumbo Frame: 15KB

SOFTWARE FEATURES

Advanced Features:
Green Technology, saving power up to 84%
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping

Transfer Method: Store and Forward

OTHERS

Certification: CE, FCC, RoHS

Package Contents:
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Papildoma informacija apie produktą:

Datasheet
Install Guide
Link to manufacturer product page
