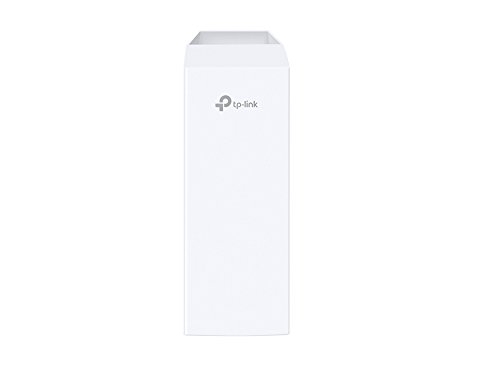

TP-LINK 5GHz 300Mbps 13dBi lauko CPE (CPE510)

OEM kodas: CPE510
Kodas: CPE510
ID: #1417

Integruota 5 GHz 13dBi 2x2 dvipoliarinė kryptinė MIMO antena, reguliuojama perdavimo galia nuo 0 iki 23 dBm / 200 mw, TP-LINK „Pharos MAXtream TDMA“, AP / Klientas / Bridge / Repeater / AP Maršrutizatorius / AP Kliento Maršrutizatorius (WISP Client) režimai

50.99€ su PVM

Kaina be PVM: 42.14€

Kiekis:


Produkto savybės:

Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
    Adjustable transmission power from 0 to 23dBm/200mw
    System-level optimization for more than 15km long range wireless transmission
    TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
    Centralized Management System – Pharos Control
    AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
    Outdoor stabilized enclosure with IPX5 waterproof certification
    Dual Ethernet ports and grounding terminal integrated
    6KV Lightning Protection, 15KV ESD Protection
    Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
    Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
    Selectable bandwidth of 5/10/20/40MHz
    Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
    Easy antenna alignment with wireless signal quality indicators via Web interface

Produkto specifikacijos:

HARDWARE FEATURES

Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

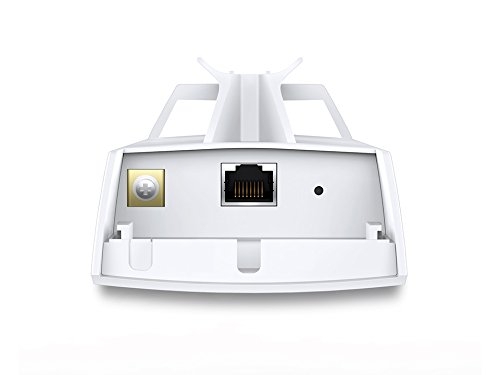

Interface:
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 Grounding Terminal
1 Reset Button

Power Supply:
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

Power Consumption:
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H ): 224 x 79 x 60 mm

Antenna Type:
Built-in 13dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet

Protection:
15KV ESD Protection
6KV Lightning Protection

Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds:
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)

Frequency:
5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power:
23dBm/200mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations:
Pharos MAXtream TDMA Technology
802.11a/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools:
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute

System-level optimizations:

Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTER FEATURES

Dimensions(W x D x H): 85.8*43.9*29.7mm

Input Current: 0.4A Max @ 100VAC

Input Voltage     100VA~240VAC @ 50Hz~60Hz

Output:
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency: >84.28%

Output Voltage: 24VDC(+4,5pins; -7,8pins)

Power LEDs: Green

Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mar/PSE

Interfaces:
1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)

OTHERS

Certification: CE, FCC, RoHS, IPX5

Package Contents:
Outdoor Wireless CPE
24V 0.6A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Quick Installation Guide

System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment:
Operating Temperature: -40°C~70°C (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
