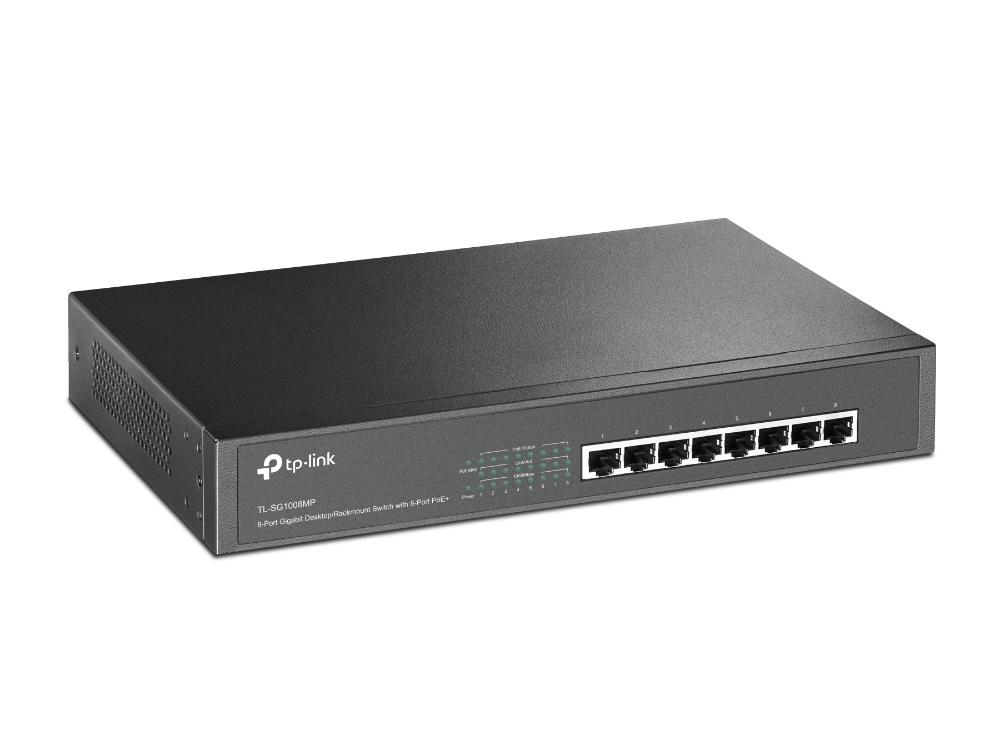

TP-LINK 8 PoE+ jungčių gigabitinis Desktop/Rackmount komutatorius (TL-SG1008MP)

Produkto savybės:

• 8 10/100/1000Mbps RJ45 ports;
• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable;
• Works with IEEE 802.3af/at compliant devices, expanding home and office networks;
• Innovative energy-efficient technology reduces power consumption by up to 75%*;
• Supports PoE+ standard with total power budget of 126W and up to 30W per port;
• Plug and play design, no configuration required.

Produkto specifikacijos:

Hardware Features:
• Interface:
     * 8 10/100/1000Mbps RJ45 Ports;
     * AUTO Negotiation/AUTO MDI/MDIX;
• Network Media:
     * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m);
     * EIA/TIA-568 100Ω STP (maximum 100m);
     * 100BASE-TX: UTP category 5, 5e cable (maximum 100m);
     * EIA/TIA-568 100Ω STP (maximum 100m);
     * 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m);
     * EIA/TIA-568 100Ω STP (maximum 100m);
• Fan Quantity: 1;
• Power Supply: 100-240VAC, 50/60Hz;
• PoE+ Ports(RJ45):
     * Standard: 802.3at/af compliant;
     * PoE+ Ports: 8 Ports;
     * Power Supply: 126W;
• Backbound Bandwidth: 16Gbps;
• Mac Address Table: 4K;
• Buffer Size: 1.5Mbits;
• Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm);
• Mounting: Rack Mountable;
• Max Power Consumption:
     * 9.89W(220V/50Hz. no PD connected);
     * 140.67W(110V/60Hz. with 126W PD connected);
• Max Heat Dissipation:
     * 33.74BTU/h(no PD connected);
     * 492.56BTU/h(with 126W PD connected).

Software features:
• Advanced Features:
     * Compatible With IEEE 802.3af/at Compliant PDs;
     * Priority Function;
     * Mac Address Auto-Learning And Auto-Aging;
     * IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode;
     * Transfer Method     Store-And-Forward.

Others:
• Certification: FCC, CE, RoHS;
• Package Contents: TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet;
• Environment: Operating Temperature: 0℃~40℃ (32℉~104℉);
• Storage Temperature: -40℃~70℃ (-40℉~158℉);
• Operating Humidity: 10%~90% non-condensing;
• Storage Humidity: 5%~90% non-condensing.
