TP-LINK AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point (EAP225-Outdoor)

OEM kodas: EAP225-Outdoor
Kodas: EAP225-Outdoor
ID: #1562

Up to 1200Mbps with 2×2 MIMO technology, 1x Gbit LAN,802.11 a/b/g/n/ac Wi-Fi Standards, 2 * 3dBi (2.4GHz) and 2 * 4dBi (5GHz) antennas, Outdoor-Indoor use

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
53.30€ 64.49€ >0€
52.84€ 63.94€ >100€
52.38€ 63.38€ >300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Free Omada Controller software enables administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS authentication help to boost your business
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Produkto specifikacijos:

HARDWARE FEATURES

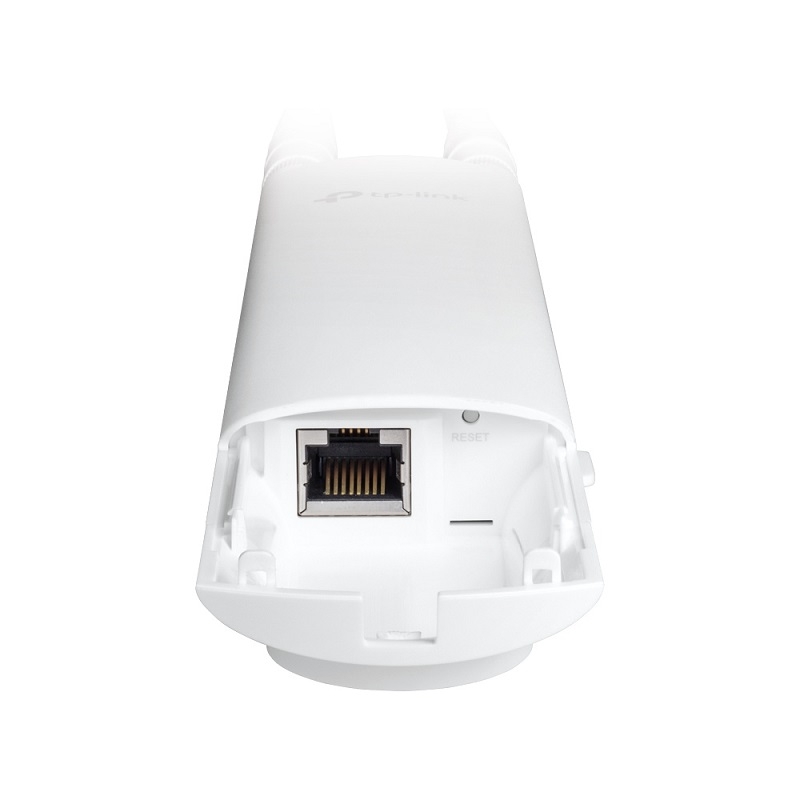

Interface: Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button: Reset

Power Supply:
802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: 10.5W
Dimensions ( W x D x H ): 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna: 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure: IP65

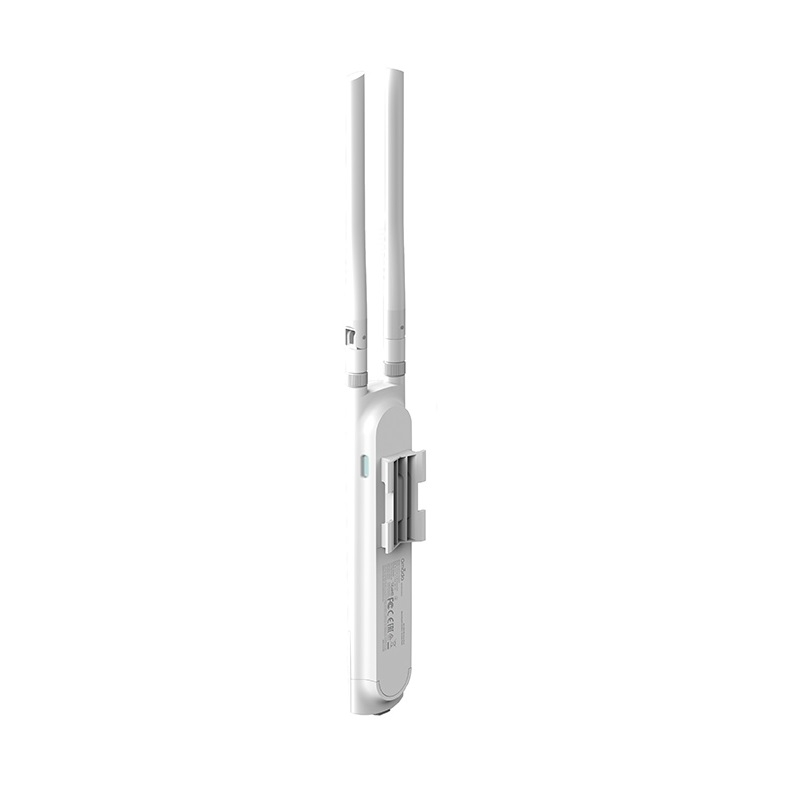

Mounting: Pole/Wall Mounting (Kits included)
Hardware Watch Dog: Yes

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz

Signal Rate:
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions:
Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Transmission Power:
CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP)
FCC:<23dBm(2.4GHz),<22dBm(5GHz)

MANAGEMENT

Omada Controller Software: Yes
Email Alerts: Yes
Management MAC Access Control: Yes
System Logging Local/Remote Syslog: Yes
Web-based Management: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS

Certification: CE、FCC、RoHS

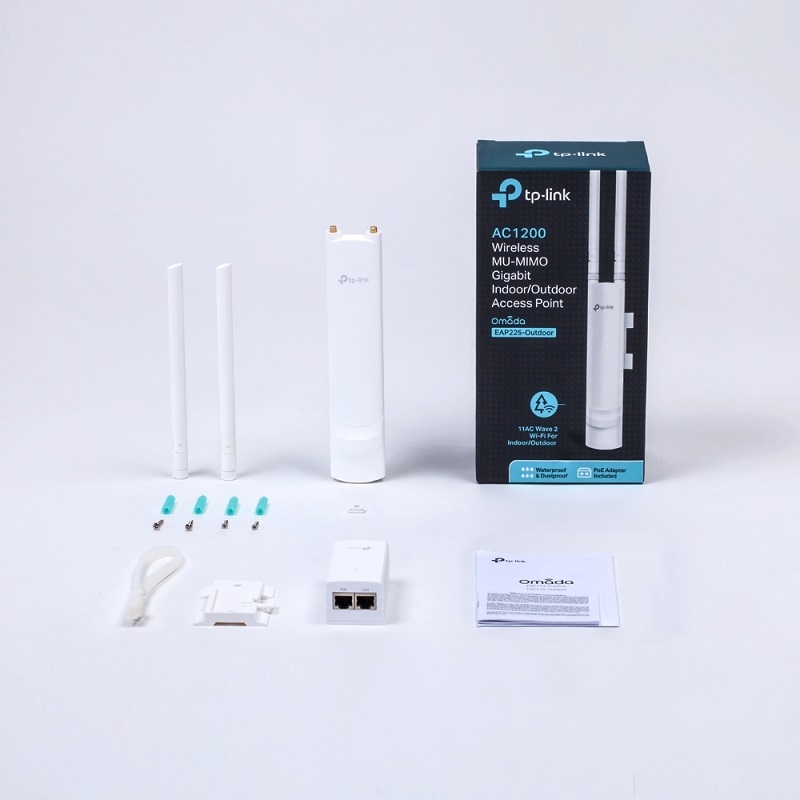

Package Contents:
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide

Environment:
Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Papildoma informacija apie produktą:

Datasheet
Instalation Guide
User Guide
User Guide
Link to manufacturer product page
