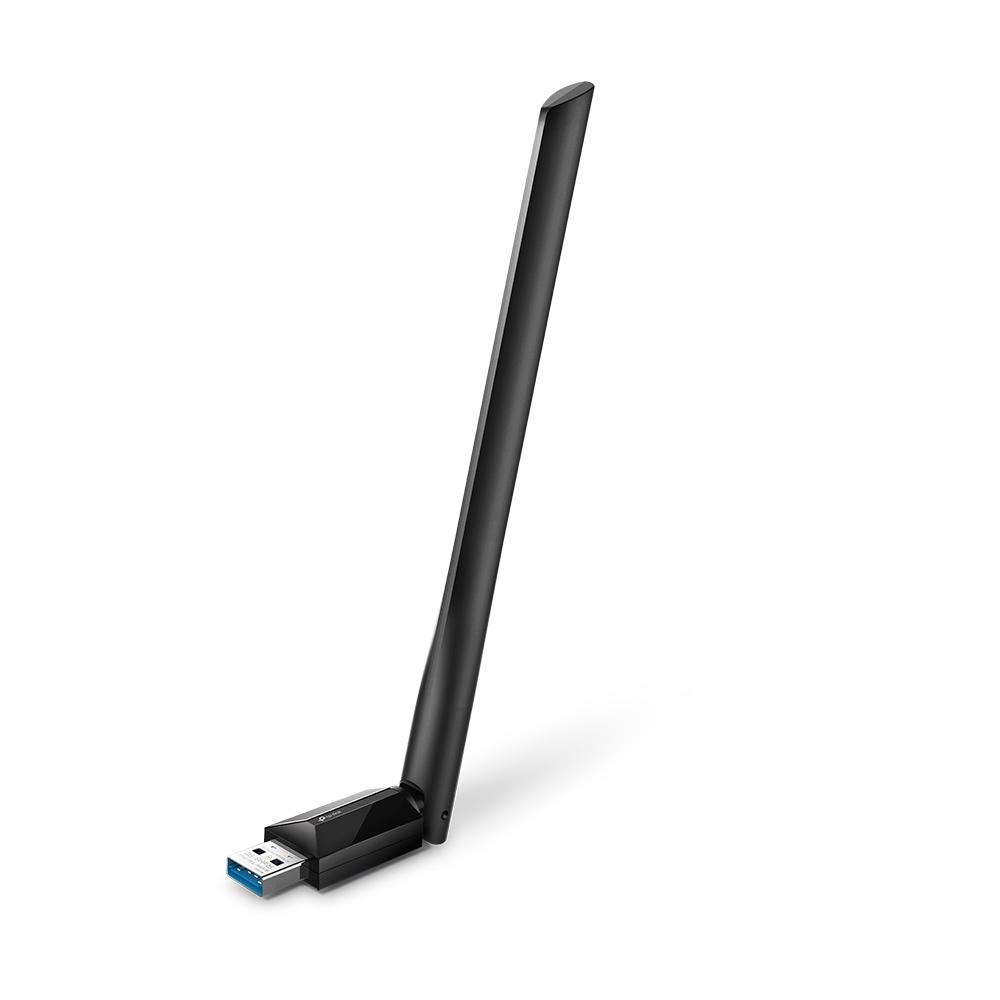

TP-LINK AC1300 High Gain Wireless Dual Band USB Adapter (Archer T3U Plus)
Standards 802.11b/g/n/a/ac | 867 Mbps on the 5 GHz band or 400 Mbps on the 2.4 GHz band, dual-band Wi-Fi to ensure all your devices run at full speed | MU-MIMO Technology | USB 3.0 | High-Gain Antennas
AC1300 Lightning-Fast Speed — AC1300 (867 Mbps on the 5 GHz band or 400 Mbps on the 2.4 GHz band) dual-band Wi-Fi to ensure all your devices run at full speed
MU-MIMO Technology — Improves the throughput and efficiency of the whole network with MU-MIMO technology
Dual-Band Wireless — The 2.4 GHz and 5 GHz bands provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range
High-Gain Antennas — Advanced external high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter
Supports the Latest Operating Systems — Fully compatible with Windows 10/8.1/8/7/XP and macOS
Powerful High-Gain Wi-Fi Enhance Wherever You Are

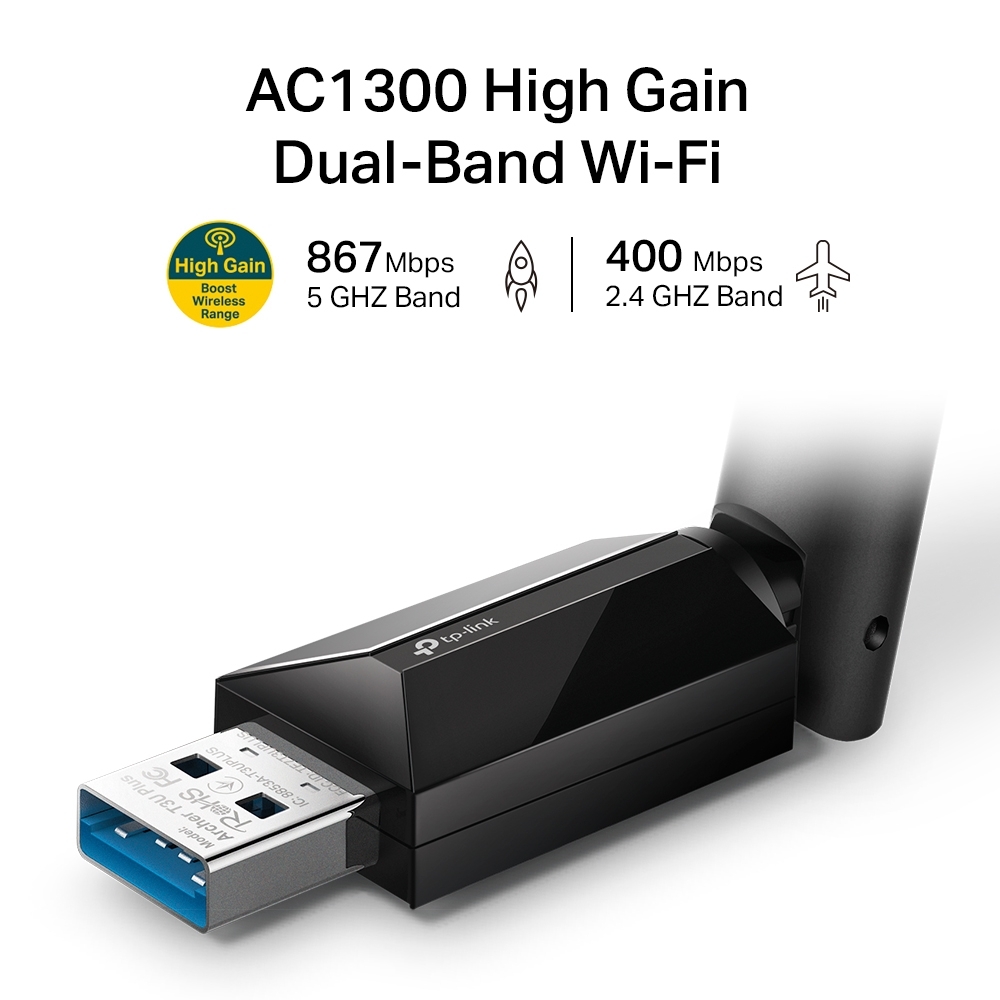

AC1300 High Gain Wireless Dual Band USB Adapter
Archer T3U Plus
Higher Speeds, Better Connections
The Archer T3U Plus receives Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for up to 400 Mbps of surfing, emailing, and social media, or switch to 5 GHz for up to 867 Mbps of gaming, HD streaming, and large file downloads.
Distinguished Antennas Architecture
With an advanced serial high-gain antenna structure, the Archer T3U Plus is able to maximize data transmission and reception efficiency, greatly increase reception range and provide a stable Wi-Fi connection throughout your home.
Boosted Throughput with MU-MIMO
MU-MIMO technology provides two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
Adjustable, Multi-Directional Antenna
Rotate and adjust the multi-directional antenna to improve user experience and performance in different environments.
A friendly user interface ensures simple installation.
WPA/WPA2 encryption standards keep your wireless connection safe from intruders.
Supports operating systems including Windows 10/8.1/8/7 and macOS.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
|Dimensions||2.28 × 0.71 × 6.83 in (57.8 × 18 × 173.4 mm)|
|Antenna||1 External High Gain Antenna|
|Wireless Standards||IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz|
|Signal Rate||5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
|Reception Sensitivity||5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -64dBm
11ac VHT20: -68dBm
11n HT40: -71dBm
11n HT20: -73dBm
11a 54Mbps: -77dBm
11n HT40: -70dBm
11n HT20: -71dBm
11g 54Mbps: -73dBm
11b 11Mbps: -87dBm
|Transmit Power||5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP)
2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP)
|Wireless Modes||Infrastructure mode|
|Wireless Security||WEP, WPA/WPA2, WPA-PSK/WPA2-PSK|
|Certification||FCC, CE, RoHS|
|Package Contents||AC1300 High Gain Wireless Dual Band USB Adapter
Quick Installation Guide
|System Requirements||Windows 10/8.1/8/7 (32/64 bit)|
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
