TP-LINK AC1900 Wireless MU-MIMO Wi-Fi Router Archer C80 (ArcherC80)
Wireless Router | 802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band. | 4x 1Gbps LAN ports | 3x3 MIMO | Parental Control
- 802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.
- 3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients.
- Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection.
- MU-MIMO – To help your devices achieve optimal performance by making communication more efficient.
- Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.
- Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.

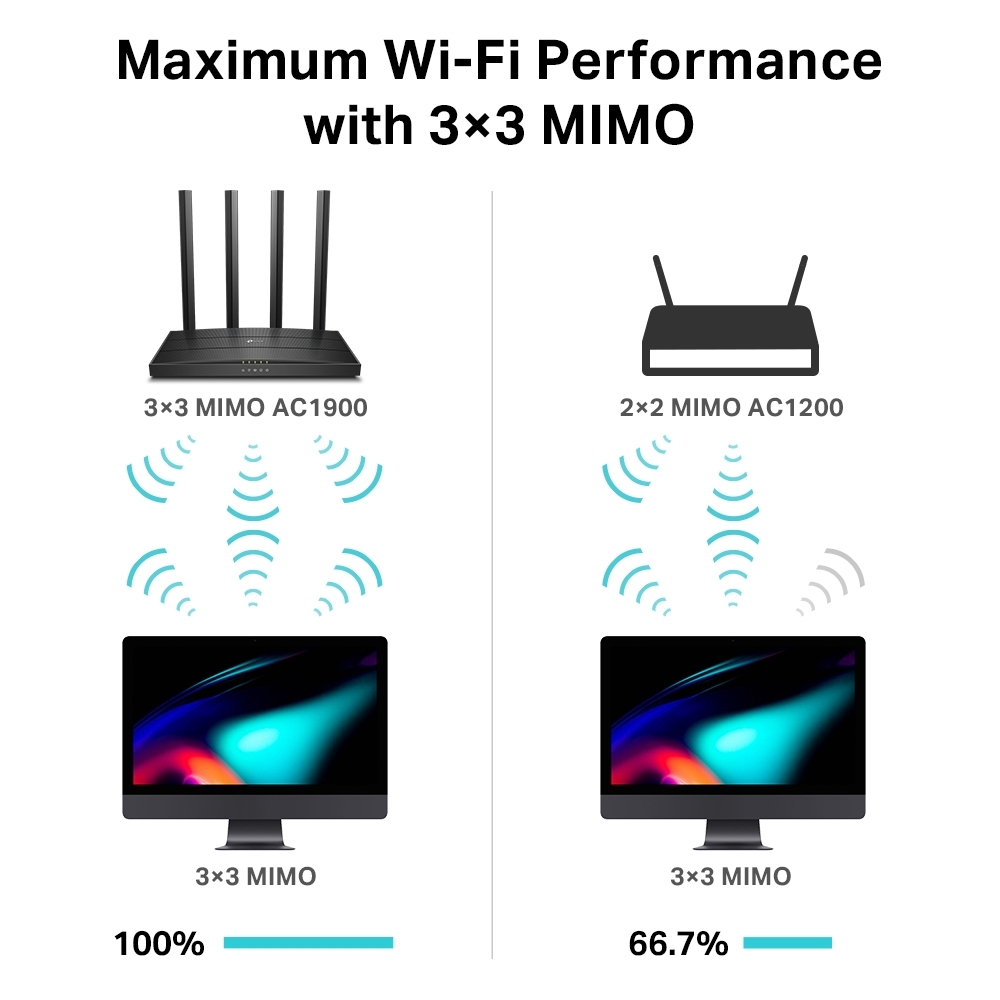

Maximum Wi-Fi Performance with Three Streams
With 3×3 MIMO, Archer C80 is capable of transmitting and receiving data on three streams. 3×3 capable computers— like Macs—pair perfectly with C80 to perform at max with much higher efficiency than 2×2 MIMO routers.
Incredible 802.11ac Wave2 Home Wi-Fi
Archer C80 delivers high-performance and affordable home Wi-Fi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band—all lag-free.
Broader Coverage throughout Your Home
Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signal strength towards them, even if they are far away or low-powered.
Connect More Devices Simultaneously
Archer C80 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Multiple devices are able to send and receive data on the best available band. Enjoy non-stop entertainment on all your devices—lag free.
Increased Efficiency in Wi-Fi Distribution
Smart Connect helps your router automatically switch each device's connection to the best available Wi-Fi band while Airtime Fairness prevents older devices from slowing down your network. With both, everyone can enjoy a smoother, lag-free W-Fi experience.

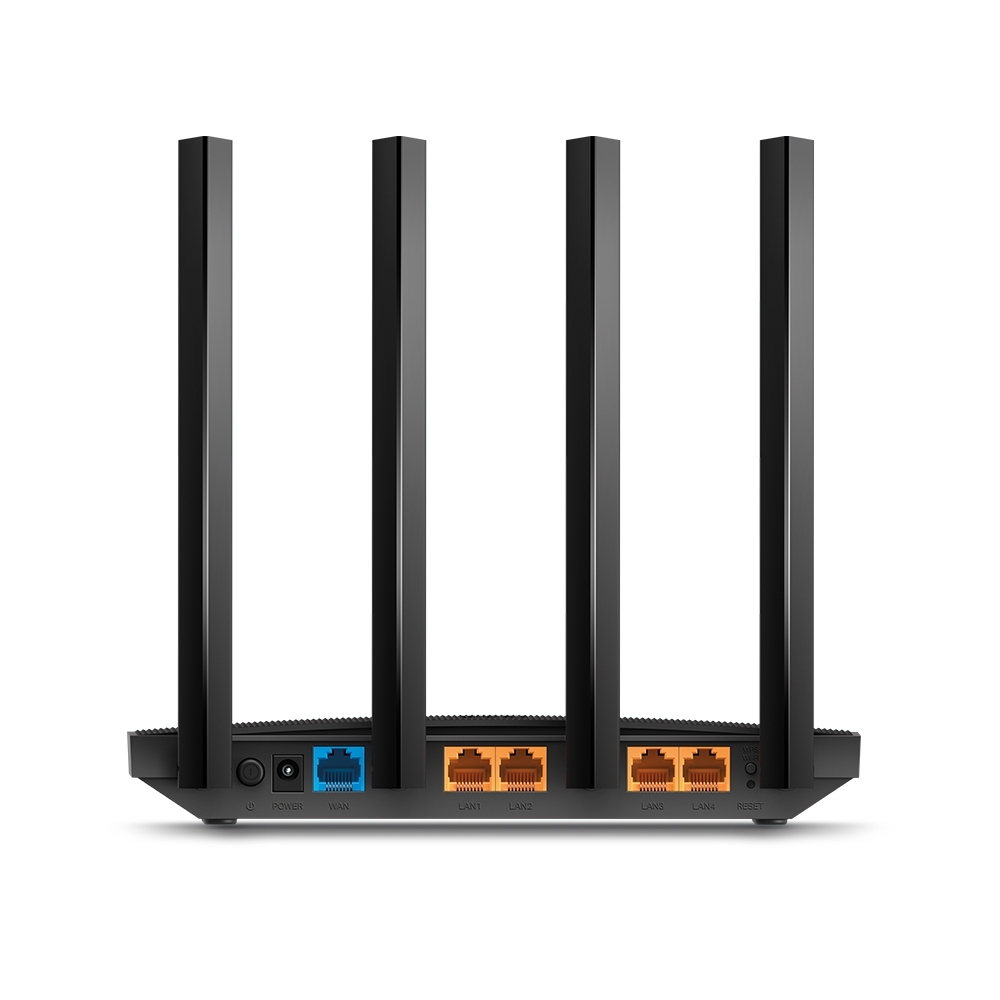

Full Gigabit Ports
Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver maximum wired speeds. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.
Personalize Your Home Network
Archer C80 provides a wealth of advanced tools for personalized management.
Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls.
Guest Network creates a separate Wi-Fi for guests, ensuring your privacy is secure.
Easy Setup at Your Fingertips
Set up Archer C80 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
Future-proof your network with IPv6 (Internet Protocol Version 6) support
Improve your IPTV streaming experience with IGMP Proxy/Snooping Bridge and Tag VLAN
Quality of Service
Prioritizes devices to give faster performance where you need it
Receive software updates and control your router remotely through your cloud account
|Interface||4 10/100/1000Mbps LAN Ports
1 10/100/1000Mbps WAN Port
Power On/off Button
|External Power Supply||US version 12V/1.5A
EU version 12V/1A
|Dimensions ( W x D x H )||8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm)|
|Antenna||4 Fixed Omni Directional Antennas|
|Wireless Standards||IEEE 802.11a/n/ac 5 GHz
IEEE 802.11b/g/n 2.4 GHz
|Frequency||2.4 GHz and 5 GHz|
|Signal Rate||1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz|
|Reception Sensitivity||5 GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
|Transmit Power||CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:<30dBm(2.4 GHz & 5 GHz)
|Wireless Functions||Enable/Disable Wireless Radio, WMM|
|Wireless Security||64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions|
|Guest Network||2.4 GHz Guest Network, 5 GHz Guest Network|
|Quality of Service||Device Prioritization|
|WAN Type||Dynamic IP/Static IP/PPPoE(Dual Access)/PPTP(Dual Access)/L2TP(Dual Access)|
|Management||Parental Controls, Local Management, Remote Management|
|DHCP||Server, DHCP Client List, Address Reservation|
|Port Forwarding||Port Forwarding, Port Triggering, UPnP, DMZ|
|Dynamic DNS||DynDns, NO-IP, TP-Link|
|Access Control||Local Management Control, White List, Black List|
|Firewall Security||SPI Firewall, IP and MAC Address Binding|
|Protocols||Supports IPv4 and IPv6|
Quality of Service
|Certification||CE, FCC, RoHS|
|Package Contents||Wireless Router Archer C80
RJ45 Ethernet Cable
Quick Installation Guide
|System Requirements||Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
