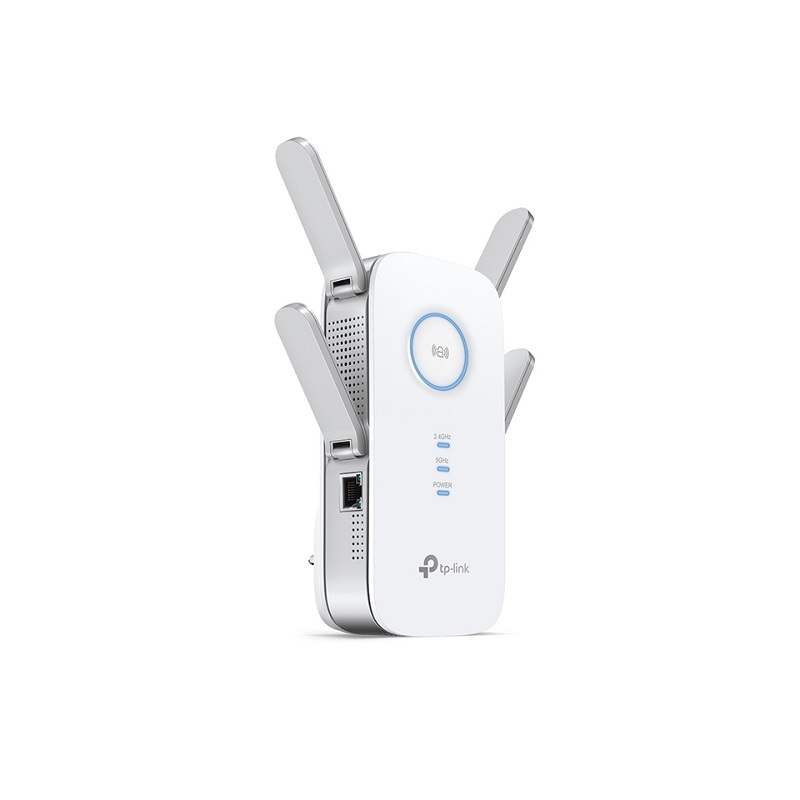

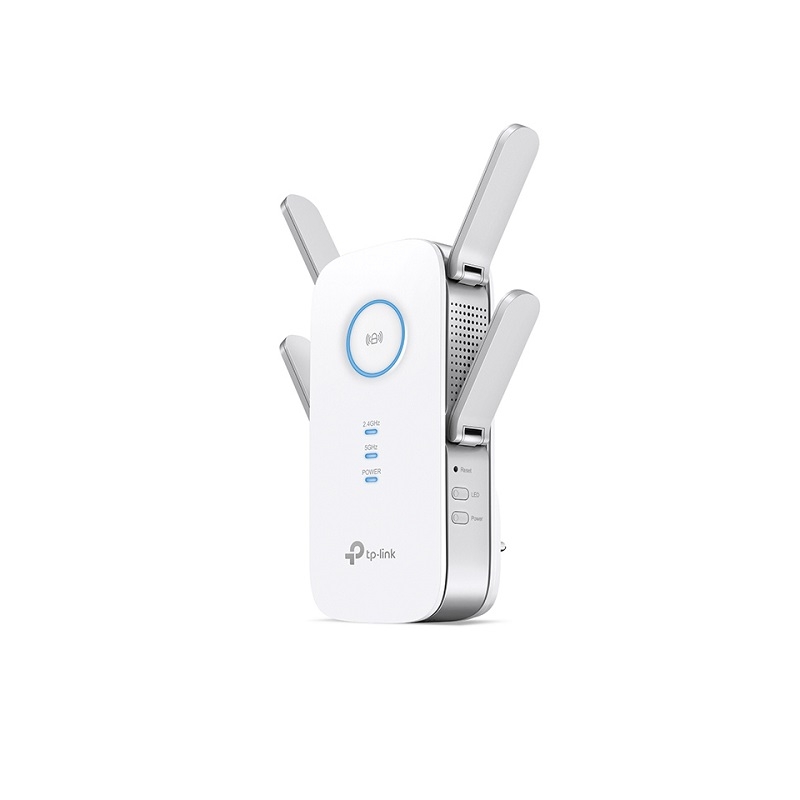

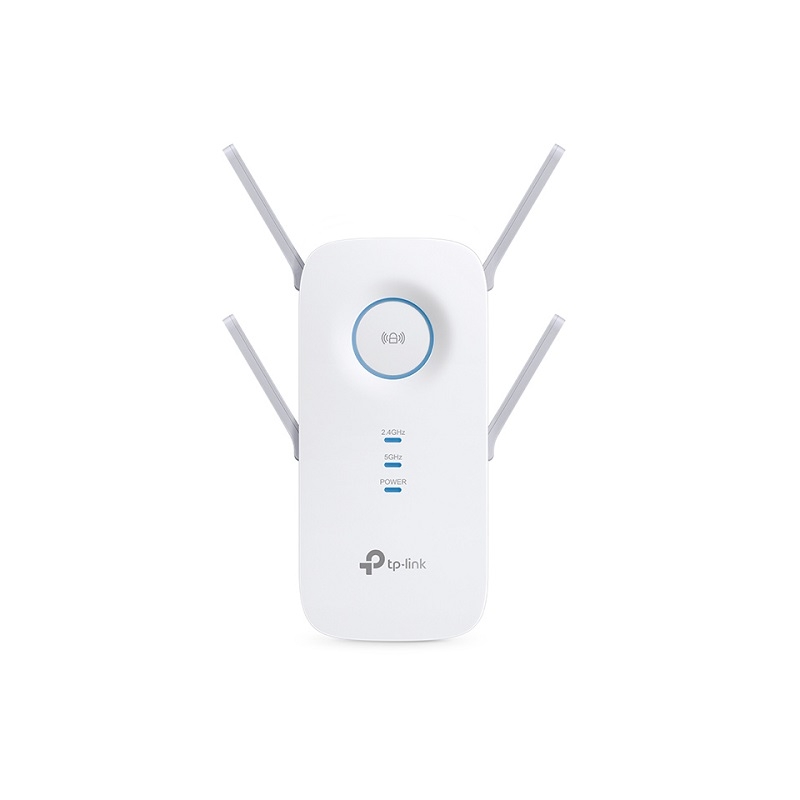

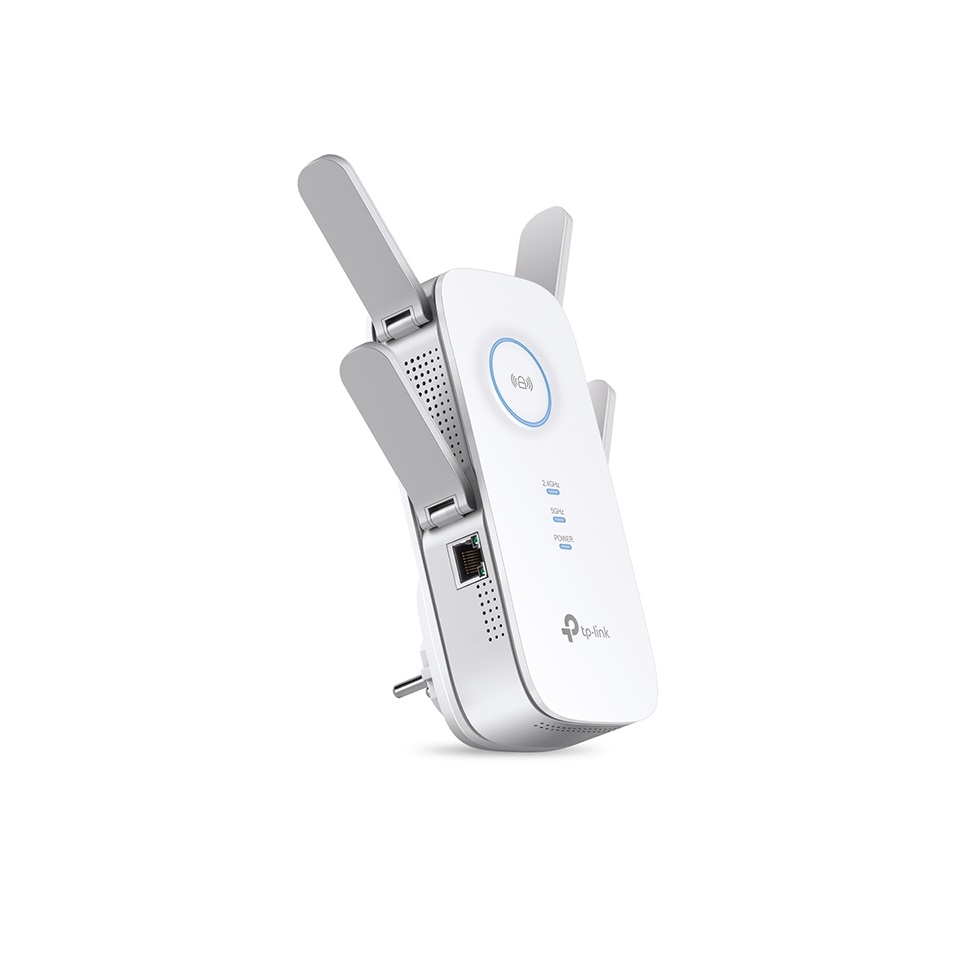

TP-LINK AC2600 Wi-Fi diapazono plėtinys, ES kištukas (RE650)

Produkto savybės:

• Superior Extended Range – Four fixed external antennas extend Wi-Fi coverage by up to 14,000 sq. ft.
• 4-Stream for AC2600 Dual Band Wi-Fi – Simultaneous 800Mbps on 2.4GHz + 1733Mbps on 5GHz
• 4×4 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
• Beamforming Technology – Send targeted Wi-Fi signal to individual devices for stronger connections
• Gigabit Ethernet Port – Provide faster wired connections to smart TVs, computers and gaming consoles
• Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
• AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
• TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
• Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point

Produkto specifikacijos:

HARDWARE FEATURES

Plug Type: EU
Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface: 1 x 10/100/1000M Ethernet Port (RJ45)
Button: WPS Button, Reset Button, LED Button, Power Button
Power Consumption: 12W（max power consumption）
Antenna: 4 x external
Dimensions ( W x D x H ): 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm)

WIRELESS FEATURES

Frequency: 2.4GHz & 5GHz(11ac)

Signal Rate:
5GHz:Up to 1733Mbps
2.4GHz:Up to 800Mpbs

Reception Sensitivity:
5GHz：
11a 6Mbps:-96dBm@10% PER
11a 54Mbps: -78dBm@10% PER
11ac HT20 mcs8: -69dBm@10% PER
11ac HT40 mcs9: -66dBm@10% PER
11ac HT80 mcs9: -63dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER

Wireless Modes: Range Extender/Access Point

Wireless Functions:
Wireless Statistic
Concurrent Mode boost both 2.4G/5G WiFi band
Access Control
LED Control
Domain Login Function

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
Transmission Power: <20dBm(2.4GHz), <23dBm(5GHz)

OTHERS

Certification: CE, FCC, RoHS

Package Contents: AC2600 Wi-Fi Range Extender RE650, Quick Installation Guide
Box Dimensions (W X D X H): 7.9 x 4.9 x 3.8 in. (202 x 125 x 97mm)
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment: Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
