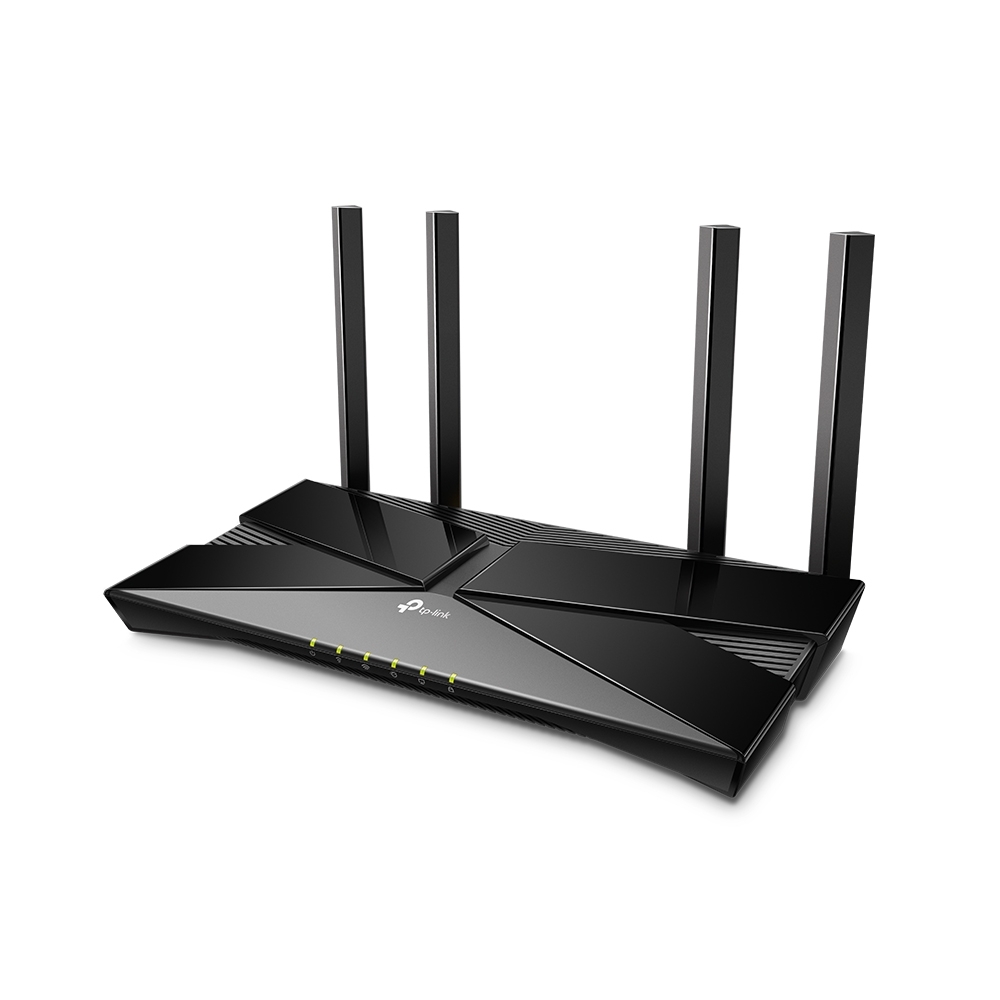

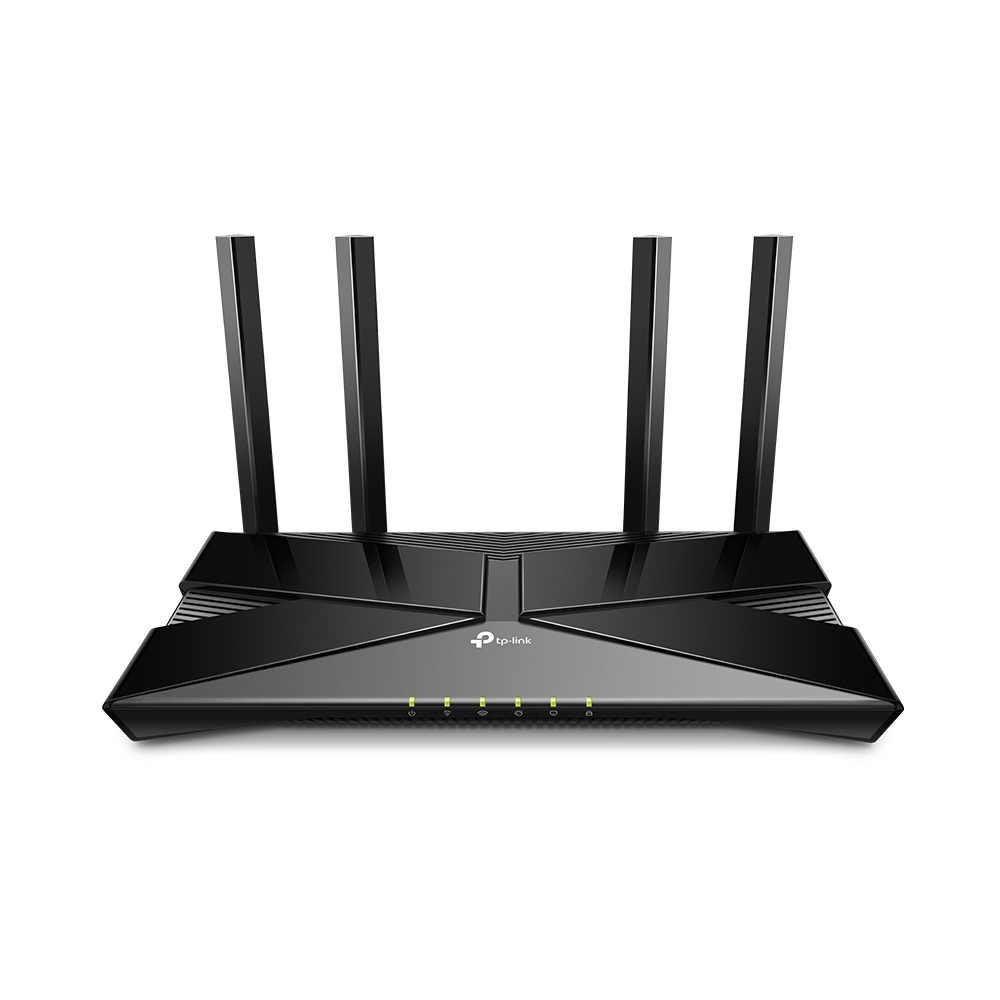

TP-LINK AX1500 Triple-Band Wi-Fi 6 Router (ArcherAX10)
Wireless Router | 802.11ax/ac/n/b/g/a standards | Triple-band | Speed up to 1.5Gbps | Beamforming | Parental Controls | VPN
- Wi-Fi 6 Technology—Archer AX10 comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).†
- Connect Dozens of Devices—More simultaneous connections and reduced latency with OFDMA and MU-MIMO.
- Triple-Core CPU—Instant response to all your network activity with a 1.5 GHz triple-core CPU.
- Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage.†
- Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps.
- Easy Setup—Finish your network upgrade in minutes with Tether app.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Advanced, Revolutionary Wi-Fi 6
Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more.

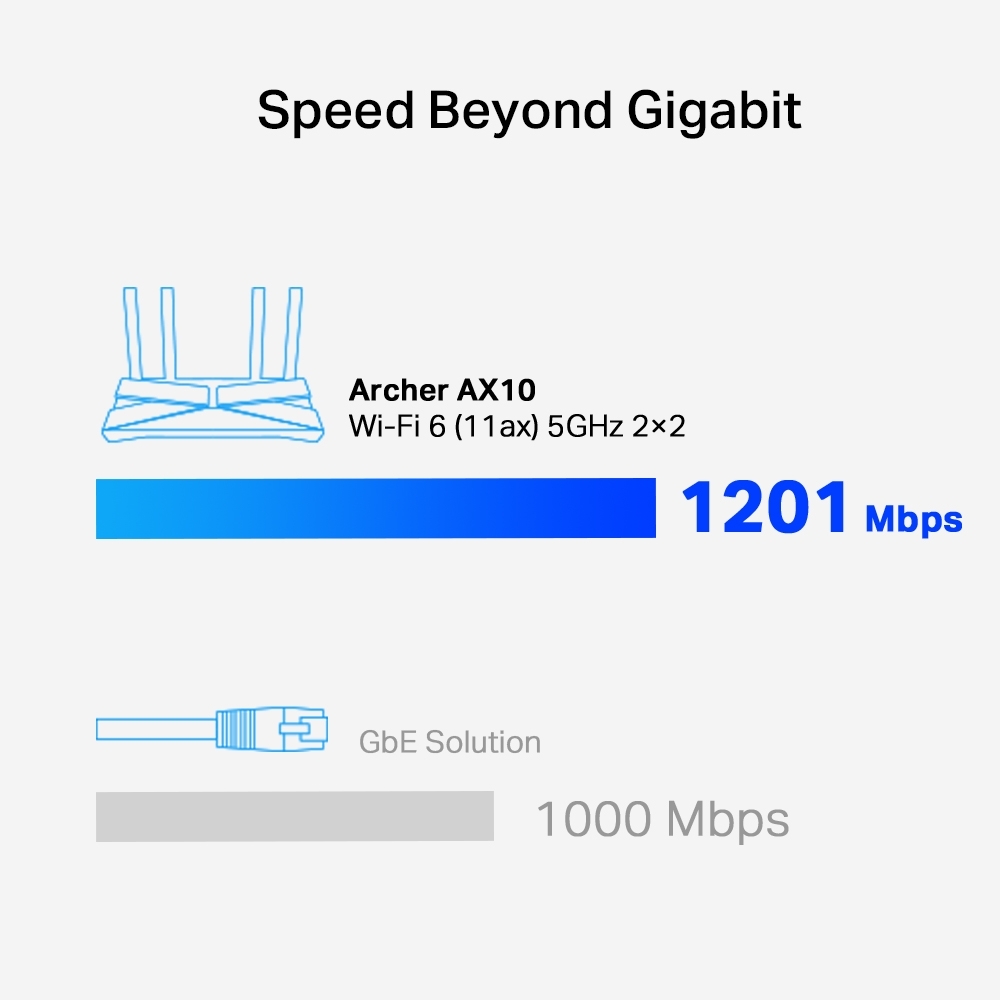

Speed Beyond Gigabit
The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable.
Connect Dozens of Devices
Add more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router.
Less Lag, More Fun
Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. Enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices—all at the same time.

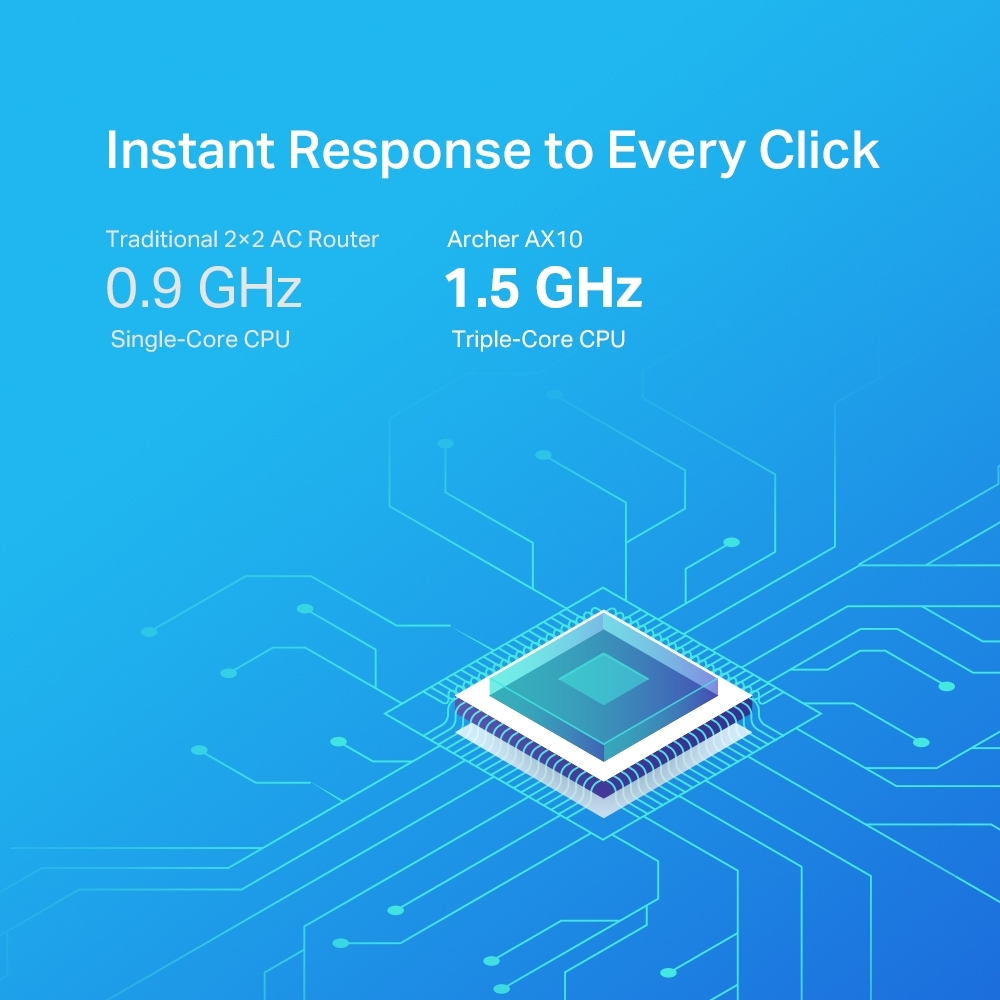

Triple-Core Processor Instant Response to Every Click
A 1.5 GHz triple-core CPU provides overwhelming power to tackle huge amounts of data transferring, minimizing the latency within your network. Enjoy instant response when you click the play button for online playback and get better quality for the online video chatting.

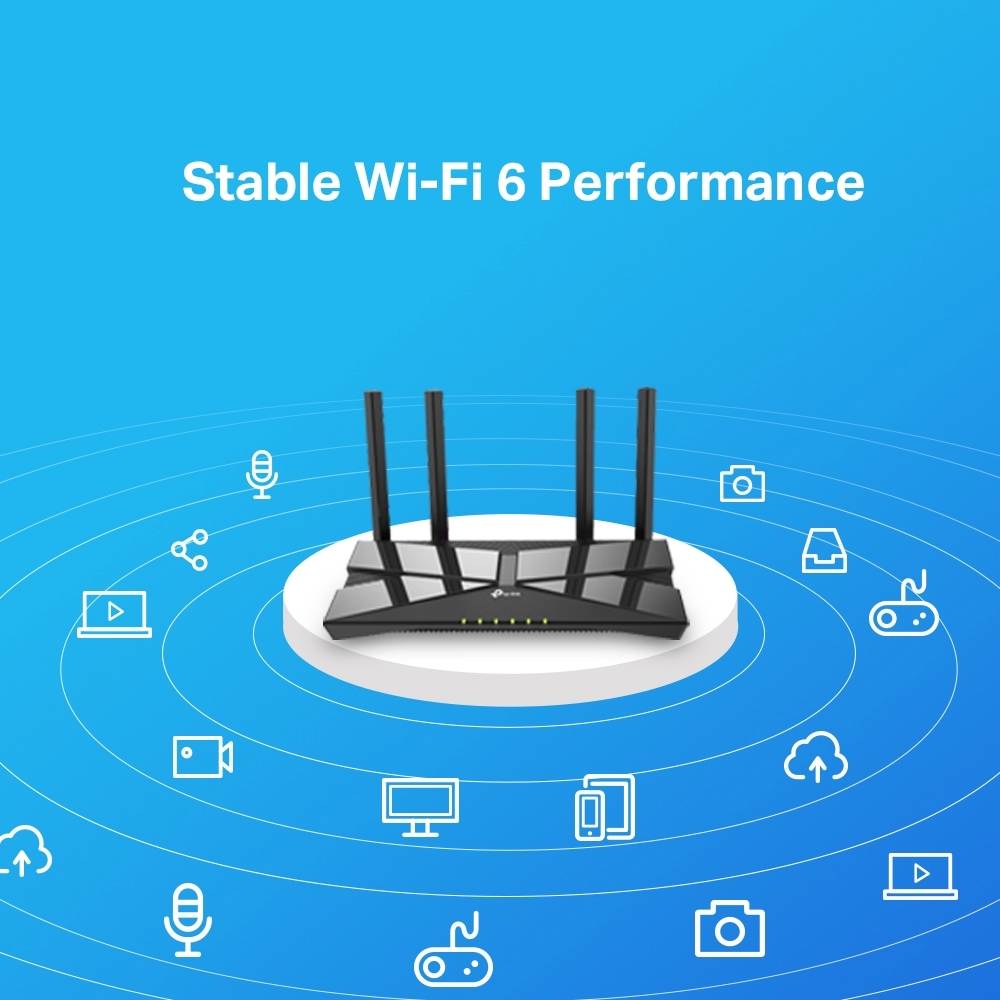

Boosted Wi-Fi Coverage
Beamforming technology and 4 high-gain antennas combine to generate strong, reliable Wi-Fi signal throughout your home, delivering smooth and stable connections for every client.
Gigabit Broadband Internet Access
All Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast, reliable wired connections.
Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX10 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.
Ready for Today and Tomorrow's Smart Home
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.
Block inappropriate content and restrict time spent online
Safely reach files in your home, wherever you are, with a secure VPN connection
Quality of Service
Prioritize devices and applications for faster performance when needed
|Processor||1.5 GHz Triple-Core CPU|

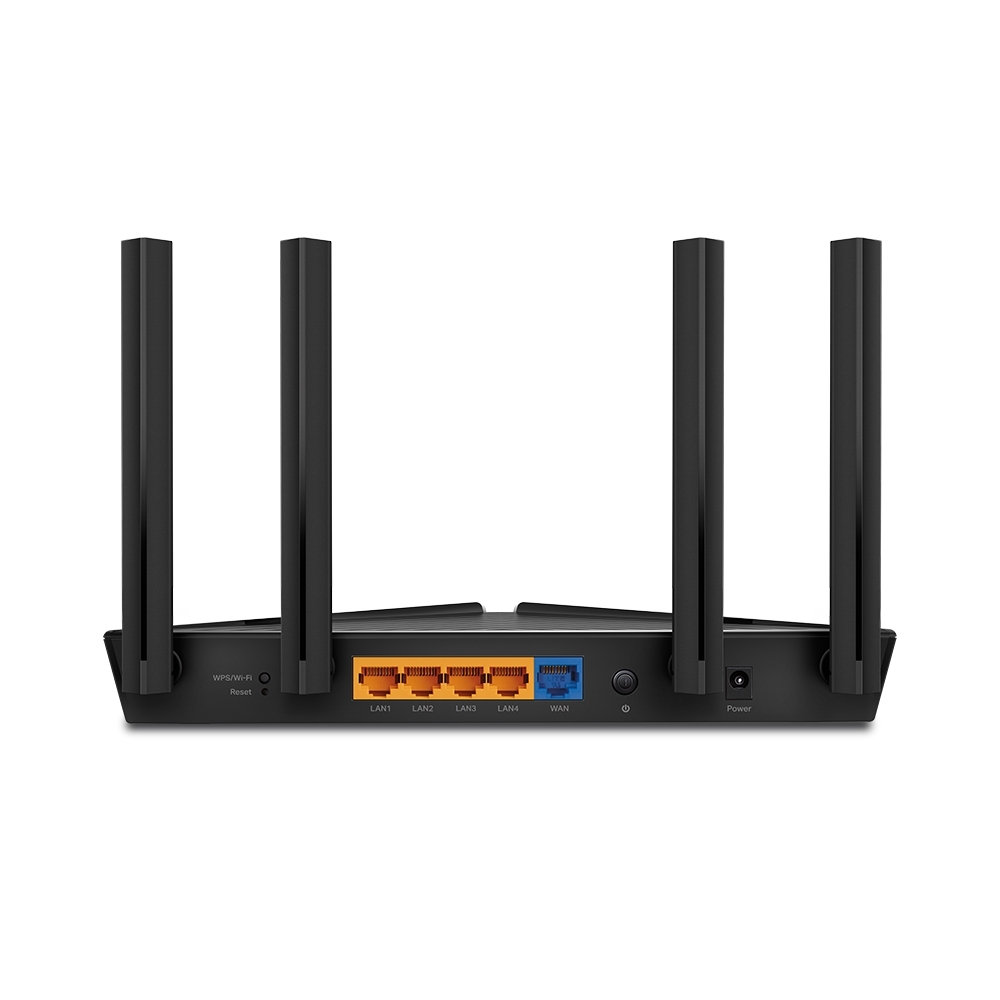

|Interface||1× 1000/100/10 Mbps WAN Port
4× 1000/100/10 Mbps LAN Ports
|Button||WPS/Wi-Fi On/Off Button, Reset Button, Power On/Off Button|
|External Power Supply||12 V / 1 A|
|Dimensions ( W x D x H )||10.2 × 5.3 ×1.5 in. (260.2 × 135.0 × 38.6 mm)|
|Antenna||4× Fixed Omni-Directional Antennas|
|Wireless Standards||IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
|Signal Rate||1201 Mbps (5 GHz, 11ax)
300 Mbps (2.4 GHz, 11n)
Compatible with 802.11a/b/g/n/ac Wi-Fi standards
|Reception Sensitivity||5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm
|Transmit Power||CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
|Wireless Functions||Enable/Disable Wireless Radio, WMM|
|WAN Type||Dynamic IP/Static IP/PPPoE|
|DHCP||Server, DHCP Client List, Address Reservation|
|Dynamic DNS||DynDns, NO-IP, TP-Link|
|Guest Network||2.4 GHz guest network × 1
5 GHz guest network × 1
|NAT||Port Forwarding, Port Triggering, UPnP, DMZ|
|Certification||FCC, CE, RoHS|
|Package Contents||Wireless Router Archer AX10
RJ45 Ethernet Cable
Quick Installation Guide
|System Requirements||Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
