TP-LINK Omada AX1800 Lauko ir Vidaus Sąlygų Wi-Fi 6 Didelio Apkrovimo Prieigos taškas (EAP623-Outdoor HD)
OEM kodas:
EAP623-Outdoor HD
Kodas:
EAP623-OutdoorHD
ID:
#4366
EAN kodas:
4895252506303
1x gigabitinis LAN prievadas (palaiko IEEE802.3at ir 48V pasyvųjį PoE) | Antenos: 2.4 GHz – 4 dBi, 5 GHz – 5 dBi | Wi-Fi 6 | Belaidžio ryšio standartai: IEEE 802.11ax/ac/n/g/b/a | Vienu metu iki 574 Mb/s per 2.4 GHz ir 1201 Mb/s per 5 GHz, bendras Wi-Fi greitis – 1775 Mb/s | Iki 1 000+ klientų | Nemokama „Omada“ programėlė, centralizuotas valdymas, prieiga per debesiją
179.06€ su PVMKaina be PVM: 147.98€ |
Produkto savybės:
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.
- Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.
- High-density connectivity up to 1,000+ clients.
- Long-range coverage with the high-power amplifier and smart antennas.
- IP67 weatherproof enclosure for various outdoor environments.
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming.
- PoE+ Powered: Supports 802.3at PoE (adapter not included).
Produkto specifikacijos:
| HARDWARE FEATURES | |
|---|---|

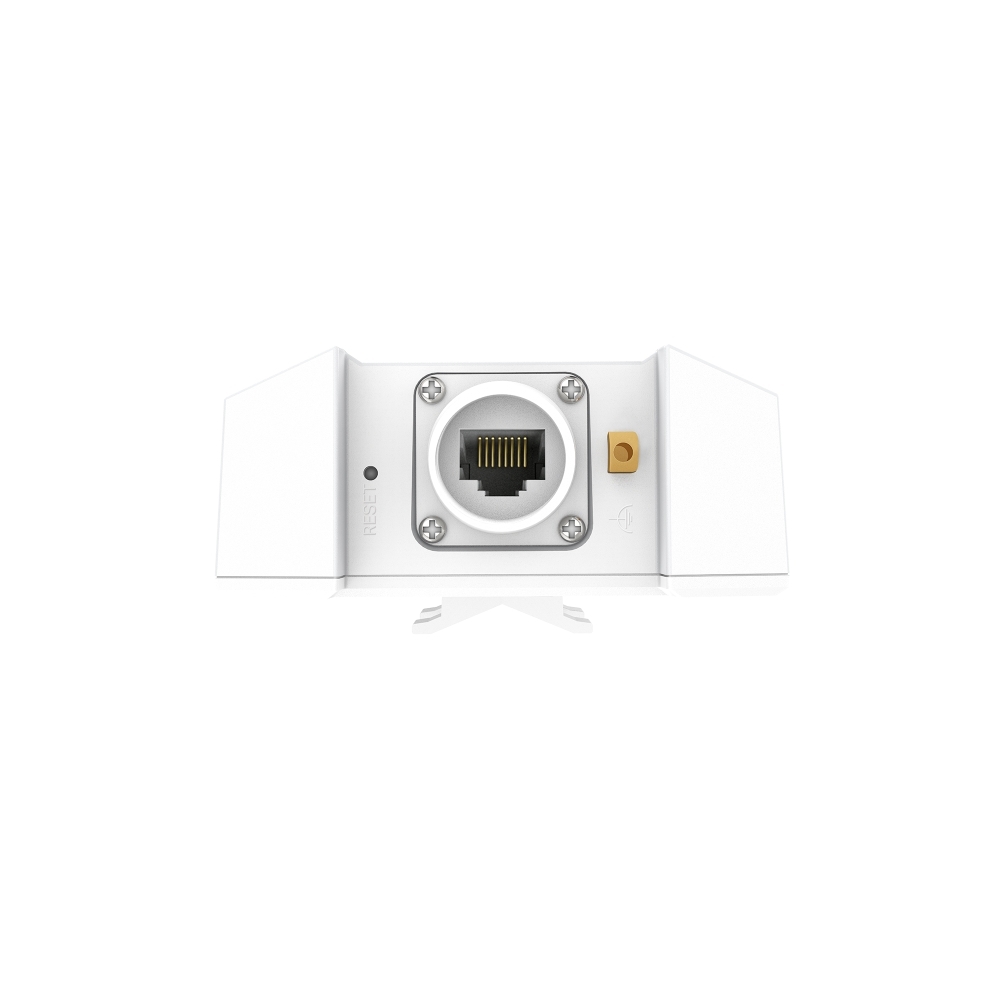

| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE • 48V Passive PoE Note: PoE adapter is not included. |

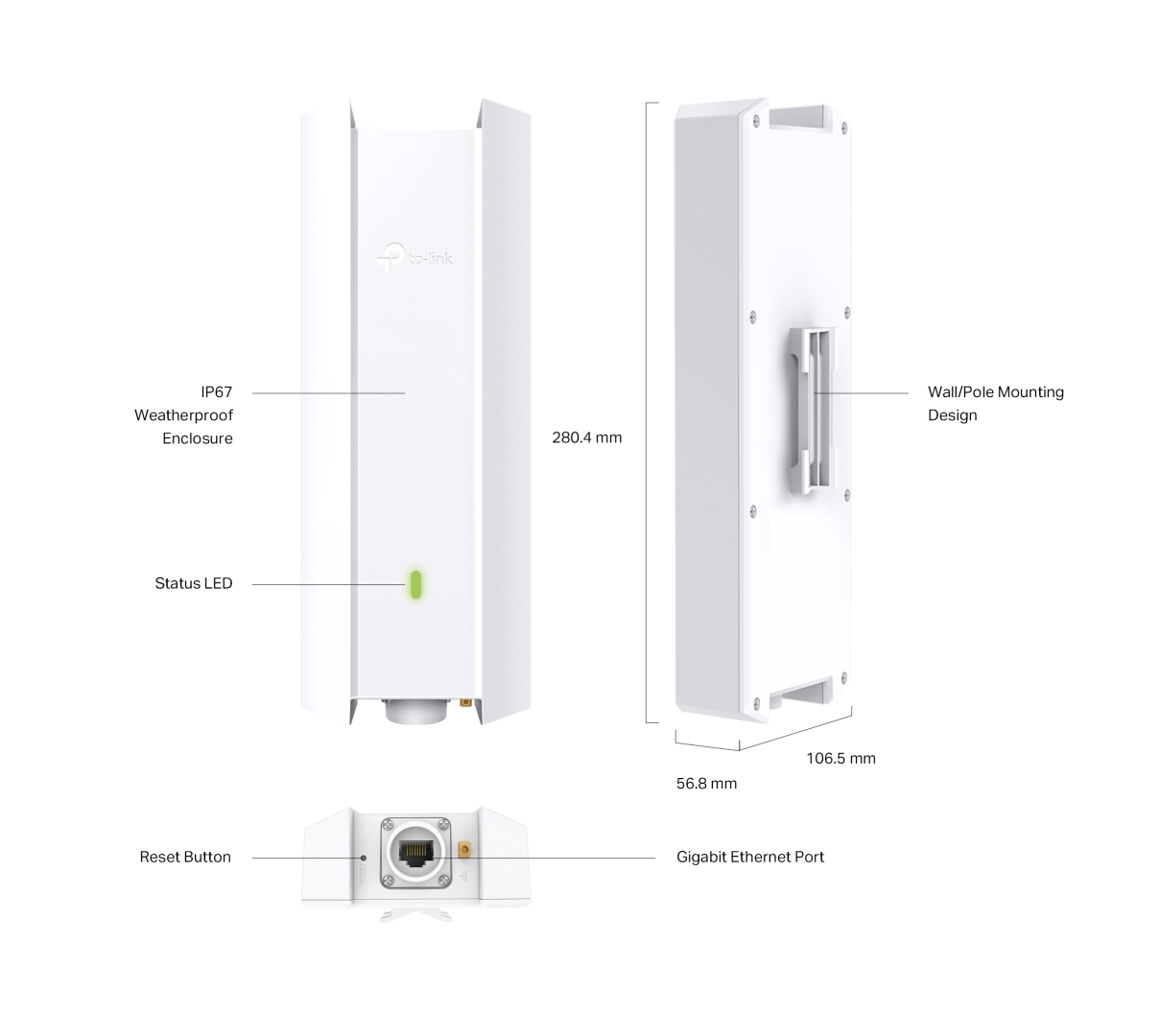

| Dimensions ( W x D x H ) | 4.2 × 2.2 × 11.1 in (106.5 × 57 × 281 mm) |
| Antenna Type | 2× Internal Dual-Band Omni Antennas • 2.4 GHz: 4.0 dBi; • 5 GHz: 5.0 dBi |
| Weatherproof Enclosure | IP67 |

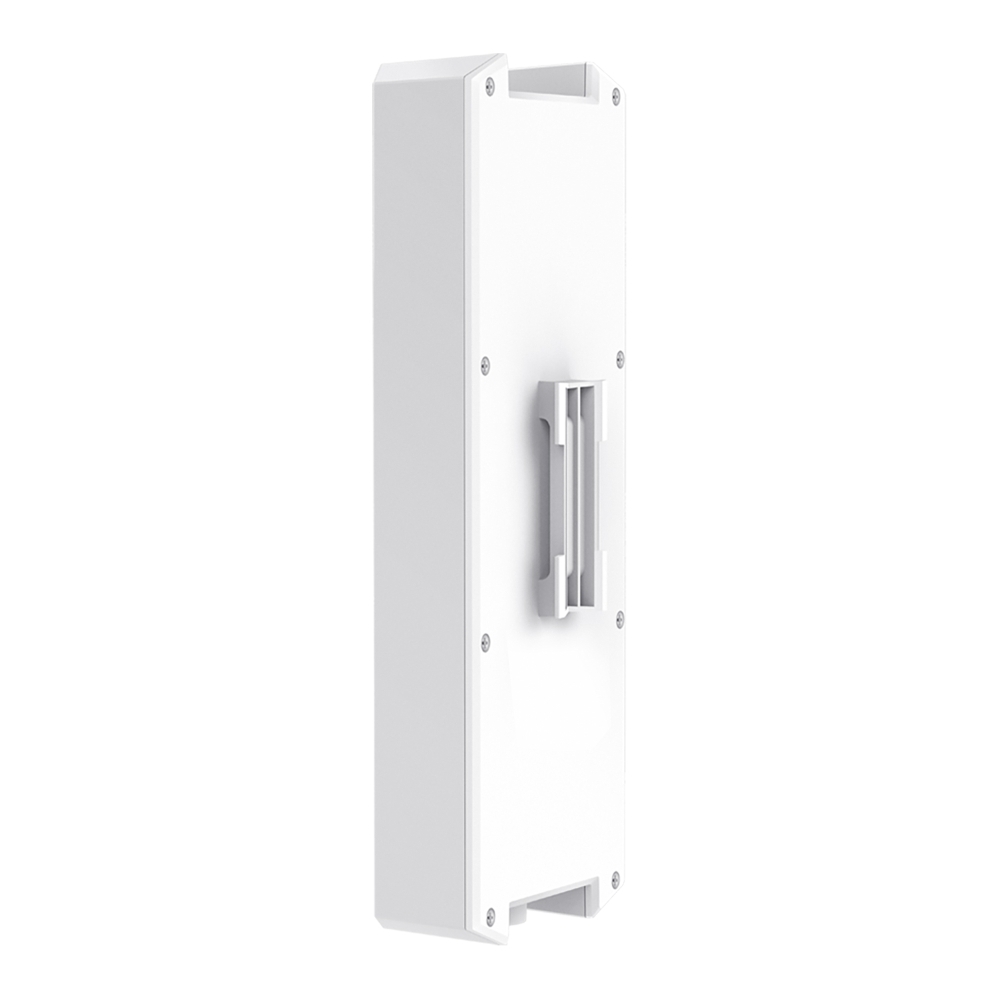

| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 1,020+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • Mesh△ • Seamless Roaming(802.11k/v/r) • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

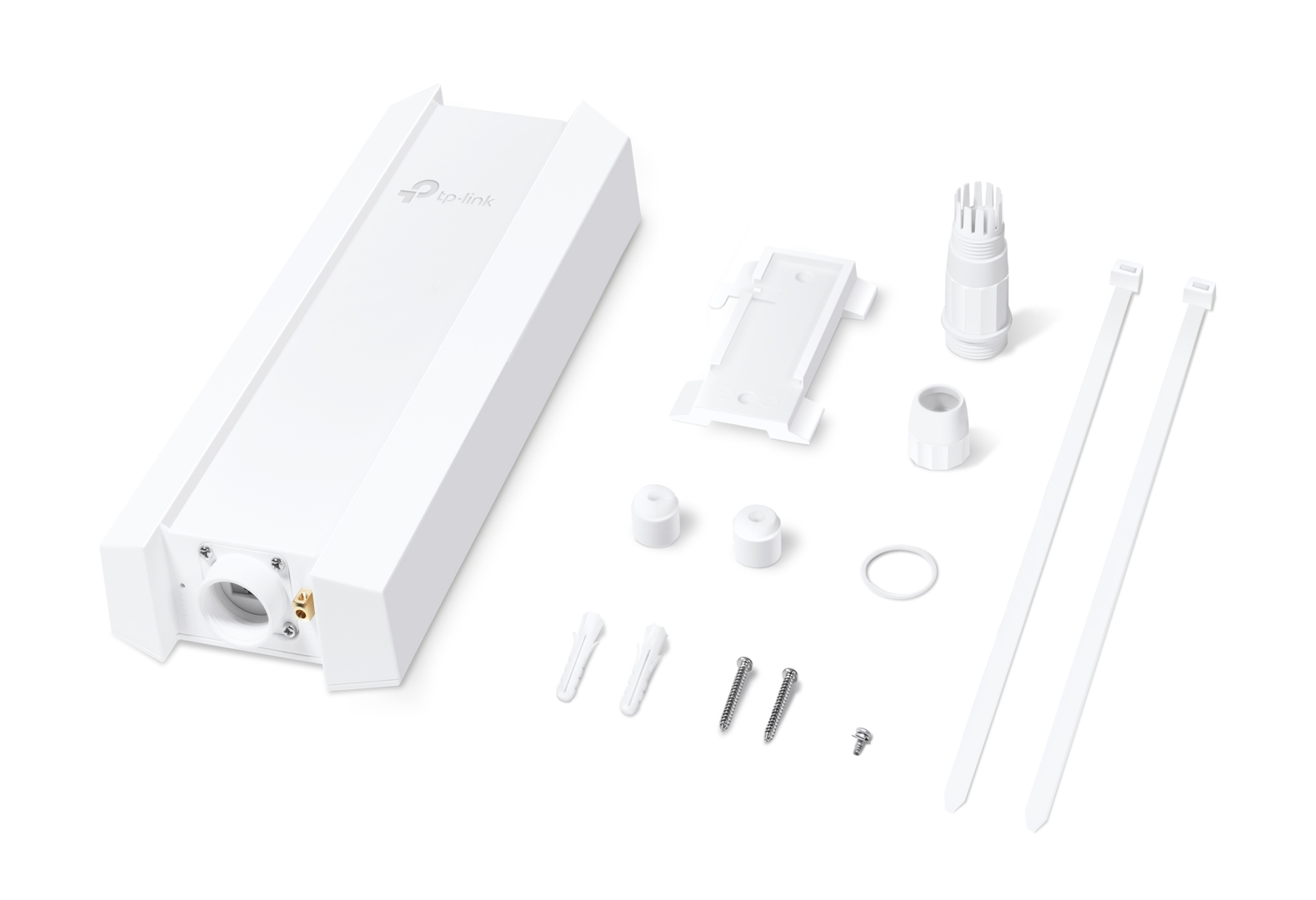

| Package Contents | • EAP623-Outdoor HD • Installation Guide • Mounting Kit • Waterproof Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
