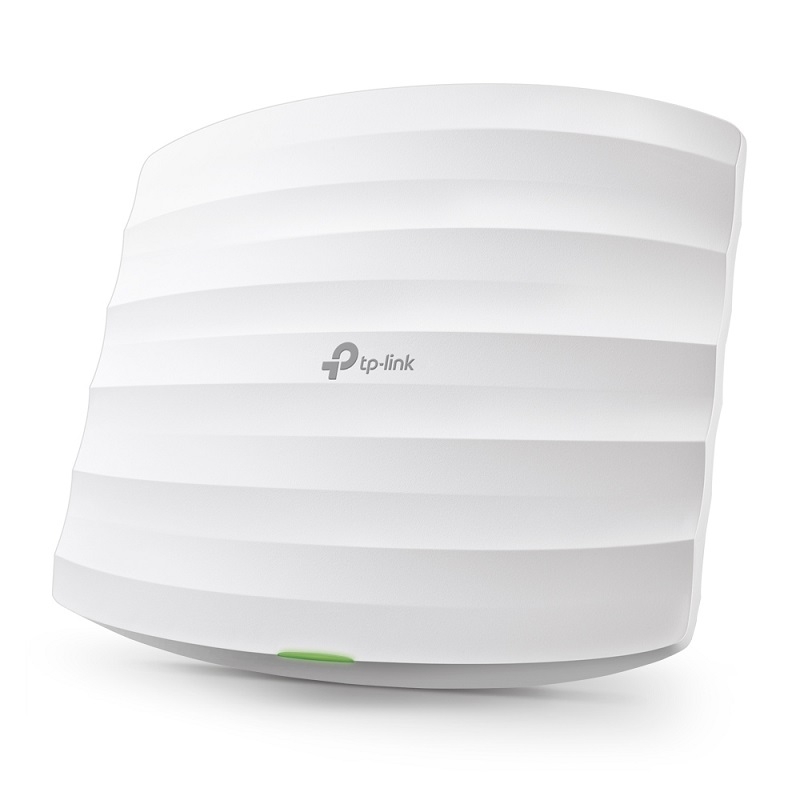

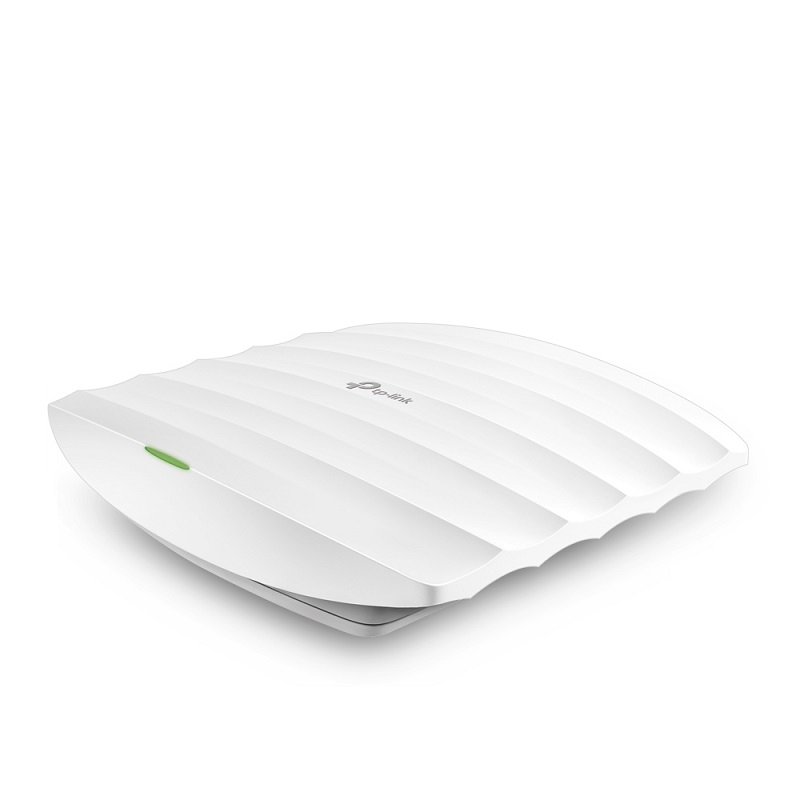

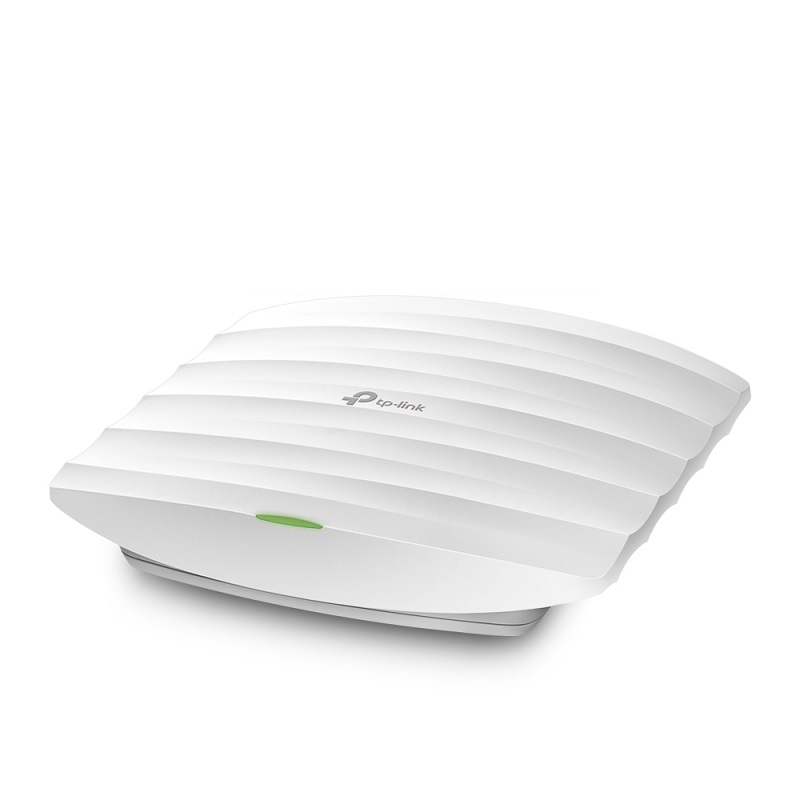

TP-LINK Omada Series AC1350 Wireless MU-MIMO Dual Band Gigabit Ceiling Mount Access Point (EAP225)

Kodas: EAP225
ID: #1259

Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1350Mbps Wi-Fi speeds, Free EAP Controller Software, Supports PoE(802.3af), captive portal for guest authentication

naujiena
Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
53.59€ 64.84€ >0€
53.33€ 64.53€ >100€
53.08€ 64.23€ >300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

  • Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
  • Free cloud centralized management and Omada app for ultra convenience and easy management
  • Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

Produkto specifikacijos:

HARDWARE FEATURES

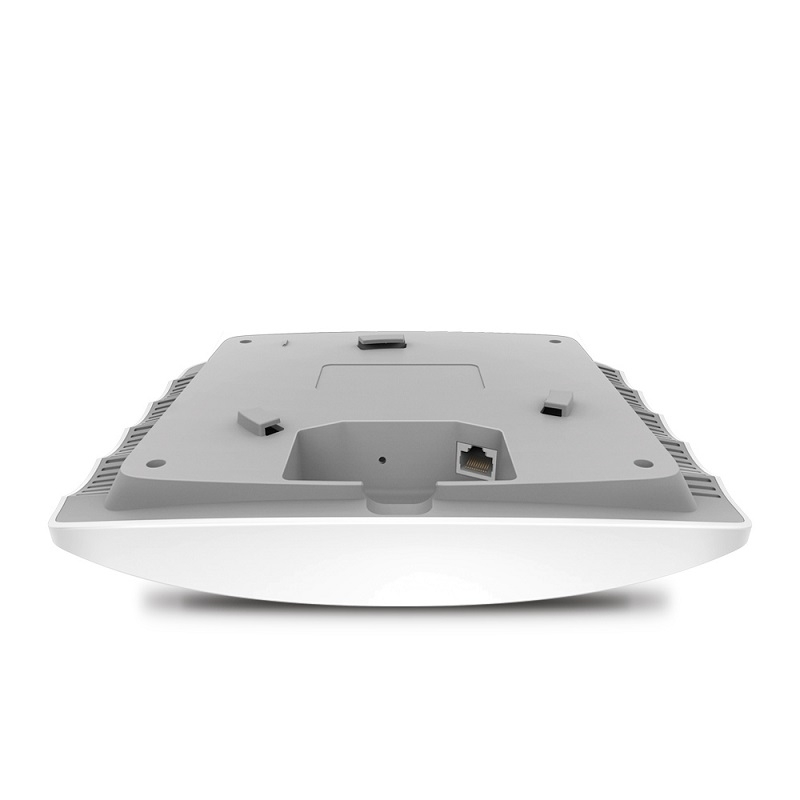

Interface: Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Button: Reset

Power Supply:
   802.3af/A PoE
   24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: 10.5 W
Dimensions: 205.4 × 181.6 × 37.4 mm

Antenna Type: Internal Omni
   2.4GHz: 3*4dBi
   5GHz: 2*5dBi

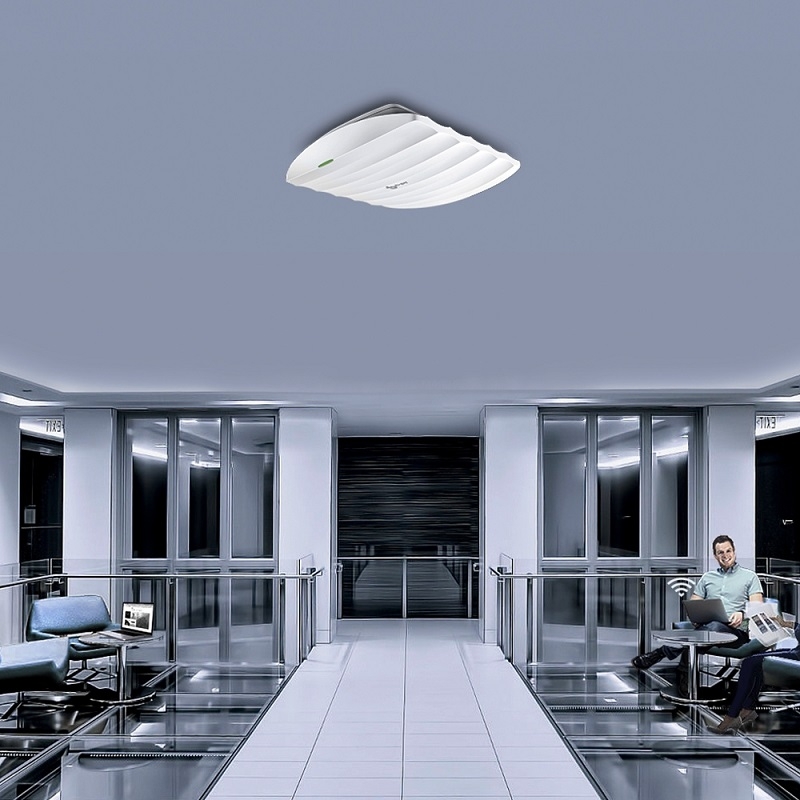

Mounting: Ceiling /Wall Mounting (Kits included)
Physical Security Lock: Yes
Hardware Watch Dog: Yes

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4GHz and 5GHz

Signal Rate:
   5GHz: up to 867Mbps
   2.4GHz: up to 450Mbps

Wireless Functions:
   Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
   Enable/Disable Wireless Radio
   Automatic Channel Assignment
   Transmit Power Control (Adjust Transmit Power on dBm)
   QoS(WMM)
   Band Steering
   Load Balance
   MU-MIMO
   Airtime Fairness
   Beamformin
   Rate Limit
   Reboot Schedule
   Wireless Schedule
   Wireless Statistics based on SSID/AP/Client
   Wireless Security     Captive Portal Authentication
   Access Control
   Wireless Mac Address Filtering
   Wireless Isolation Between Clients
   SSID to VLAN Mapping
   Rogue AP Detection
   802.1X Support

Transmission Power:
   CE: ≤20dBm(2.4GHz,EIRP), ≤23dBm(5GHz,EIRP)
   FCC: ≤24dBm(2.4GHz),  ≤22dBm(5GHz)

MANAGEMENT

Omada Controller Software: Yes
Omada Cloud Controller: Yes (sold separately)
Omada app: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
Telnet: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS

Certification: CE, FCC, RoHS

Package Contents:
   AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
   Passive PoE Adapter
   Power Cord
   Mounting Kits
   Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment: Operating Temperature: 0℃~60℃ (32℉~144℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
