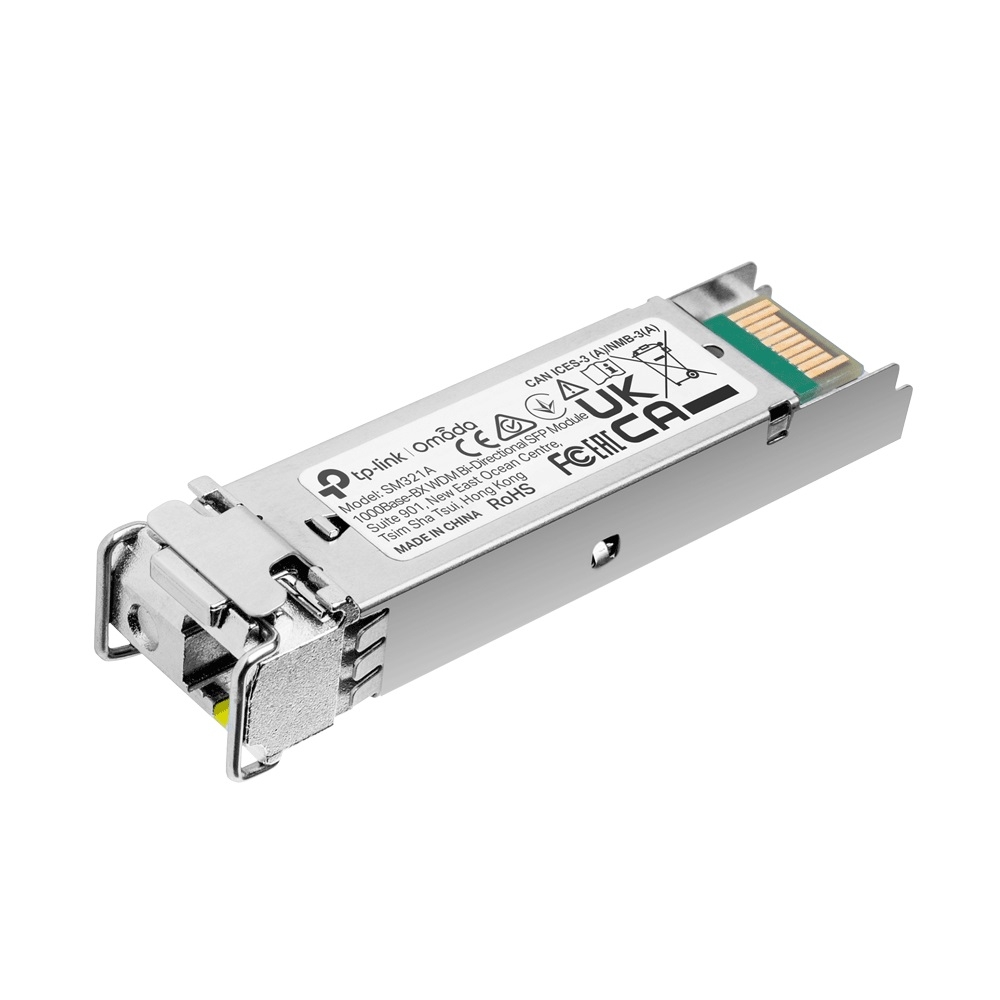

TP-LINK Omada 1000Base-BX WDM porinis SFP modulis (SM321A)
Kodas:
SM321A
ID:
#4417
EAN kodas:
6935364030513
Viengyslis (Single-mode) | LC Simplex jungtis | TX: 1550nm / RX: 1310nm | Iki 20 km atstumas | Naudojsmsd poroje su SM321B
19.90€ su PVMKaina be PVM: 16.45€ |
Produkto savybės:
TP-Link´s SM321A(TL-SM321A) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
Produkto specifikacijos:
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | • TX: 1550 nm • RX: 1310 nm |
| Dimensions (W*D*H) | 2.2*0.6*0.5 in (55.4*14.6*12.9 mm) |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Hardware Features | • DDM • SFP-MSA • Hot Swappable |
| Package Contents | • SM321A • Installation Guide |
| Environment | • Operating Temperature: 0–70 °C (32–158 °F) • Storage Temperature: -40–85 °C ( -40–185 °F) • Operating Humidity: 10–90% RH, Non-Condensing • Storage Humidity: 5–90% RH, Non-Condensing |
