TP-LINK Omada 24 Jungčių Gigabitinis Lengvai Valdomas Komutatorius (ES224G)
OEM kodas:
ES224G
Kodas:
ES224G
ID:
#4747
EAN kodas:
1210002600705
24x Gigabit LAN jungtys | VLAN | Prievadų izoliacija | Kabelių testavimas | QoS (kokybės užtikrinimas) | Be ventiliatoriaus (tylus veikimas) | Plug-and-play | Integracija su „Omada SDN“ sistema
naujiena
105.90€ su PVMKaina be PVM: 87.52€ |
Produkto savybės:

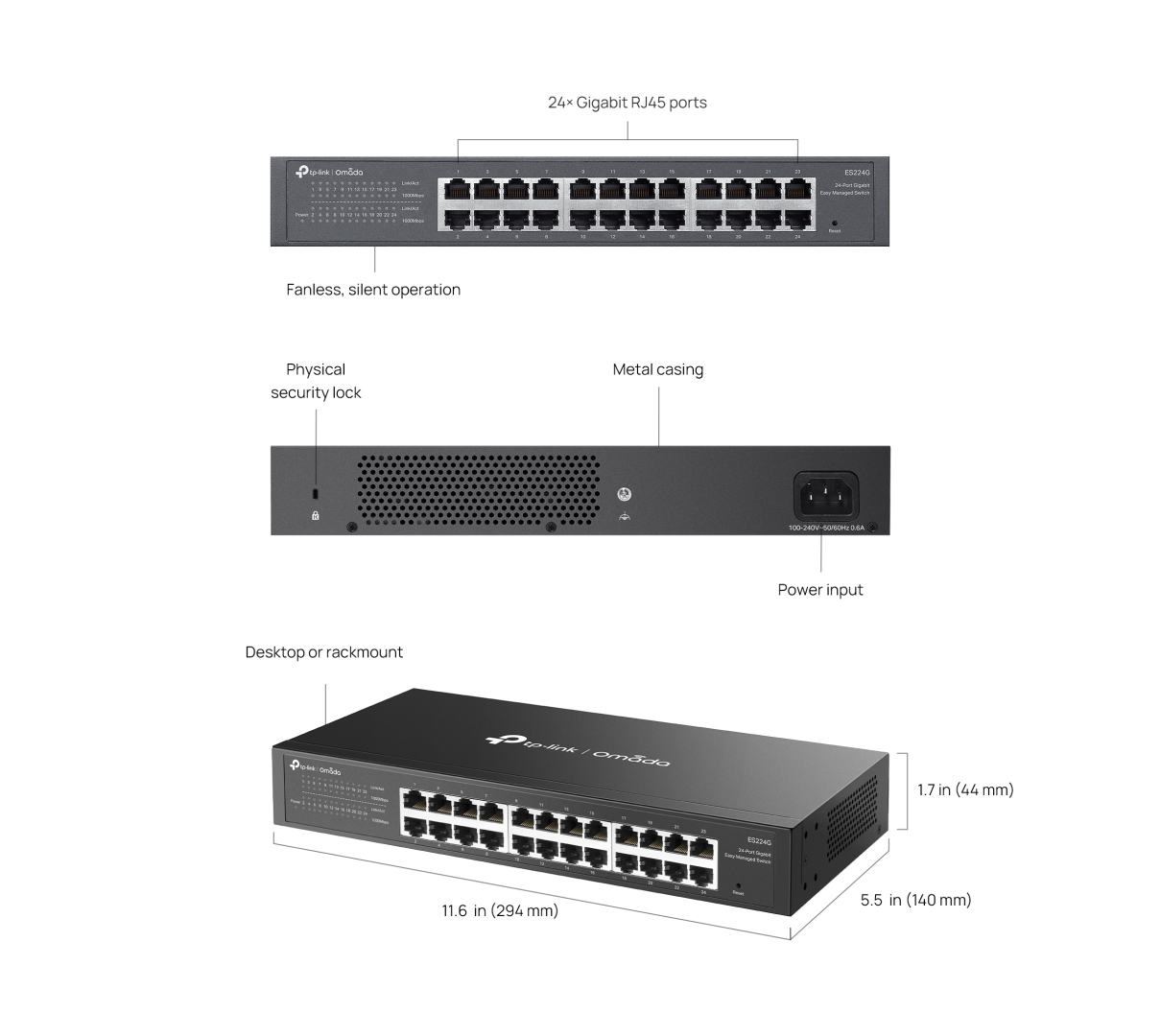

- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Produkto specifikacijos:
| HARDWARE FEATURES | |
|---|---|
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Rackmountable |
| Physical Security Lock | √ |
| Power Supply | 100-240 V~50/60 Hz |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.7 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |

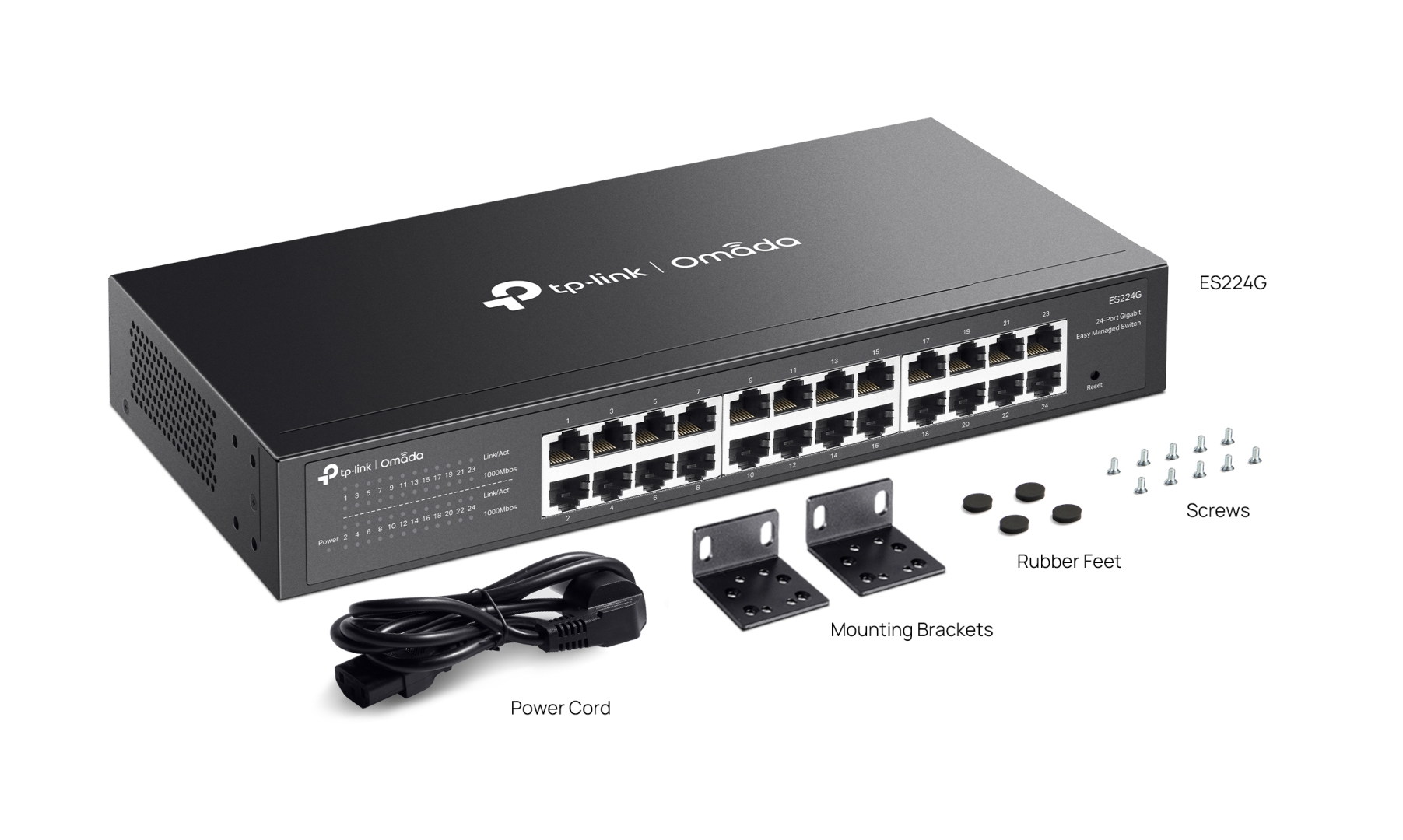

| Package Content | • ES224G • Power Cord • Rubber Feet • Mounting Brackets • Screws • Installation Guide |
| Environment | • Operating Temperature: -5℃~50℃ (23℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
