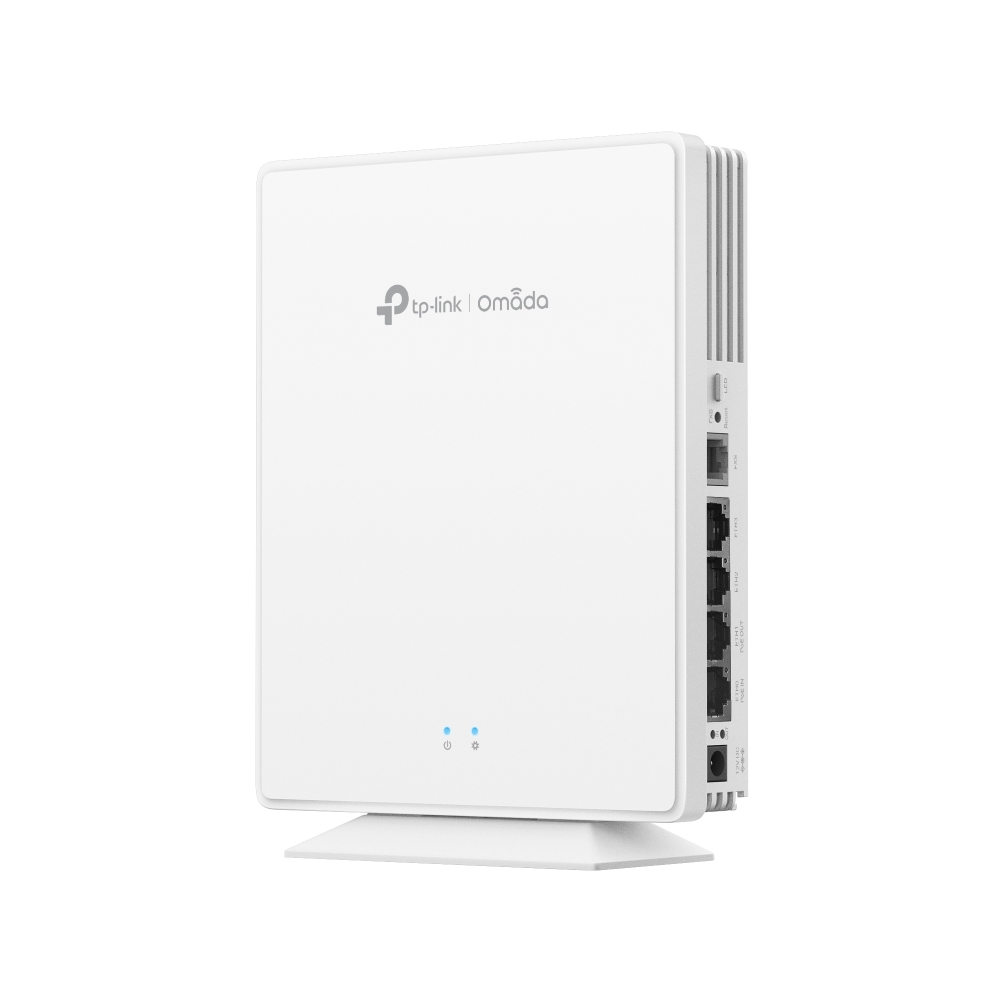

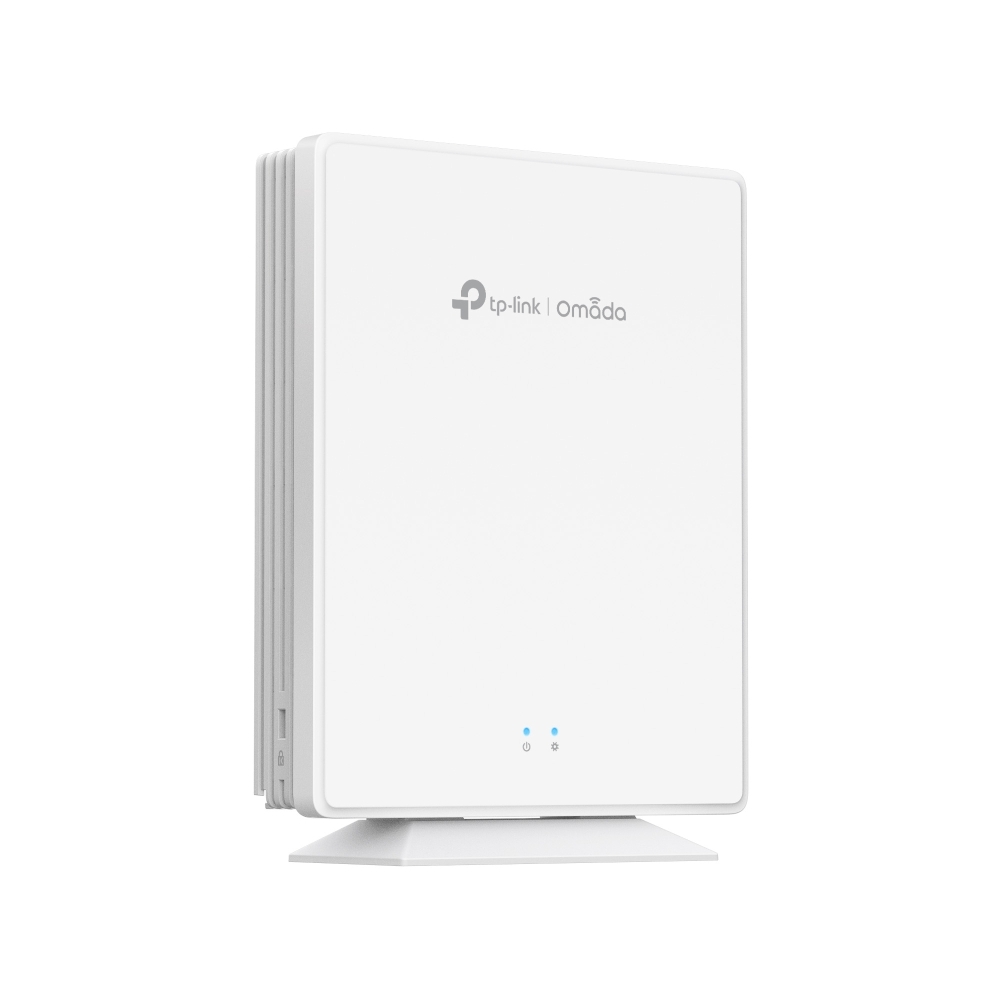

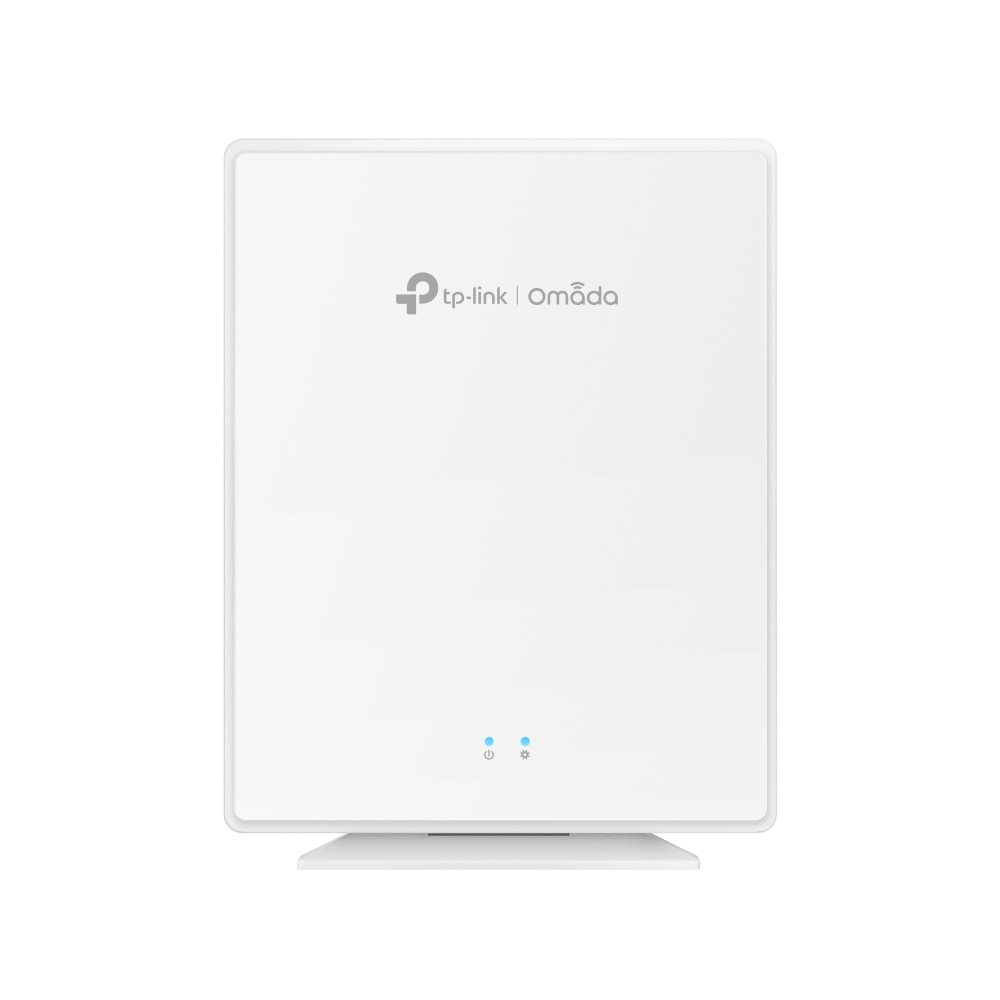

TP-LINK Omada AX3000 Darbastalio Wi-Fi 6 Prieigos Taškas (EAP650-Desktop)
OEM kodas:
EAP650-Desktop
Kodas:
EAP650-Desktop
ID:
#4638
4x Gigabit RJ45 LAN prievadai (1x palaiko PoE In, 1x palaiko PoE Out) | 1x FXS prievadas | Antenos: 2.4 GHz: 2x 5 dBi ir 5 GHz: 3x 4.7 dBi | Wi-Fi 6 | Belaidžio ryšio standartai: IEEE 802.11ax/ac/n/g/b/a | Vienu metu 574 Mbps 2.4 GHz dažniu ir 2402 Mbps 5 GHz dažniu, iš viso 2976 Mbps „Wi-Fi“ greitis | Nemokama „Omada“ programėlė, centralizuotas valdymas, prieiga per debesiją
129.91€ su PVMKaina be PVM: 107.36€ |
Produkto savybės:
- Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds.
- Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
- Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
- No Installation needed:Supports desktop installation without the need for additional setup.
- High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
- Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management.
Produkto specifikacijos:
| HARDWARE FEATURES | |
|---|---|

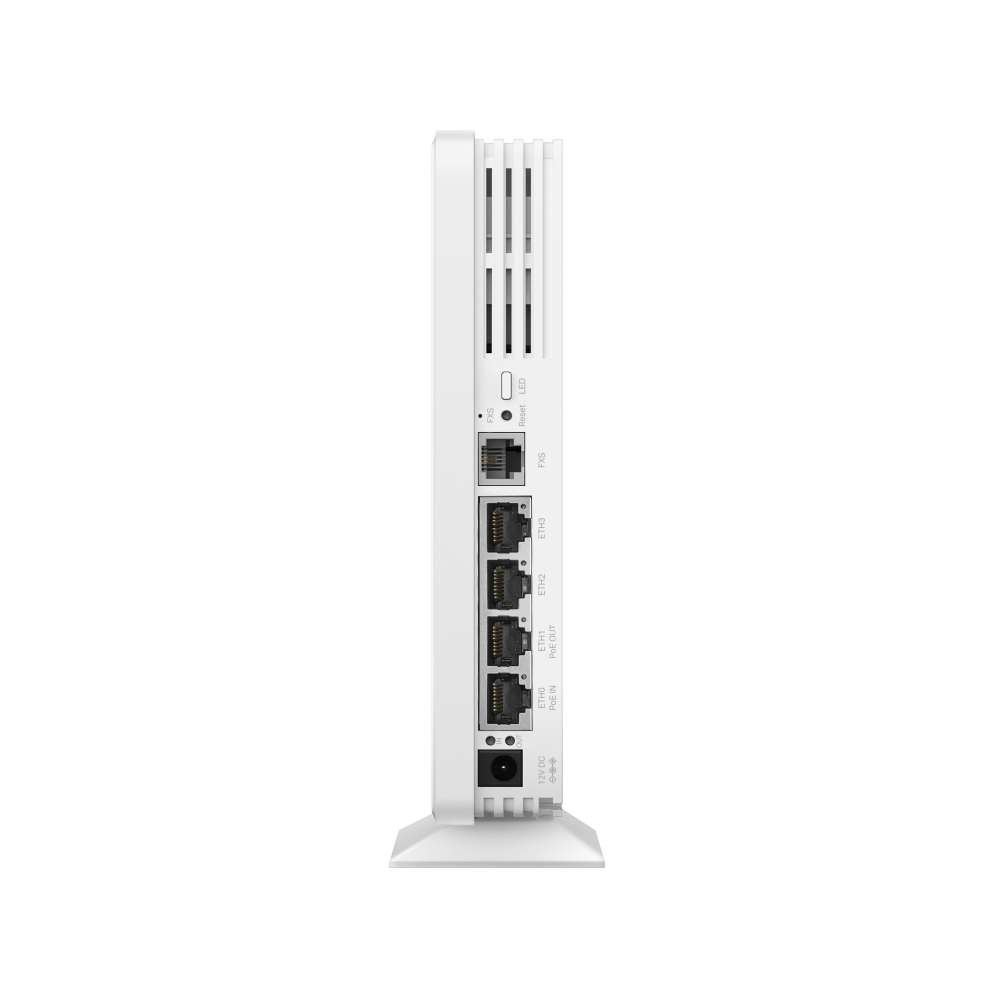

| Interface | 4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| Button | • Reset • LED |
| Power Supply | 802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply |
| Max. Power Consumption | 17.3W (PoE Out Off) |
| Weight | 452g (excluding mounting base) |

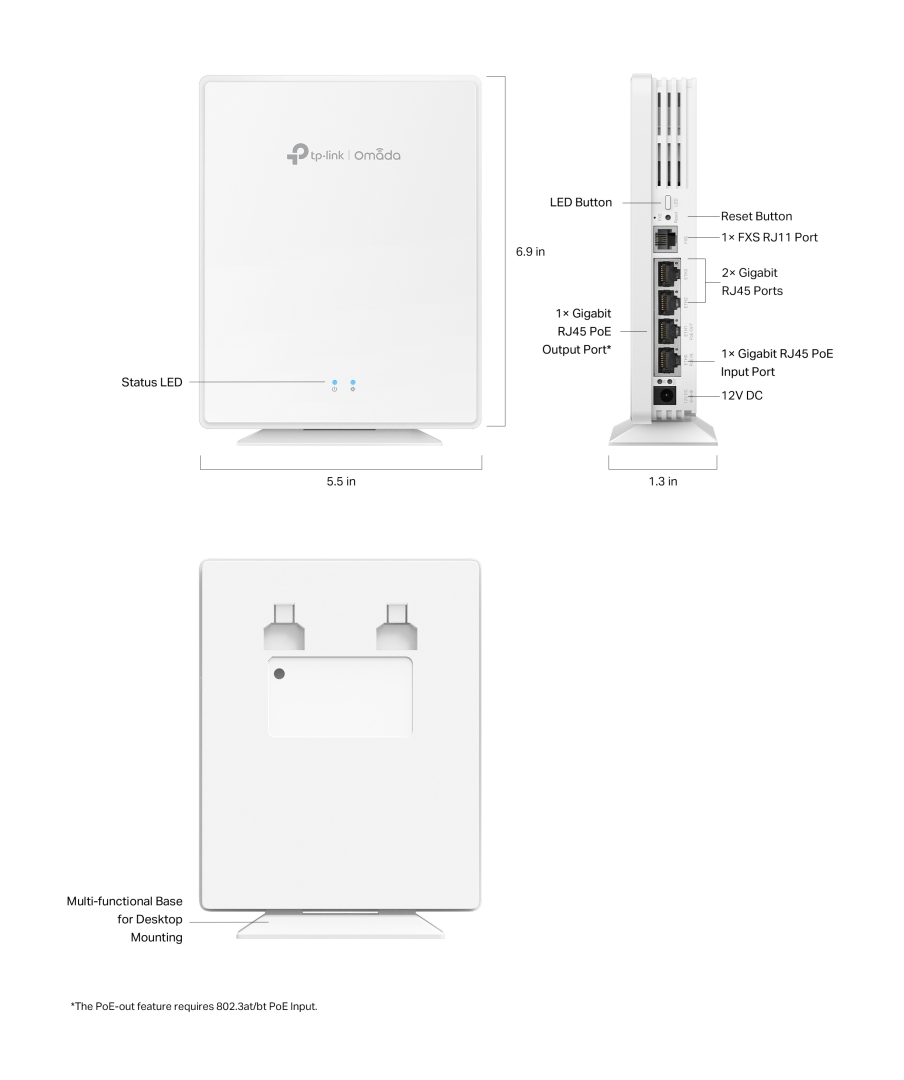

| Dimensions ( W x D x H ) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna | Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 4.7 dBi |
| Range | 140㎡(1500 ft²) |

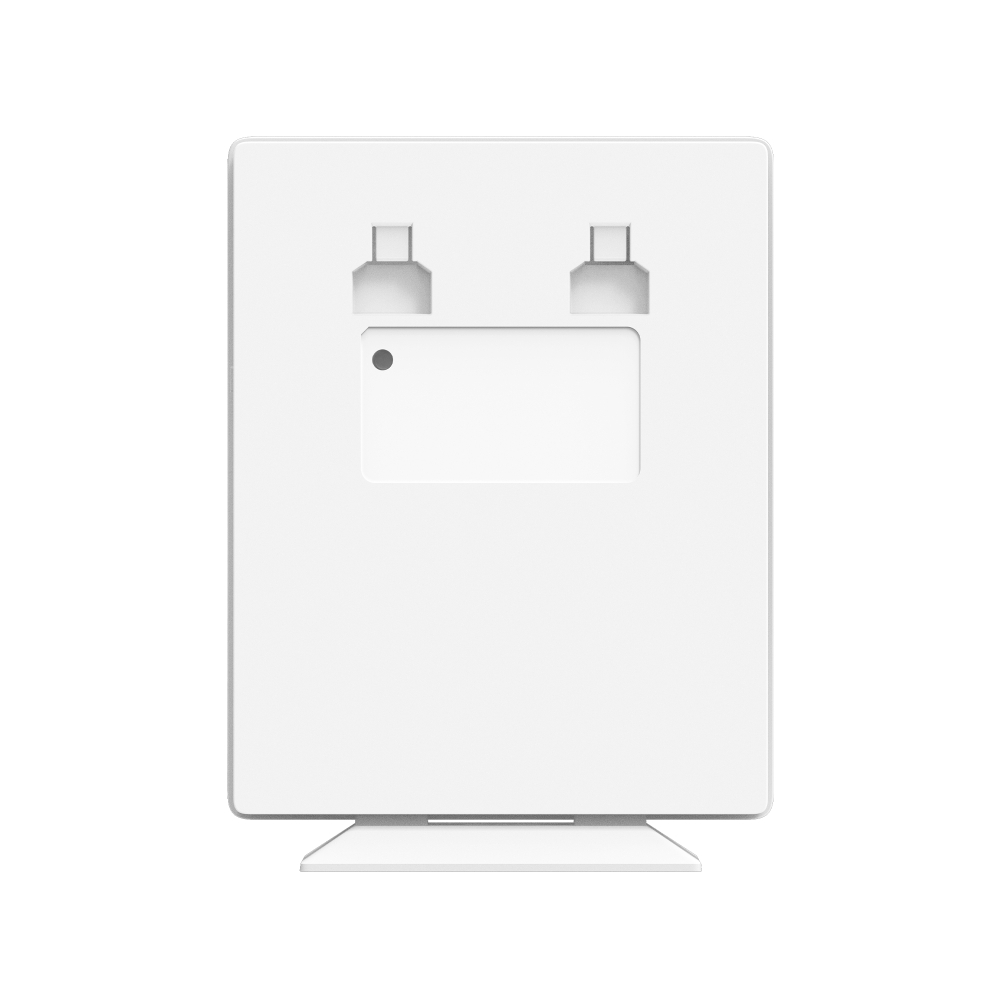

| Mounting | Desktop / Wall mouting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 2402 Mbps • 2.4 GHz: 574 Mbps |
| Wireless Functions | • 2×2 (2.4G & 5G) MU-MIMO • HE160 (160 MHz Bandwidth) • OFDMA‡ • Omada Mesh • Seamless Roaming • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit (Based on SSID/Client) • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <29 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes.Reauire the use of Omada Cloud-Based controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |

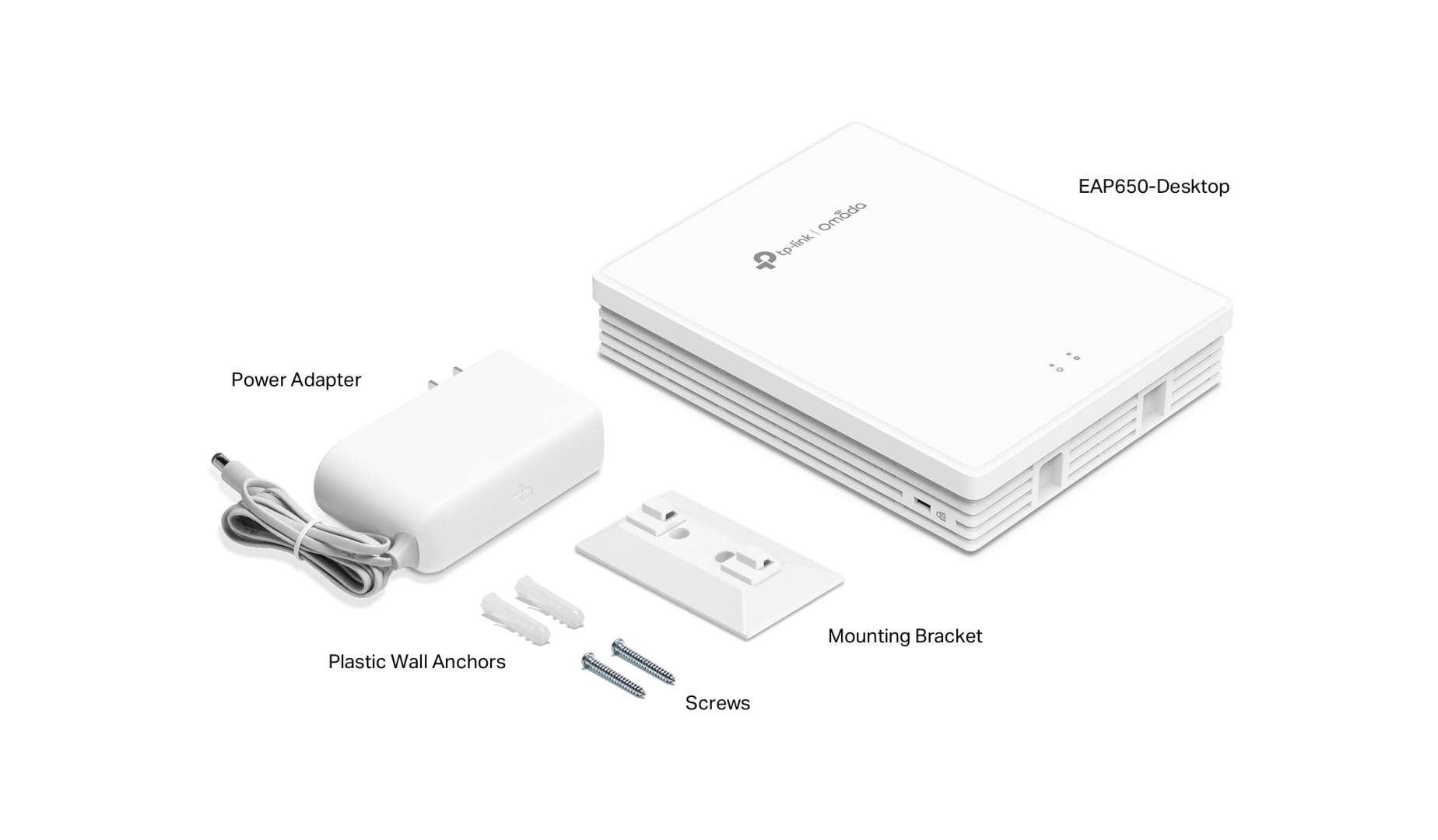

| Package Content | • EAP650-Desktop • Desktop/Wall Mounting Kit • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
