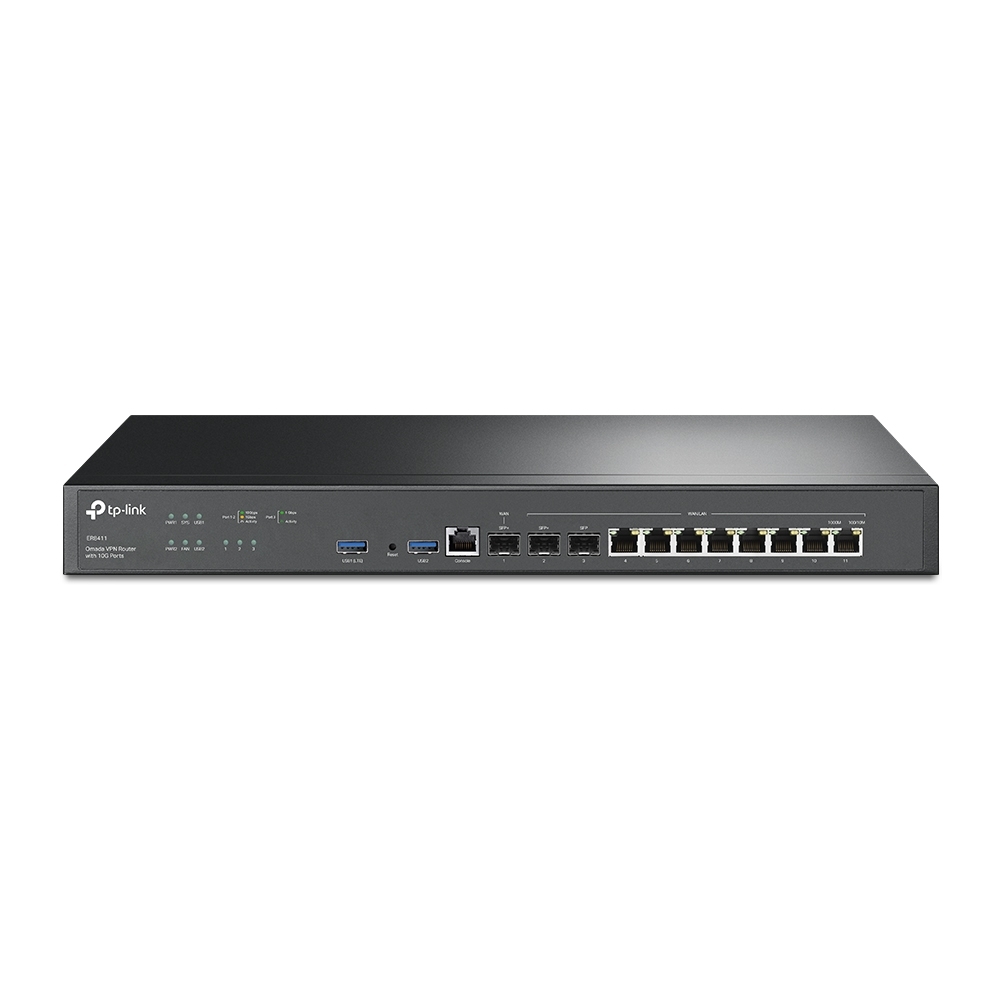

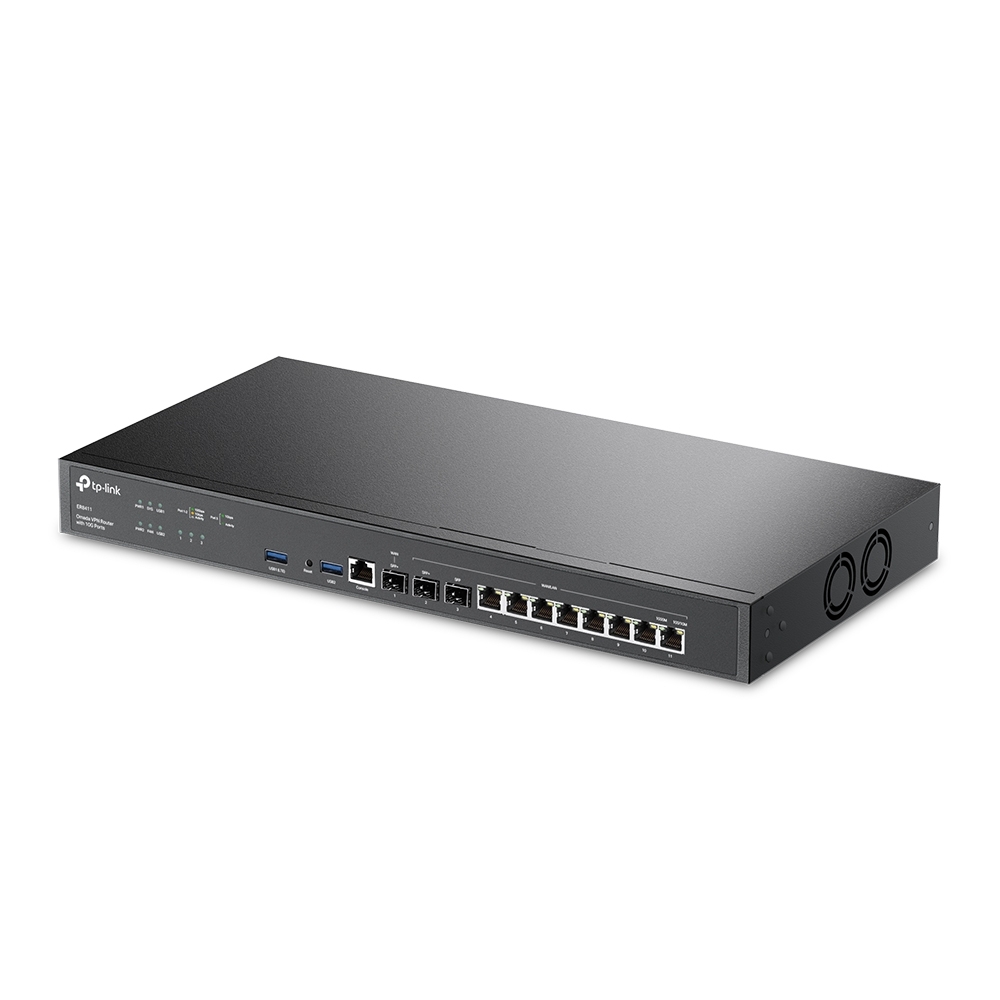

TP-LINK Omada VPN Router with 10G Ports (ER8411)

OEM kodas: ER8411
Kodas: ER8411
ID: #3927

2x 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) | 1x 1GE SFP WAN/LAN Port | 8x 1GE RJ45 WAN/LAN Ports | 1× RJ45 Console Port | 2× USB 3.0 Ports (Connecting 4G/3G Modem as WAN Backup) | Dual Redundant Power Supplies | Integrated into Omada SDN

466.99€ su PVM

Kaina be PVM: 385.94€

Kiekis:


Produkto savybės:

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
  • Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
  • Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
  • Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.

Produkto specifikacijos:

HARDWARE FEATURES
Interface • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Button Reset Button

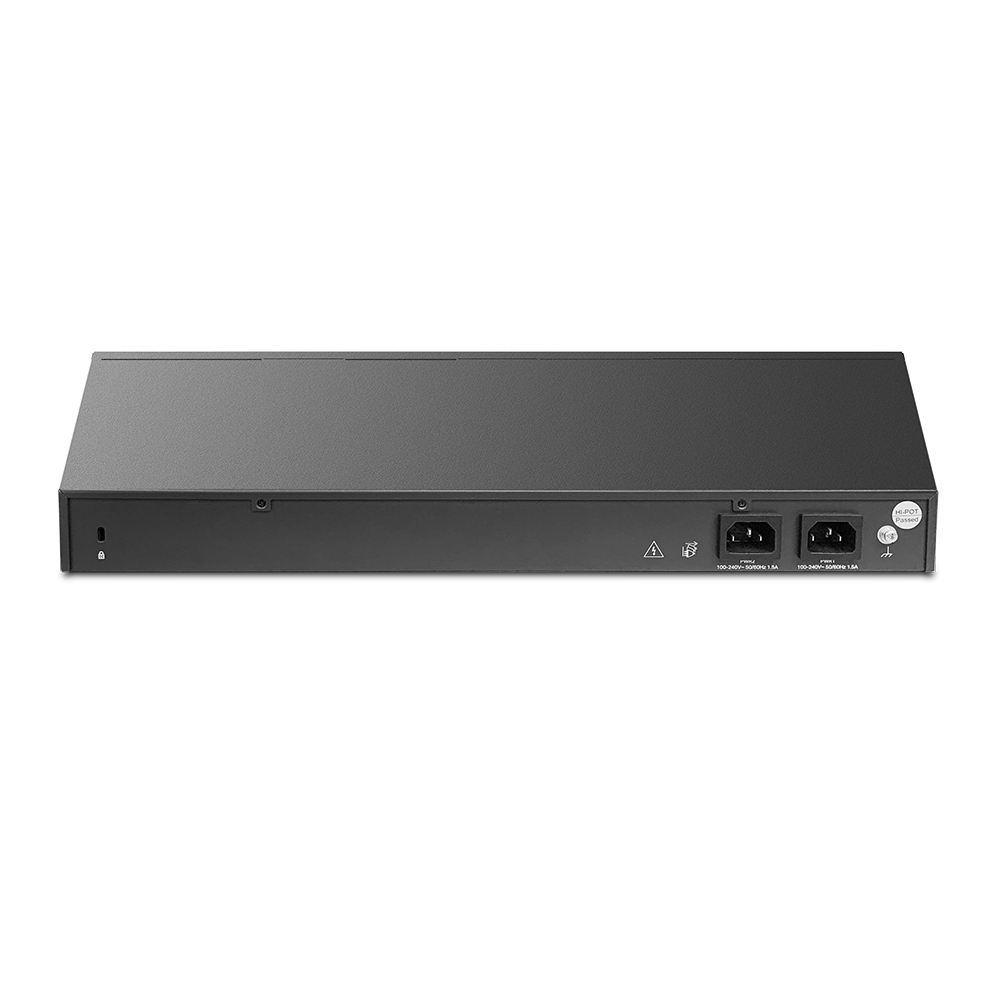

Power Supply Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash 4MB SPI NOR + 256 MB NAND
DRAM 4 GB DDR4
LED PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Max Power Consumption • 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)
PERFORMANCE
Concurrent Session 2,300,000
New Sessions /Second 20,000
NAT (Static IP) • Upload: 9445.82 Mbps
• Download: 9449.26 Mbps
NAT(DHCP) • Upload: 9426.83 Mbps
• Download: 9426.20 Mbps
NAT(PPPoE) • Upload: 9413.96 Mbps
• Download: 9102.01 Mbps
NAT (L2TP) • Upload: 4230.62 Mbps
• Download: 4169.53 Mbps
NAT (PPTP) • Upload: 3933.86 Mbps
• Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate • Upload: 1080 Mbps
• Download: 1030 Mbps
IPsec VPN Throughput • SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps
OpenVPN 1665.64 Mbps
L2TP VPN Throughput • Unencrypted: 5013.50 Mbps
• Encrypted: 2274.74 Mbps
SSL VPN Throughput 1511.10 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address*4
DHCP • DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
IPv6 WAN Connection
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing
• Policy Routing
Bandwidth Control • IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*5, Failover)
• Online Detection
NAT • One-to-One NAT*5
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Security • SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit IP-based Session Limit
VPN
SSL VPN • SSL VPN Server
• SSL VPN Client
• 500 SSL VPN Tunnels

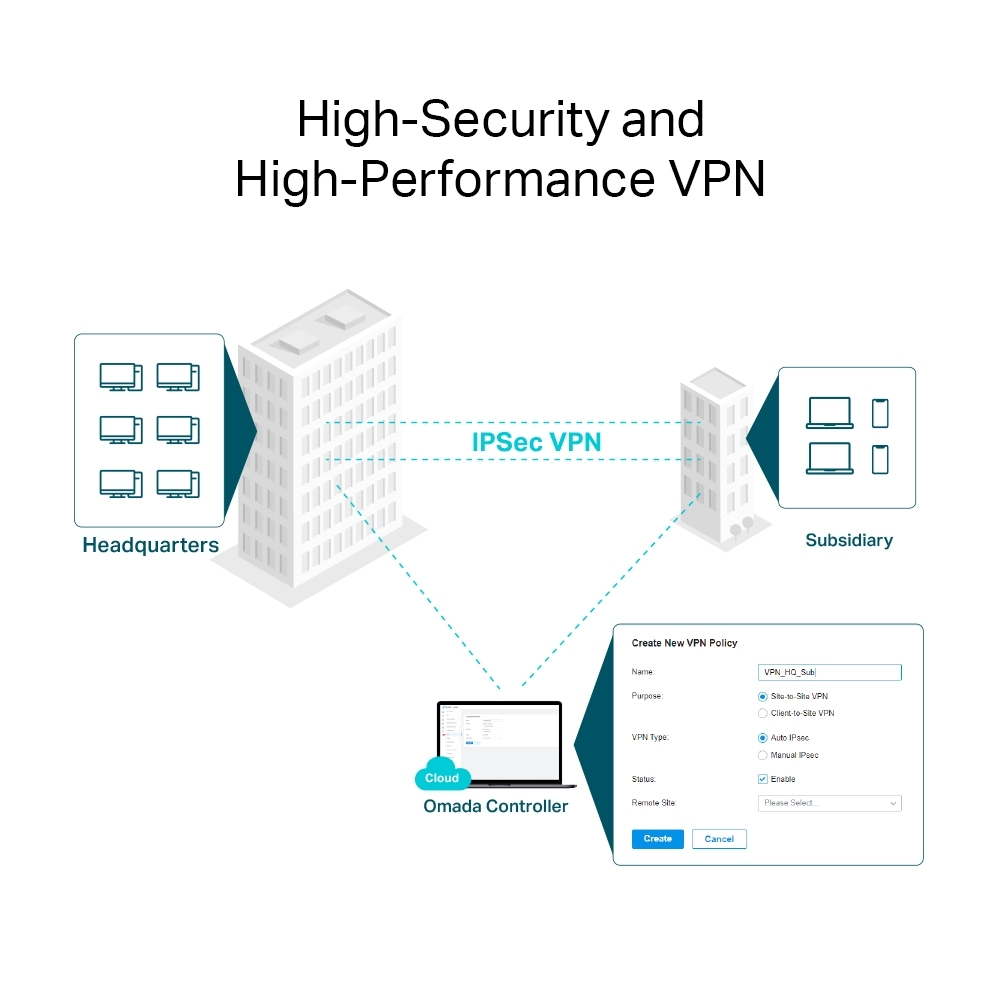

IPsec VPN • 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (32)*6
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (32)*6
• 300 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (10)*6
• 110 OpenVPN Tunnels
SECURITY
Filtering • WEB Group Filtering*5
• URL Filtering
• Web Security*5
ARP Inspection • Sending GARP Packets*5
• ARP Scanning*5
• IP-MAC Binding*5
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*2
• Hotspot(Local User / Voucher*2 / SMS*2 / Radius*2)
• External Radius Sever
• External Portal Sever*2
• Facebook Check-In*2
• Instagram Follow*2
MANAGEMENT
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Contents • Omada 10G Multi-WAN Security Gateway ER8411
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
