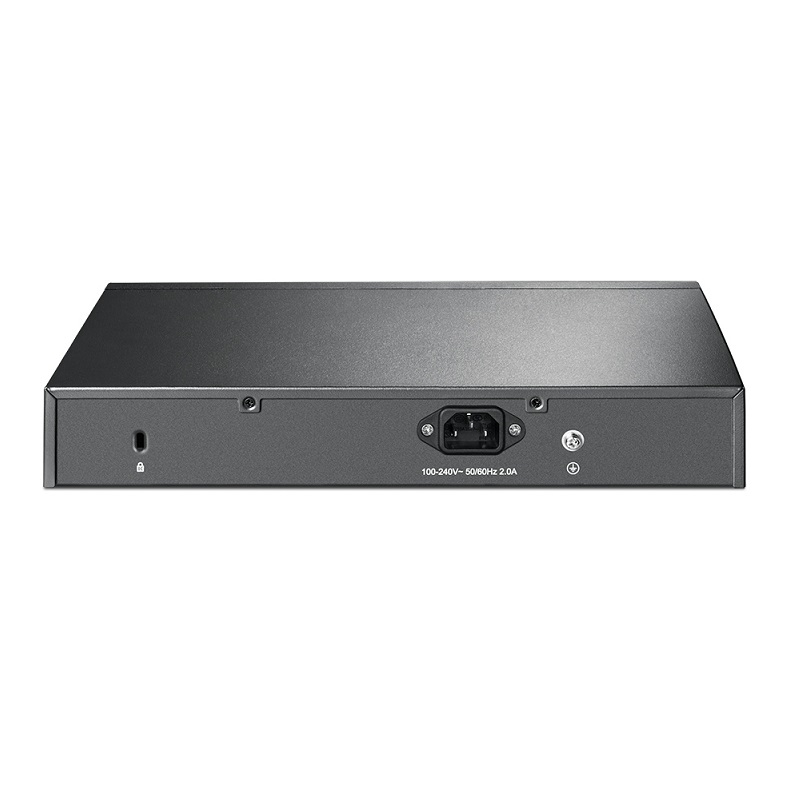

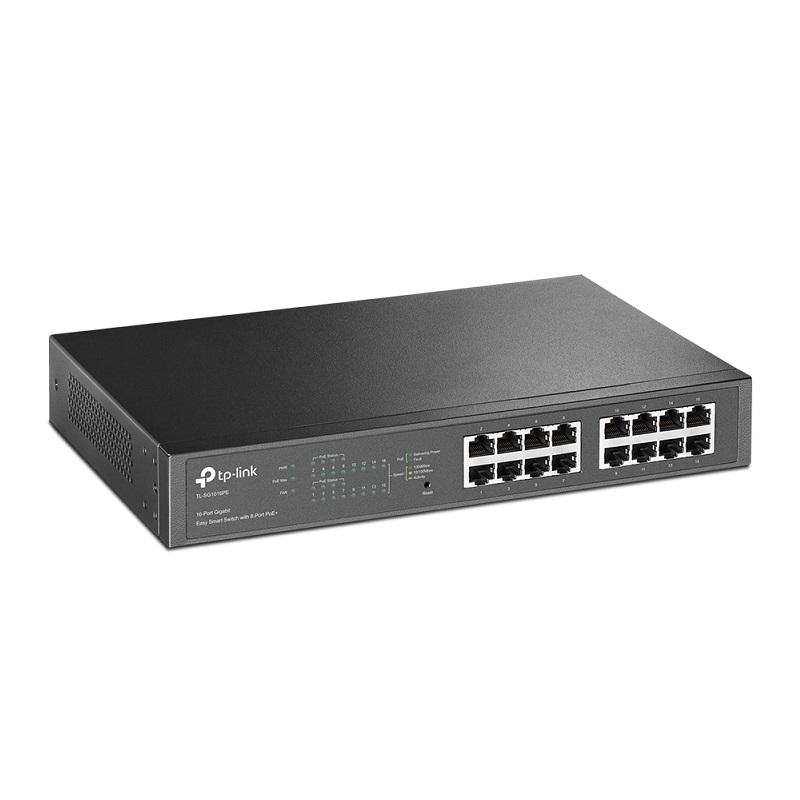

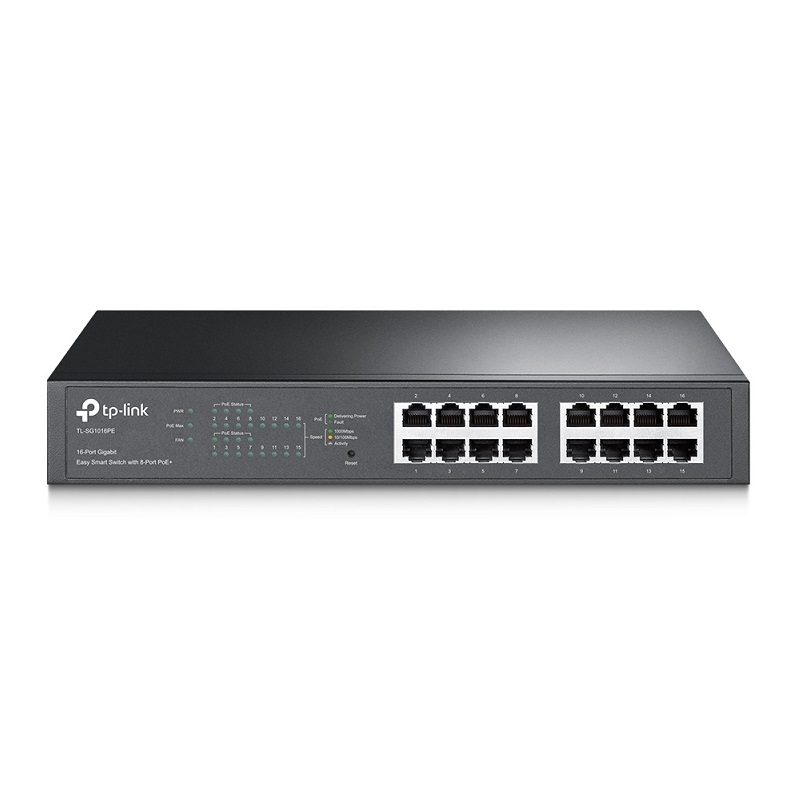

TP-LINK 16 prievadų Gigabit išmanusis PoE komutatorius su 8 prievadais PoE+ (TL-SG1016PE)

OEM kodas: TL-SG1016PE
Kodas: TL-SG1016PE
ID: #1243

Jungtys: 8 GE + 16 GE, PoE jungtys: 8 PoE+, 16 PoE; PoE standartas (IEEE): 802.3af/802.3at, PoE galia: 110W, tipas: valdomas.

166.99€ su PVM

Kaina be PVM: 138.01€

Kiekis:


Produkto savybės:

16 10/100/1000Mbps RJ45 ports;

Equipped with 8 PoE+ supported ports to transfer data and power over a single cable;

With a total PoE power budget of 110W, up to 30W per port;

Works with IEEE 802.3af/at compliant devices, expanding home and office networks;

Simple network set-up on top of plug-and-play connectivity;

Web-based user interface and management utility simplify configuration.

*Actual data may vary in different usage environment.

Learn more about TP-LINK PoE technology >

Produkto specifikacijos:

Hardware Features:

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p;
• Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX;
• Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
• Fan Quantity: 1;
• Power Supply: 100-240VAC, 50/60Hz;
• Power Consumption: Maximum: 124.4W (220V/50Hz);
• PoE Ports (RJ45):
* Standard: 802.3 at compliant;
• PoE Ports: Port 1- Port 8;
• PoE Power Budget: 110W;
• Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm).

Performance:

Switching Capacity: 32Gbps;
• Packet Forwarding Rate: 23.8Mbps;
• MAC Address Table: 8K;
• Packet Buffer Memory: 4.1Mbit;
• Jumbo Frame: 9KB.

Software Features:

Quality of Service:
* Support Port-Based/802.1p/DSCP priority;
* Support 4 priority queues;
* Rate Limit;
* Storm Control;
• L2 Features:
* IGMP Snooping V1/V2/V3;
* Link Aggregation;
* Port Mirroring;
* Cable Diagnostics;
* Loop Prevention;
• VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN;
• Management: Web-based GUI, Easy Smart Configuration Utility;
• Transmission Method: Store-And-Forward.

Others:

Certification: FCC, CE, RoHS;
• Package Contents:
* TL-SG1016PE;
* Power Cord;
* Installation Guide;
* Resource CD;
* Rackmount Kit;
* Rubber Feet;
• System Requirements: Microsoft® Windows® for running Utility;
• Environment:
* Operating Temperature: 0℃~40℃ (32℉~104℉);
* Storage Temperature: -40℃~70℃ (-40℉~158℉);
* Operating Humidity: 10%~90% non-condensing;
* Storage Humidity: 5%~90% non-condensing.
