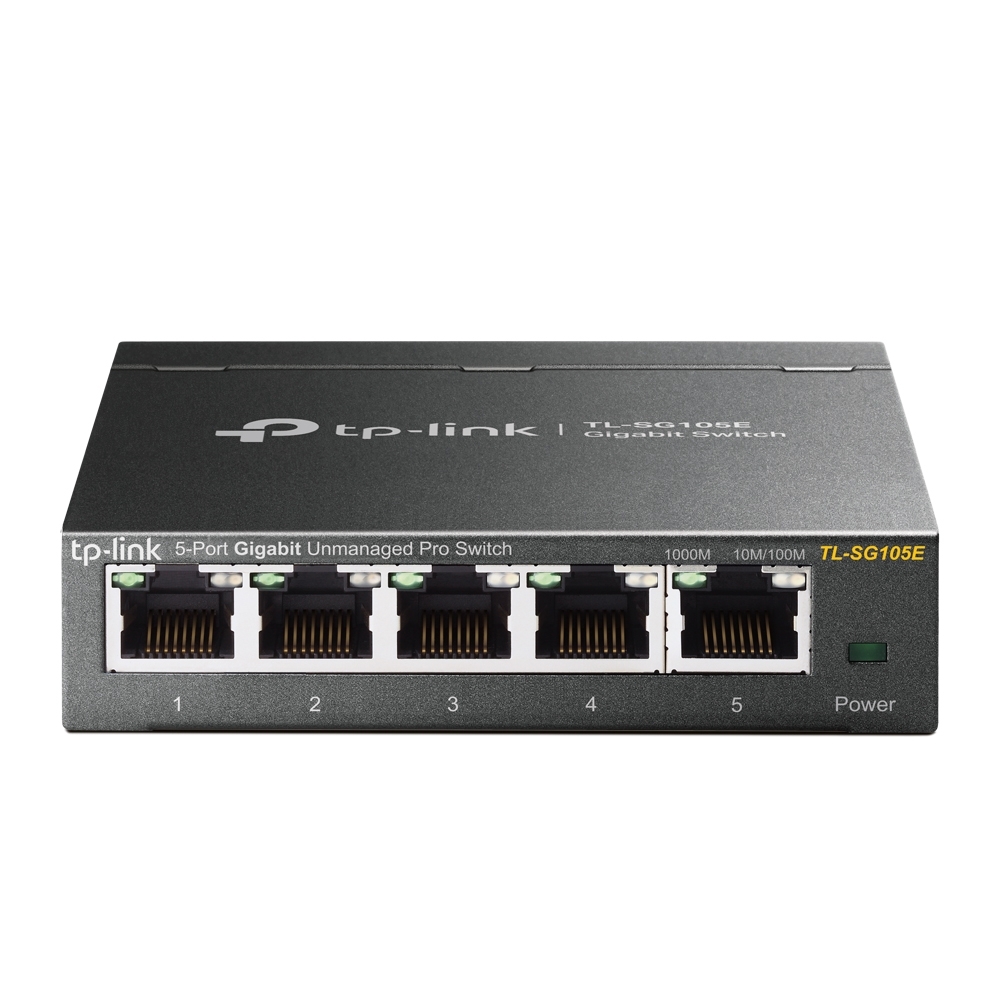

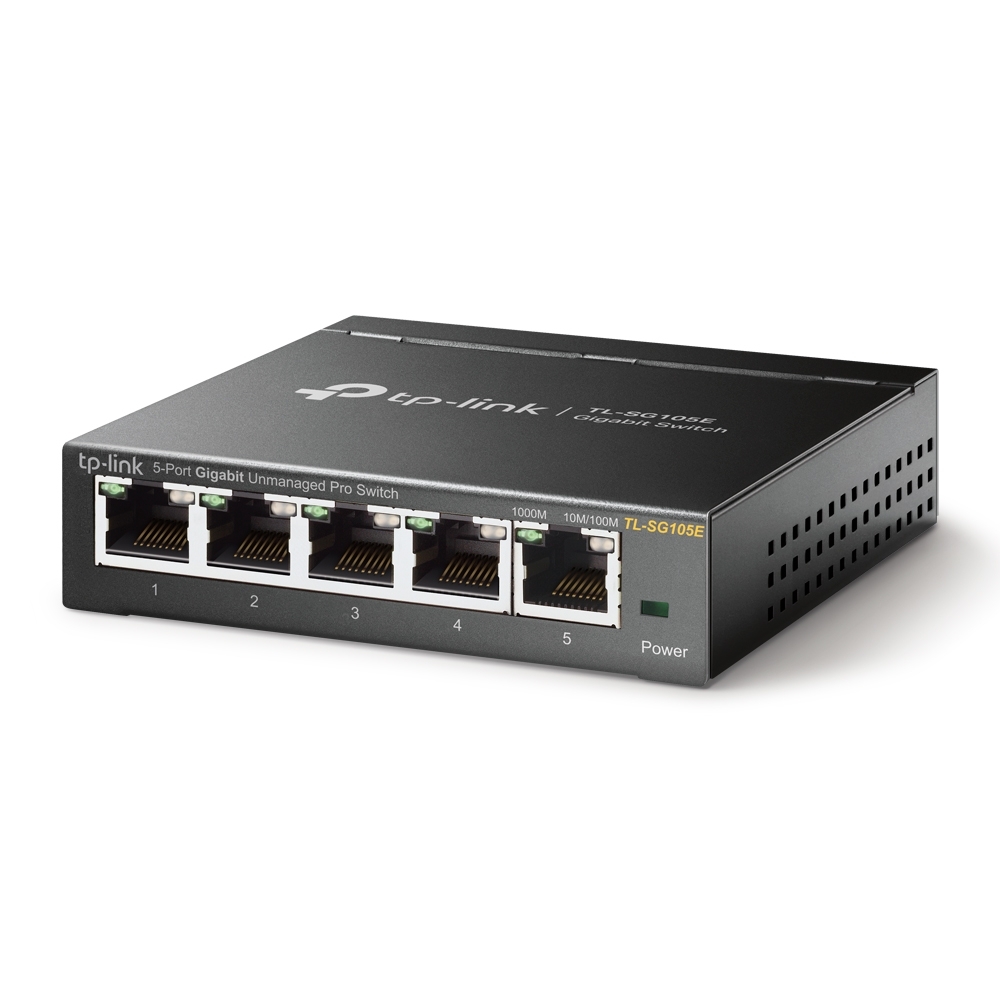

TP-LINK TL-SG105E 5 portų gigabit „Easy Smart“ komutatorius
5x 10/100/1000Mbps RJ45 prievadai, tinklo stebėjimas, eismo prioritetų nustatymas ir VLAN funkcijos, paprastas nustatymas, žiniatinklio vartotojo sąsaja
Produkto savybės:
5 10/100/1000Mbps ports provide instant large file transfers
Innovative energy-efficient technology reduces power consumption by up to 57%
IEEE 802.3x flow control provides reliable data transfers
15K Jumbo frame improves performance of large data transfers
Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
Port-based/802.1p/DSCP QoS2 enable smooth latency-sensitive traffic
Abundant VLAN features improve network security via traffic segmentation
IGMP Snooping optimizes multicast applications
Web-based user interface1 and management utility simplify configuration
Produkto specifikacijos:
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface:
5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: 100-240VAC, 50/60Hz
Power Consumption: Maximum: 2.49W (220V/50Hz)
Dimensions ( W x D x H ): 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)
PERFORMANCE
Packet Forwarding Rate: 7.4Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1.5Mb
Jumbo Frame: 15KB
SOFTWARE FEATURES
Quality of Service:
Support Port-based/802.1p/DSCP priority 2
Support 4 priority queues
Rate Limit
Storm Control
L2 Features:
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN:
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method: Store-And-Forward
OTHERS
Certification: FCC, CE, RoHS
Package Contents:
TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
System Requirements: Microsoft® Windows® for running Utility
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
1.For V2 and later version.
2.DSCP QoS is for V2 and later version.
