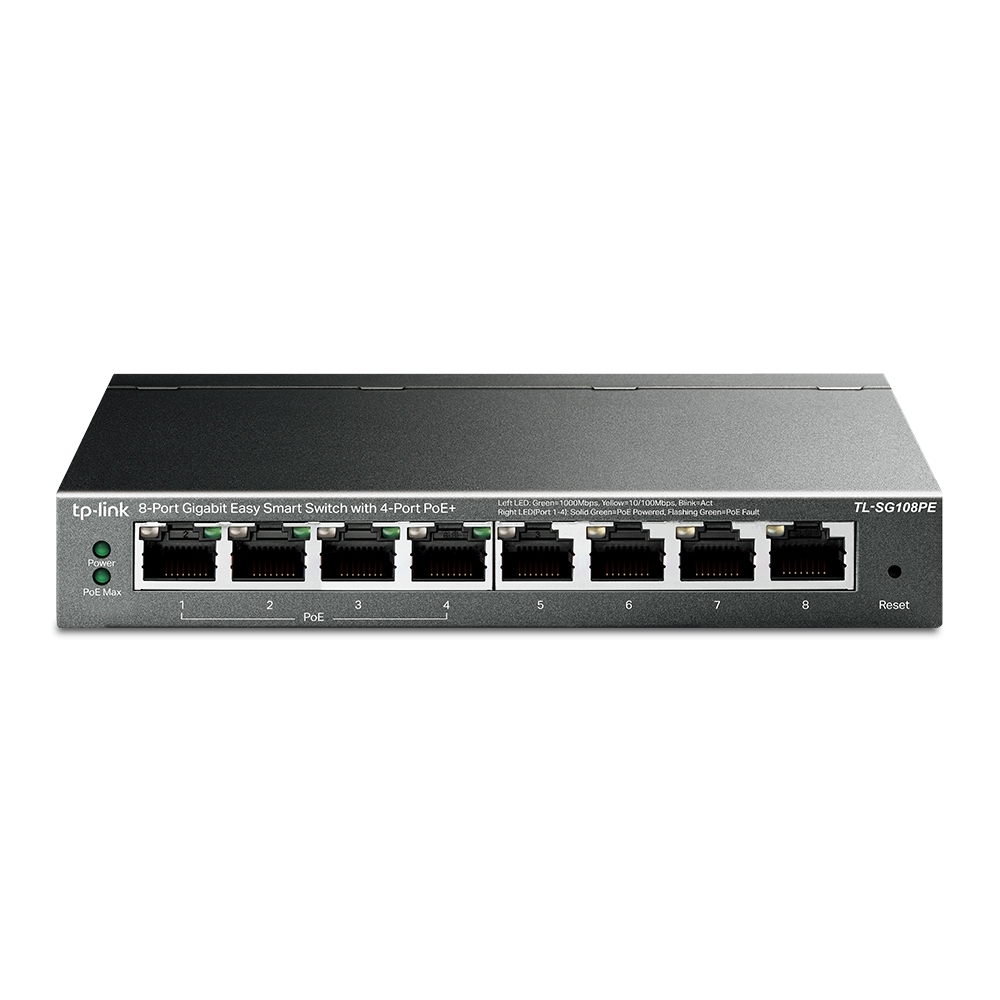

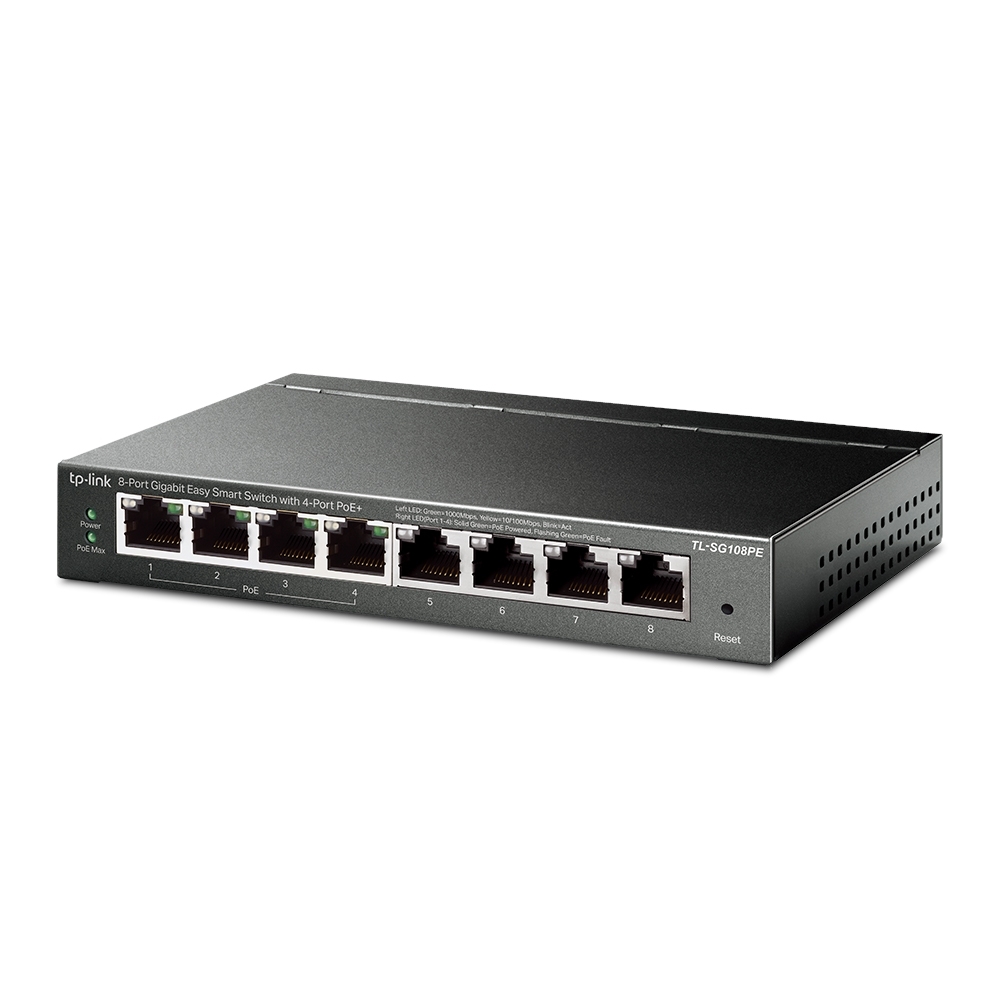

TP-LINK išmanusis komutatorius, 8 prievadų Gigabit su 4 prievadais PoE (TL-SG108PE)

Kodas: TL-SG108PE
ID: #1245

Jungtys : 8 GE x 10/100/1000Mbps, PoE jungtys: 4 PoE, PoE standartas (IEEE): 802.3af, PoE galia: 55W, tipas: valdomas, tinklo stebėjimo galimybės, VLAN funkcijos.

55.62€ su PVM

Kaina be PVM: 45.97€

Kiekis:


Produkto savybės:

• 8 x 10/100/1000Mbps ports provide instant large file transfers;
• Equipped with 4 802.3af PoE ports with up to 15.4W for each port;
• Supports PoE power up to 55W for all PoE ports;
• IEEE 802.3x flow control provides reliable data transfers;
• 15KB Jumbo frame improves performance of large data transfers;
• Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics;
• Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic;
• Abundant VLAN features improve network security via traffic segmentation;
• IGMP Snooping optimizes multicast applications;
• Web-based user interface and Easy Smart Configuration Utility simplify configuration.

Produkto specifikacijos:

Hardware Features:

Standards and Protocols:
* IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af;
* IEEE 802.3x, IEEE 802.1q, IEEE 802.1p;

Interface:
* 8 10/100/1000Mbps RJ45 Ports;
* AUTO Negotiation/AUTO MDI/MDIX;

Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m);
* EIA/TIA-568 100Ω STP (maximum 100m);

Fan Quantity: Fanless;

Power Supply: External Power Adapter(Output: 48VDC / 1.25A);

Power Consumption: Maximum (PoE on): 65.2W (220V/50Hz);

Maximum (PoE off): 5.2W (220V/50Hz);

PoE+ Ports(RJ45);

PoE Ports (RJ45):
* Standard: 802.3 af compliant;
• PoE Ports: Port 1- Port 4;
• PoE Power Budget: 55W;

Performance:

Switching Capacity: 16Gbps;

Packet Forwarding Rate: 11.9Mpps;

MAC Address Table: 4K;

Packet Buffer Memory: 1.5Mb;

Jumbo Frame: 15KB.

Software features:

Quality of Service:
* Support Port-Based/802.1p/DSCP priority;
• Support 4 priority queues;
• Rate Limit;
• Storm Control;

L2 Features:
* IGMP Snooping V1/V2/V3;
* Link Aggregation;
* Port Mirroring;
* Cable Diagnostics;
* Loop Prevention;

VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN Ids);
* MTU/Port/Tag VLAN;

Management:
* Web-based GUI;
* Easy Smart Configuration Utility;

Transmission Method: Store-And-Forward.

Others:

Certification: FCC, CE, RoHS;

Package Contents:
* TL-SG108PE;
* Power Adapter;
* Installation Guide;
* Resource CD;
* Rubber Feet;

System Requirements: Microsoft® Windows® for running Utility;

Environment:
* Operating Temperature: 0℃~40℃ (32℉~104℉);
* Storage Temperature: -40℃~70℃ (-40℉~158℉);
* Operating Humidity: 10%~90%RH non-condensing;
* Storage Humidity: 5%~95%RH non-condensing.
