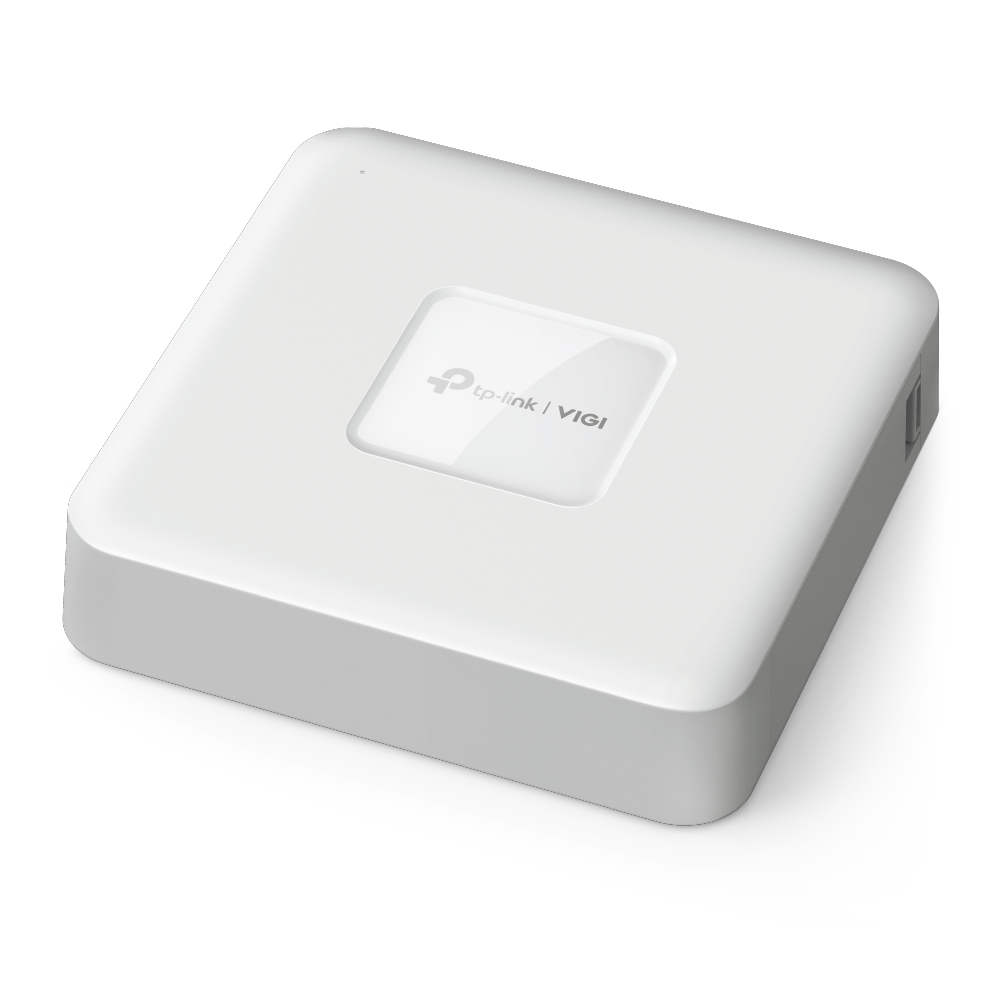

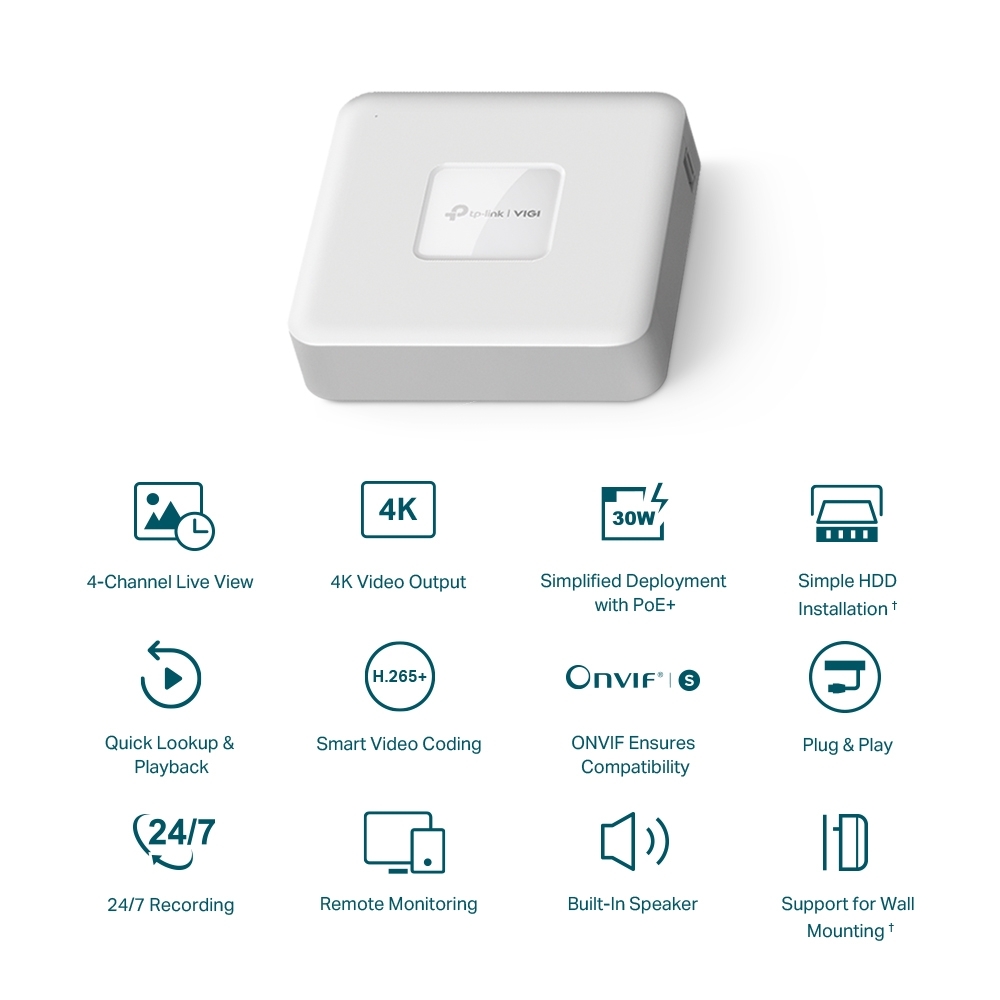

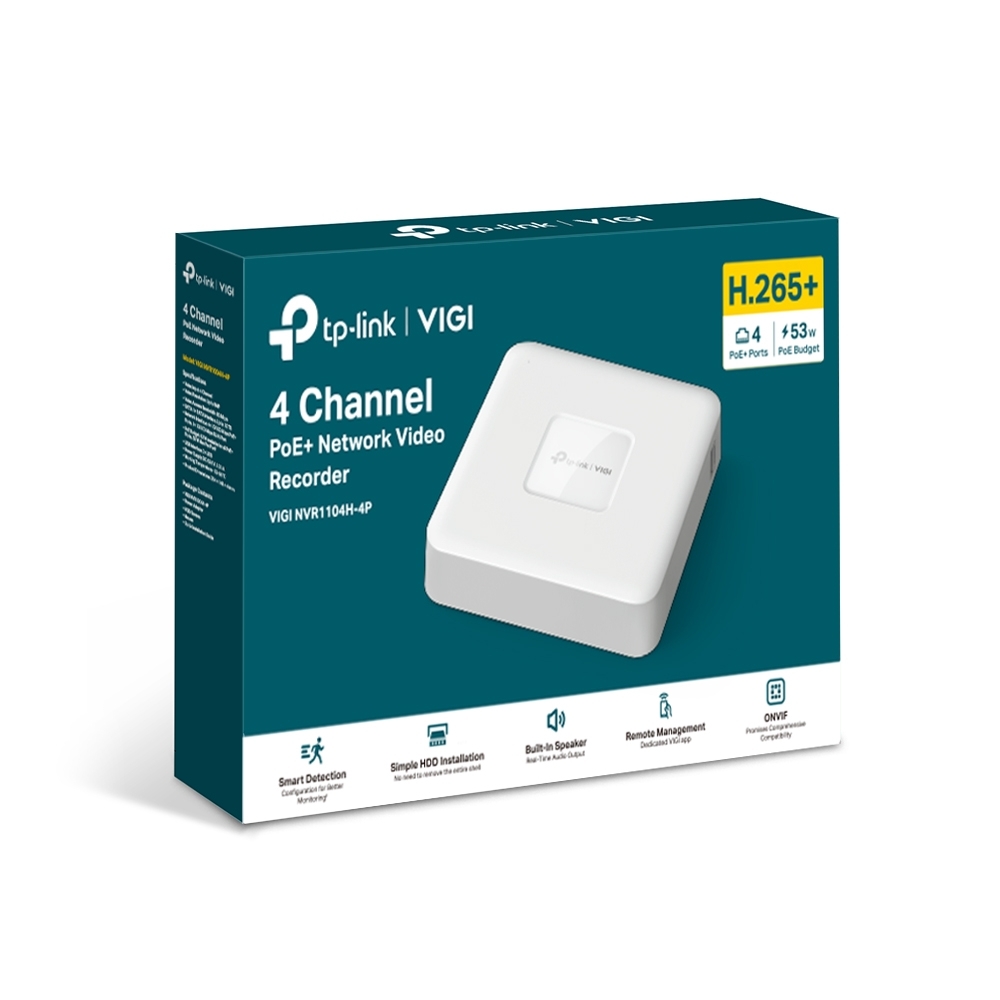

TP-LINK VIGI 4 Channel PoE+ Network Video Recorder (VIGI-NVR1104H-4P)

OEM kodas: VIGI NVR1104H-4P
Kodas: VIGI-NVR1104H-4P
ID: #3952

4K HDMI Video Output & 16MP Decoding Capacity | 4-Channel Simultaneous Playback | H.265+ | Supports 1 HDD storage, up to 10TB (HDD not included) | 2x USB 2.0 | PoE+ (53 W budget) | Two-Way Audio (Built-In Speaker) | 80 Mbps Bandwidth | Supports ONVIF | Dedicated VIGI app

136.98€ su PVM

Kaina be PVM: 113.21€

Kiekis:


Produkto savybės:

  • 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.

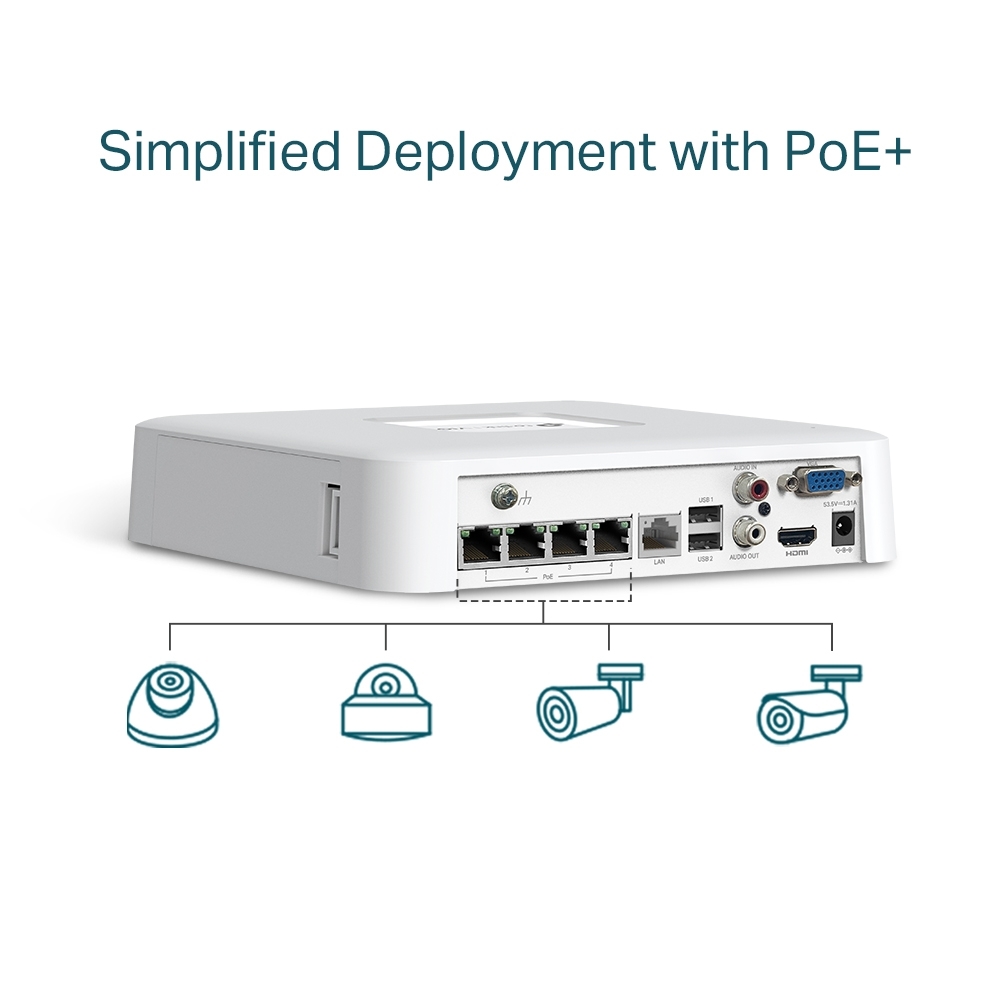

  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.

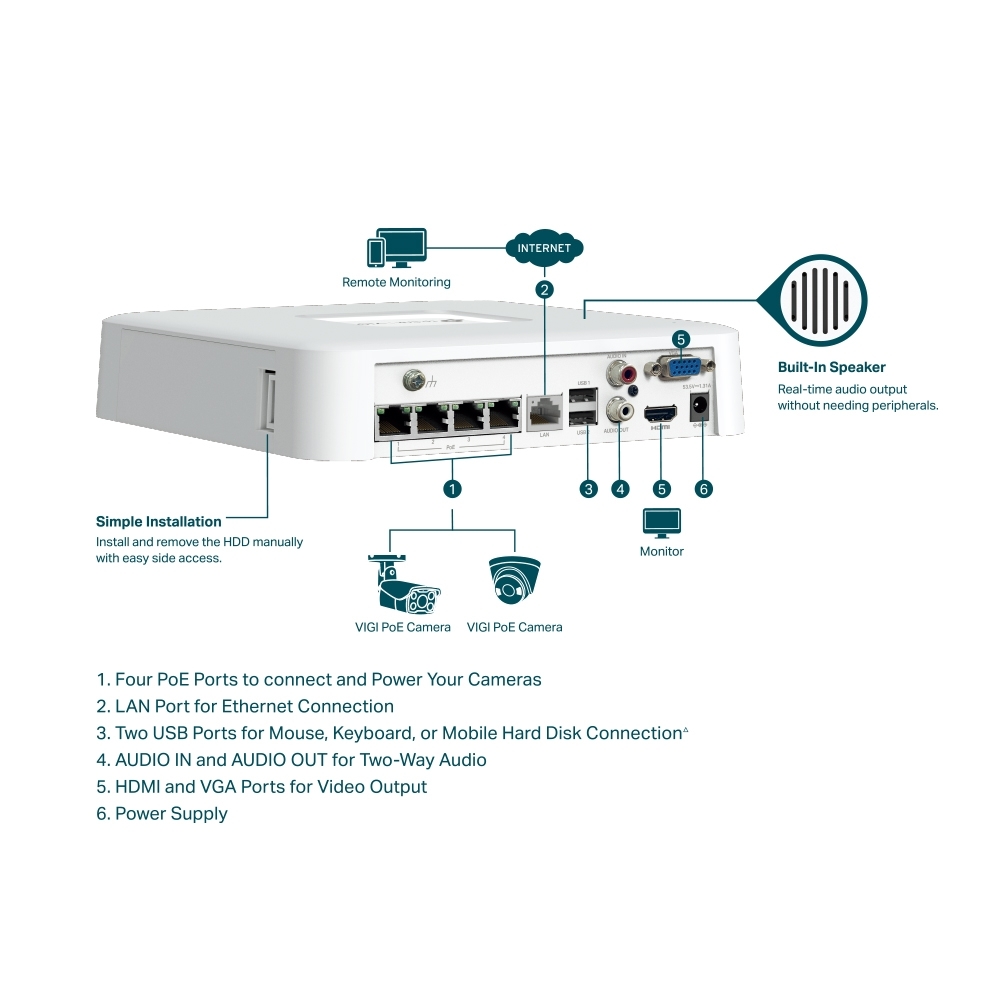

  • Simple HDD Installation: Install and remove the HDD manually with easy side access.

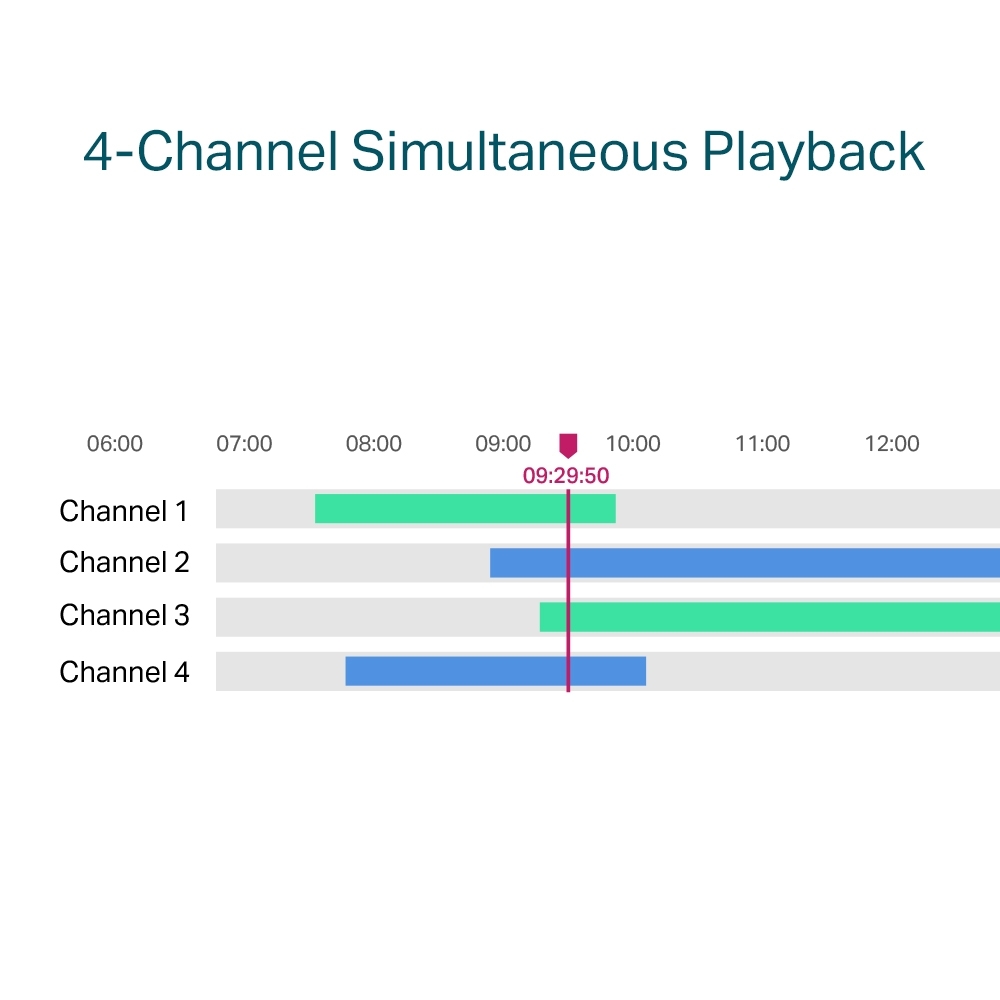

  • 4-Channel Simultaneous Playback : Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

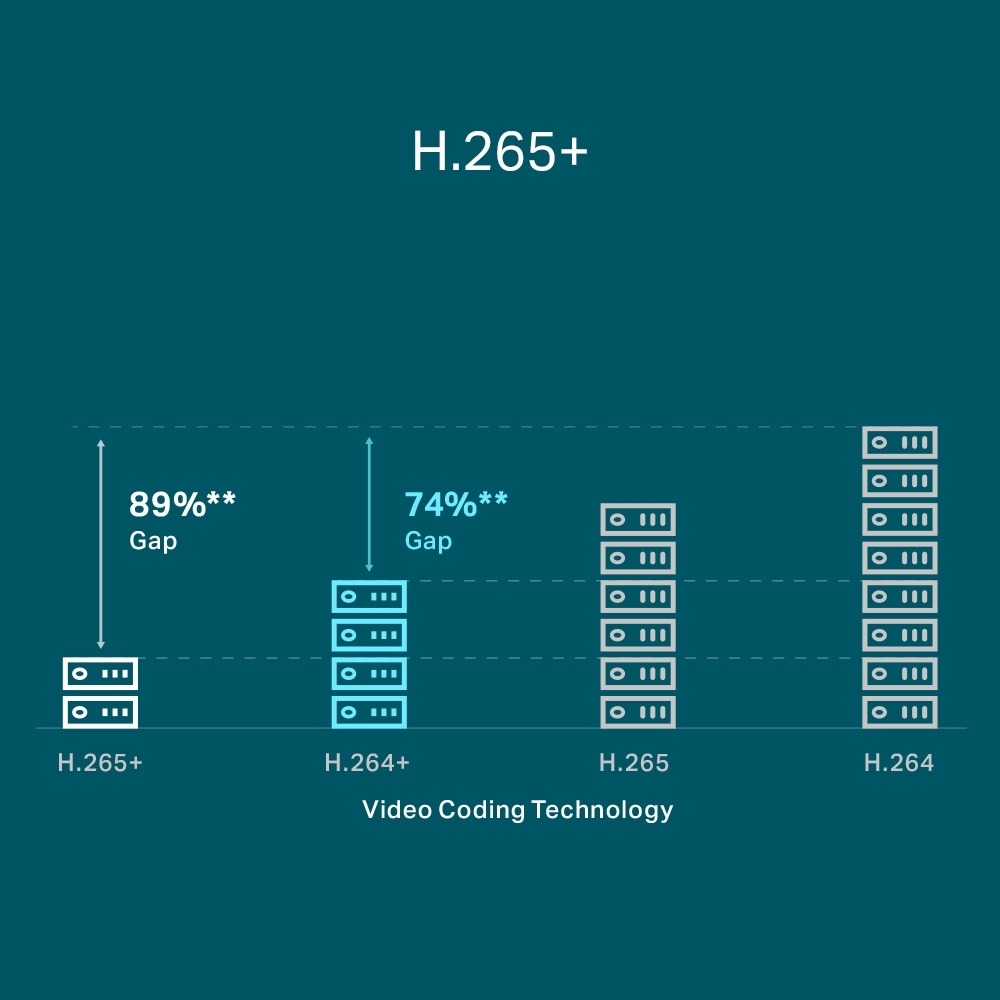

  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

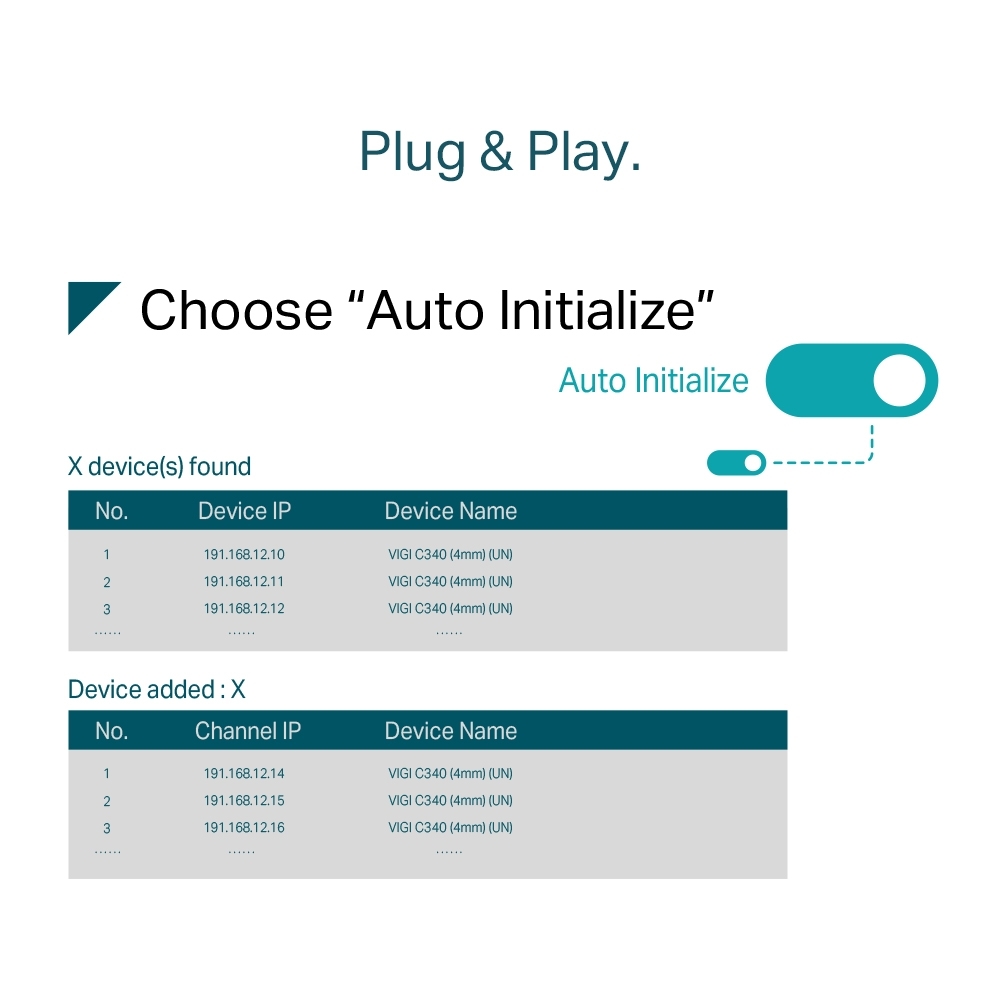

  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience.
  • Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk.

Produkto specifikacijos:

NETWORK
Protocol TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith 80 Mbps
Outgoing Bandwidth 60 Mbps
GENERAL
Package Contents VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
Operating Temperature -10–55 °C
Dimensions( W X D X H ) 200.3 × 200.3 × 43 mm
External Power Supply 53.5V DC/1.31A
Power Consumption 4.82 W (without disk)
VIDEO/IMAGE
Video Input 4-Channel IP Video Input, up to 8MP Resolution
Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz,
1280x720/60Hz
DECODING
Decoding Format H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
Synchronous Playback 4 Channel
Capability 2-ch @ 8MP, 4-ch @ 4MP
HARD DISK
SATA 1 SATA Interface
Capacity Up to 10 TB
INTERFACES
Network Interface 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
