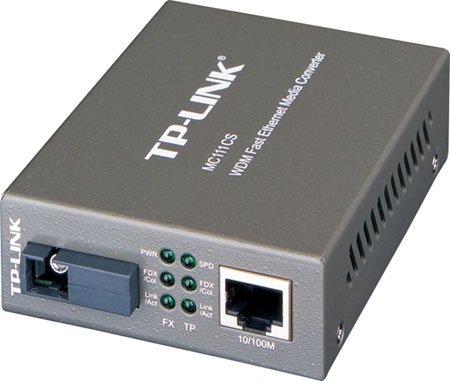

TP-LINK 10/100Mbps WDM Media Converter (MC111CS)

Produkto savybės:

* Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
* Provide one SC fiber connector and one RJ-45 connector.
* Auto negotiation of duplex mode on TX port.
* Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port.
* Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
* Adopts WDM technology, transmitting and receiving data on one single fiber.
* Extend fiber distance up to 20-60km
* Easy-to-view LED indicators provide status to monitor network activity easily.
* External power supply. (DC 5V / 2A)

Produkto specifikacijos:

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic Function
Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Extends fiber distance up to 20km

Ports
1 100M SC port
1 100M RJ45 port (Auto MDI/MDIX)

WDM
TX 1550nm
RX 1310nm

Network Media
10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-FX Single-mod Fiber

LED Indicators PWR, FDX/Col, Link/Act, SPD

Safety & Emission FCC, CE

Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Power Supply External Power Adapter
