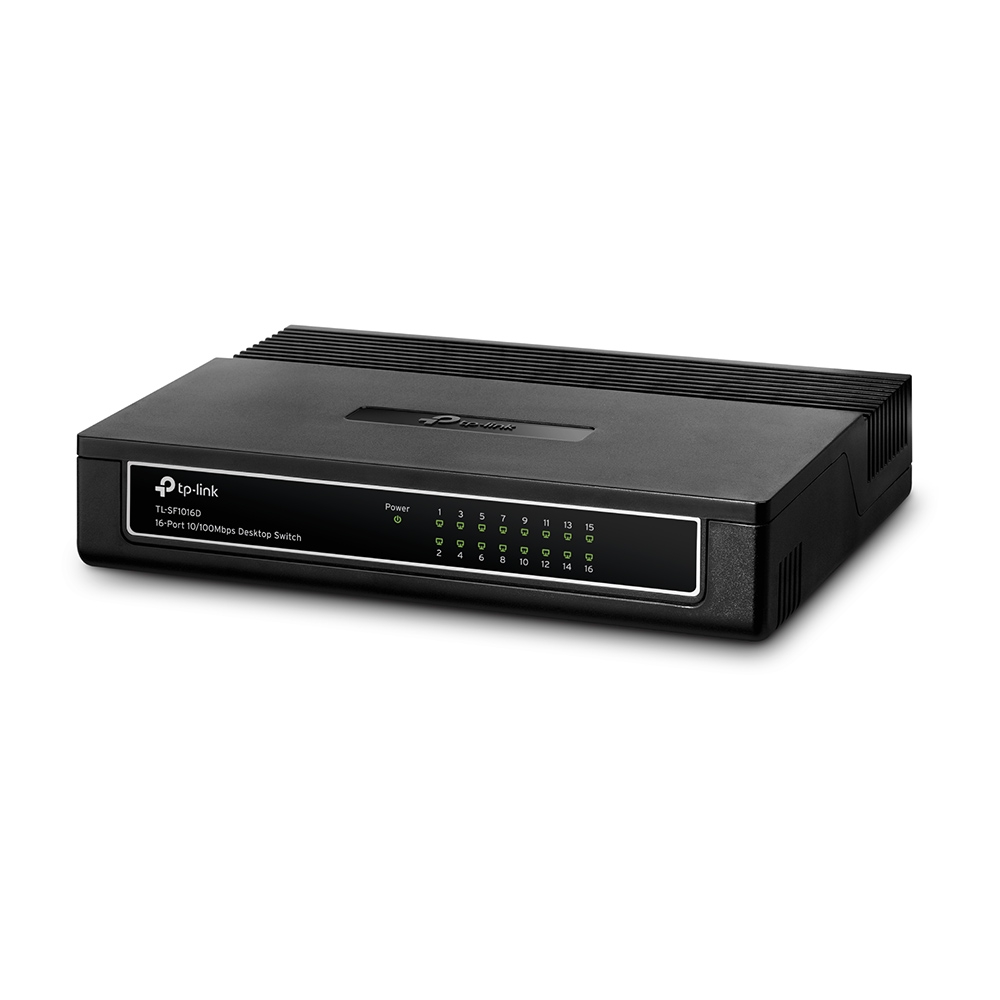

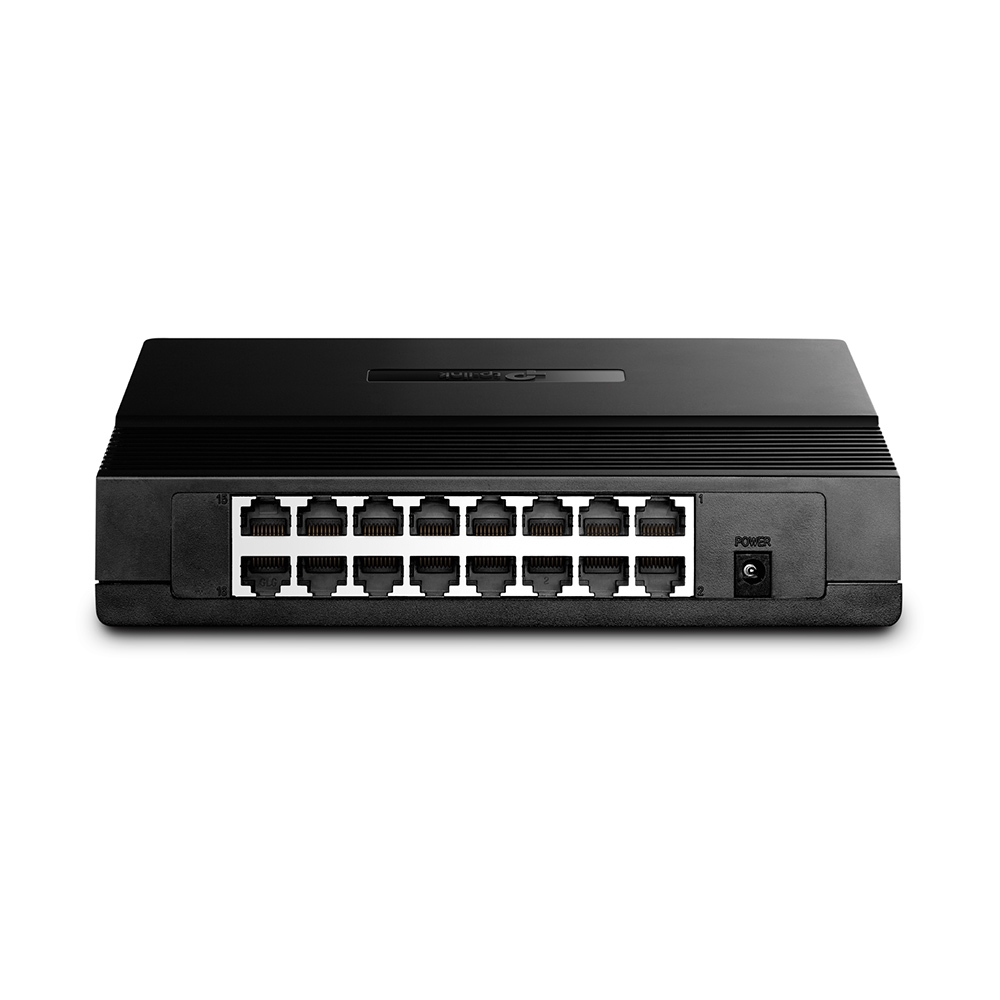

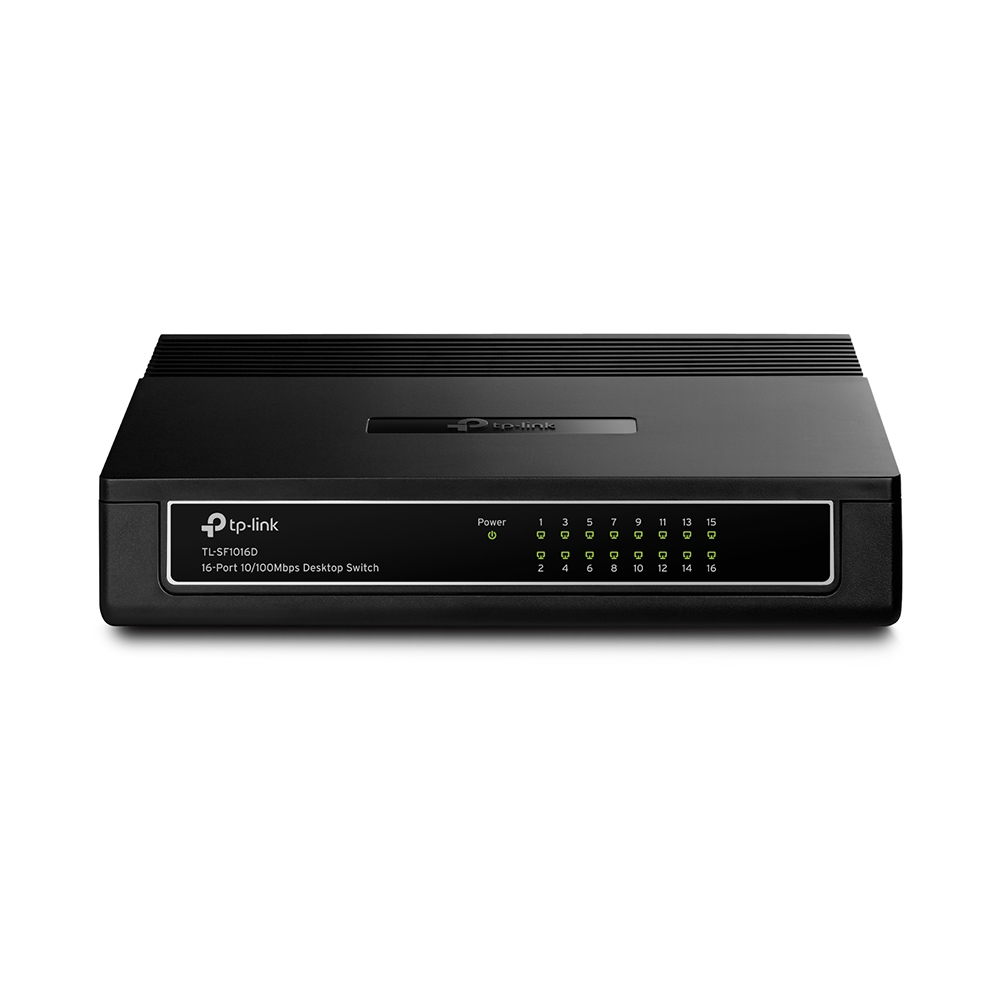

TP-LINK TL-SF1016D 16-Port 10/100Mbps darbastalio komutatorius

Produkto savybės:

- Innovative energy-efficient technology saves power up to 80%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Fanless design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation

Produkto specifikacijos:

HARDWARE FEATURES

Interface:
1610/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity:     Fanless

Power Consumption: Maximum: 3.1W (220V/50Hz)

External Power Supply: 100~240VAC, 50/60Hz

Mac Address Table: 1K

Dimensions ( W x D x H ): 7.9*5.6*1.6 in. (200*142*40 mm)

SOFTWARE FEATURES

Transfer Method: Store and Forward

Advanced Functions:
Green Technology, saving power up to 80%
802.3X Flow Control, Back Pressure

OTHERS

Certification: FCC, CE, RoHs

Package Contents:
16-Port 10/10Mbps Desktop Switch TL-SF1016D
Power Adapter
User Guide

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
