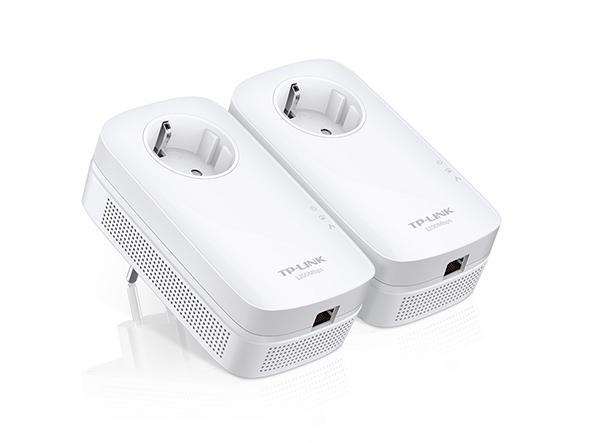

TP-LINK TL-PA8010P KIT
TP-LINK TL-PA8010P KIT AV1200 Gigabit LAN Powerline Adapter Starter Kit (2pcs) up to 1200mbps
Produkto savybės:Advanced HomePlug AV2 technology means the TL-PA8010P KIT supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1200Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.
MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.
MIMO Technology means the TL-PA8010P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.
With one Gigabit Ethernet port, TL-PA8010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
The integrated power socket, with power output of up to 16A*, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.
TL-PA8010P is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.
Produkto specifikacijos:HARDWARE FEATURES
Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab
Interface: 1 * Gigabit Ethernet Port, Power Socket
Button: Pair Button
Maximum: 6W (220V/50Hz)
Typical: 6W (220V/50Hz)
Standby: 0.5W (220V/50Hz)
LED Indicator: PWR, PLC, ETH
Dimensions ( W x D x H ): 5.2×2.8×1.7 in. (131×72×42 mm)
Range: 300 Meters over electrical circuit
Power Output to Integrated Socket: 16 A
Modulation Technology: OFDM (PLC)
Encryption, Powerline Security: 128-bit AES
Certification: CE, RoHS
Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Quick Installation Guide
System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
