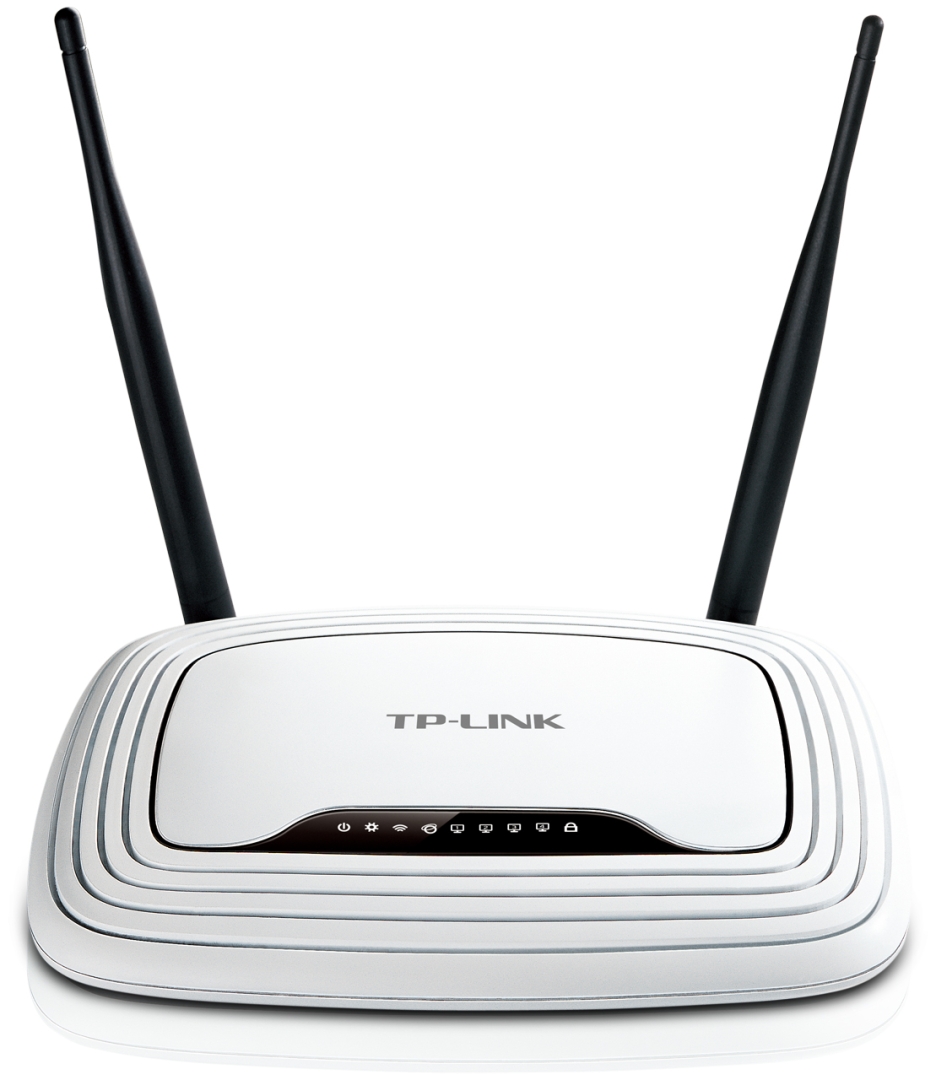

TP-LINK TL-WR841N

Produkto savybės:

Wireless N speed up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and VoIP
    Easily setup a WPA encrypted secure connection at a push of the WPS button
    WDS wireless bridge provides seamless bridging to expand your wireless network
    QoS function assures the quality of VoIP and multimedia streaming
    Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
    Features parental control function managing the internet access of children or employee’s computer
    Supports virtual server, special application and DMZ host ideal for creating a website within your LAN
    Offers Auto-mail function for system log, convenient for managing the router
    Backward compatible with 802.11b/g products
    Easy Setup Assistant provides quick & hassle free installation
    Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk

Produkto specifikacijos:

HARDWARE FEATURES
Interface

• 4 10/100Mbps LAN PORTS
• 1 10/100Mbps WAN PORT

Button    WPS/Reset Button
Wi-Fi On/Off Button
Power On/Off Button
External Power Supply    9VDC / 0.6A
Wireless Standards    IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna    2*5dBi Fixed Omni Directional Antenna
Dimensions ( W x D x H )    7.6 x 5.1 x 1.3 in.(192 x 130 x 33 mm)
WIRELESS FEATURES
Frequency    2.4-2.4835GHz
Signal Rate    11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity    270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power    CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Functions    Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security    64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
WAN Type    Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
DHCP    Server, Client, DHCP Client List,
Address Reservation
Quality of Service    WMM, Bandwidth Control
Port Forwarding    Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS    DynDns, Comexe, NO-IP
VPN Pass-Through    PPTP, L2TP, IPSec (ESP Head)
Access Control    Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security    DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Management    Access Control
Local Management
Remote Management
OTHERS
Certification    CE, FCC, RoHS
Package Contents    Wireless N Rotuer TL-WR841N
Power supply unit
Resource CD
Quick Installation Guide
System Requirements    Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment    Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
