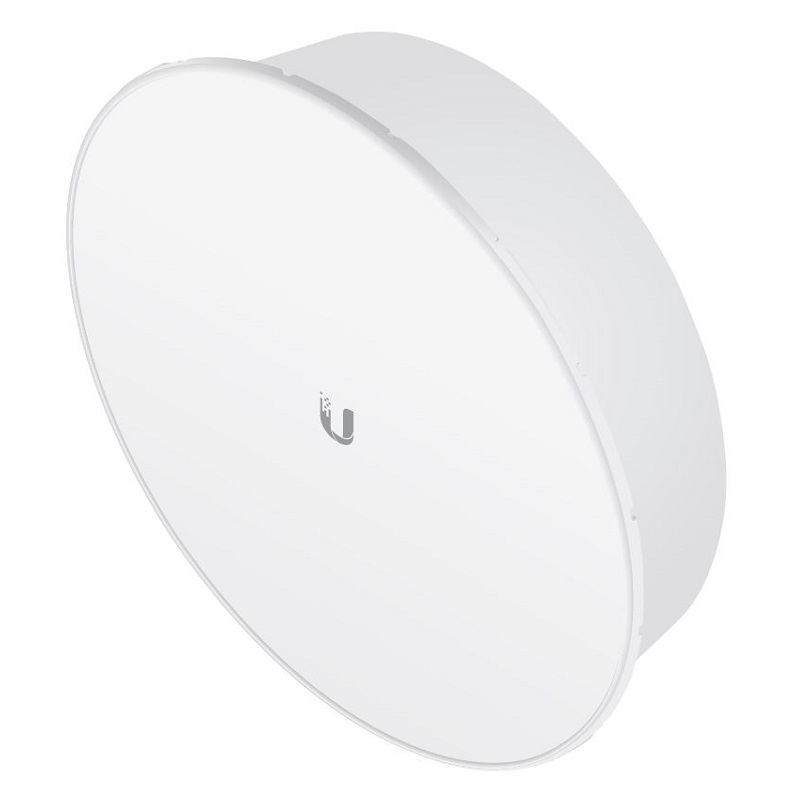

UBIQUITI PowerBeam ISO 5 GHz High Performance airMAX® ac Bridge, GEN2 (PBE-5AC-ISO-Gen2)
PowerBeam with RF Isolated Reflector, 1 x Gigabit LAN, 25dBi antenna gain, Up to 450+ Mbps Throughput, Dedicated Wi-Fi Radio for Management, Range: 25+ km, 25dbi Airmax - 5 GHz, 25dbi antenna 802.11AC Hi-performance Bridging Device
Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 5AC Gen 2, with dedicated Wi-Fi management.
Improved Noise Immunity. The PowerBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design. Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative design, the PowerBeam 5AC Gen 2 is versatile and cost‑effective to deploy.
The PowerBeam 5AC Gen 2 supports up to 450+ Mbps real TCP/IP throughput and features improved surge protection.
Innovative Mechanical Design
• Built-in mechanical tilt Mounting bracket conveniently offers elevation adjustments: ± 20° tilt.
• Quick assembly Minimal fasteners simplify installation.
• Easy removal The antenna feed can be detached with the push of a button.
• Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
• Dish and brackets Made of galvanized steel that is powder‑coated for superior corrosion resistance. The hardware also prevents paint from being removed from the metal brackets for improved corrosion resistance.
• Optional support In high-wind environments, you can enhance support with additional hardware (not included).
The PBE-5AC-ISO-Gen2 offers a rear housing with a metal-plated interior, designed to enhance RF shielding. Additionally, an included protective radome shields the PowerBeam 5AC ISO Gen 2 from nature's harshest elements.
Breakthrough RF Isolation. The integrated isolator design spatially filters out interference, so the PBE-5AC-ISO-Gen2 delivers improved noise immunity in co-location deployments.
Operating Frequency (MHz): 5150 - 5875
Management Radio (MHz): 2412 - 2472
Dimensions: 459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
Weight (Mount Included): 3.22 kg (7.10 lbs)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption: 8.5W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 20 to 26VDC
Gain: 25 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor Specs: MIPS 74Kc
Memory: 64 MB
LEDs: Power, Ethernet, (4) Signal Strength
PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Antenna Feed - Outdoor UV Stabilized Plastic
Dish Reflector - Powder-Coated SPCC
Mounting: Pole-Mounting Kit (Included)
Wind Loading: 559 N @ 200 km/h (125.7 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
RoHS Compliance: Yes
Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test: IEC 68-2-6
Temperature Shock Test: IEC 68-2-14
UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications: CE, FCC, IC
