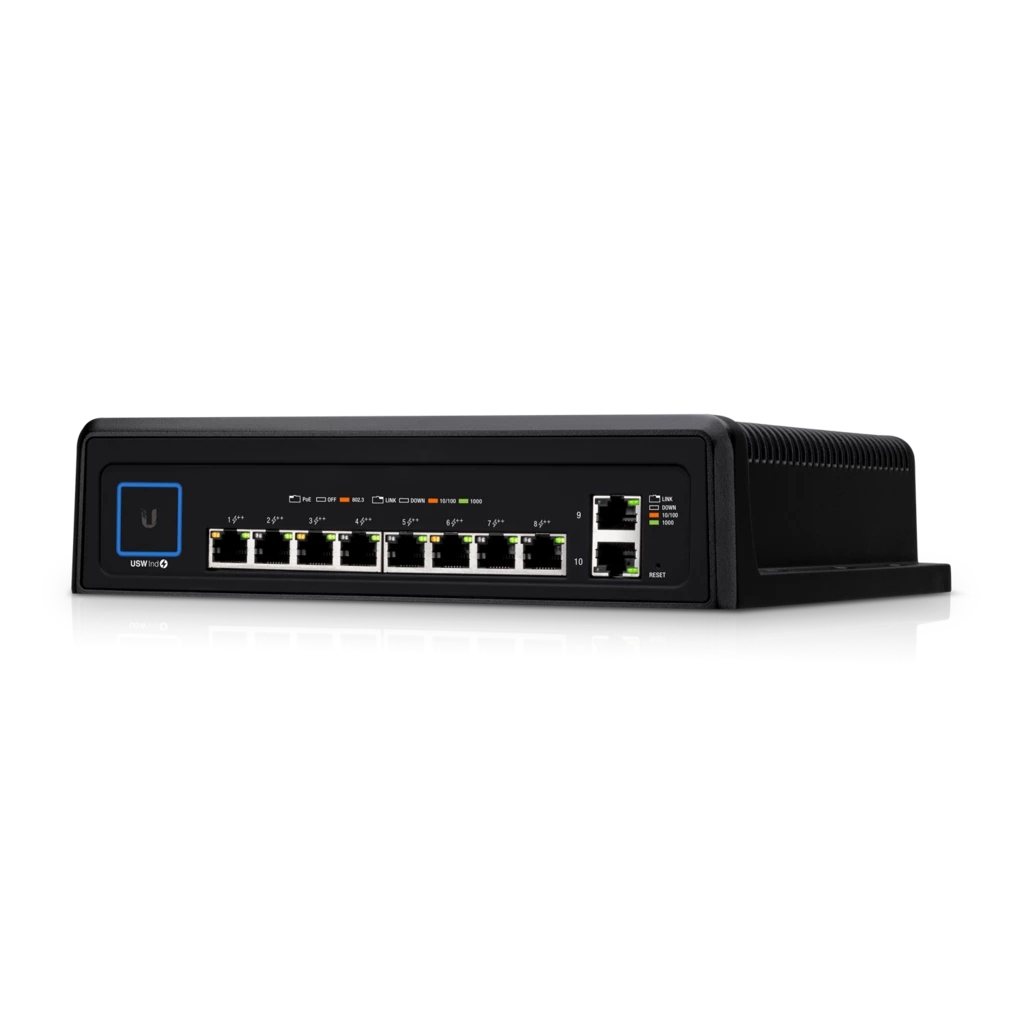

UBIQUITI 10-Port Durable Switch with High-Power 802.3bt PoE++ (USW-Industrial)
The UniFi® Industrial Switch is a managed, plenum-rated, Gigabit Layer 2 switch with auto-sensing 802.3bt PoE++ support.
547.66€ su PVMKaina be PVM: 452.61€ |
Produkto savybės:
Overview
Expand and power your network with theUniFi® Industrial Switch, part of the Ubiquiti®UniFi Enterprise System. The USW-Industrialis a configurable Gigabit Layer 2 switch withauto-sensing, highpower 802.bt PoE++.
Switching Performance
The USW-Industrial offers the forwardingcapacity to simultaneously process traffic onall ports at line rate without any packet loss.
PoE++ Flexibility
The USW-Industrial features ten Gigabit RJ45 ports to deliver robust performance and intelligent switching for enterprise networks. Eight of those ports offer 802.3bt PoE++ to provide up to 60W of power (per port) to your high-power PoE devices. Products requiring 802.3af or 802.3at PoE, such as mUniFi LED Panels, are also supported.
Ruggedized Industrial Design
The fanless USW-Industrial is plenum-rated so it can be installed in a horizontal or vertical orientation in plenum spaces. Its die-cast aluminum enclosure has a black, powder coated finish. This provides greater resistance to corrosion and durability in environments with extreme temperature variations.
Produkto specifikacijos:
| Dimensions | 254 x 235 x 60 mm (10 x 9.25 x 2.36") |
| Weight | 3.85 kg (8.49 lb) |
| Enclosure Characteristics | Die-Cast Aluminum (ADC12) with Black Powder Coated Finish |
| Interfaces Networking Management |
|
| Total Non-Blocking Throughput | 10 Gbps |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Power Method | 100 - 240 VAC, 50/60 Hz Universal Input |
| Power Supply | AC/DC, Internal, 450W DC |
| Supported Voltage Range | AC Input: 100 to 240VAC, Max. 6A |
| Max. Power Consumption (Excluding PoE Output) |
20W |
| LEDs System RJ45 Ports |
|
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature Internal AC/DC @ 450W Internal AC/DC @ 240W |
-40 to 50° C (-40 to 122° F) -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE | 802.3bt 60W |
| Voltage Range 802.3 PoE Mode | 50-57V |
| Max. Total PoE Power Budge | 430W |
