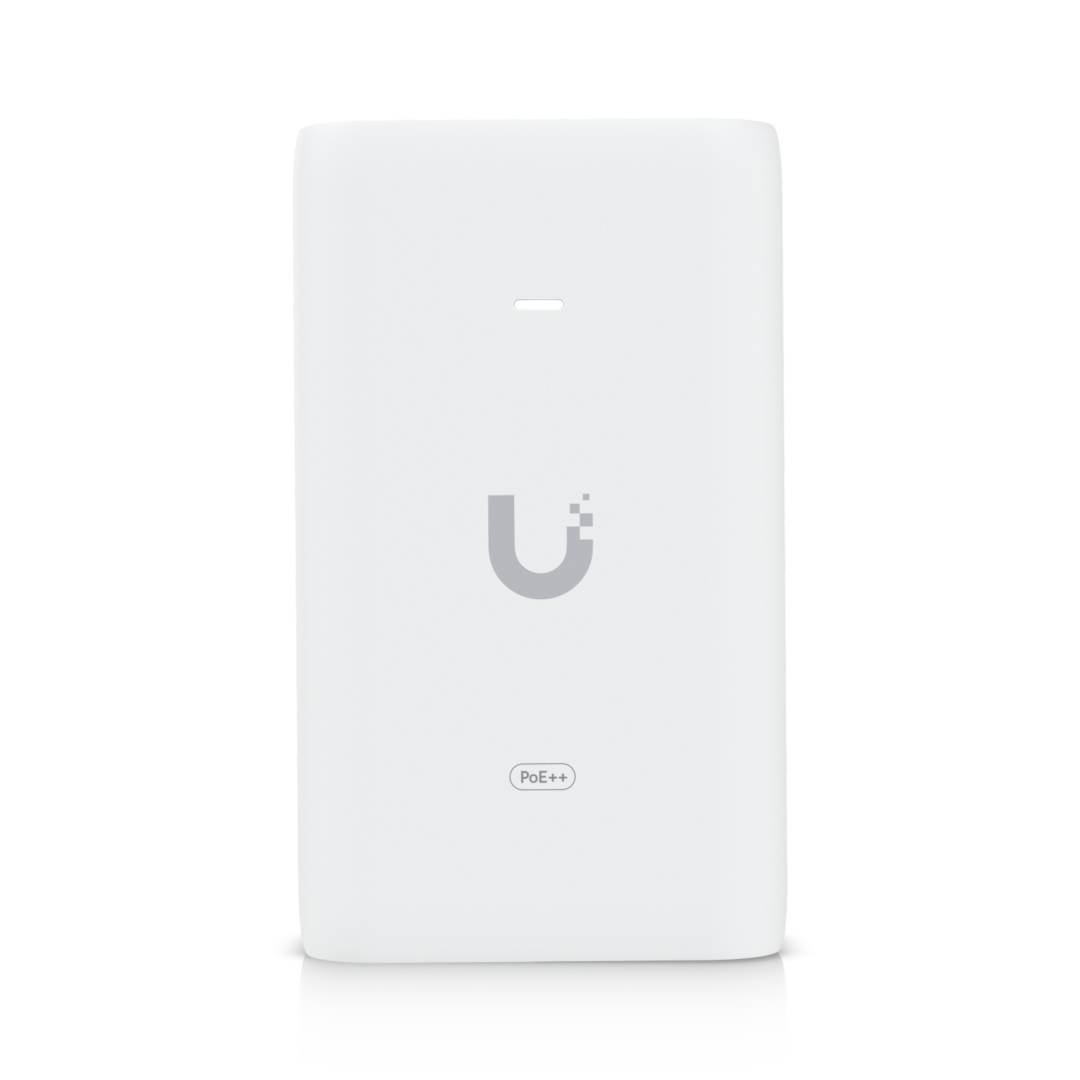

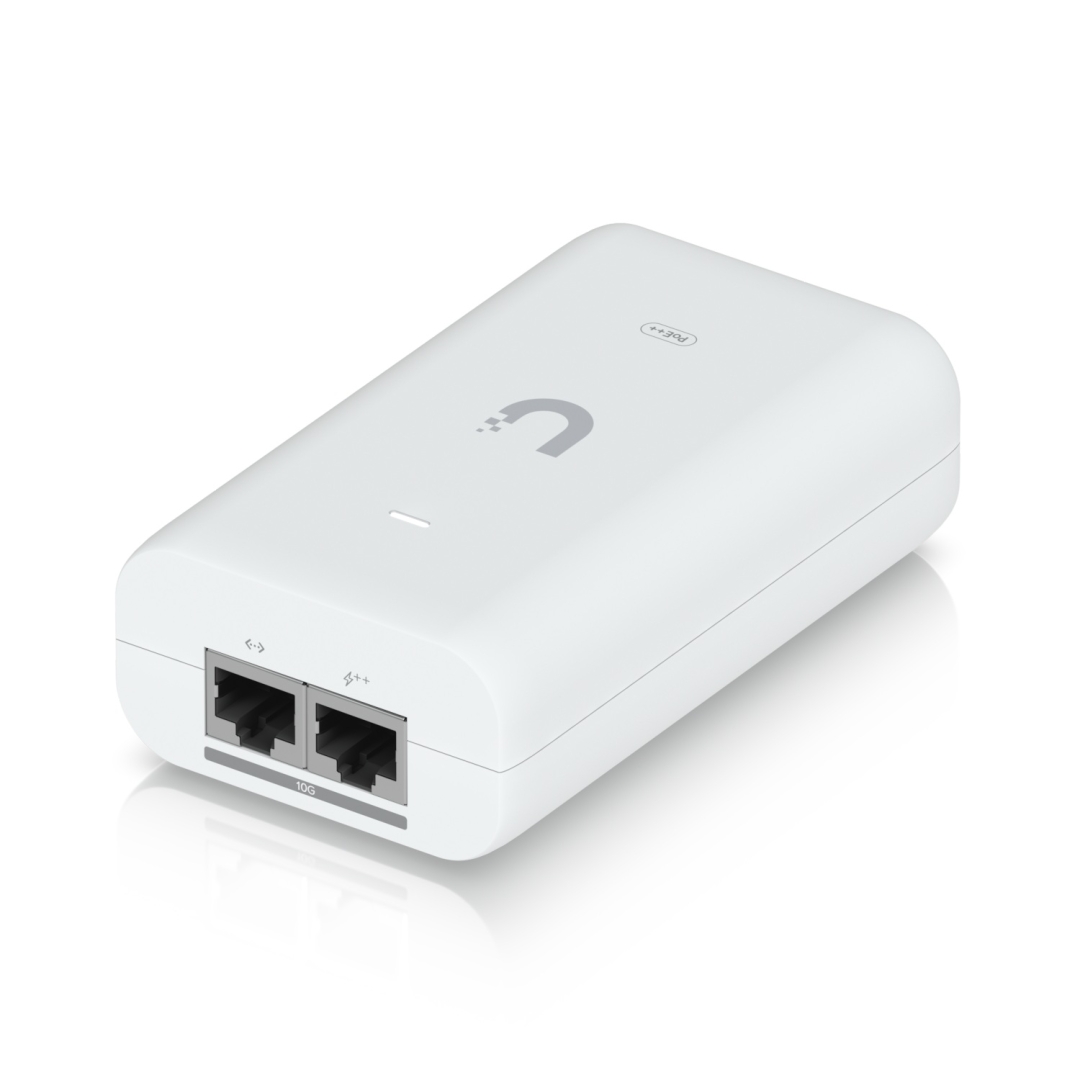

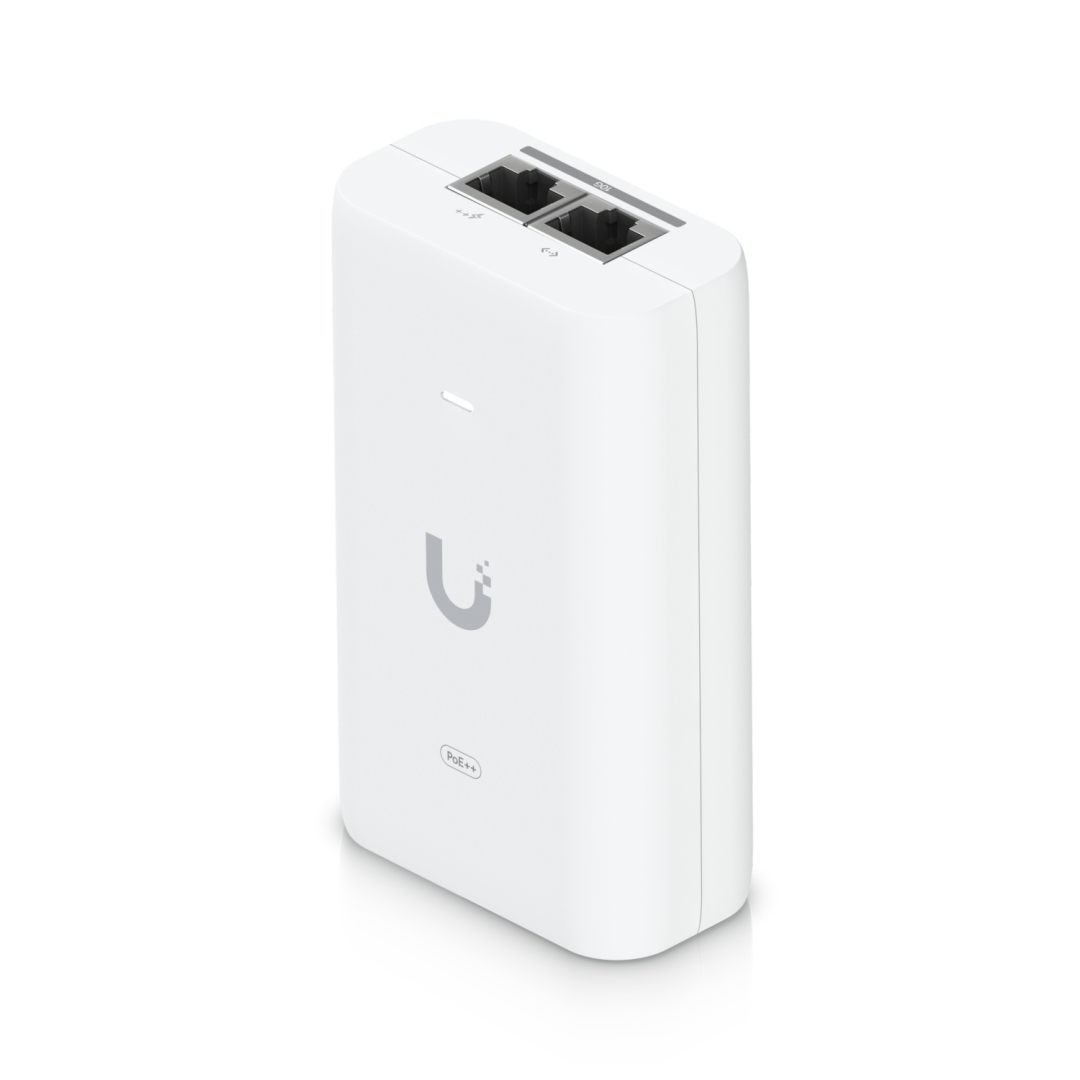

UBIQUITI 10G PoE++ Adapter, 60W (UACC-PoE++-10G)

Produkto savybės:

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

- Delivers up to 60W of PoE++

- Surge, peak pulse, and overcurrent protection

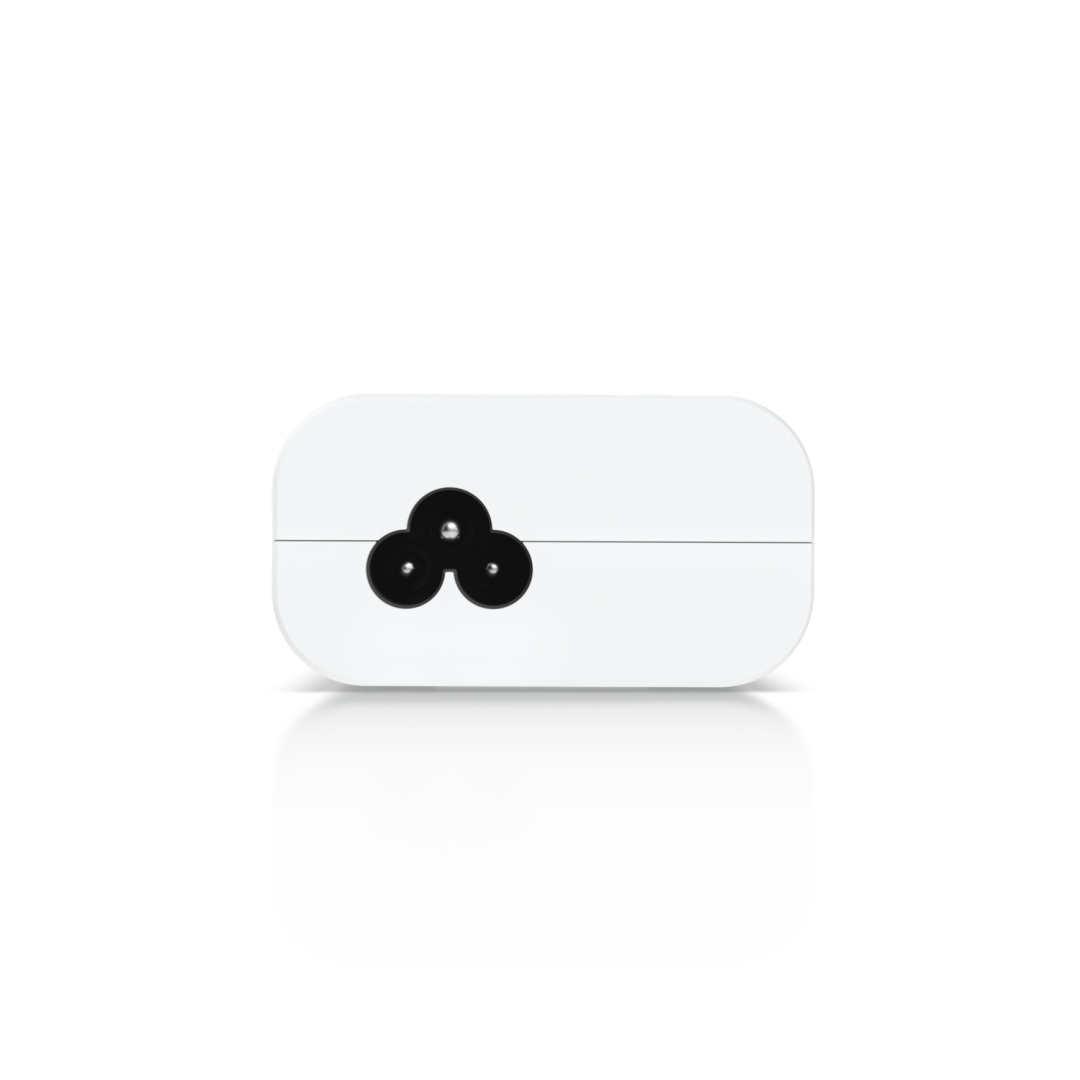

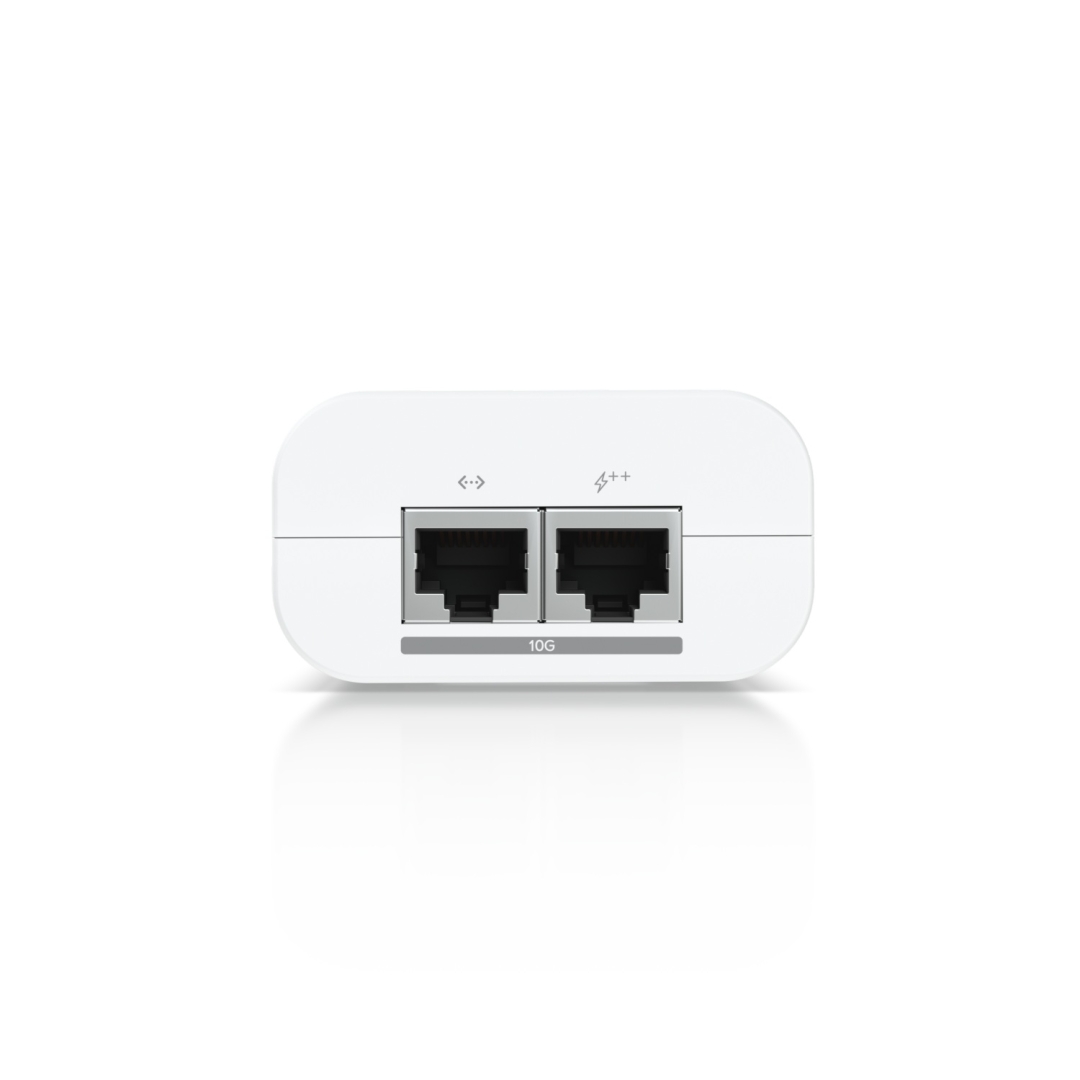

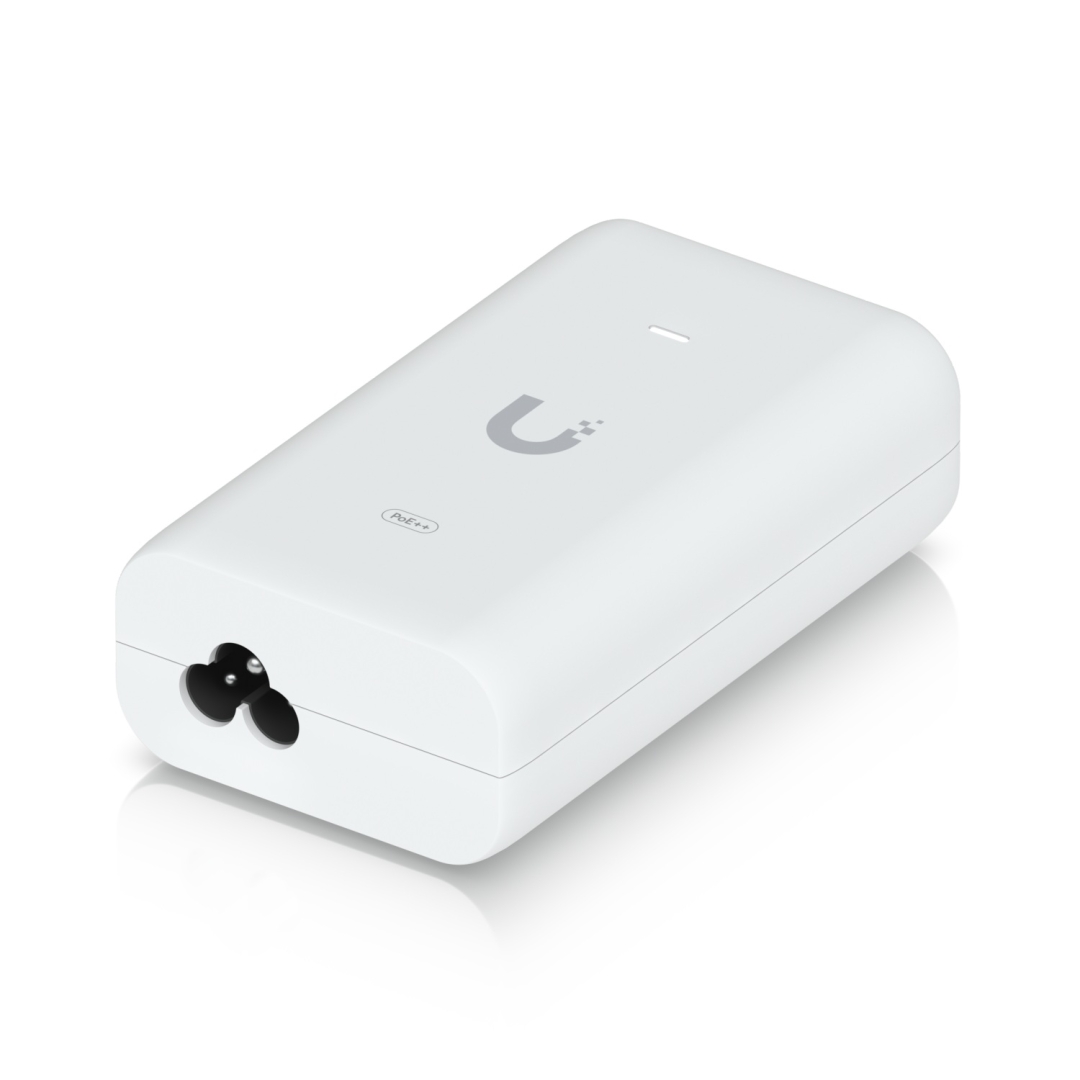

- Contains RJ45 data input, AC cable with earth ground, and PoE++ output

- LED indicator for status monitoring

Produkto specifikacijos:

Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight: 210 g (7.4 oz)
Output Voltage: 54V DC at 1.12A
Rated Voltage: 100—240V AC at 50/60Hz
LAN Activity Indicator: -
Gigabit LAN Port: Yes
Remote Reset Capability: -
Reset Button: -
4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection: 11V Data, 60V power
Data In / PoE: RJ45 Shielded Socket
Input Current: 1.5A Max.
Inrush Current: <150A peak at 230V AC
Efficiency: >88%|
Switching Frequency: 65 kHz
Output Ripple: 1% Max.
Line Regulation: ≤ 2%
Load Regulation: ≤ 5%
Max. PoE+ Wattage per Port by PSE: 60W
Max. Surge Discharge: 1500A (8/20 μs) power
Peak Pulse Current: 36A (10/1000 μs) data
Response Time: <1 ns
Shunt Capacitance: <5 pF data
Surge Protection: Difference and Common Mode
Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 95% Falsencondensing
NDAA Compliant: Yes
Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
