UBIQUITI 24 Ports 10 GbE/2.5 GbE PoE++ Switch Pro HD 24 PoE (USW-Pro-HD-24-PoE)

Produkto savybės:

High-Speed Connectivity

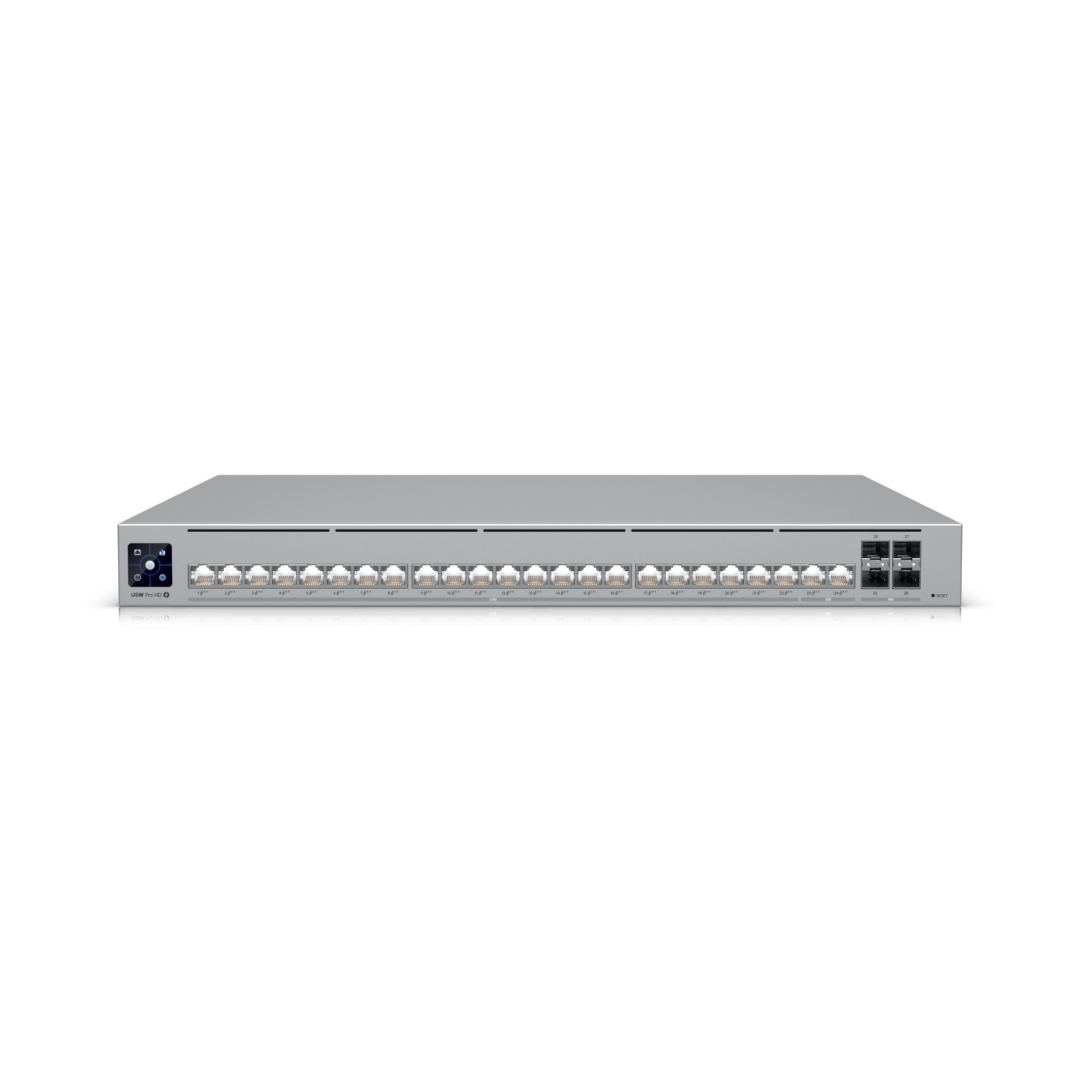

The Ubiquiti UniFi Switch Pro HD 24 PoE (USW-Pro-HD-24-PoE) is a professional-grade Layer 3 switch designed to meet the demands of modern networks. It features two 10 Gigabit Ethernet (GbE) PoE++ ports, twenty-two 2.5 GbE PoE++ ports, and four 10G SFP+ ports, providing a total non-blocking throughput of 115 Gbps and a switching capacity of 230 Gbps. This robust configuration ensures rapid data transfer rates, accommodating bandwidth-intensive applications such as high-definition video streaming, online gaming, and large file transfers.
USW-Pro-HD-24-PoE is engineered with advanced Power over Ethernet (PoE) capabilities to support modern networking solutions. This switch provides a robust total PoE power budget of 600W, making it capable of powering multiple high-demand devices simultaneously. Each individual port can deliver up to 60W of PoE++ power, ideal for devices such as IP cameras, Wi-Fi access points, and VoIP phones, reducing the need for separate power supplies and streamlining network installations. The switch supports both PoE+ and PoE++ standards, offering flexibility for various use cases.

Advanced Switching Features
Beyond its impressive hardware capabilities, the USW-Pro-HD-24-PoE offers a suite of advanced Layer 3 switching features to enhance network performance and security. These include support for Spanning Tree Protocol (STP/RSTP) with configurable priorities and port-level disable options, storm control, multicast and broadcast rate limiting, flow control, jumbo frames, egress rate limiting, proprietary loop protection, port isolation, and port mirroring. These features empower network administrators to optimize traffic management, prevent network loops, and maintain a robust and secure networking environment.

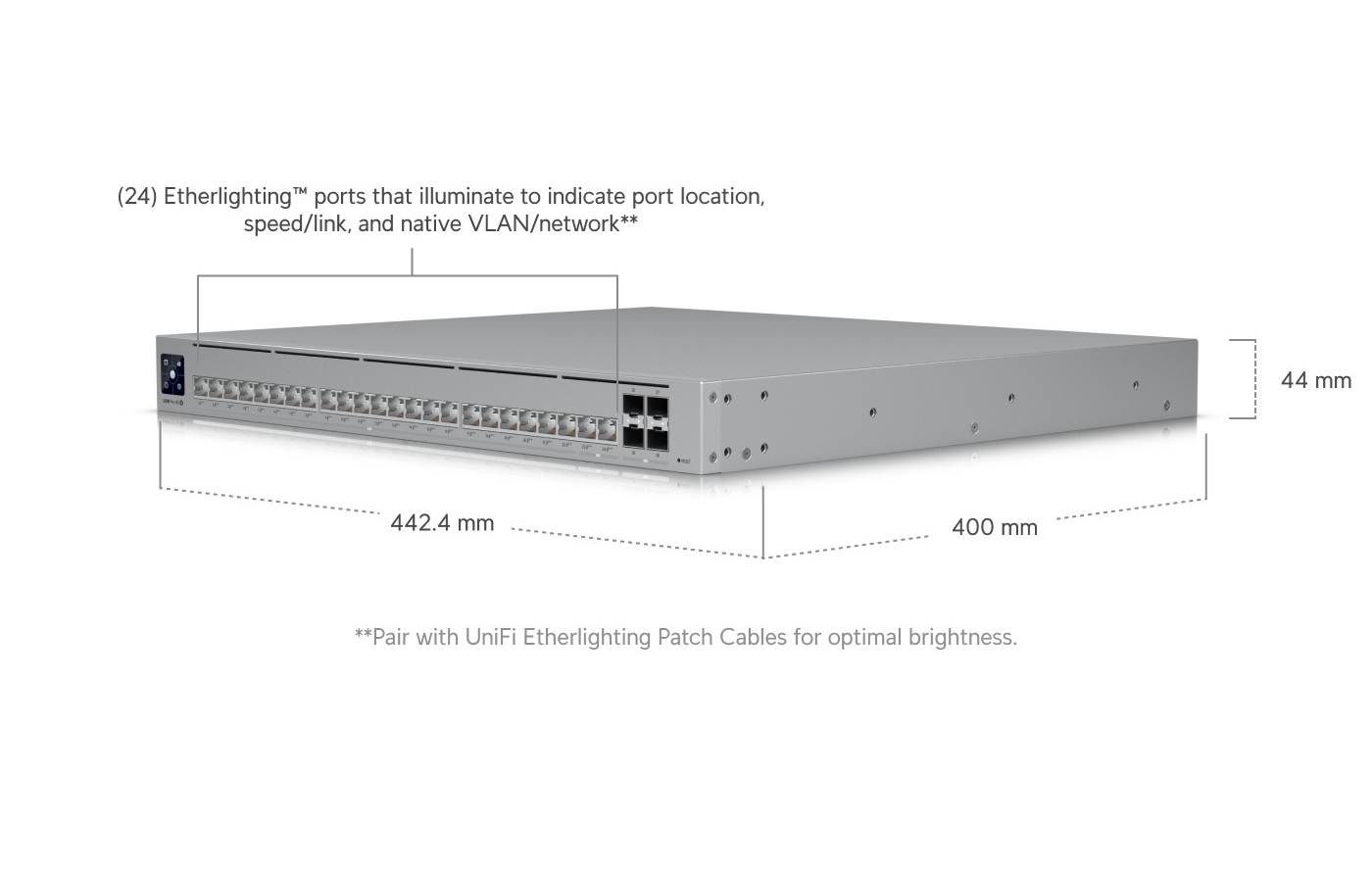

The USW-Pro-HD-24-PoE incorporates Ubiquiti's Etherlighting™ technology, which illuminates the ports to indicate port location, speed/link status, and native VLAN/network. This visual feedback simplifies network management and troubleshooting by providing clear, real-time status information. The 1.3" touchscreen LCD provides real-time system status updates, enhancing user experience and simplifying network management. The switch has an SGCC steel enclosure measuring 442.4 x 400 x 44 mm and weighing 6.4 kg, making it suitable for both rack mount and standalone deployment.

Produkto specifikacijos:

Dimensions: 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")

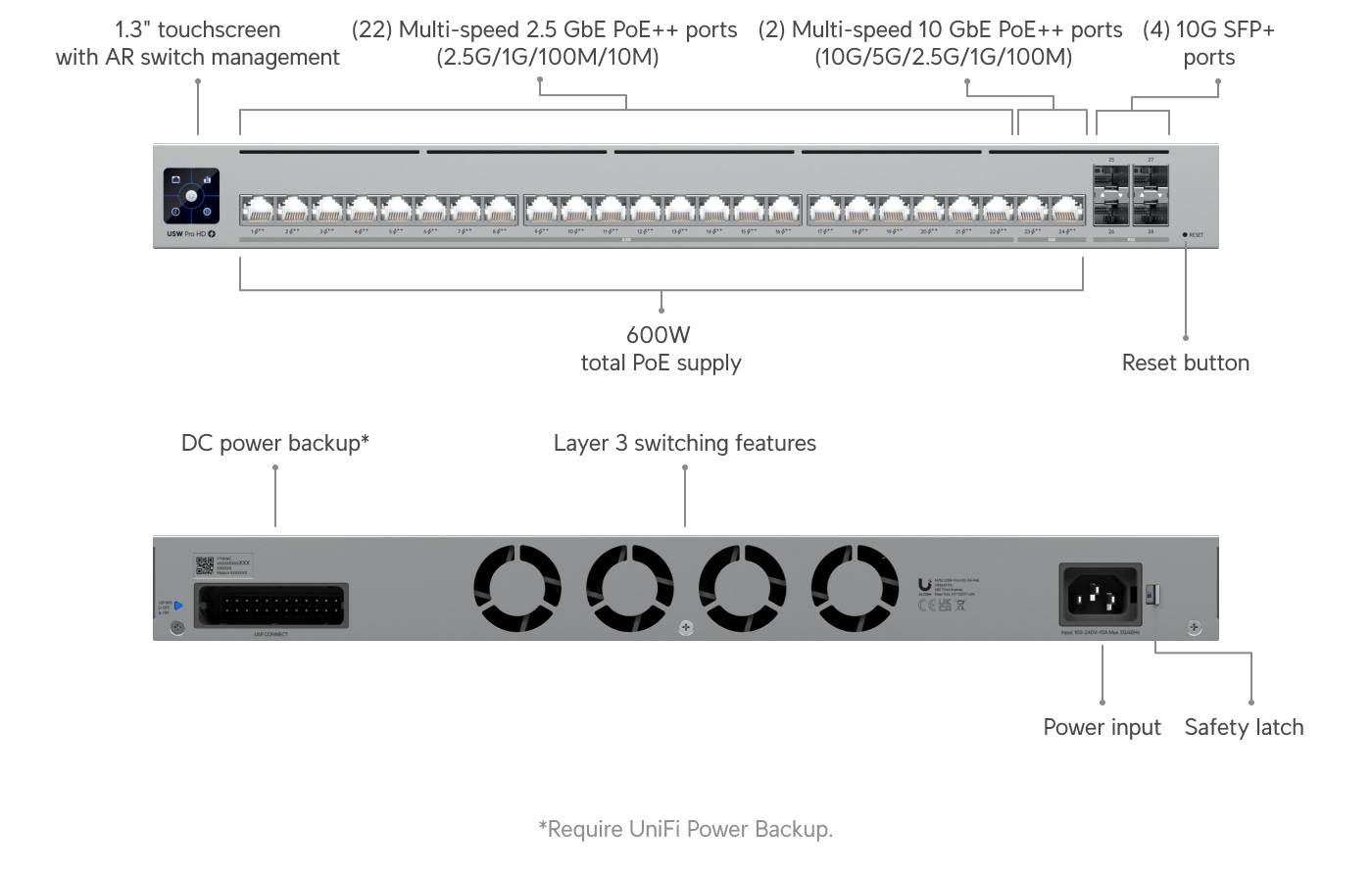

Port Layout:
    2.5 GbE RJ45: 22 (All PoE++) (2.5G/1G/100M/10M)
    10 GbE RJ45: 2 (All PoE++) (10G/5G/2.5G/1G/100M)
    10G SFP+: 4 (10G/1G)
Max. PoE Output: Up to PoE++
Total PoE Availability: 600W
Redundancy: DC Power Backup
Layer 3: Yes
Form Factor: Rack mount (1U)
Etherlighting™: Yes

Performance

Switching Capacity: 230 Gbps
Total Non-Blocking Throughput: 115 Gbps
Forwarding Rate: 171 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size:
    ARP Entries: 12,000
    IPv4 Routes: 12,000
    Packet Buffer Size: 2 MB

Layer 3 Features

DHCP Server (Local Networks): Yes
DHCP Relay: Yes
Inter-VLAN Routing (Local Networks): Yes
Static Routing (Local Networks): Yes

Layer 2 Features

LACP Port Aggregation: Yes
STP & RSTP: Yes
QoS (DSCP): Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
IGMP Snooping: Yes
802.1X Control: Yes
MAC-Based ACLs & Device Isolation: Yes
DHCP Snooping & Guarding: Yes
Egress Rate Limit" Yes
Flow Control: Yes
Storm Control: Yes
Multicast & Broadcast Rate Limiting: Yes
MAC Address Blocking: Yes
IP-Based ACLs & Network Isolation: Yes
MAC-Based Port Restriction: Yes
Port Isolation: Yes
Port Mirroring: Yes
Jumbo Frames: Yes
LLDP-MED: Yes
Voice VLAN: Yes
Loop Protection: Yes

Hardware

PoE Ports:
    PoE++: 24
Max. PoE Wattage per Port by PSE:
    PoE: 15.4W
    PoE+: 30W
    PoE++: 64W
Max. Power Consumption:
    60W (Excluding PoE Output)
    660W (Including PoE Output)

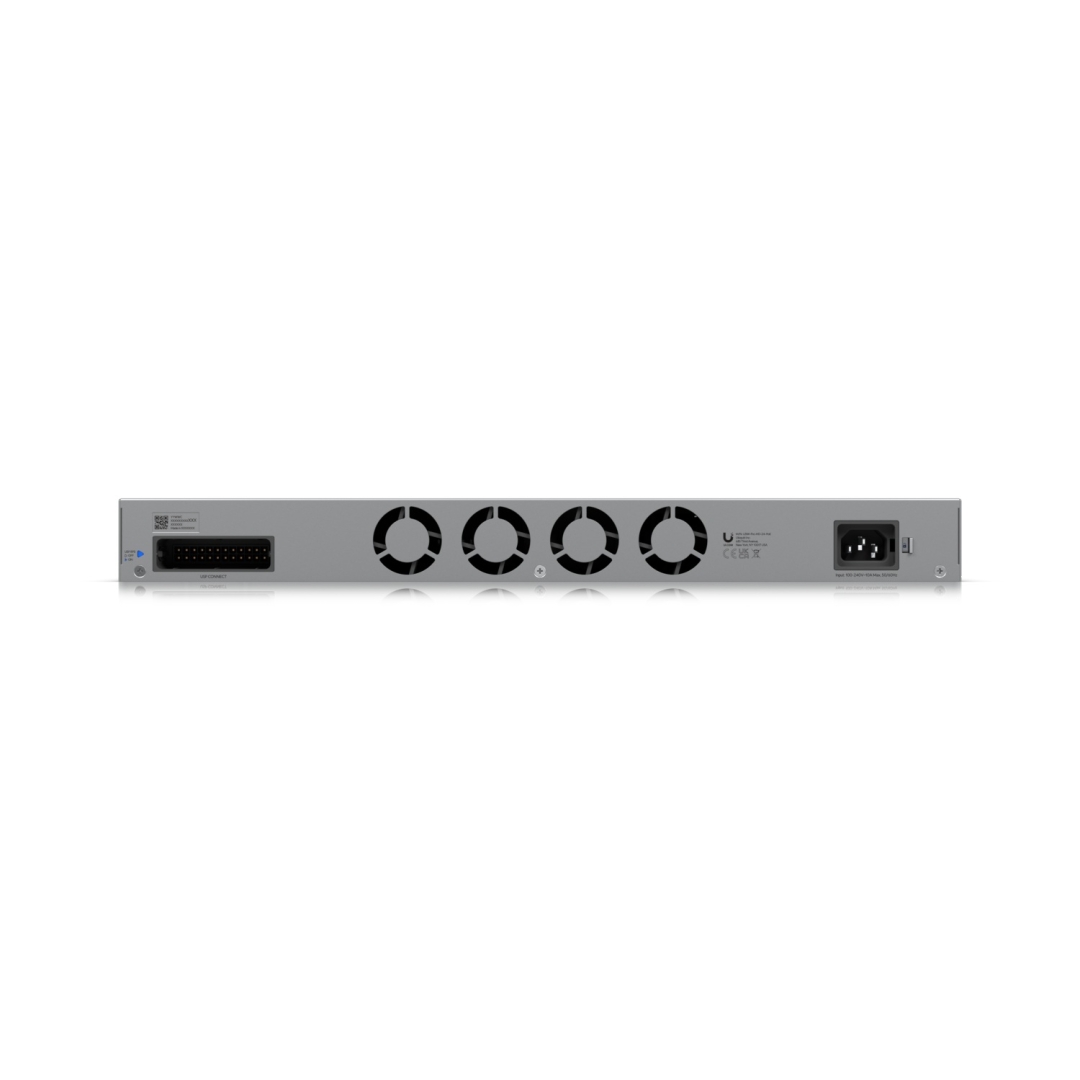

Power Method:
    (1) Universal input, 100—240V AC, 50/60 Hz
    (1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 660W
Supported Voltage Range: 100—240V AC
Management:
    Ethernet
    AR
Weight:
    Without mounting brackets: 6.2 kg (13.7 lb)
    With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 600 - 1,200 mm (23.6- 47.2" )
LCM Display: 1.3" touchscreen
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™:
    Ethernet: Yes
    SFP+: Yes
Certifications: CE, FCC, IC
NDAA Compliant: Yes

Software

Application Requirements:
    UniFi Network: Version 9.0.114 and later
