UBIQUITI 24 Ports 10 GbE/2.5 GbE Switch Pro HD 24 (USW-Pro-HD-24)

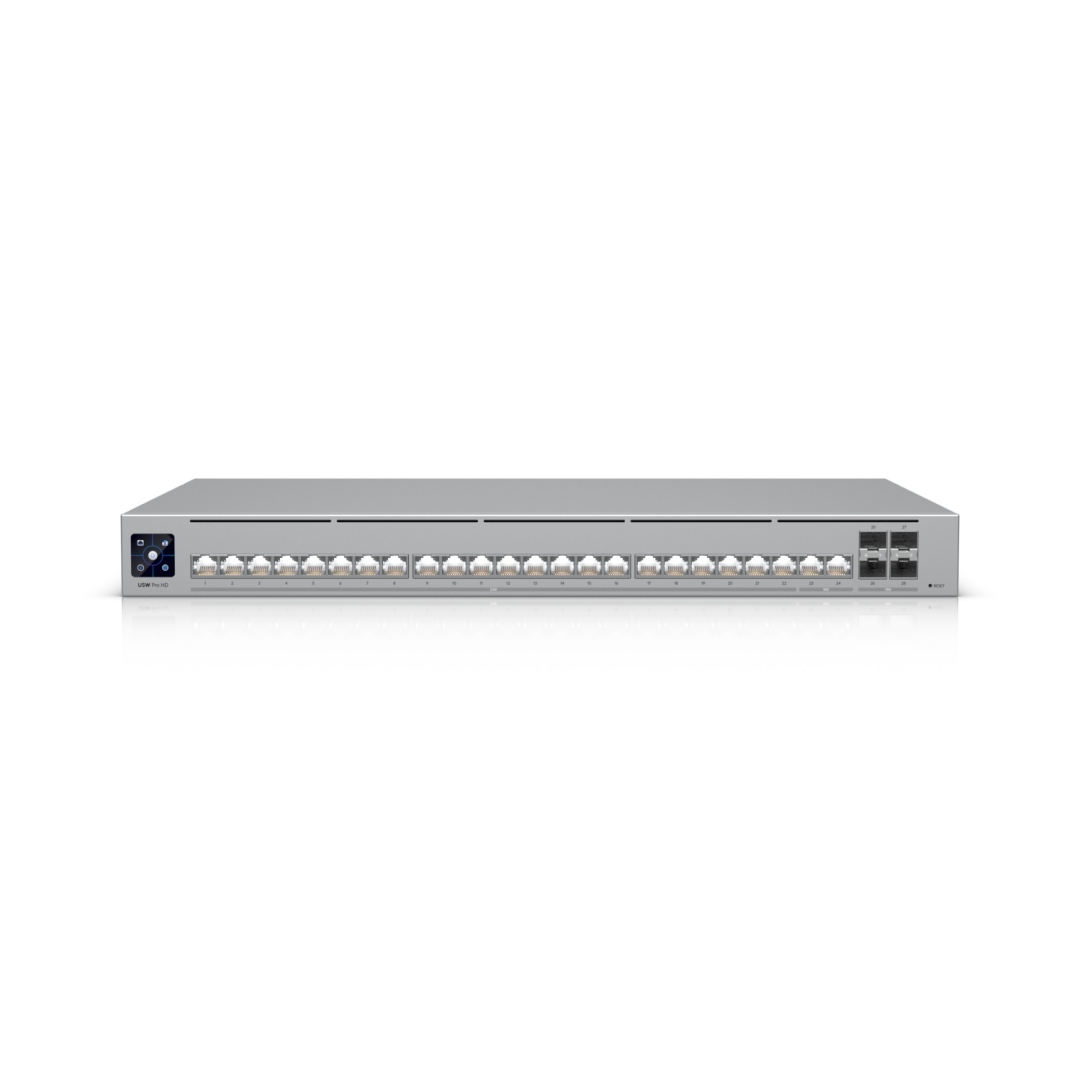

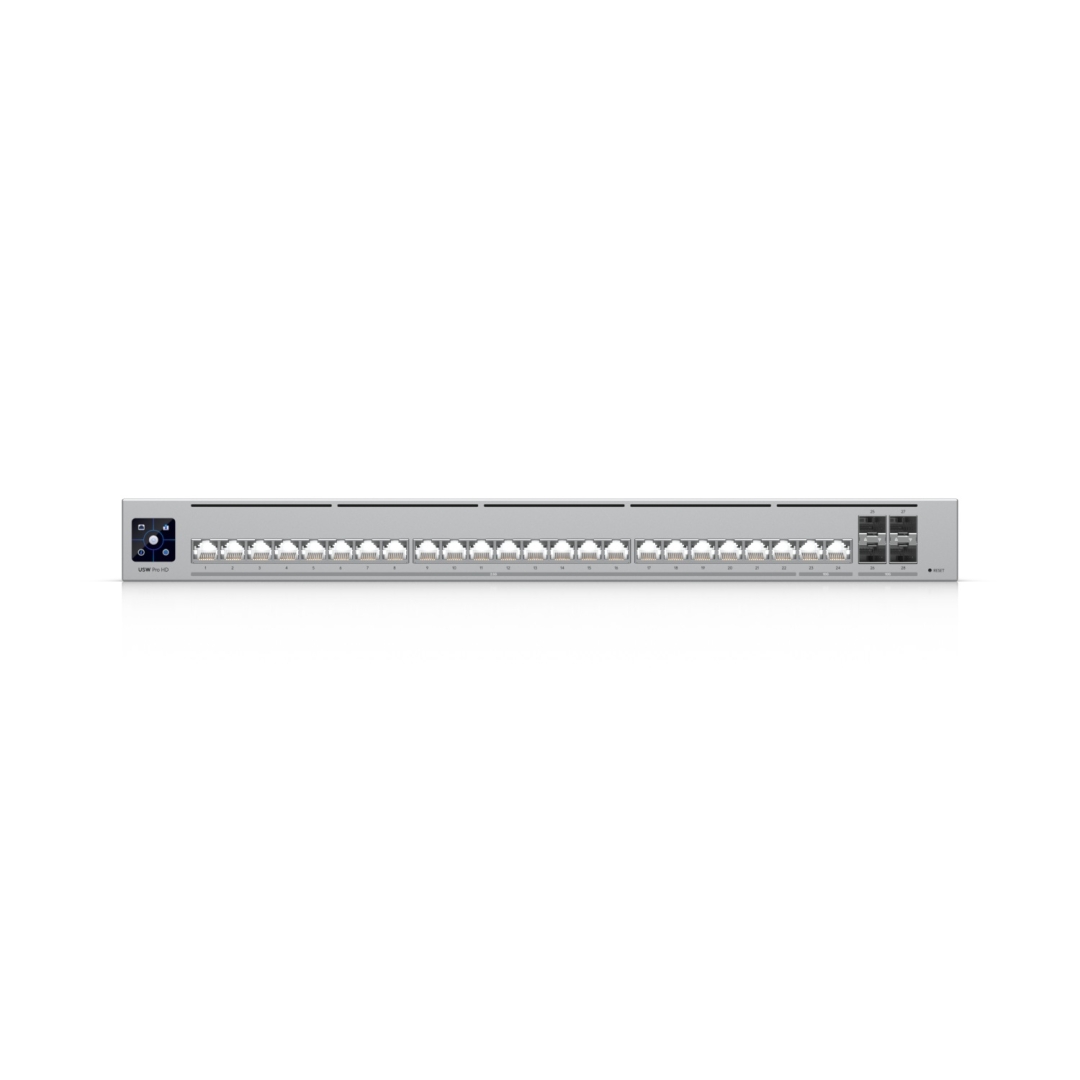

4x 10 Gbps SFP+ Ports | 2x 10 Gbps RJ45 LAN ports | 22x 2.5 Gbps RJ45 LAN ports | 1.3" Touchscreen with AR switch management | Layer 3 | SmartPower RPS | Etherlighting™
Produkto savybės:
High-Performance Layer 3 Switching

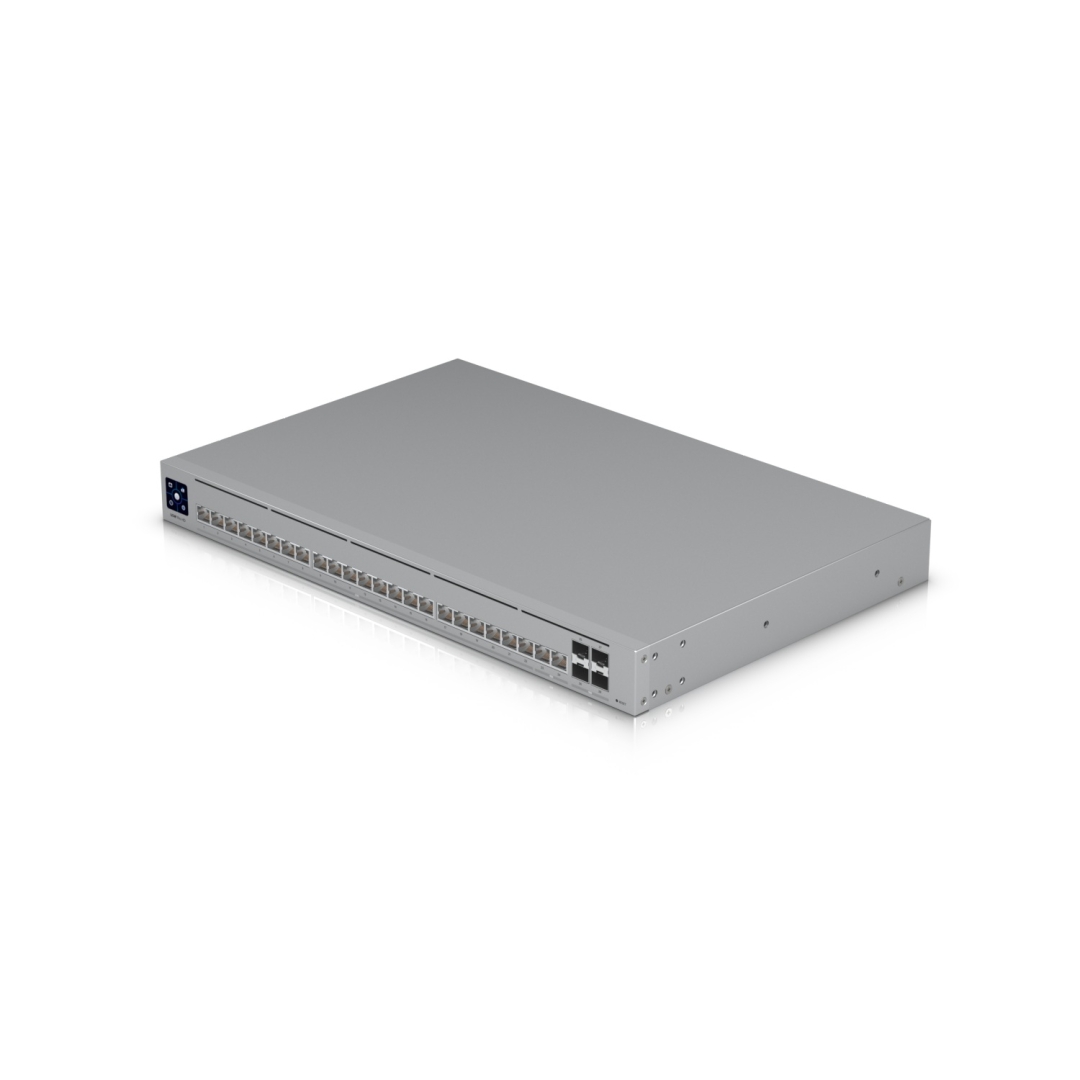

The Ubiquiti UniFi Switch Pro HD 24 (USW-Pro-HD-24) is a professional-grade Layer 3 switch engineered to deliver exceptional performance and versatility for modern network infrastructures. It features two 10 Gigabit Ethernet (GbE) ports, twenty-two 2.5 GbE ports, and four 10G SFP+ ports, providing a total non-blocking throughput of 115 Gbps and a switching capacity of 230 Gbps. This robust configuration ensures seamless data transmission and efficient handling of high-bandwidth applications, making it ideal for enterprise environments that demand high-speed connectivity and reliability.
Equipped with advanced Layer 3 switching capabilities, the USW-Pro-HD-24 supports features such as static routing, VLAN routing, and DHCP services, enabling efficient traffic management and network segmentation. These features enhance network performance, security, and scalability, making the switch suitable for complex network architectures. Additionally, the switch supports Etherlighting™, a feature that illuminates ports to indicate port location, speed/link, and native VLAN/network, facilitating easy identification and troubleshooting.
Comprehensive Features
In addition to its Layer 3 capabilities, the USW-Pro-HD-24 offers a range of Layer 2 features, including IGMP snooping, port isolation, multicast/broadcast rate limiting, flow control, and 802.1X control. These features help optimize network traffic and protect against potential security risks. Additionally, the USW-Pro-HD-24 integrates seamlessly with the UniFi Network application (Version 8.6.9 and later), offering a user-friendly interface to manage, monitor, and configure your network. The application simplifies deployment and ongoing management, enabling real-time monitoring and quick adjustments to maintain network performance and security.

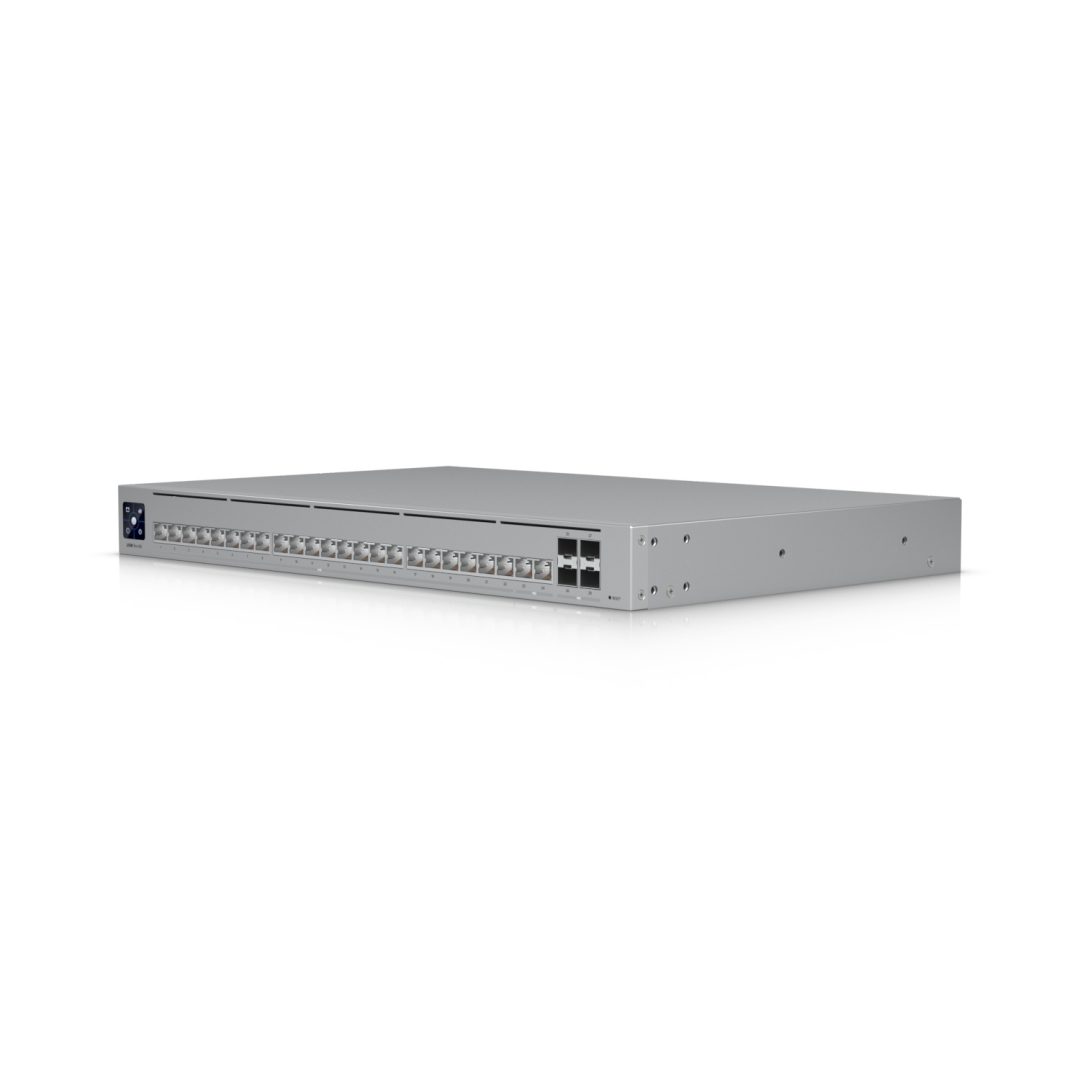

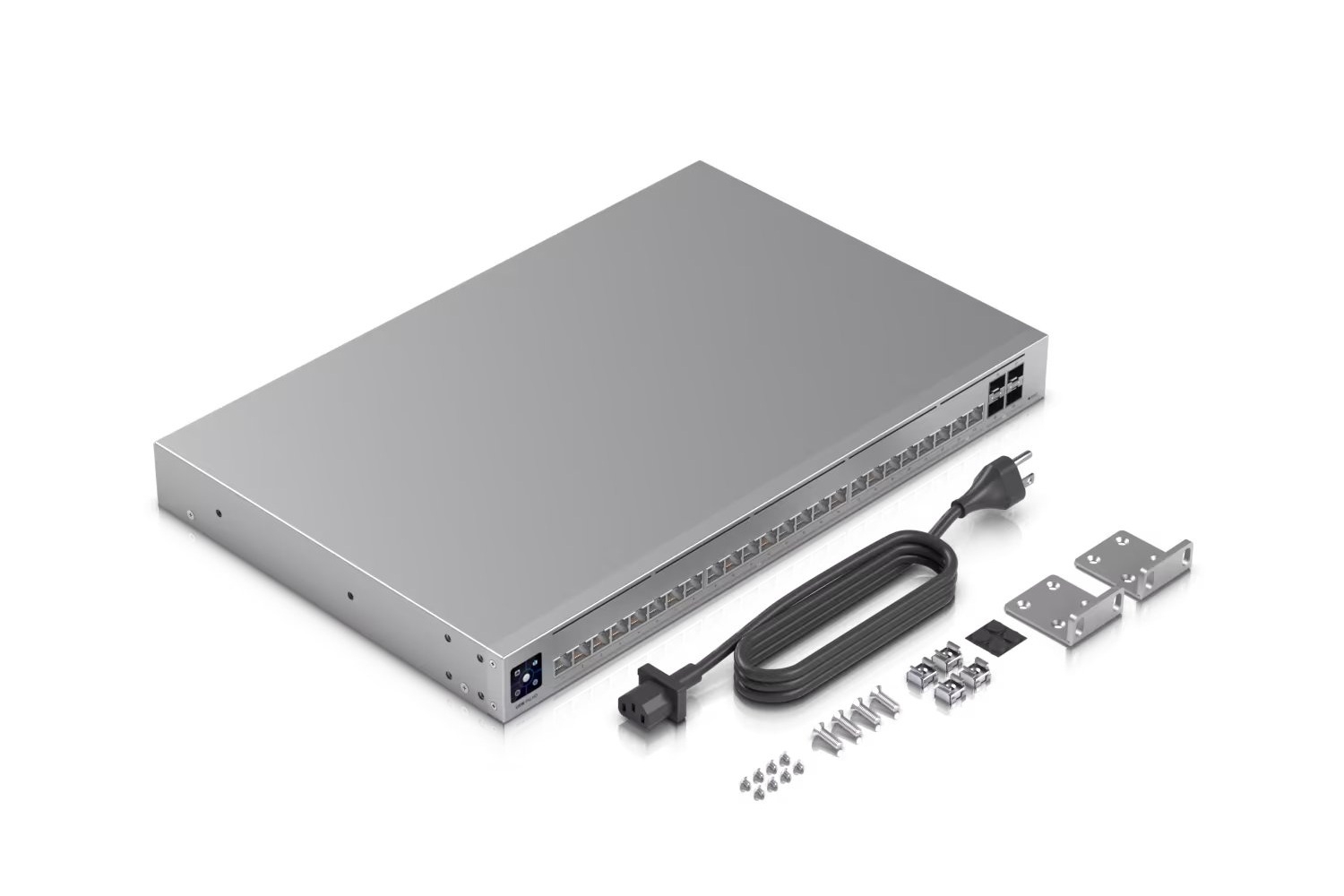

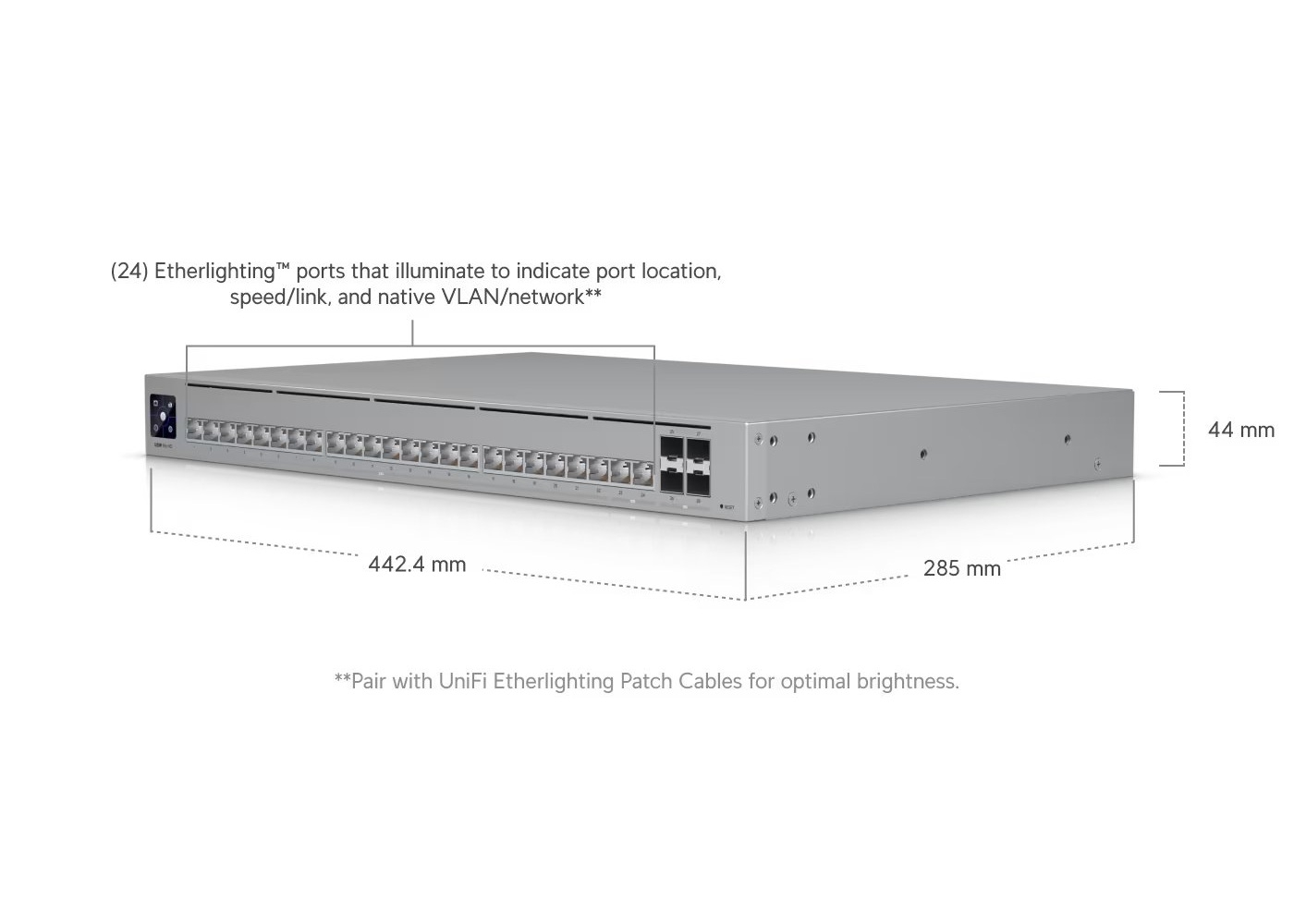

The USW-Pro-HD-24 has an SGCC steel enclosure measuring 442.4 x 285 x 44 mm and weighing 4.2 kg without mounting brackets, making it suitable for both rack-mounted and standalone deployments. The switch includes rackmount brackets for easy integration into standard 19-inch racks, while its compact design allows for placement in various environments, including data centers, server rooms, and office spaces. The 1.3" touchscreen LCD provides real-time system status updates, enhancing user experience and simplifying network management.
Produkto specifikacijos:
Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")

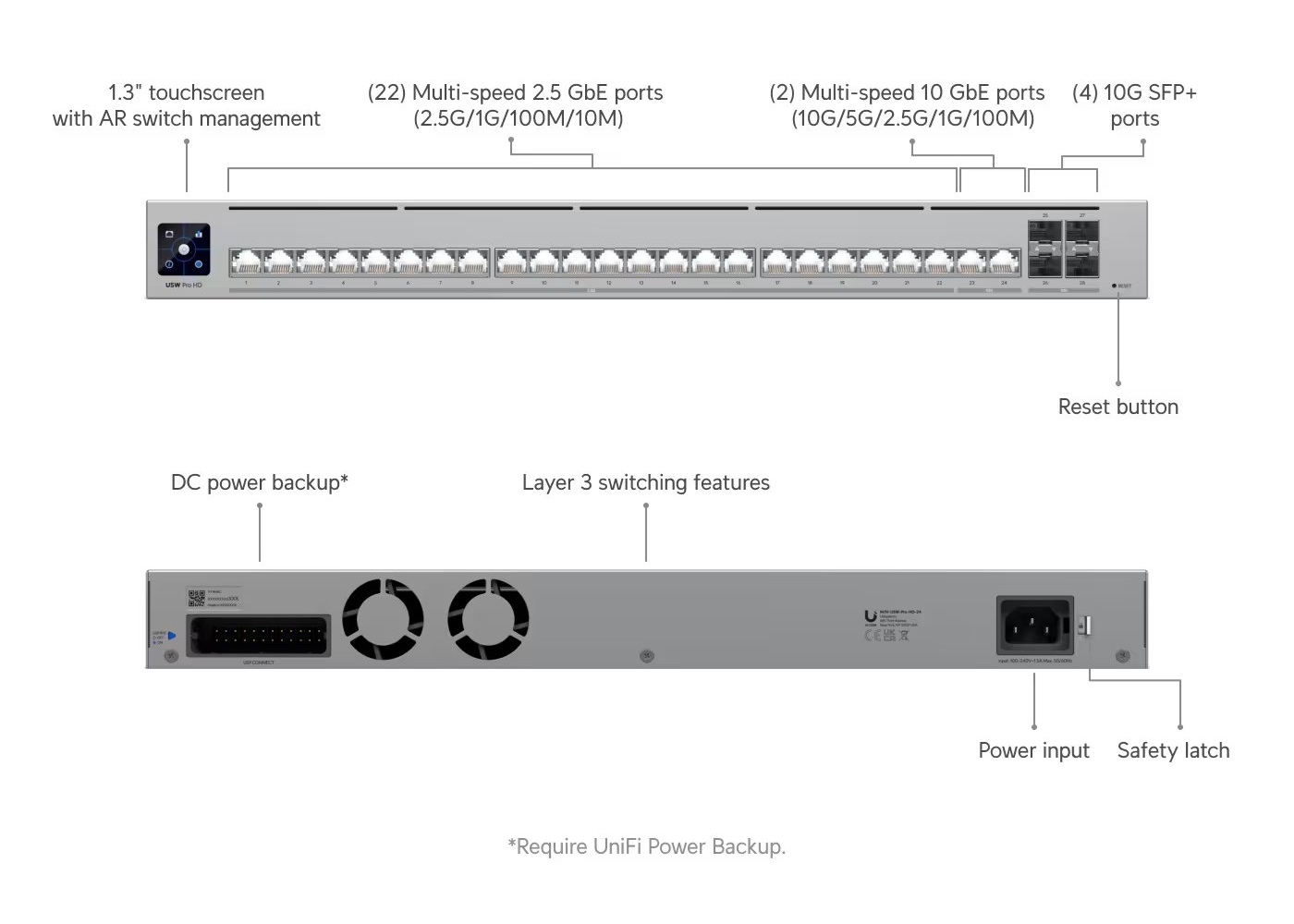

Port Layout:
2.5 GbE RJ45: 22 (2.5G/1G/100M/10M)
10 GbE RJ45: 2 (10G/5G/2.5G/1G/100M)
10G SFP+" 4 (10G/1G)
Redundancy: DC Power Backup (With UniFi RPS)
Layer 3: Yes
Form Factor: Rack mount (1U)
Etherlighting™: Yes
Performance
Switching Capacity: 230 Gbps
Total Non-Blocking Throughput: 115 Gbps
Forwarding Rate: 171.12 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 32,000
L3 Table Size:
ARP Entries: 12,000
IPv4 Routes: 12,000
Packet Buffer Size: 2 MB
Layer 3 Features
DHCP Server (Local Networks): Yes
DHCP Relay: Yes
Inter-VLAN Routing (Local Networks): Yes
Layer 2 Features
Static Routing (Local Networks): Yes
LACP Port Aggregation: Yes
STP & RSTP: Yes
QoS (DSCP): Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
IGMP Snooping: Yes
802.1X Control: Yes
MAC-Based ACLs & Device Isolation: Yes
DHCP Snooping & Guarding: Yes
Egress Rate Limit: Yes
Flow Control: Yes
Storm Control: Yes
Multicast & Broadcast Rate Limiting: Yes
MAC Address Blocking: Yes
IP-Based ACLs & Network Isolation: Yes
MAC-Based Port Restriction: Yes
Port Isolation: Yes
Port Mirroring: Yes
Jumbo Frames: Yes
LLDP-MED: Yes
Voice VLAN: Yes
Loop Protection: Yes
Hardware
Max. Power Consumption: 60W
Power Method:
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 60W
Supported Voltage Range: 100—240V AC
Management: Ethernet AR
Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr
Weight:
Without mounting brackets: 4.2 kg (9.2 lb)
With mounting brackets: 4.3 kg (9.4 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2")
LCM Display: 1.3" touchscreen
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™:
Ethernet: Yes
SFP+: Yes
NDAA Compliant: Yes
Certifications: CE, FCC, IC
Software
Application Requirements:
UniFi Network: Version 9.0.114 and later
