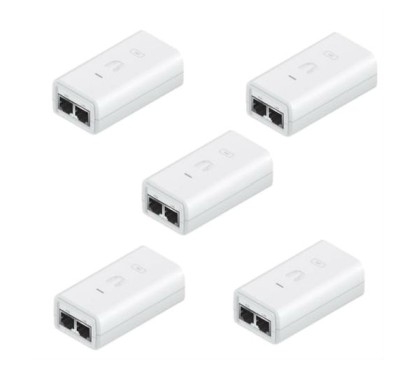

UBIQUITI 24V 12 W (0.5A) Gigabit PoE adapters (white), 5 pack (POE-24-12W-5P)

OEM kodas: POE-24-12W-5P
Kodas: UB-POE-24-12W-G-WH-5
ID: #1566

Earth grounding, ESD protection, power LED

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
29.57€ 35.78€ >0€
29.44€ 35.62€ >100€
29.30€ 35.45€ >300€
Kiekis:
  Turime sandėlyje


Produkto savybės:

The UBNT-POE-24-12W-GIGABIT features earth grounding/ESD protection, power LED

Ubiquiti PoE Adapters provide a variety of features to help protect your Ubiquiti PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
ESD attacks are the leading cause for device failures. You can effectively protect against ESD attacks using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

Features:
Output Voltage: 24VDC @ 0.5A
Input Voltage: 90-260VAC @ 47-63Hz
Input Current: 0.3A @ 120VAC, 0.2A @230VAC
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frquency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
Operating Temperature: -10C to +60 deg C
Storage Temperature: -20C to +85 deg C
Operating Humidity: 5% to 90% non condensing
Size: 3.35 x 1.7 x 1.18in (85 x 43 x 30mm)

Produkto specifikacijos:

Dimensions: 87 x 84 x 29.2 mm (3.43 x 3.31 x 1.15 in)
Weight: 99.4 g (3.51 g)
Output Voltage: 24VDC @0.5A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: Yes
Reset Button: Yes
Input Voltage: 90-260VAC @ 47-63 Hz
Input Current: 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current: <30A Peak @120VAC, <60A Peak @ 230VAC
Efficiency: 75+%
Output Ripple: 1% Max.
Switching Frequency: 50 kHz
Line Regulation: ± 1%
Load Regulation: ± 3%
4-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70°C (-22 to 158° F)
Operating Humidity: 35 to 95% Non-Condensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20µS) Power
Peak Pulse Current: 36A (10/1000µS) Data
Shunt Capacitance: <5 pf data
Response Time: <1 nS

Compliance:
IEC 60950-1:2005+A1
UL 60950-1
EN 55022:2010,
EN55024:2010
FCC Class B
AC Cable with Earth Ground:    USA, EU, AR, BR, UL, CCC, Mexico

Papildoma informacija apie produktą:

Datasheet
Link to manufacturer product page
