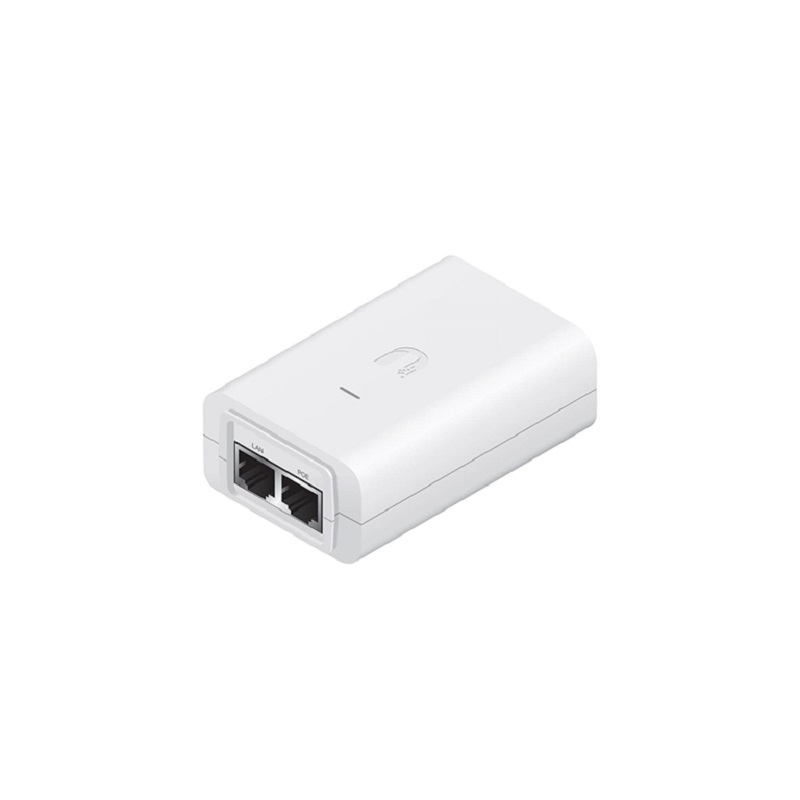

UBIQUITI 24V 7 W (0.3A) Gigabit PoE adapter (white) (POE-24-7W-G-WH)

OEM kodas: POE-24-7W-G-WH
Kodas: UBNT-POE-24V-7W-G-WH
ID: #1570

Earth grounding, ESD protection, power LED

Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
4.57€ 5.53€ >0€
4.54€ 5.49€ >100€
4.53€ 5.48€ >300€
Kiekis:
  Sandėlyje neturime


Produkto savybės:

Ubiquiti POE-24-7W is a PoE adapter designed to power various Ubiquiti devices.

Compatible with most products (check the device specification before determining compatibility):

  • airFiber
  • airMAX
  • EdgeMAX
  • mFi
  • UniFi AP
  • UniFi Video / airVision.

Protection

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

Produkto specifikacijos:

Dimensions: 72 x 45 x 33 (2.84 x 1.75 x 1.33")
Weight: 72.1g (2.54 oz)
Output Voltage: 24VDC @ 0.3A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: Yes
Reset Button: Yes
Input Voltage: 100-240AC @ 50/60Hz
Input Current: 0.3A @ 120VAC, 0.2A @240VAC

Inrush Current:
<40A Peak @ 120VAC
<70A Peak @ 230VAC

Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: ± 1%
Load Regulation: ± 3%
2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature: 0 to 40°C (32 to 104°F)
Storage Temperature: -30 to 70°C (-22 to 158°F)
Operating Humidity: 35 to 95% Non-Condensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Shunt Capacitance: <5 pf data
Response Time: <1 ns

Compliance:
IEC 60950-1:2005+A1
UL60950-1
EN55022:2010
EN55024:2010
FCC Class B"

AC Cable with Earth Ground

Papildoma informacija apie produktą:

Datasheet
Link to manufacturer product page
