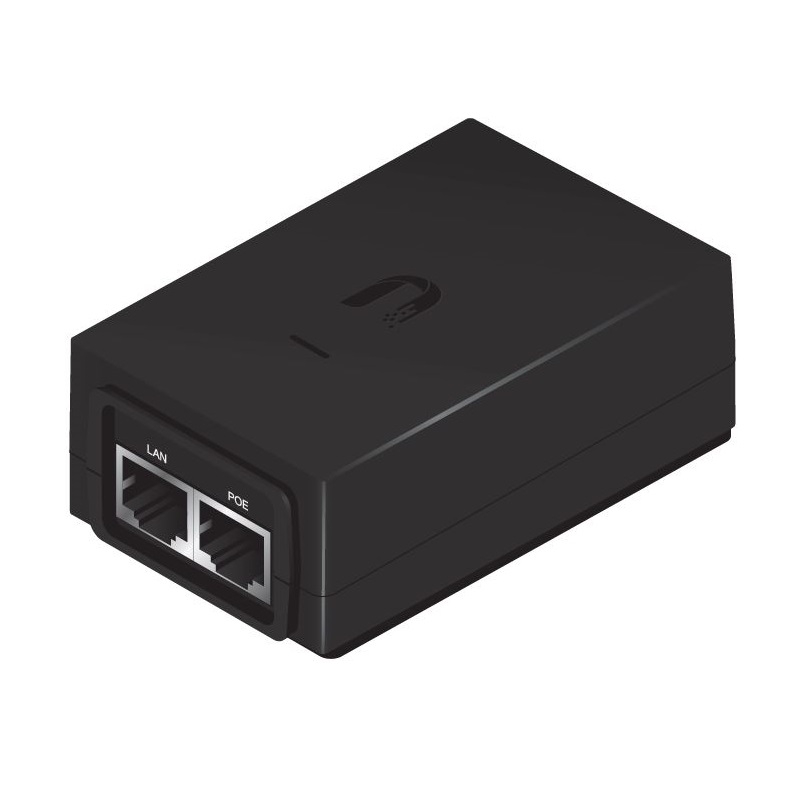

UBIQUITI 48 VDC, 0.5A Gigabit PoE Adapter (POE-48-24W-G)

Earth grounding, ESD protection.

naujiena
Kaina be PVM: Kaina su PVM (21%): Kainos lygis, kai užsakymo suma:
10.57€ 12.79€ >0€
10.52€ 12.73€ >100€
10.47€ 12.67€ >300€
Kiekis:
Turime sandėlyje



Produkto savybės:

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Video / airVision®
* Always check product specifications to verify PoE compatibility.

Protection

Ubiquiti PoE Adapters provide a variety of features to help
protect your PoE devices:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for
outdoor device failures. You can effectively protect against
ESD damage using a grounded Ubiquiti PoE Adapter,
TOUGHCable™, and TOUGHCable Connectors.

Produkto specifikacijos:

Dimensions: 92 x 60 x 33 mm (3.62 x 2.36 x 1.30")
Weight: 158.5 g (5.59 oz)
Output Voltage: 48VDC @ 0.5A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
Input Voltage: 90-260VAC @ 47-63 Hz
Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <65A Peak @ 120VAC, <130A Peak @ 230VAC
Efficiency: 80+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Line Regulation: ± 1%
Load Regulation: ± 3%
2-Pair Powering: – Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering: -
Operating Temperature: 0 to 40° C (32 to 104° F)
Storage Temperature: -30 to 70° C (-22 to 158° F)
Operating Humidity: 35 to 95% Noncondensing
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20 μs) Power
Peak Pulse Current: 36A (10/1000 μs) Data
Shunt Capacitance: <5 pF data
Response Time: <1 ns
Compliance: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B
