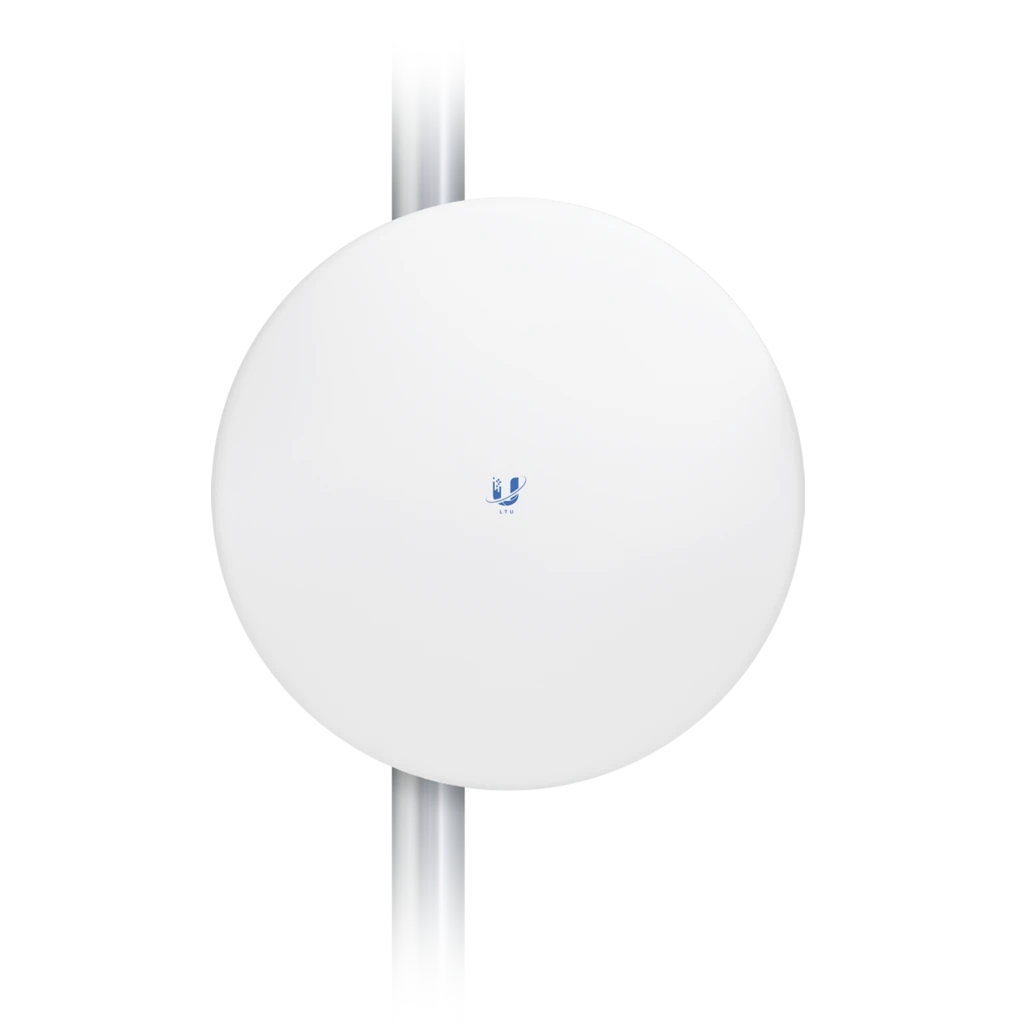

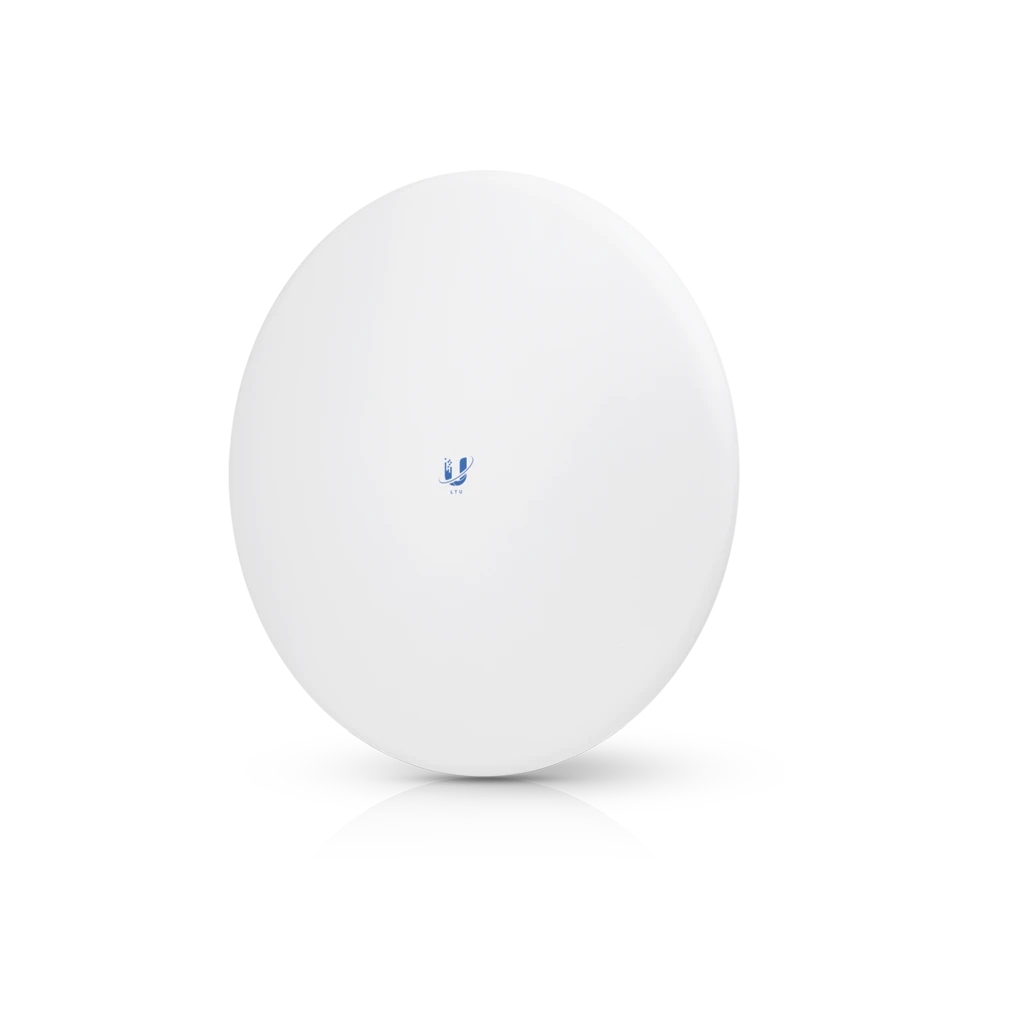

UBIQUITI 5 GHz PtMP LTU Client Radio with Advanced RF Performance (LTU-PRO)
1x Gigabit PoE in LAN Port | Proprietary Ubiquiti ® LTU Processor | Integrated 24 dBi Dish Antenna | 10/20/30/40/50 MHz Channel Width Flexibility | Integrated GPS | Range up to 25 km
Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Automatic power adjustments
- Router mode support
Functions in a PtMP environment with the LTU-Rocket as the basestation
Auto Power Adjustments
By default, the Auto Output Power option allows the LTU Pro to set the output power (EIRP) to the appropriate level.
The LTU Pro's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.
To manage the LTU Pro, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Pro. Within the LTU Configuration Interface, you can manually configure the LTU Pro or manage it from the AP side using the Find My AP feature. The LTU Pro will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Pro.
Built‑in GPS improves synchronization and allows map and Fresnel
views on the Dashboard.
|Dimensions||316.5 x 316.5 x 174.3 mm
(12.46 x 12.46 x 6.86")

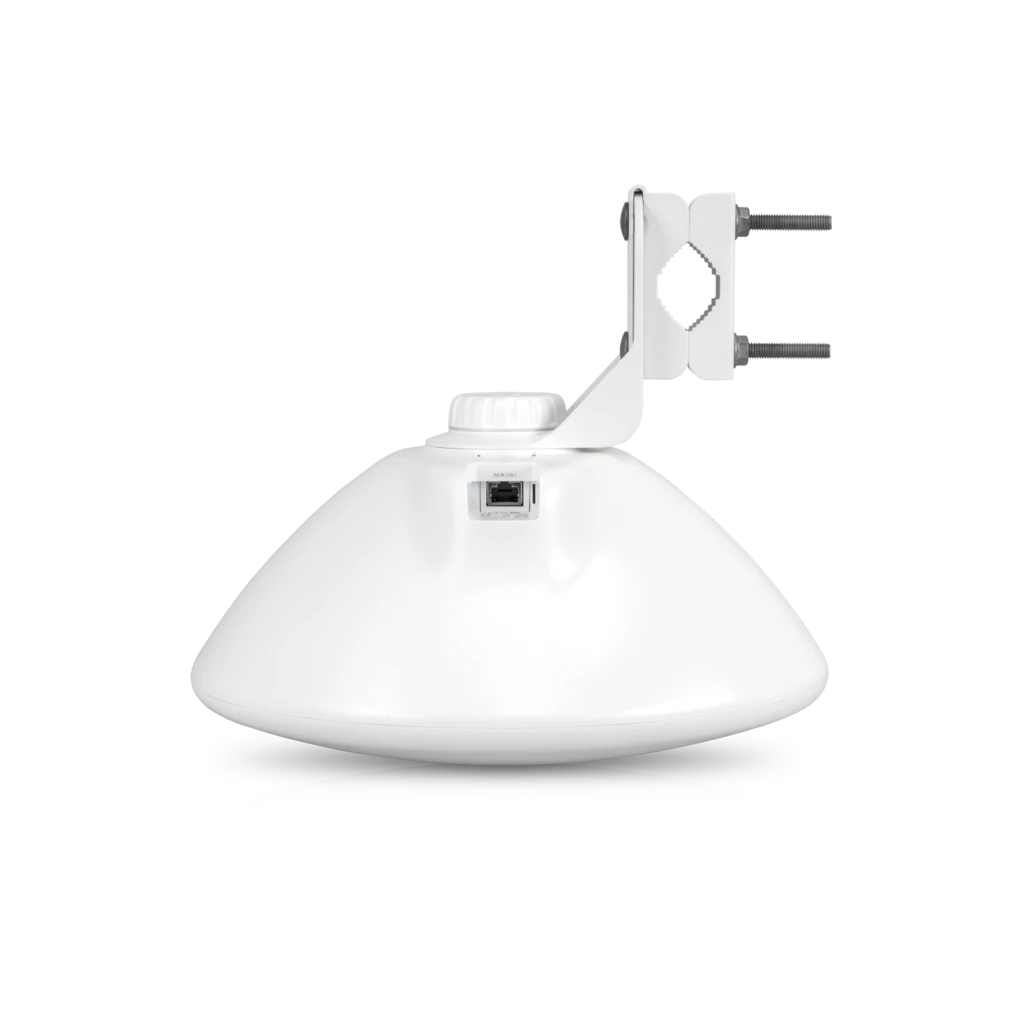

|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Enclosure||Outdoor UV Stabilized Plastic|
|Max. Power Consumption||9W|
|Power Supply||24V, 0.5A Gigabit PoE Adapter (Included)|
|Power Method||24V Passive PoE (Pairs 4, 5+; 7, 8-)|
|Voltage Range||22 -26V|
|Max. Conducted TX Power||22 dBm (per Chain)|
|Sidelobe Level||-10 dB|
|Front-to-Back Ratio||27 dB|

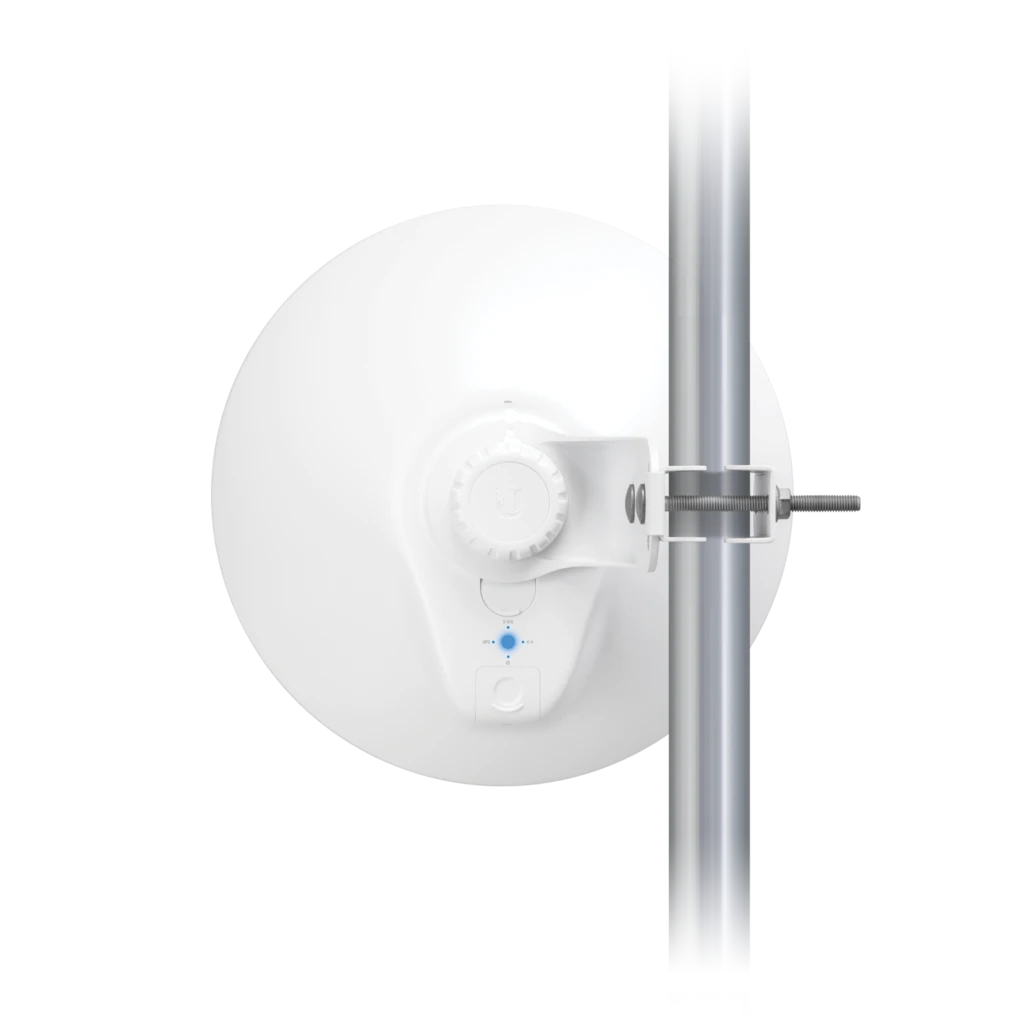

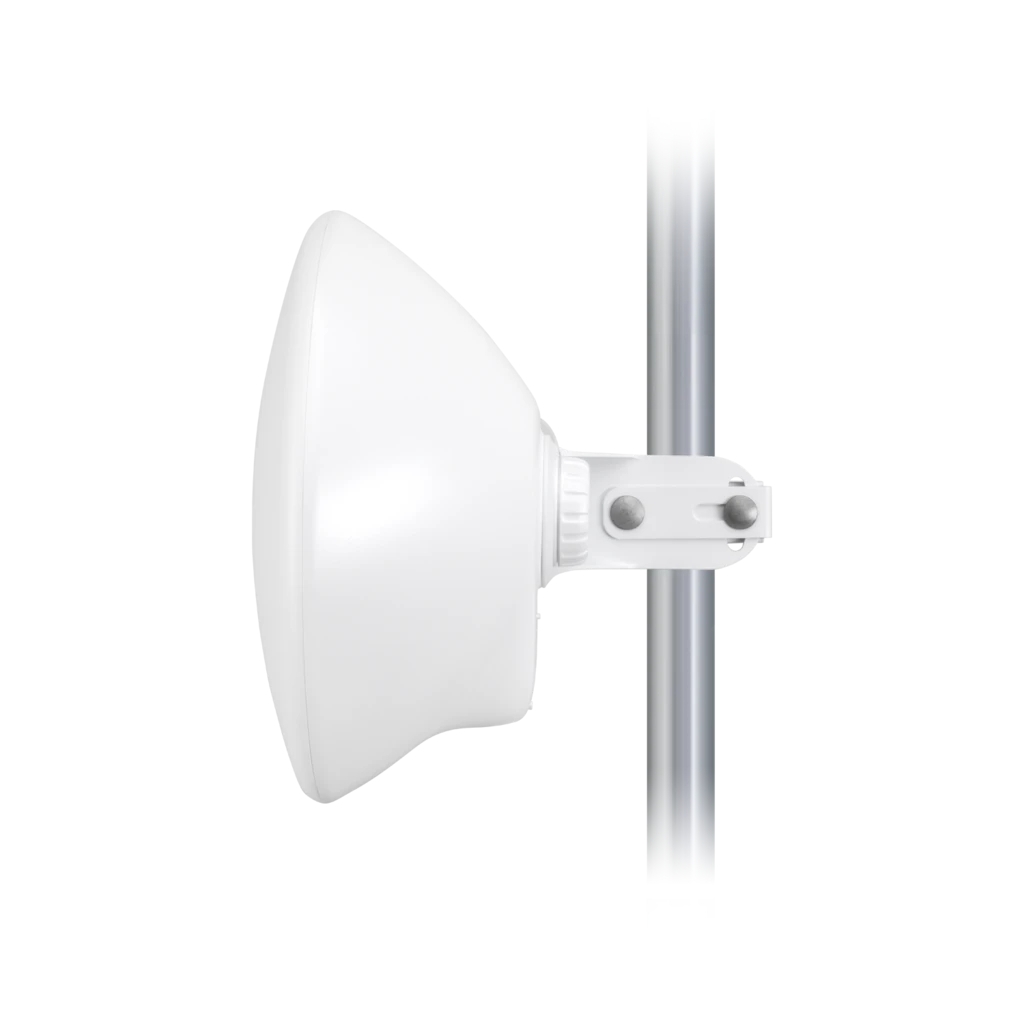

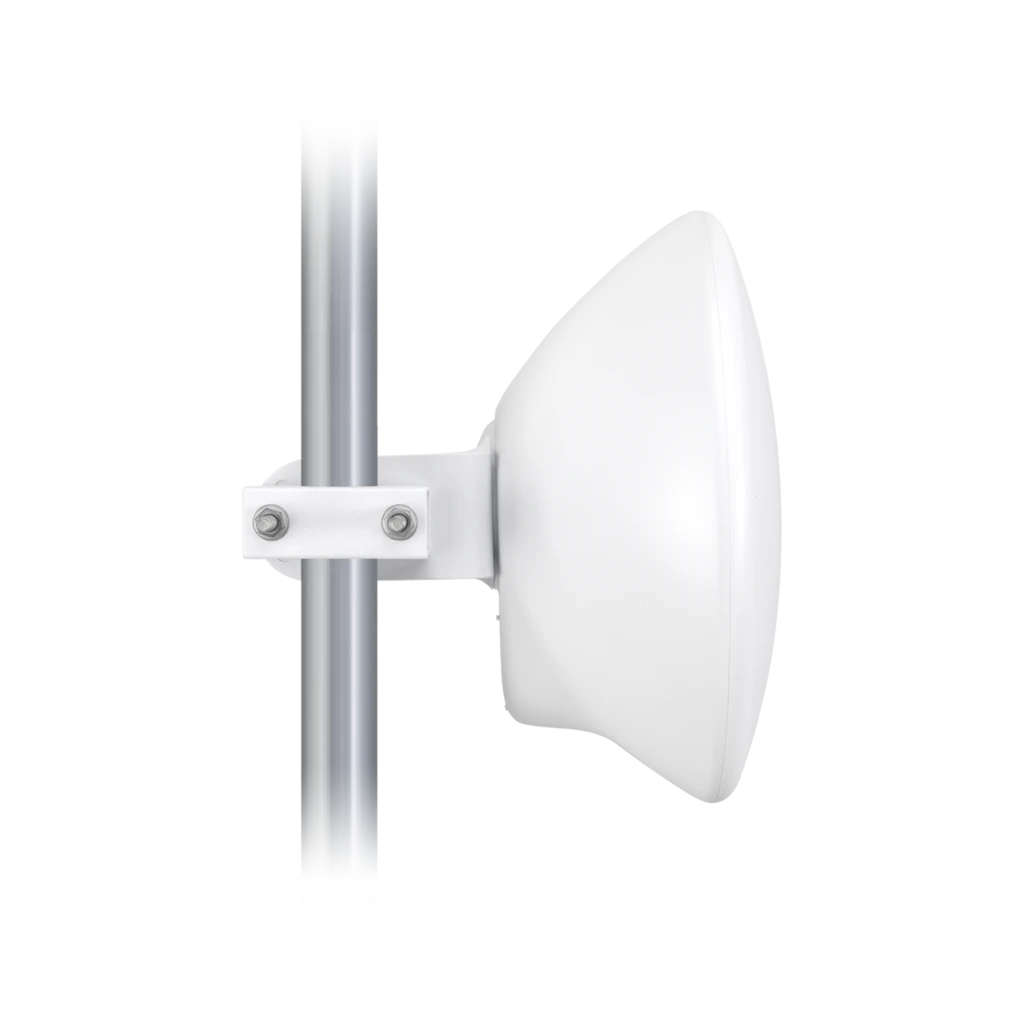

|Mounting||Pole-Mount (Kit Included)|
|Wind Loading||150 N @ 200 km/h
(33.72 lbf @ 125 mph)
|Wind Survivability||200 km/h
|ESD/EMP Protection||± 24kV Contact/Air|
|Operating Temperature||-5 to 40° C
(23 to 104° F)
|Operating Humidity||10 -90% Noncondensing|
|Certifications||CE, FCC, IC|
|Operating Frequency (MHz)|
