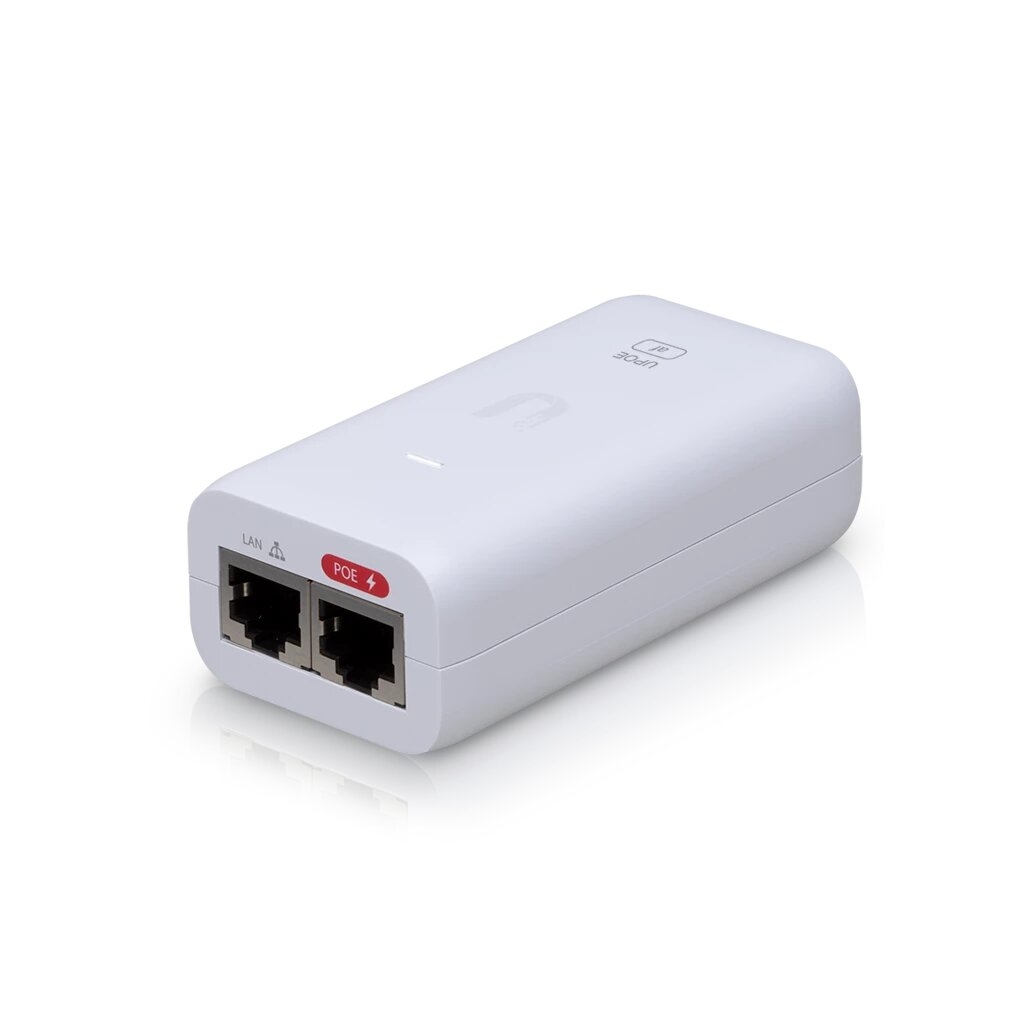

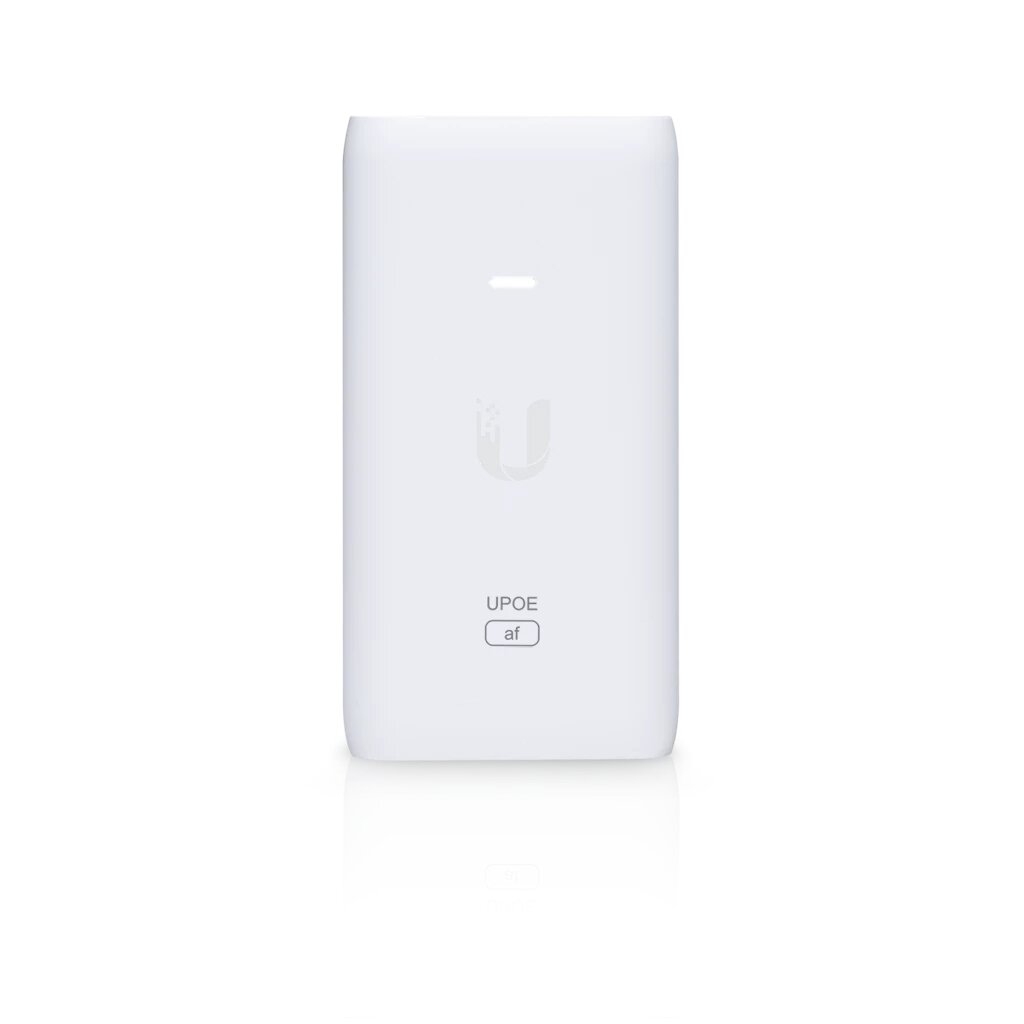

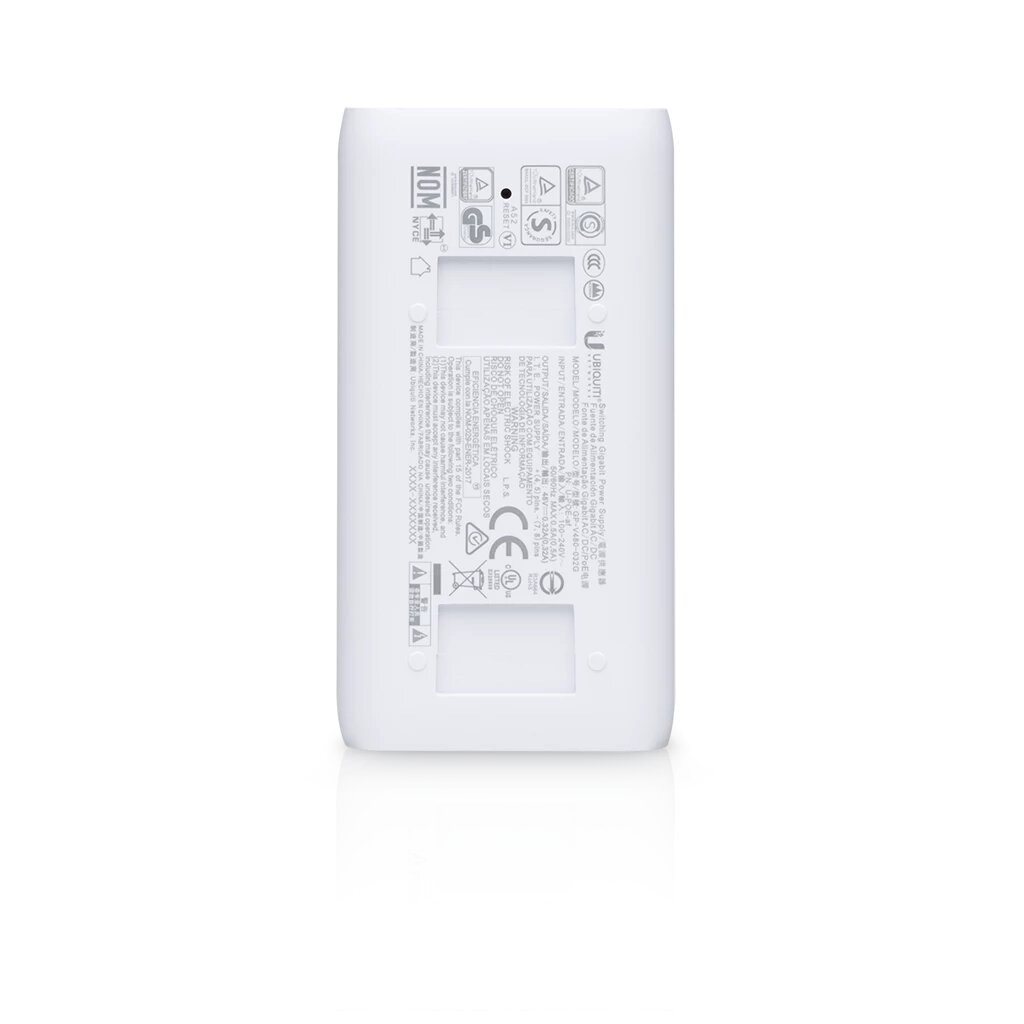

UBIQUITI 802.3af Supported 0.32A Gigabito PoE Injectorius (U-POE-af)

Kodas: U-POE-af
ID: #2012

0.32A, įžeminimas, ESD apsauga, nuotolinio atstatymo galimybės

naujiena

7.76€ su PVM

Kaina be PVM: 6.41€

Kiekis:


Produkto specifikacijos:

Dimensions 86 x 46 x 33 mm
(3.39 x 1.81 x 1.30")
Weight 100 g (3.53 oz)
Output Voltage 48VDC @ 0.32A
LAN Activity
Indicator
No
Gigabit LAN Port Yes
Remote Reset
Capability
Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 500mA @ 90VAC
Inrush Current <100A Peak @ 25°C
Efficiency 84.25+%
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
4-Pair Powering 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 5 to 90% Non condensing

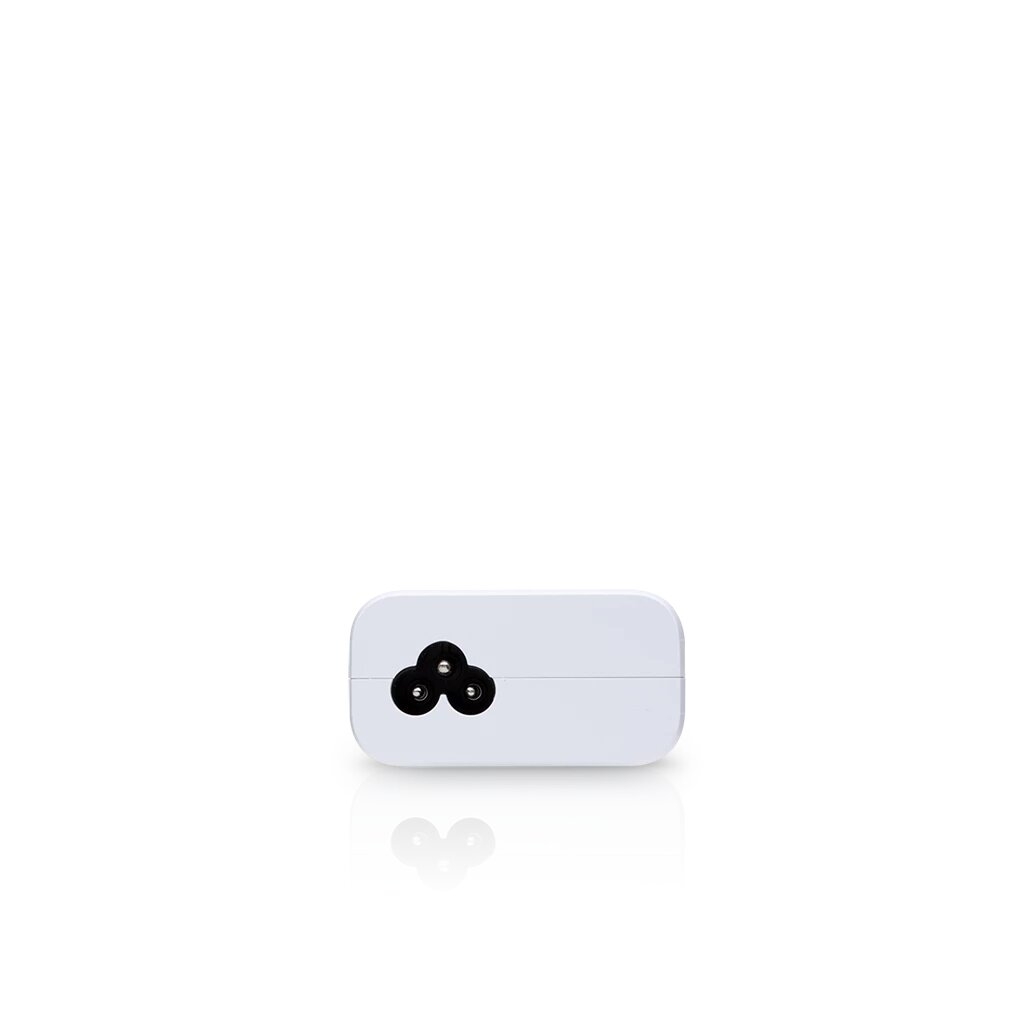

AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 µs) Power
Peak Pulse Current 36A (10/1000 µs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
