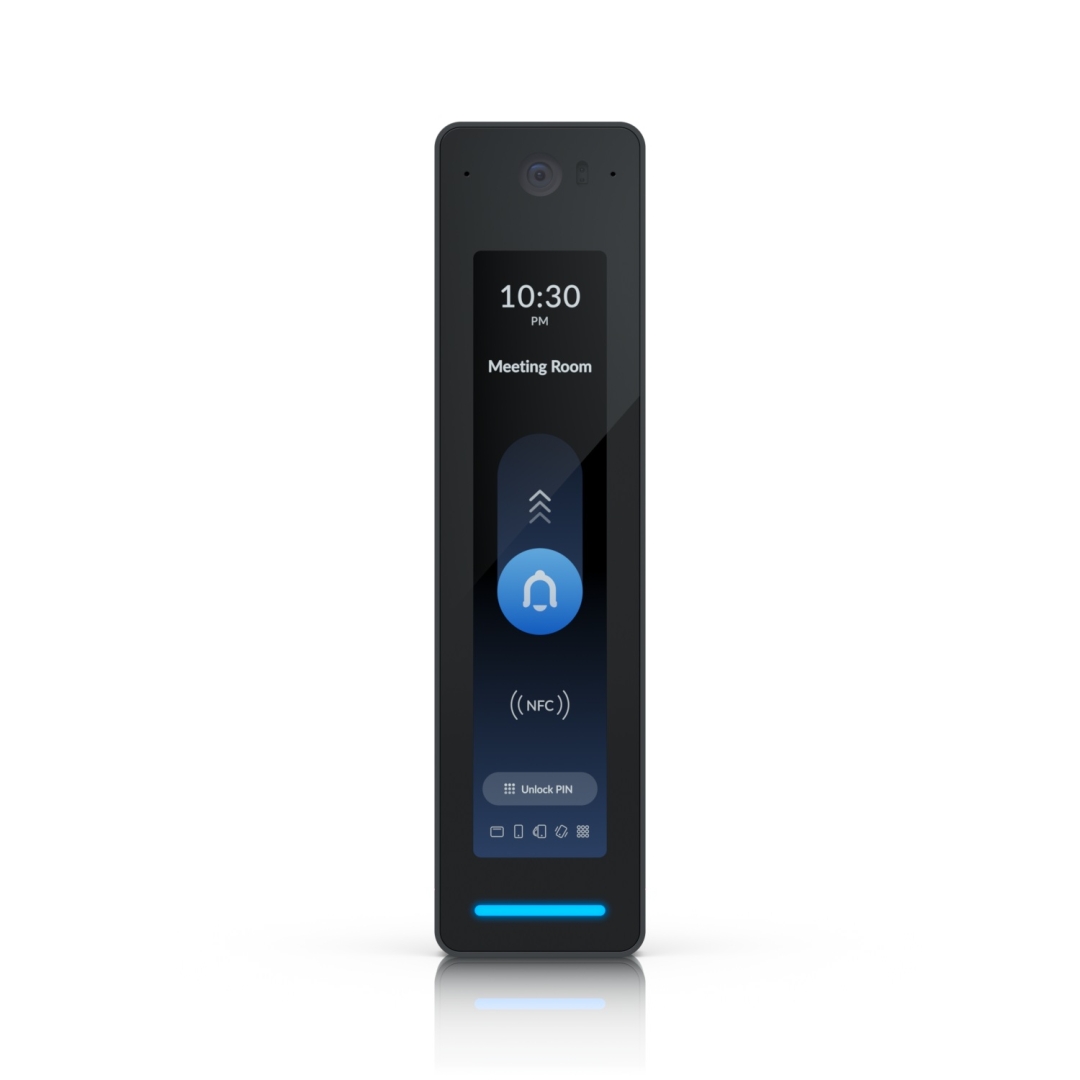

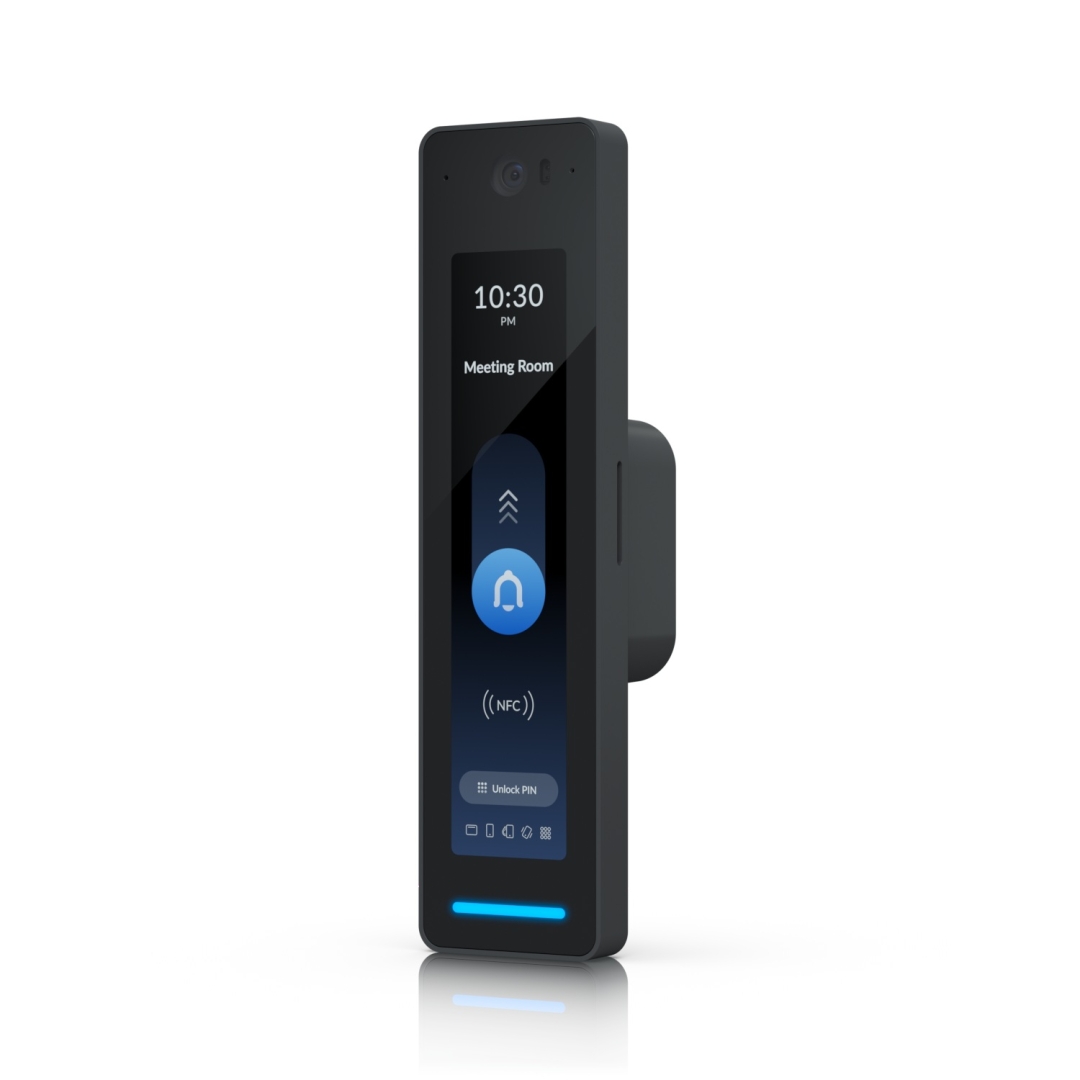

UBIQUITI Access G3 Reader Pro, Black (UA-G3-Pro-B)

Produkto savybės:

Advanced Access Control
The Ubiquiti G3 Access Reader Pro Black (UA-G3-Pro-B) is a high-performance access control device designed for secure and efficient entry management. Featuring a Gigabit Ethernet RJ45 port and supporting PoE power input (48V DC), this reader ensures seamless connectivity and hassle-free installation. Its advanced BLE 4.2 and NFC connectivity enables smooth authentication through mobile devices and NFC-enabled access cards. Additionally, the built-in proximity sensor enhances security by detecting nearby movement, allowing for quick and automated authentication. With a maximum power consumption of just 6W, the UA-G3-Pro-B is an energy-efficient solution for modern access control systems.

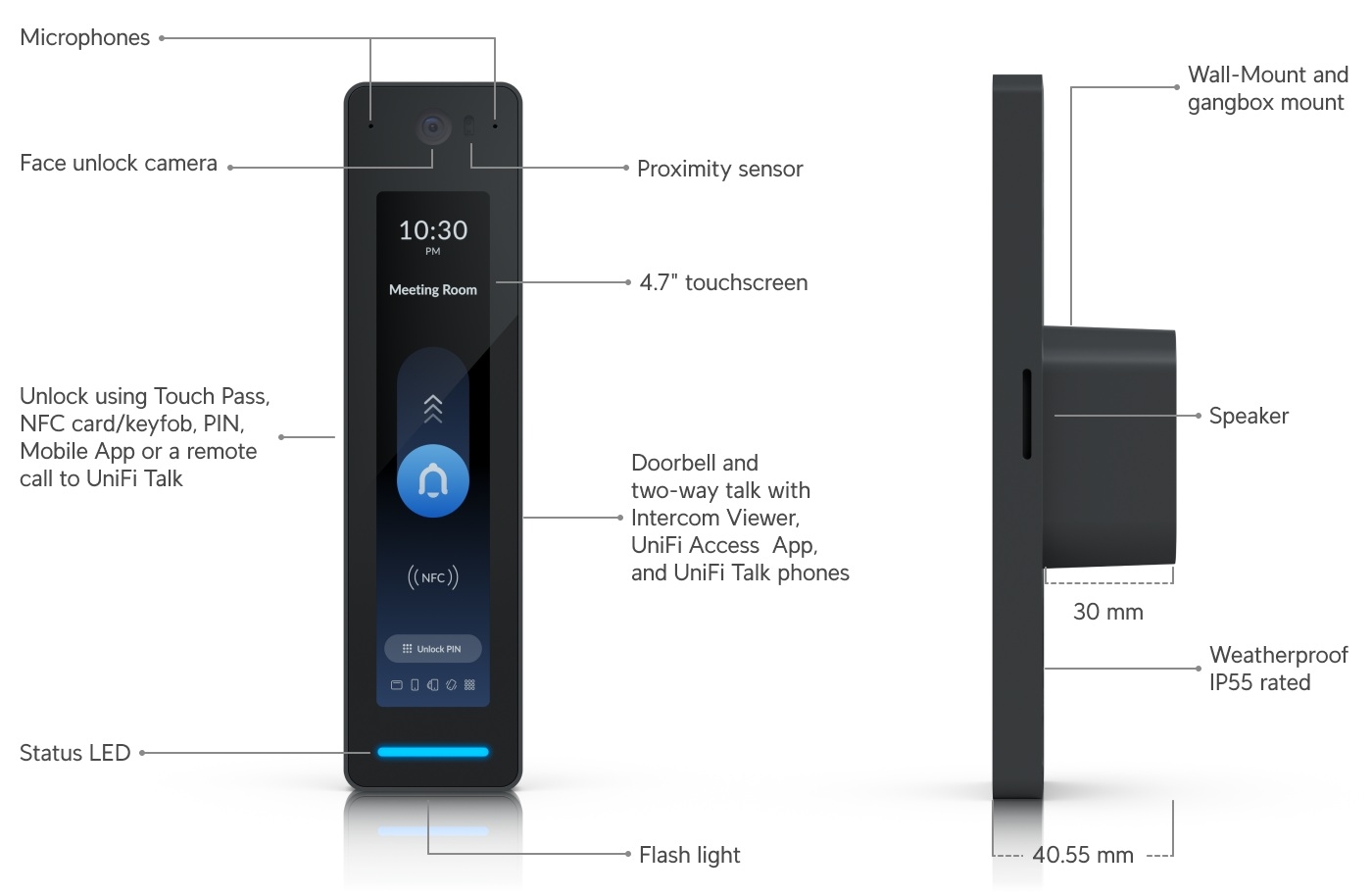

Equipped with a high-quality camera, the UA-G3-Pro-B provides clear visual monitoring of entry points. Its wide-angle lens offers a 96.67° horizontal, 123.15° vertical, and 153.11° diagonal field of view, ensuring a broad and detailed image capture. The built-in microphone allows for audio interaction, enhancing security by enabling real-time communication at access points. These features integrate seamlessly with the UniFi Access platform (Version 3.0.15 and later), providing administrators with advanced control over user access, monitoring, and event logging.

Easy Installation

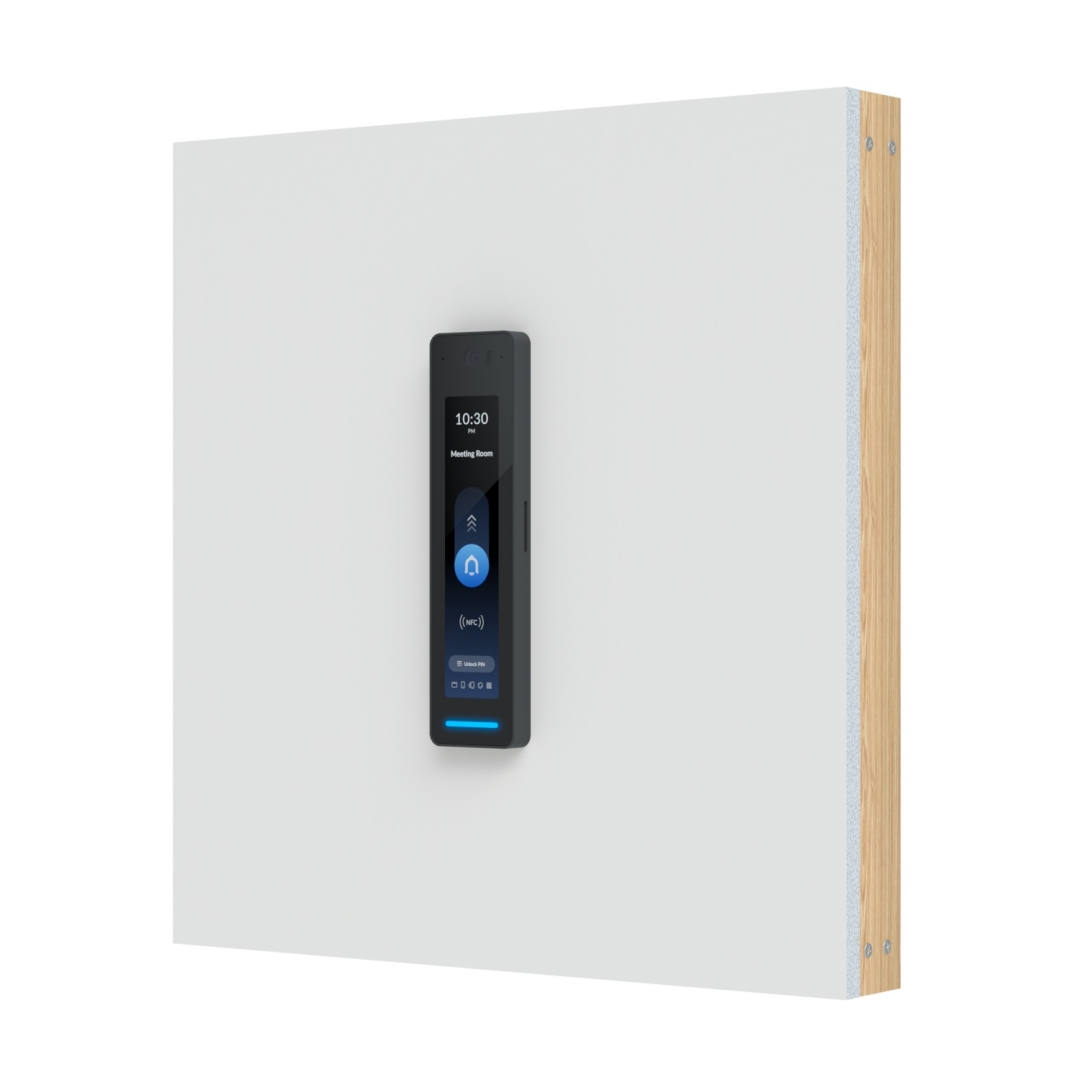

The UA-G3-Pro-B offers multiple mounting options to suit different installation needs. It comes with wall mount and gangbox mount hardware included, while angle mounts and junction box mounts are available as optional accessories. This flexibility allows for optimal positioning to enhance user convenience and security. Whether deployed at corporate offices, residential buildings, or industrial facilities, the device integrates effortlessly into new or existing UniFi Access setups, offering a powerful and scalable access control solution.
Designed for outdoor use, the UA-G3-Pro-B is built to withstand various environmental conditions. Its polycarbonate and glass enclosure, combined with a sturdy aluminum alloy mounting system, ensures durability and longevity. With an IP55 weatherproof rating, the device is resistant to dust, water, and temperature fluctuations, making it suitable for diverse installation environments. This robust construction guarantees reliability in high-traffic areas, ensuring consistent operation in different climates and weather conditions.

Produkto specifikacijos:

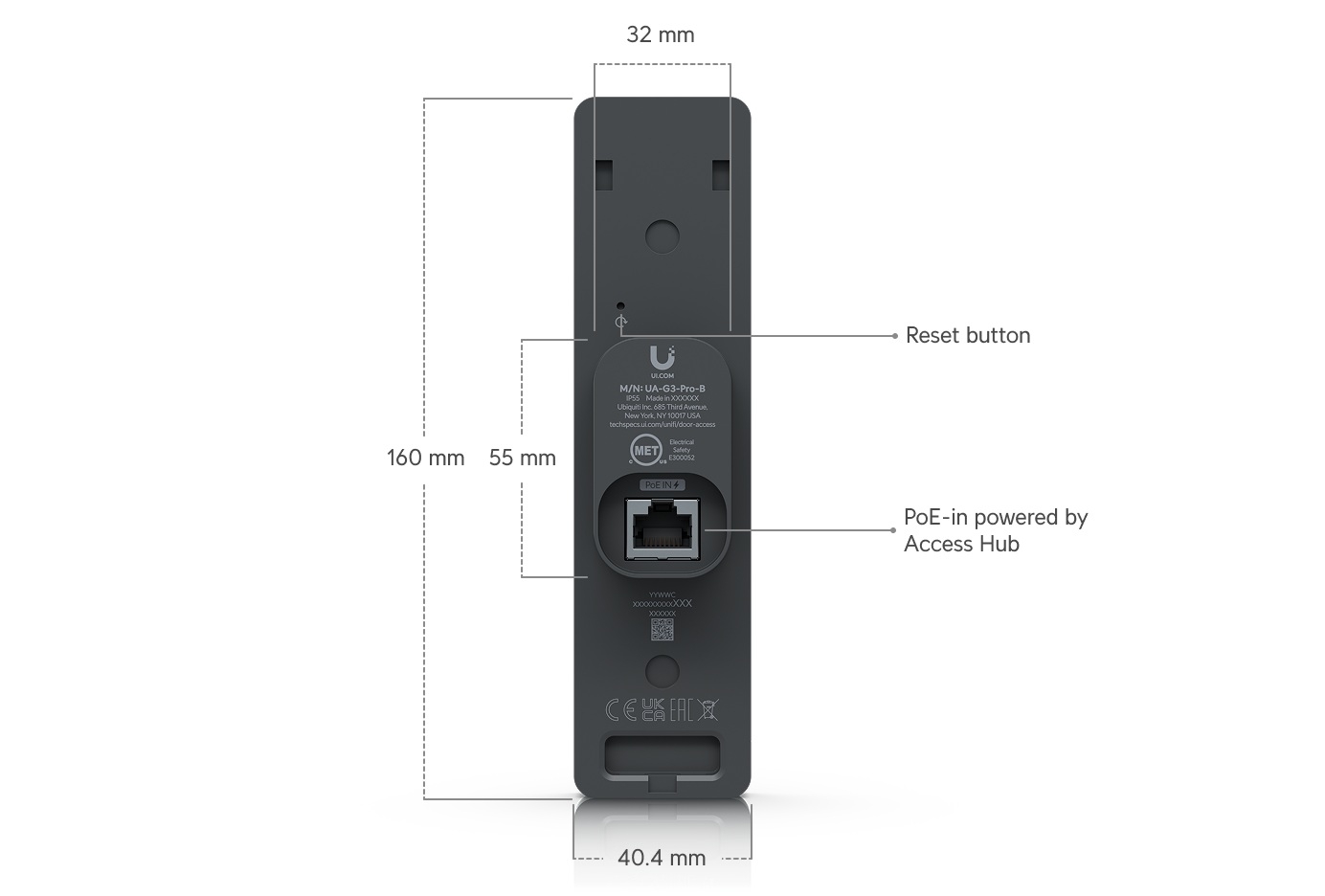

Dimensions: 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Integrated Camera: Yes
NFC Card & Keyfob Access: Yes
PIN Access: Yes
Apple/Google Wallet: Yes
Mobile Unlock: Yes
Two-Way Intercom & Doorbell Access: Yes
NDAA Compliant: Yes
UL 294 Level:
    Destructive attack: Level I
    Line security: Level I
    Endurance: Level I
    Standby power: Level I
Weatherproofing: IP55

Mechanical

Weight: 136 g (4.8 oz)
Enclosure Material: Polycarbonate, glass
Mount Material: Aluminum alloy

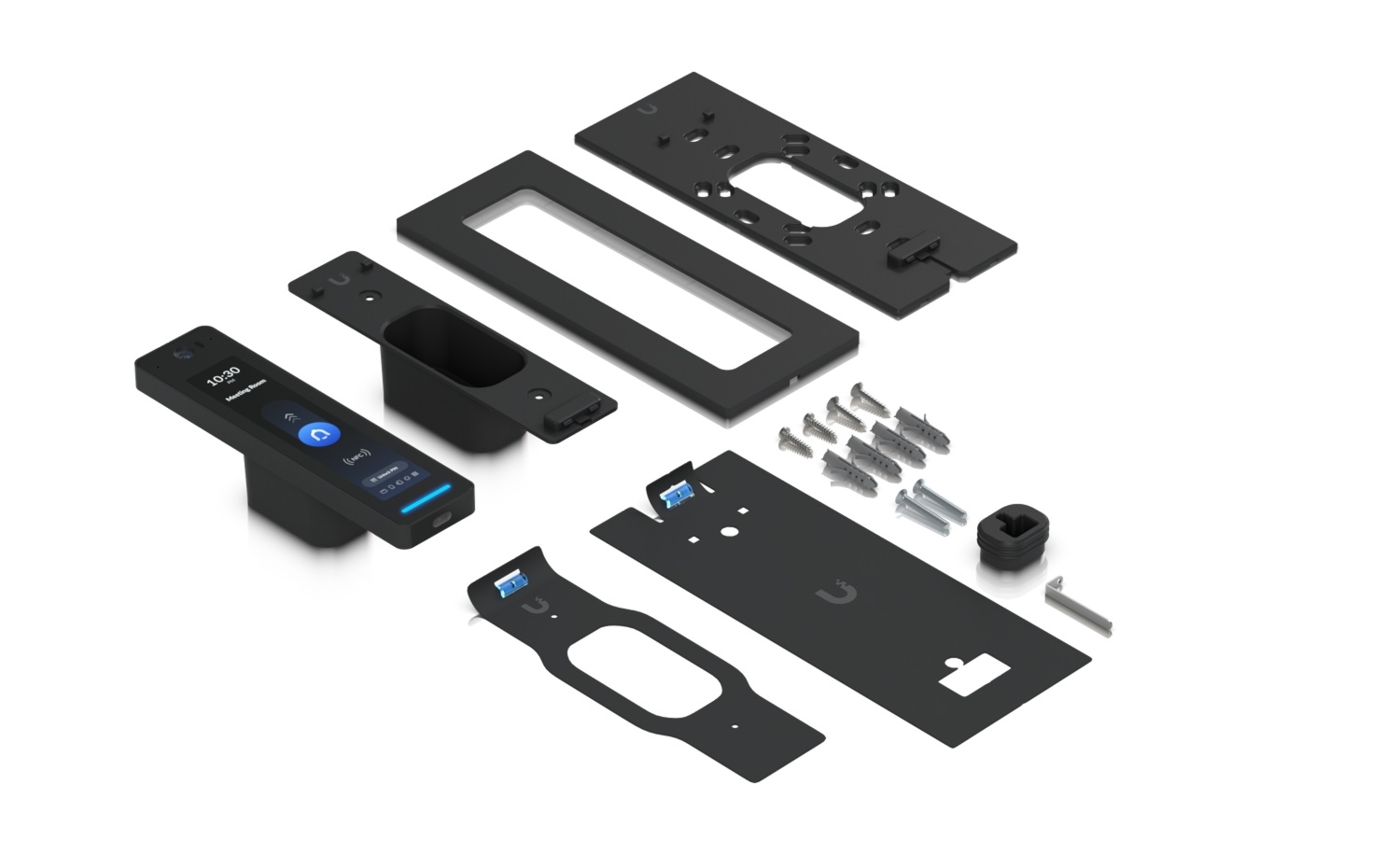

Mounting: Wall, gang-box mount (Included) Angle mount, junction box (Optional)

Hardware

Indoor and Outdoor Use: Yes
Ambient Operating Temperature: Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity: 5 to 90% noncondensing

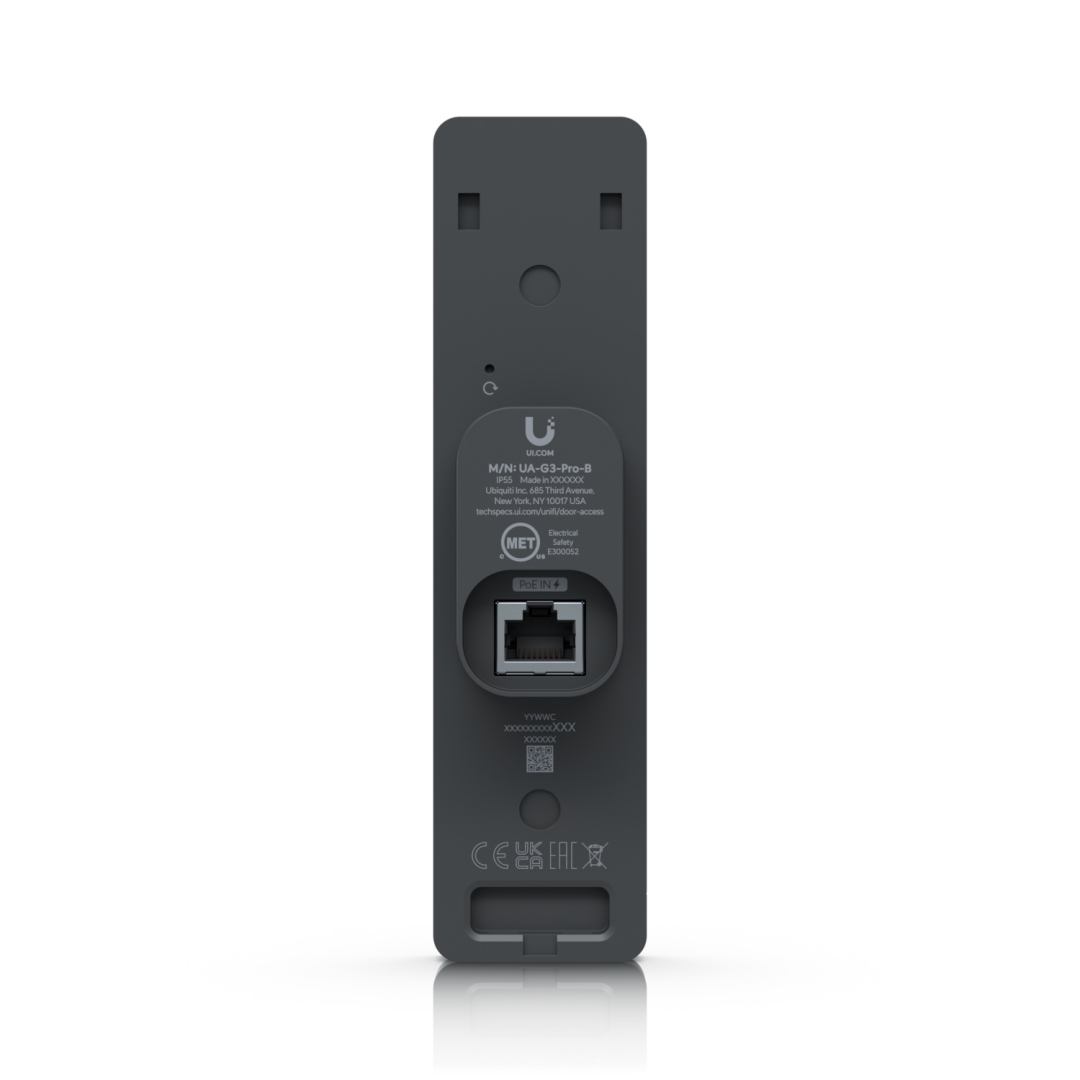

Networking Interface: (1) GbE RJ45 port
Connectivity: BLE 4.2 NFC
Power Method:
    PoE
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption: 6W
Supported Voltage Range: 48V DC
ESD/EMP Protection: Air: ±15kV, contact: ±8kV
Sensors: Proximity sensor
Display: 120 mm (4.7") diagonal
Touch Screen Technology: Capacitive touch
Display Luminance: 480 nits (Typical)
Screen Orientation: Portrait
Resolution: 1280 x 286 px
Microphone: Yes
Speaker: Yes
LEDs: R/G/B/W/Amber Learn More
Button: (1) Factory-reset
NFC Frequency: 13.56 MHz
NFC Read Range: < 30 mm (1.18'')
NFC Technology:
    ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
    MIFARE Classic / MIFARE DESFIRE
    Sony FeliCa™ (ID only)
    NFC Forum tags T1T, T2T, T3T, T4T and T5T
    ECP 2.0
PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade: Grade assignment: I
Certifications: CE, FCC, IC,UL 294, CAN/ULC-60839-11-1

Software

Management Application: Access
Software Information: The software version can be checked at https://unifi.ui.com
