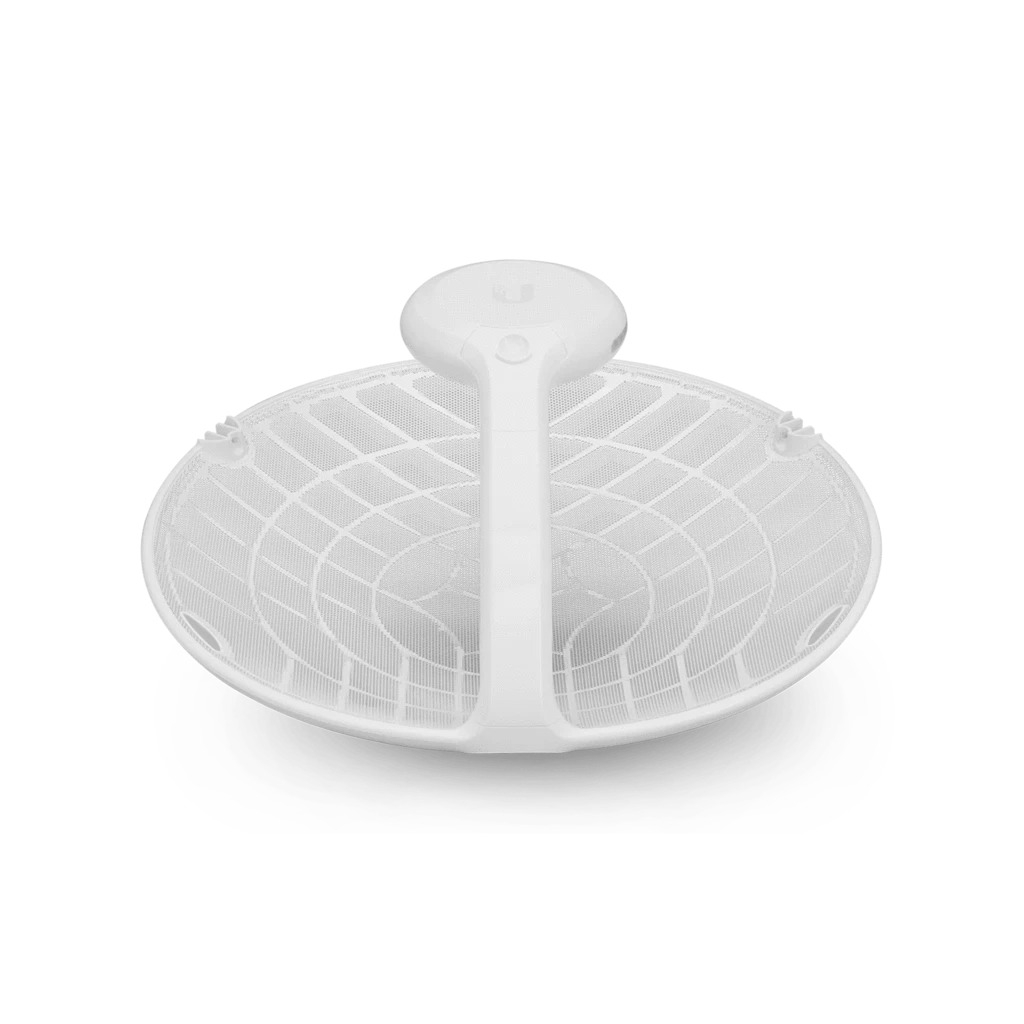

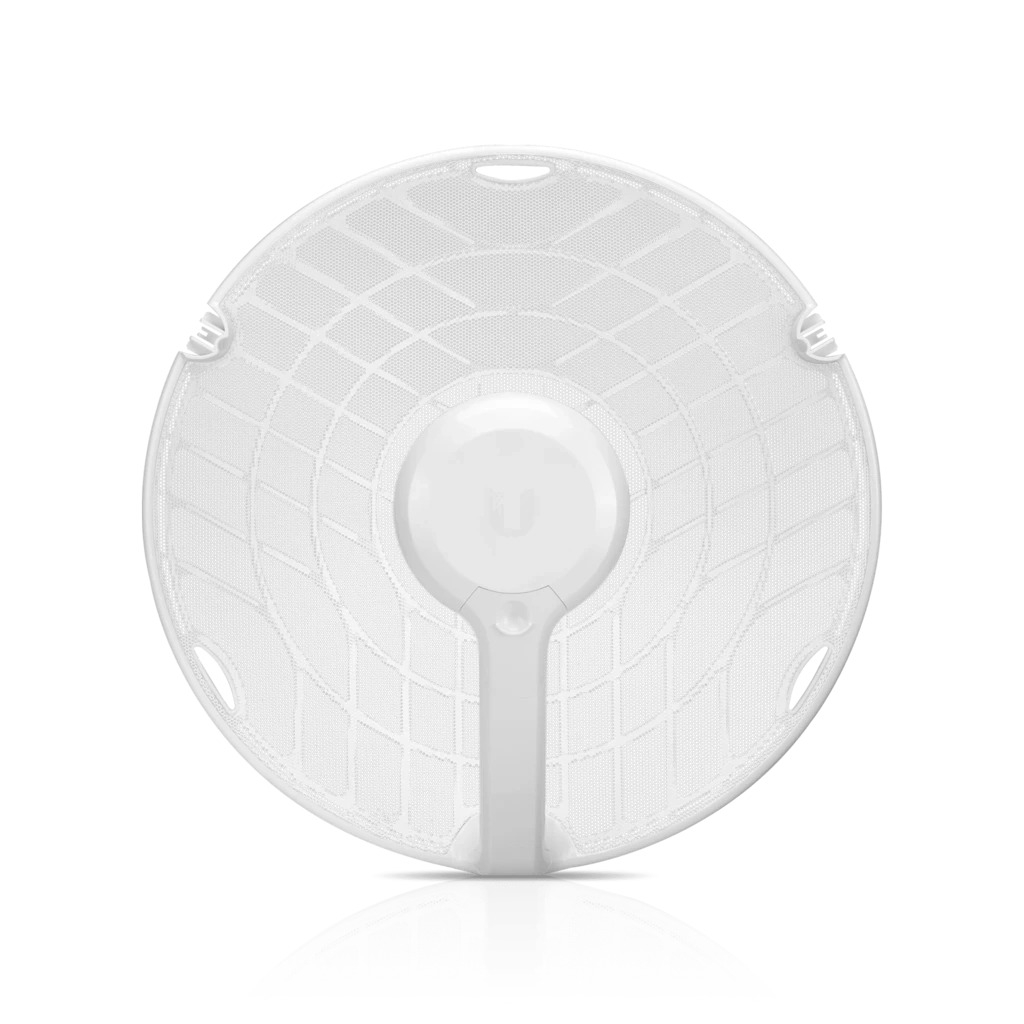

UBIQUITI airFiber 60 GHz/5 GHz Radio System with 1+ Gbps Throughput (AF60)

OEM kodas: AF60
Kodas: AF60
ID: #2381

1x Gigabit LAN port | 60 GHz radio with 5 GHz radio backup | Antenna Gain: 11dBi for 5 GHz, 38dBi for 60 GHz | Low-interference 60 Ghz spectrum | Long range, up to 2 km | Integrated GPS | Dedicated management radio

281.58€ su PVM

Kaina be PVM: 232.71€

Kiekis:


Produkto savybės:

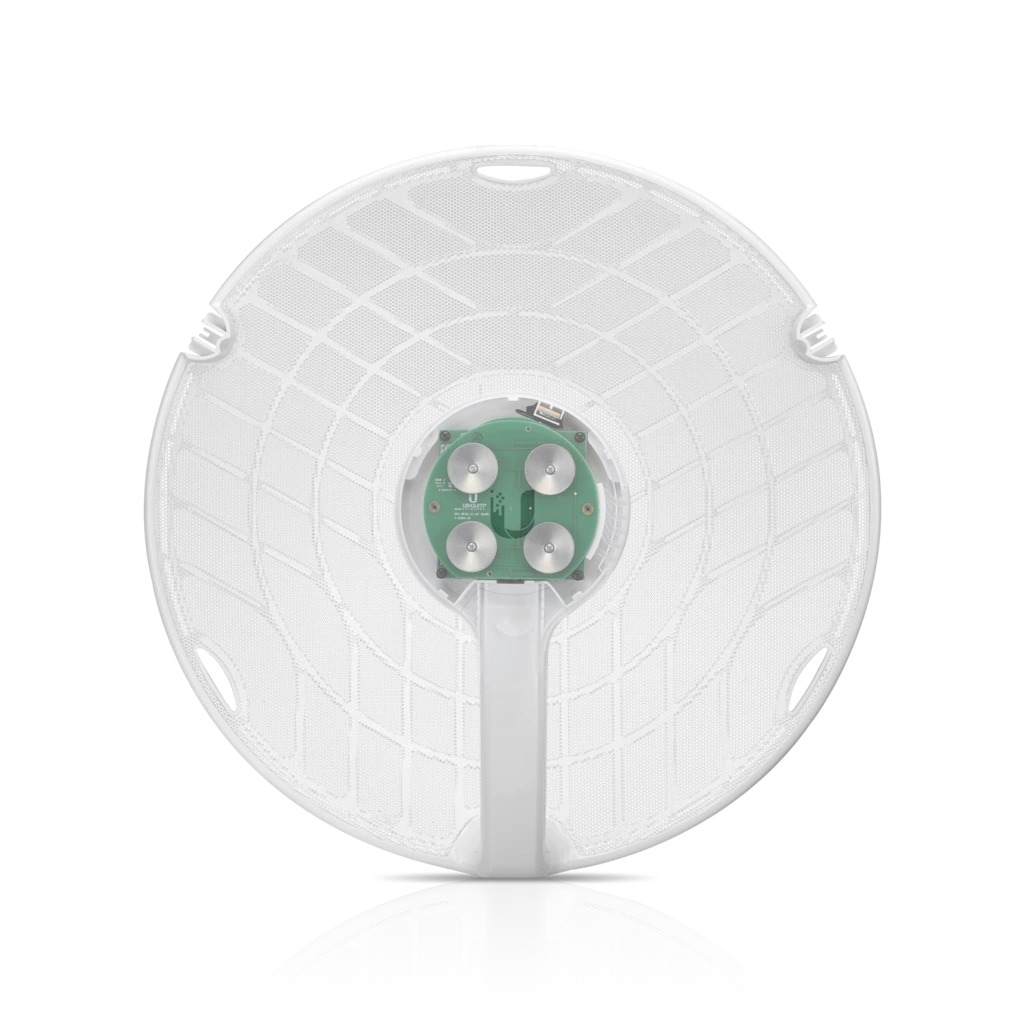

AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It's integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance.

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 Ghz spectrum
  • Long range, up to 2 km
  • Up to 1 Gbps with low latency
  • Integrated GPS
  • Full and half bandwidth support

Produkto specifikacijos:

Dimensions 413 x 413 x 320 mm
(16.26 x 16.26 x 12.60")
Weight
     Without Mount
     With Mount

1.4 kg (3.09 lb)
1.8 kg (3.97 lb)
Enclosure Aluminum, UV-stabilized Polycarbonate
Antenna Gain
5 GHz
60 GHz

11 dBi
38 dBi

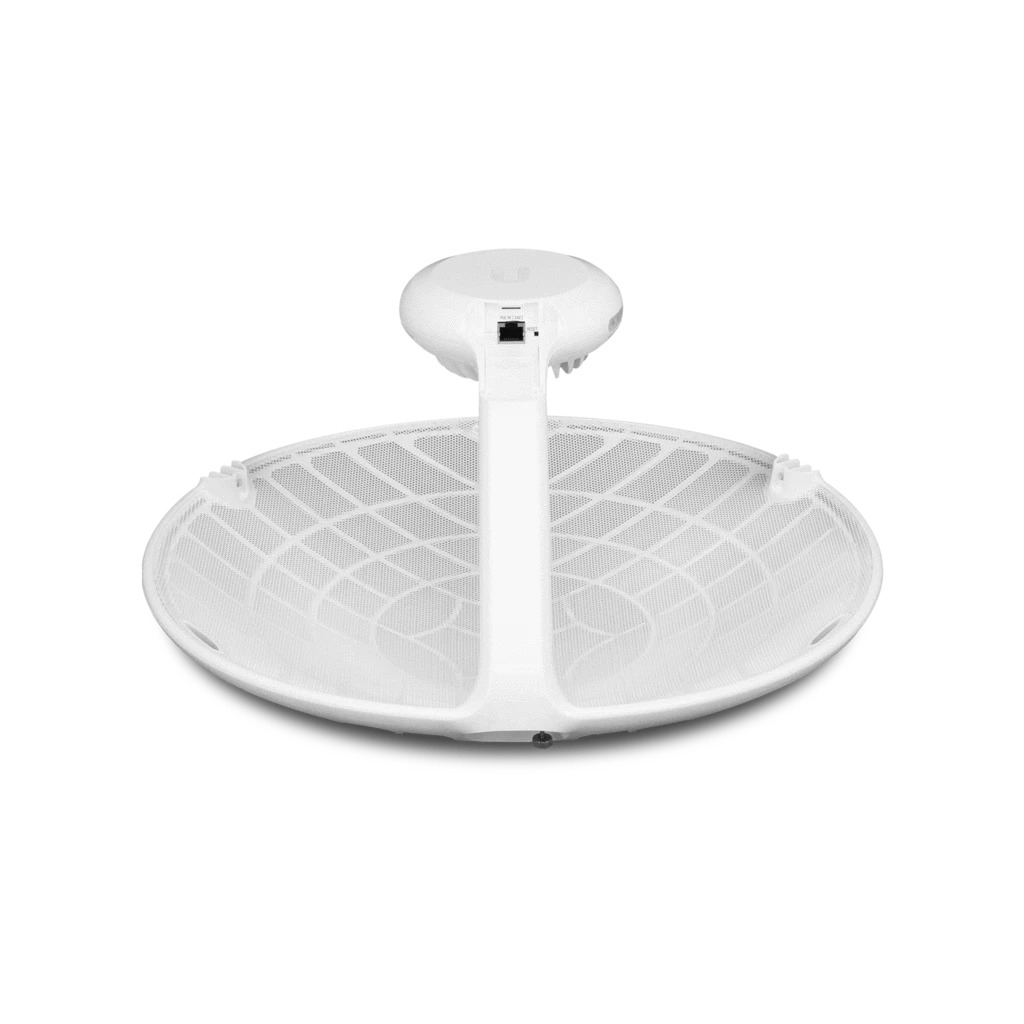

Networking Interface (1) 10/100/1000 Mbps Ethernet Port
Max. Power Consumption 11W
Power Method Passive PoE, Pins 4, 5+ and 7, 8-

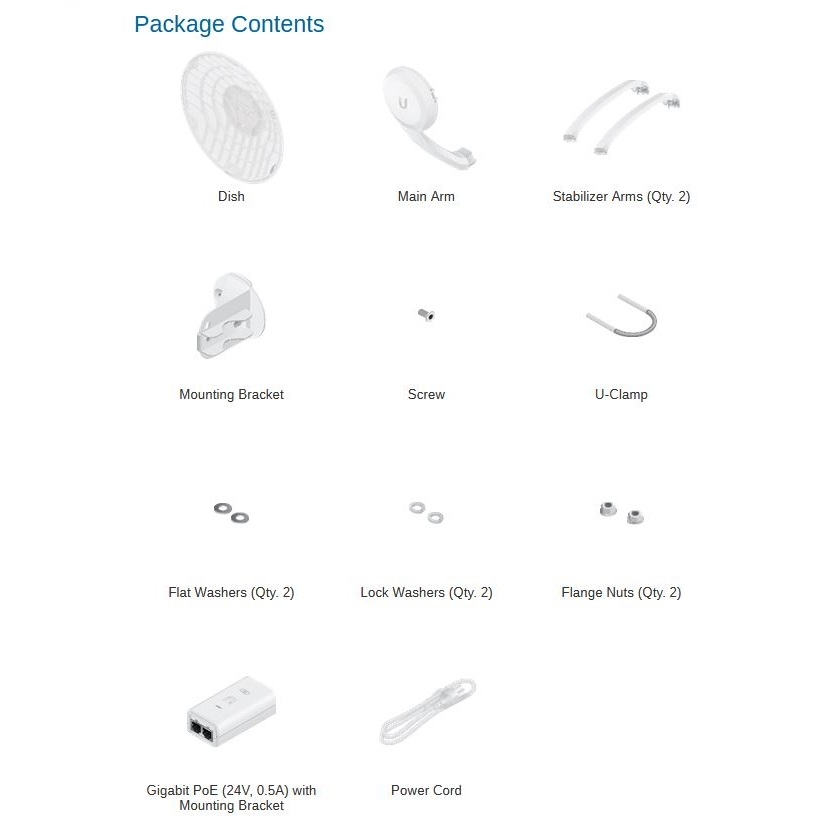

Power Supply 24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range +22 to +26VDC
LEDs Power/Ethernet/5G/60G/GPS

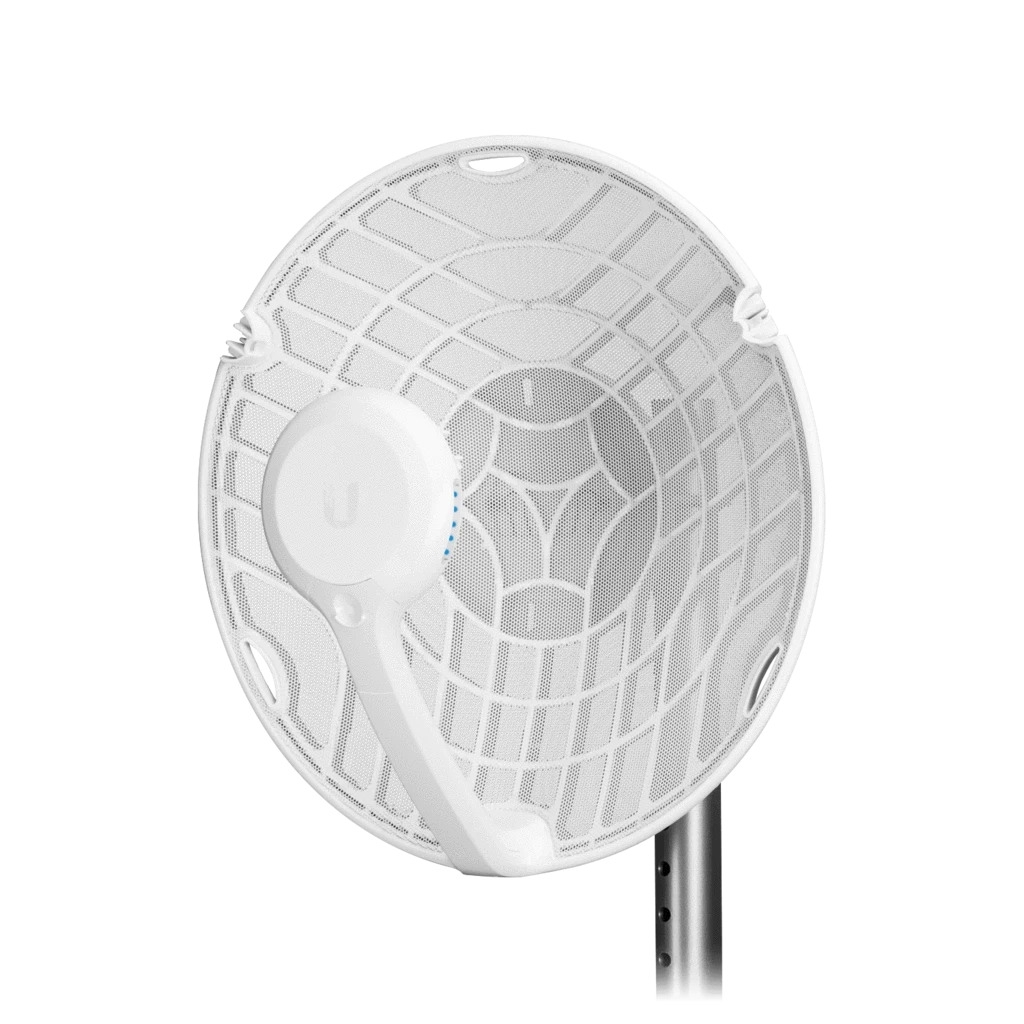

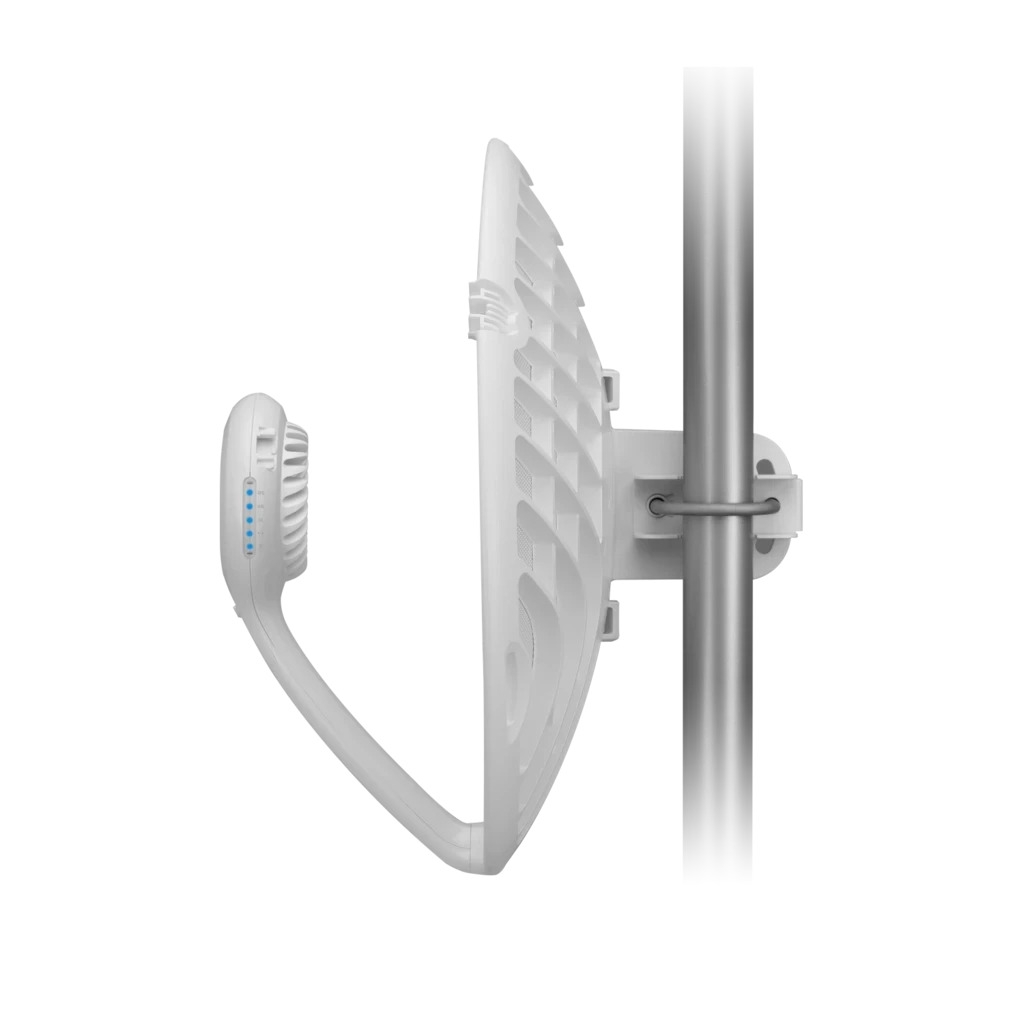

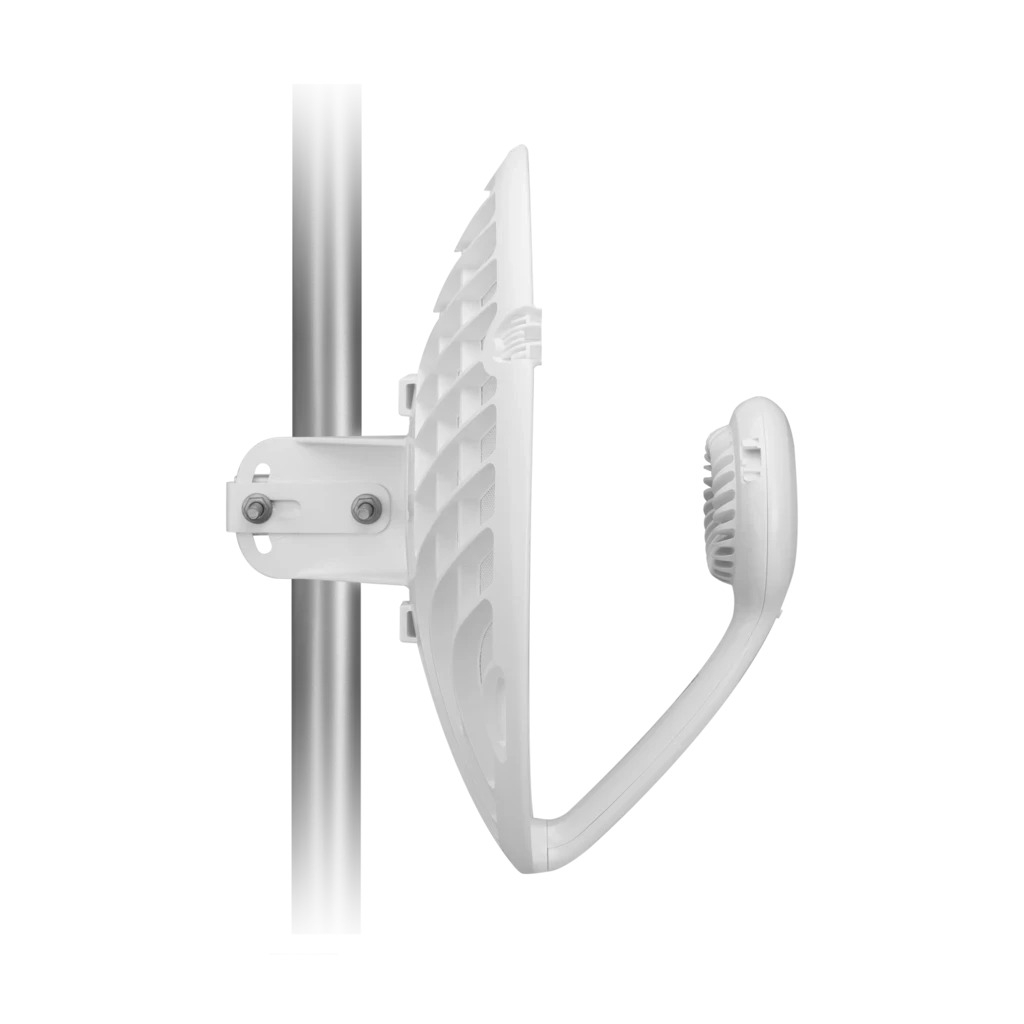

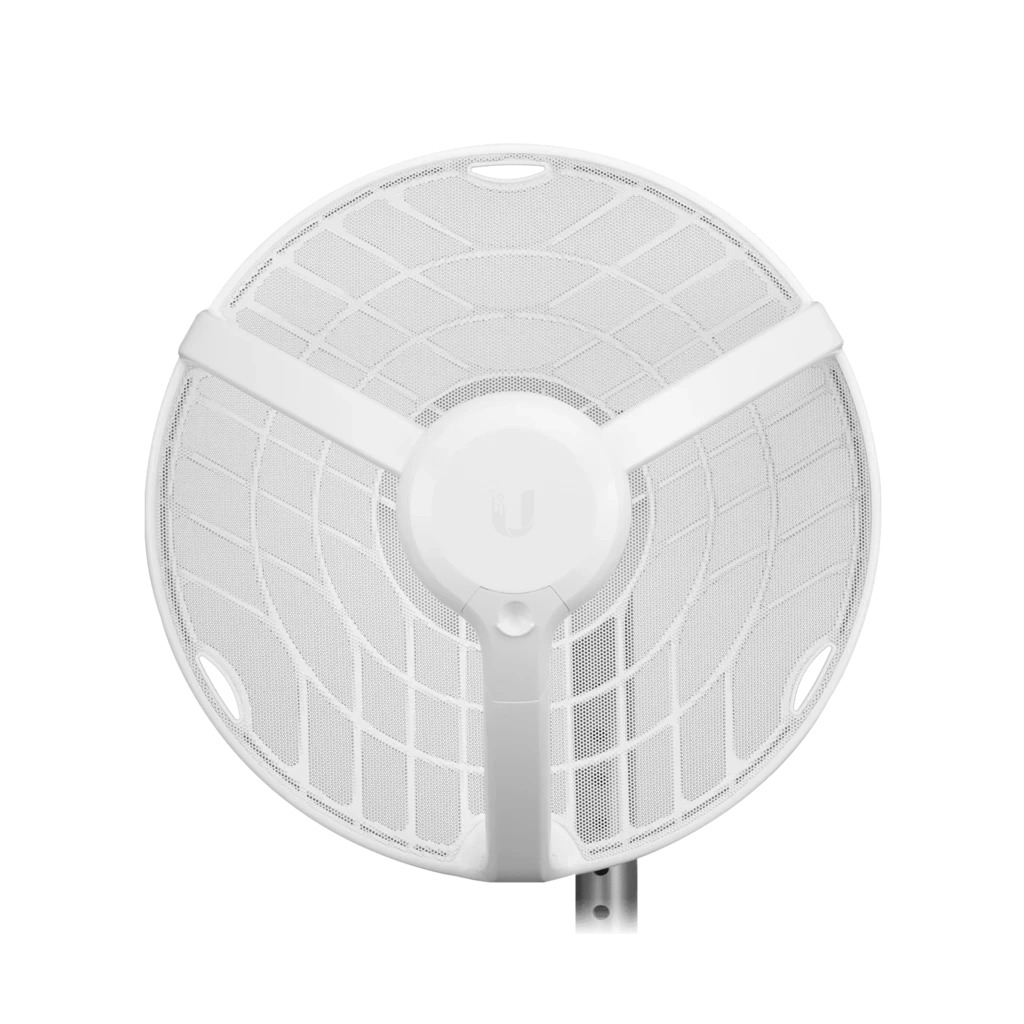

Mounting Pole Mount (Included)
Wind Loading 420 N @ 200 km/h
(94.4 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C
(-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
System
Maximum Throughput 1.8 Gbps
Maximum Range 2+ km
Encryption WPA2-PSK (AES)/WPA2 Enterprise
OS airOS GP
Radio
Max. Conducted TX Power
5/60 GHz Combined

25 dBm
Channel Bandwidth
60 GHz
5 GHz

2160 MHz
20/40/80 MHz
Operating Frequency (Mhz)
US/CA
U-NII-1
U-NII-3

5150 – 5250
5725 – 5850
57,000 – 66,000
Worldwide 5180 - 5875
57,000 - 66,000
Management Radio (MHz)
Worldwide 2412 - 2472
US/CA 2412 - 2462
