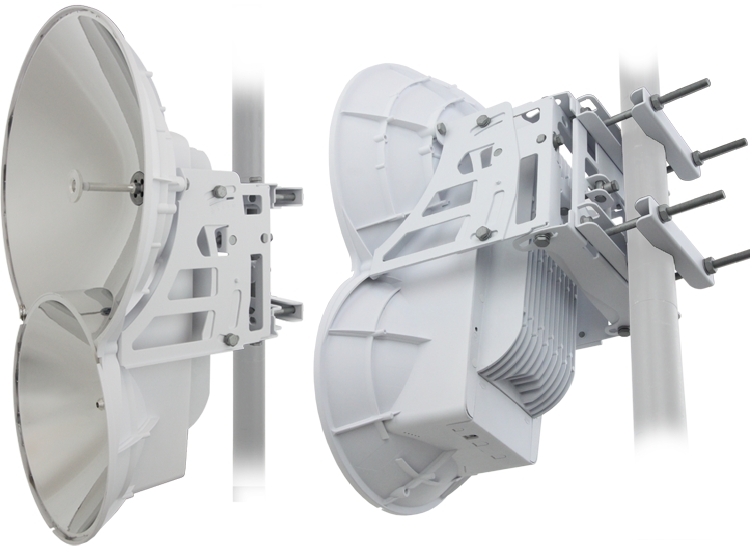

UBIQUITI AF-24, AirFiber 24 GHz Point-to-Point 1.4Gbps+ Radio, worldwide license free

1381.83€ su PVM

Kaina be PVM: 1142.01€


Produkto savybės:

Addressing the Under-served
airFiber core networks backbones can be instantly and cost-effectively deployed anywhere, bringing Internet deep into the unserved areas of the world.

Plug and Play Deployment
Utilizing the worldwide license-free 24GHz band, airFiber can be freely purchased and deployed nearly anywhere. Additionally, the product was designed to be instantly setup and configured.

Revolutionary Performance
With true 1.4Gbps+ data throughput and up to 13 km range, airFiber provides a breakthrough in 24GHz backhaul performance

Hybrid Division Duplex (HDD)
HDD provides the best of both worlds — latency performance of Frequency Division Duplex (FDD) with the spectral efficiency of Time Division Duplex (TDD).

Plug and Play Installation
Utilizing precision mounting hardware combined with a dynamic RSSI indicator, airFiber can be easily deployed by a single installer. Integrated GPS receivers automatically calculate position and timing parameters in the background, providing a true plug and play installation experience.

Produkto specifikacijos:

PRICE IS FOR ONE SIDE! For Complete PtP Link you need to order 2pcs.

Operating Frequency 24.05 – 24.25 GHz
Dimensions 649 x 426 x 303 mm
Weight 10.5 kg (Mount Included)
Max. Power Consumption < 50W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet (42-58VDC)
Certifications CE, FCC, IC
Mounting Pole Mount Kit (Included)
Operating Temperature -40 to 55°C (-40 to 131° F)
LEDs (8) Status LEDs: Data Port Speed
Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
RF Status
(1) Two-Digit LED Display Calibrated in dBm
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
Maximum Throughput 1.4+ Gbps
Maximum Range 13+ km
Packets per Second > 1 Million
Encryption 128-Bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 Fixed
Uplink/Downlink Ratio 50% Fixed

Radio Frequency

GPS GPS Clock Synchronization
EIRP ~33 dBm
Frequency Accuracy ±2.5 ppm without GPS Synchronization
±0.2 ppm with GPS Synchronization
Channel Bandwidth 100 MHz
Operating Channels 24.1 GHz, 24.2 GHz
Modulation 64QAM MIMO
Integrated Split Antenna
TX Gain 33 dBi
RX Gain 38 dBi
Beamwidth < 3.5°
Front-to-Back Ratio 70 dB
Polarity Dual-Slant Polarization
Cross-Polarity Isolation > 28 dB
