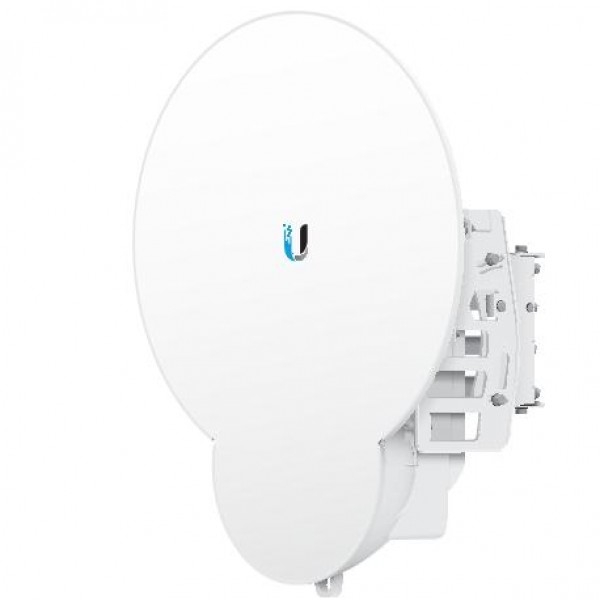

UBIQUITI AirFiber 24HD (AF-24HD)

Kodas: AF-24HD
ID: #829

UBIQUITI AF-24HD, AirFiber 24 GHz High Power Point-to-Point 2Gbps+ Radio, worldwide license free

2717.47€ su PVM

Kaina be PVM: 2245.84€


Produkto savybės:

AirFiber (AF-24HD) is a revolutionary unit operating in the 24 GHz band. With the advanced technology, the unit communicates at speeds up to 2 Gbps and up to a distance of 20 km!
AirFiber 24-HD operates in the worldwide, license-free, 24 GHz frequency. Anyone around the world can purchase and operate airFiber without any special permits, paperwork, or added licensing costs. Users are free to locate, deploy, and operate airFiber practically anywhere they choose. In addition to standard support TDD and FDD AirFiber come up with new technologies which is HDD (Hybrid Division Duplexing). This, along with other innovative technologies and system AirOS forms a unique connection which is very easy to use and install, which achieves very high data rates at very low latency.
The main advantages of connections are:
- High reliability connection
- Throughput up to 2 Gbps
- Possibility of creating up to 20 km link
- Intelligent QoS
- Easy installation

If you order this product you will receive 1 side of link, so for complete link you need to order 2 units.

Produkto specifikacijos:

Product Specifications
• Operating Frequency: 24.05 - 24.25GHz
• Dimensions: 593 x 768 x 370mm (23.35" x 30.24" x 14.57")
• Weight: 17.3kg (38.14 lbs) - mount included
• Max. Power Consumption: 50W
• Power Supply: 50V, 1.2A PoE GigE Adapter (included)
• Power Method: Passive Power over Ethernet (42-58VDC)
• Operating Temperature: -40° to 55°C (-40° to 131°F)
• Maximum Throughput: 2+ Gbps
• Maximum Range: 20+ km
• Packets per Second: > 1 million
• Uplink / Downlink Ratio: 50% Fixed

Radio Frequency
• GPS: GPS Clock Synchronization
• EIRP: ~33dBm (FCC/IC), ~20dBm (CE)
• Channel Bandwidth: 100 MHz

Product Includes
(1) airFiber AF-24-HD
(1) PoE Adapter
(1) Power Cord
(1) Pole Mount Bracket Assembly
(1) Quick Start Guide
