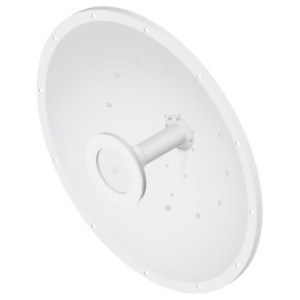

Ubiquiti AirFiberX Antenna AF-3G26-S45

Kodas: AF-3G26-S45
ID: #920

Ubiquiti AF-3G26-S45 AirFiberX 3Ghz Antenna 26dbi, recommended for Ubiquiti AirfiberX Platform

232.10€ su PVM

Kaina be PVM: 191.82€


Produkto savybės:

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).
The airFiber X antenna delivers 2x2, dual-polarity performance. AirFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket™ radio delivers bandwidth to the WISP’s customers.
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial‑strength hardware for outdoor application use.
airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools.
Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.
Secure Pole-Mounting maintains the position of the dish during harsh outdoor conditions.
Protective Shroud protects the cables and connectors from the elements.
The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal‑to‑Noise Ratio (SNR). The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.
The AF-3G26-S45 offers 26 dBi of gain in a 650-mm diameter size.

Produkto specifikacijos:

Model: AF-3G26-S45
Dimensions: 650 x 650 x 300 mm (25.6 x 25.6 x 11.81")
Weight: 9.8 kg (21.61 lb)
Frequency Range: 3.3 - 3.8 GHz
Gain: 26 dBi
+ 45° Beamwidth: 7.3° (3 dB)
- 45° Beamwidth: 7.3° (3 dB)
F/B Ratio: 33 dB
Max. VSWR: 1.4:1
Wind Loading: 787 N @ 200 km/h (177 lbf @125 mph)
Wind Survivability: 200 km/h (125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting Universal: Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
