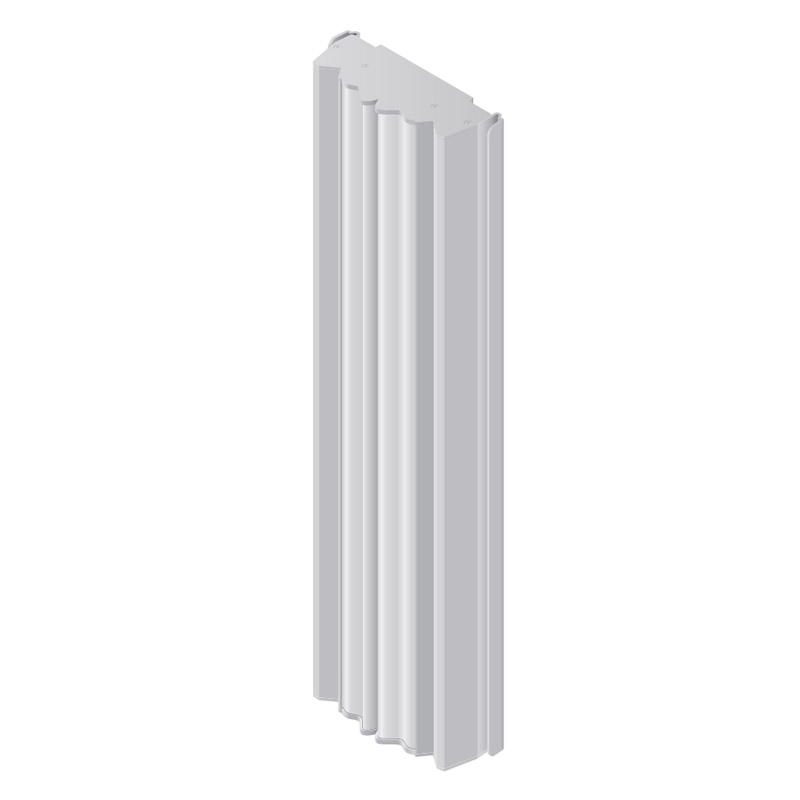

Ubiquiti AM-5AC22-45 22dBi 5AC Sector antenna

Kodas: AM-5AC22-45
ID: #790

Ubiquiti AM-5AC22-45 -5GHz 22dBi 45deg 802.11AC Sector Antenna (2x2 MiMO)

170.83€ su PVM

Kaina be PVM: 141.18€


Produkto savybės:

The airMAX® 802.11ac Sector Antenna is a 2x2 MIMO sector antenna from Ubiquiti Networks that features significant advances in scalability, noise isolation, and beam performance to complement the Rocket™ 5ac radios.

The airMAX 802.11ac Sector Antenna is highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

Produkto specifikacijos:

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation and beam performance to complement the Rocket5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Frequency Range: 5.10-5.85 GHz
Gain: 22dBi
Polarization: Dual Linear
Cross-pol Isolation: 25dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 45 deg.
Vpol Beamwidth (6dB): 45 deg.
Elevation Beamwidth: 4 deg.
Electrical Downtilt: 2 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 29.53 x 8.47 x 3.70in (750 x 215 x 94mm)
Weight: 13.23 lbs (6.0kg)
